Helicopter Servo CYS-BLS3310-02 5kg High Speed Torque 6v 7.4v 0.03sec Digital Metal Gear 500 Classes Helicopter Tail Servo
- Sale price
- $105.60
- Regular price
-
- Regular price
- $105.60
- Unit price
- per
-0%
Vendor: roboticu
Only
999
items in stock!
Out of stock!
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
|
Item NO.
|
CYS-BLS3310
|
|
Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
43g
|
|

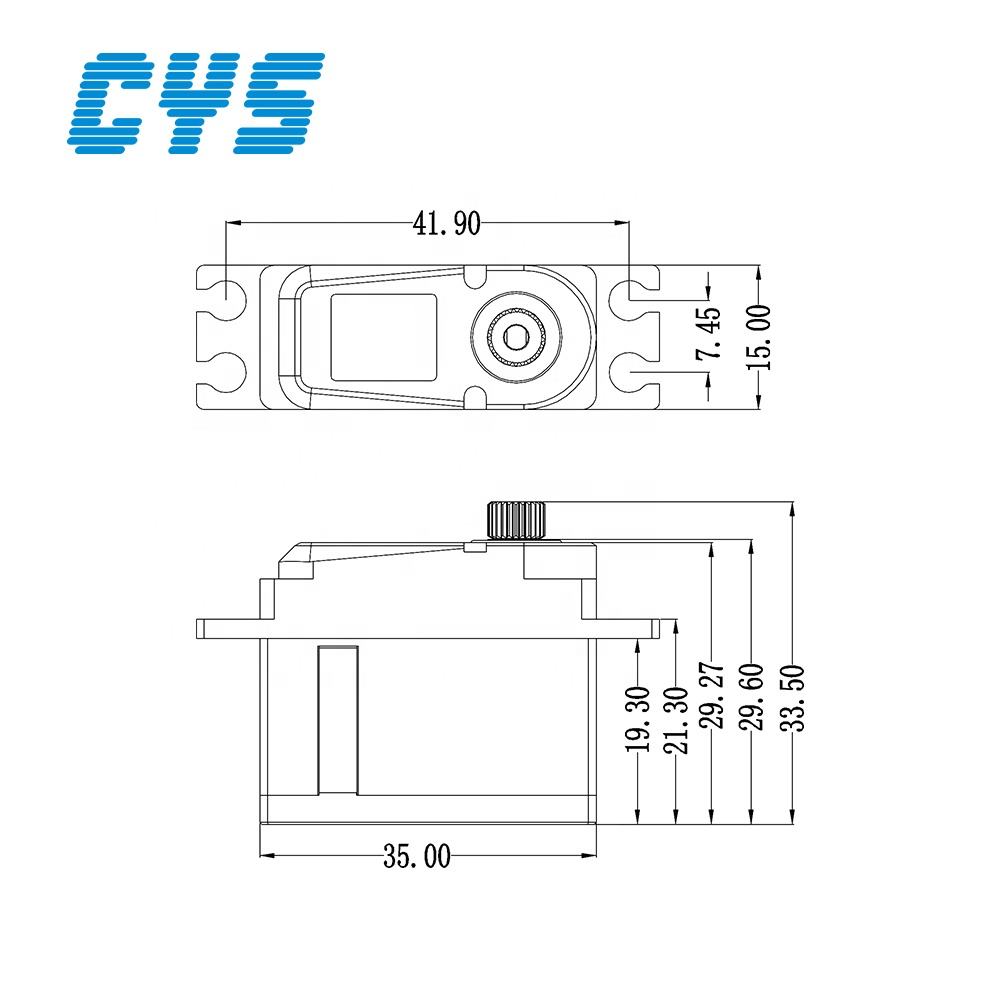

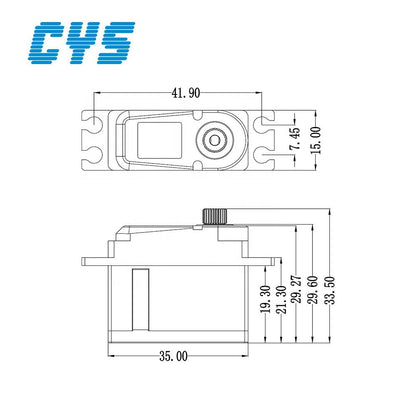

Size
|
35*15*29.5mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|

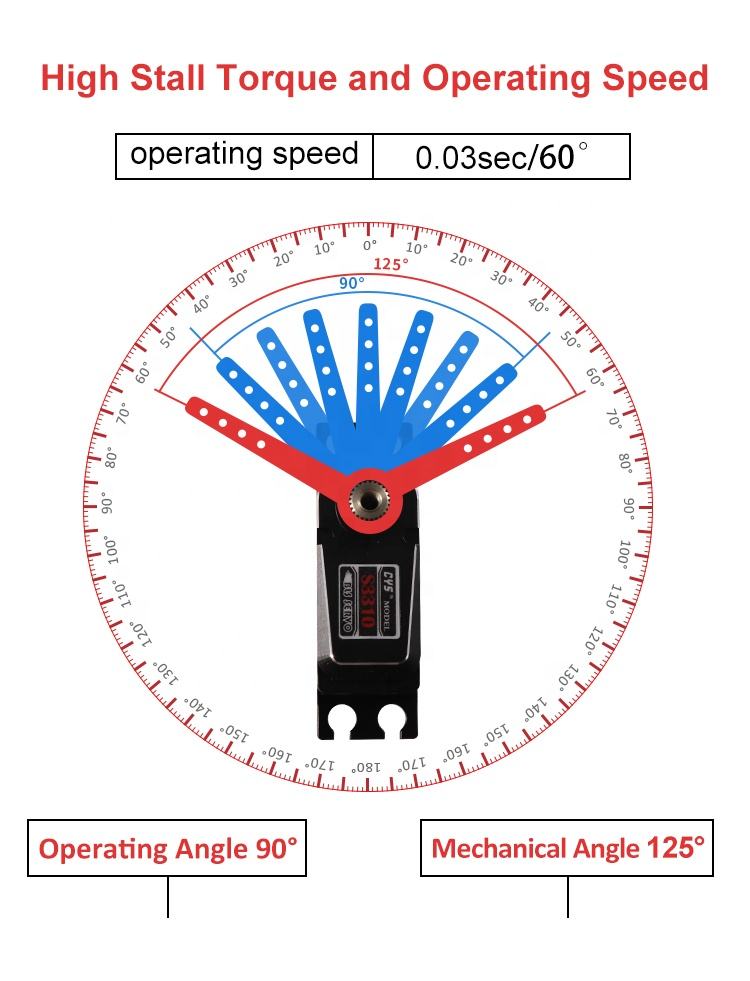

Operating Speed @ 6.0V-7.4V
|
0.04sec - 0.03sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
4.0kg.cm-5.0kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
3.0A/3.6A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
Dual Ball Bearing
|
|
Motor Type
|
Brushless
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
