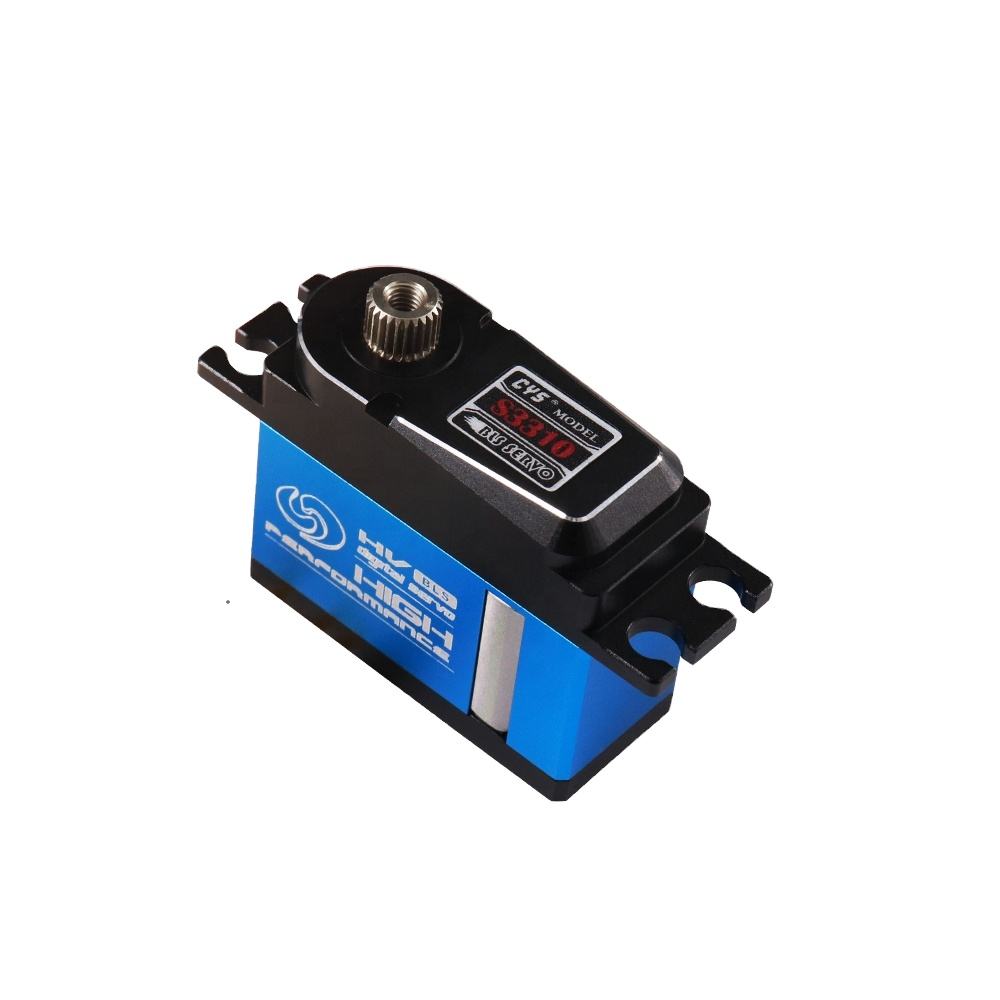

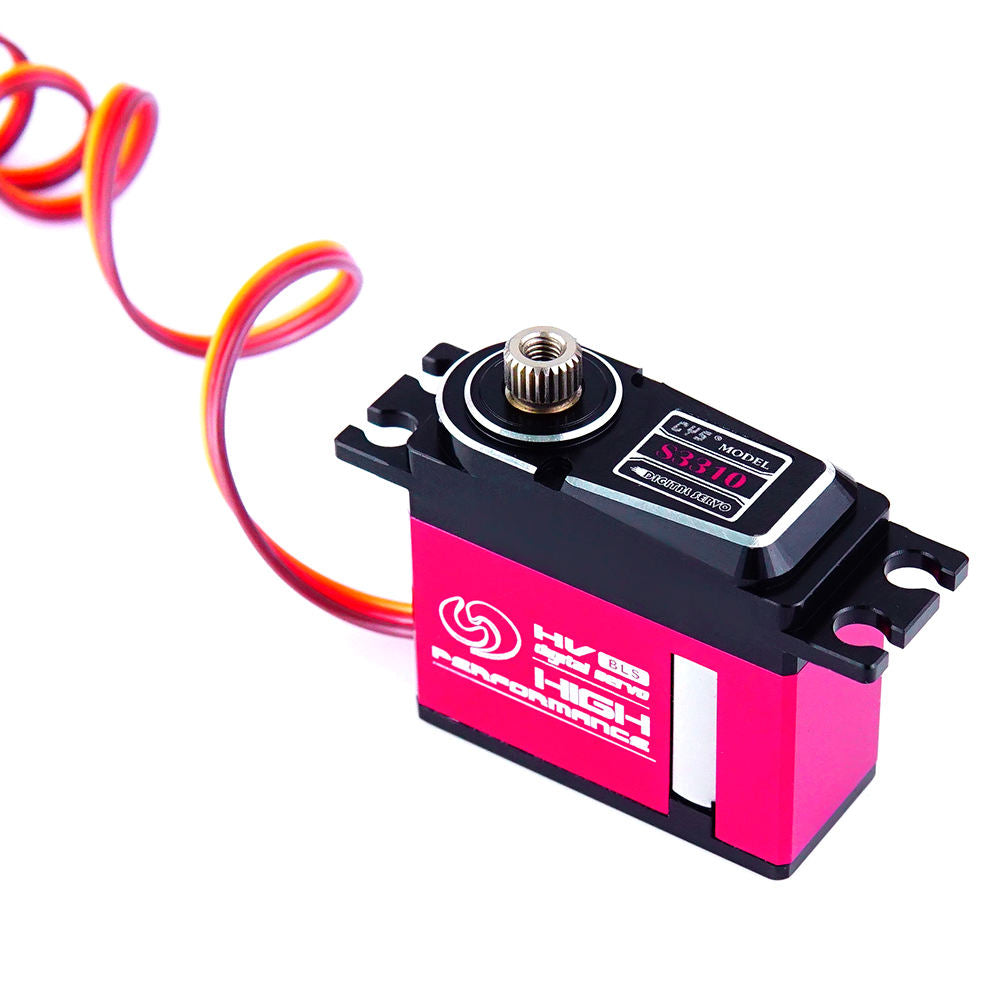

Helicopter Servo CYS-BLS3310-03 China Manufacturer Mini Servo 5 kg Torque Full Metal Brushless Motor Servo with Titanium Gear -550 Rc Aircraft Modelfor 500
Helicopter Servo CYS-BLS3310-03 China Manufacturer Mini Servo 5 kg Torque Full Metal Brushless Motor Servo with Titanium Gear -550 Rc Aircraft Modelfor 500
Regular price
$102.90 USD
Regular price
Sale price
$102.90 USD
|
Item NO.
|
CYS-BLS3310
|
|
Type
|
Digital Servo
|
|
Gear Type
|
Full Aluminium Case
|
|
Weight
|
43g
|
|
Size
|
40*15*29.5mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.04sec -0.03sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
4kg.cm-5kg.cm
|
|
Current Drain (6.0V)
|
20 mA/idle and 120 mA no load operating
|
|
Current Drain (7.4V)
|
20 mA/idle and 150 mA no load operating
|
|
Stall Current
|
2.6A/3A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Brushless Motor
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
