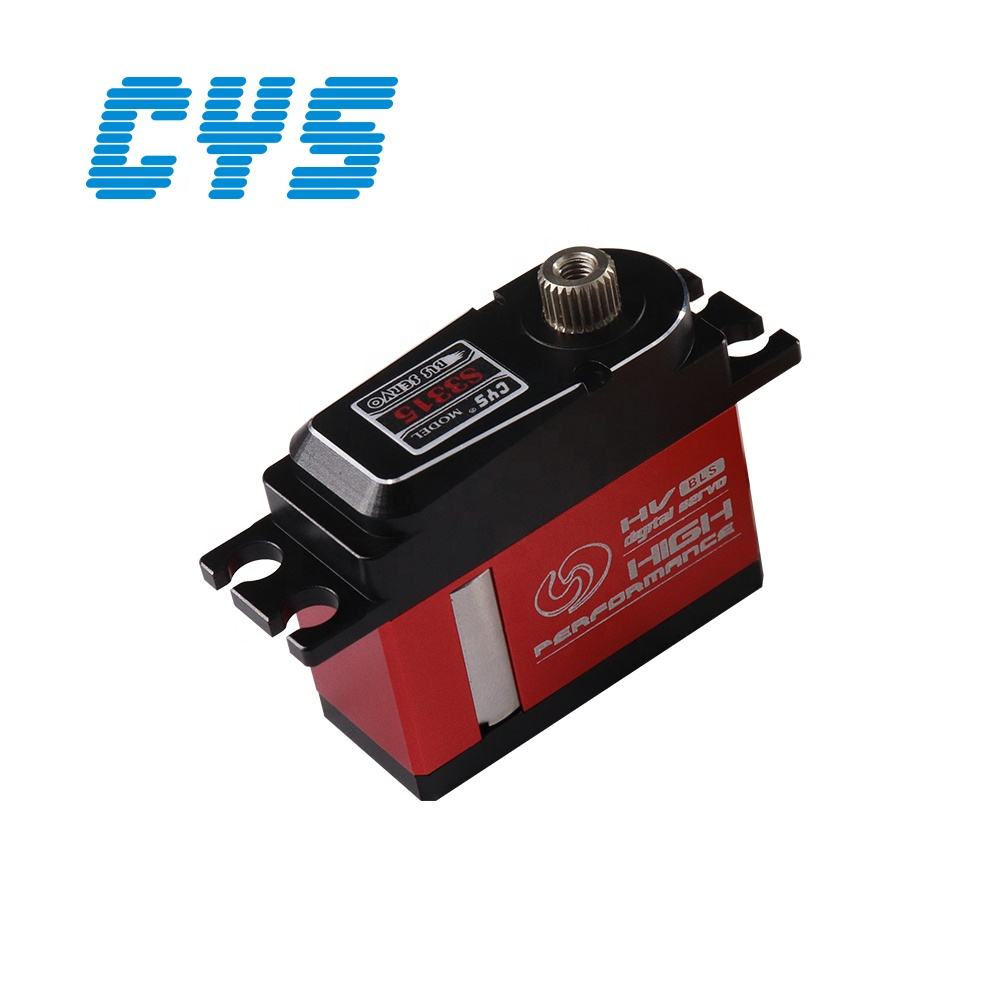

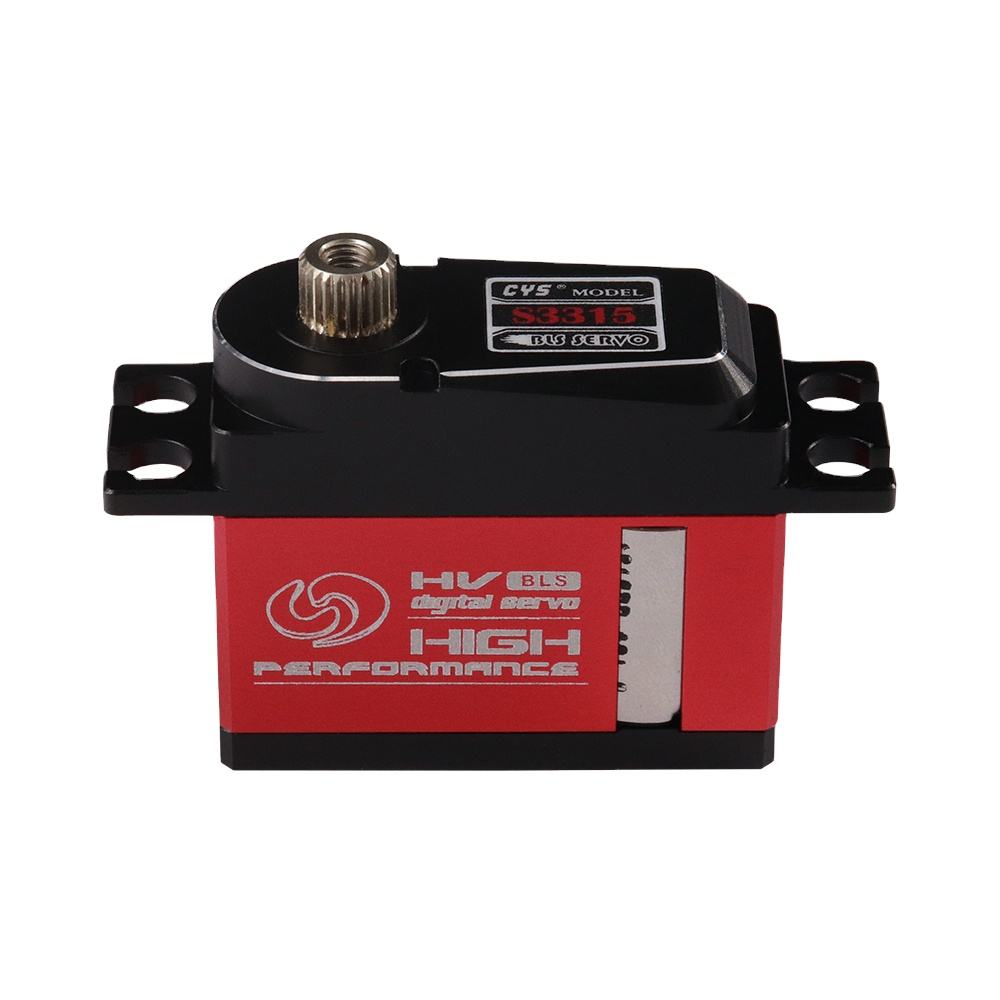

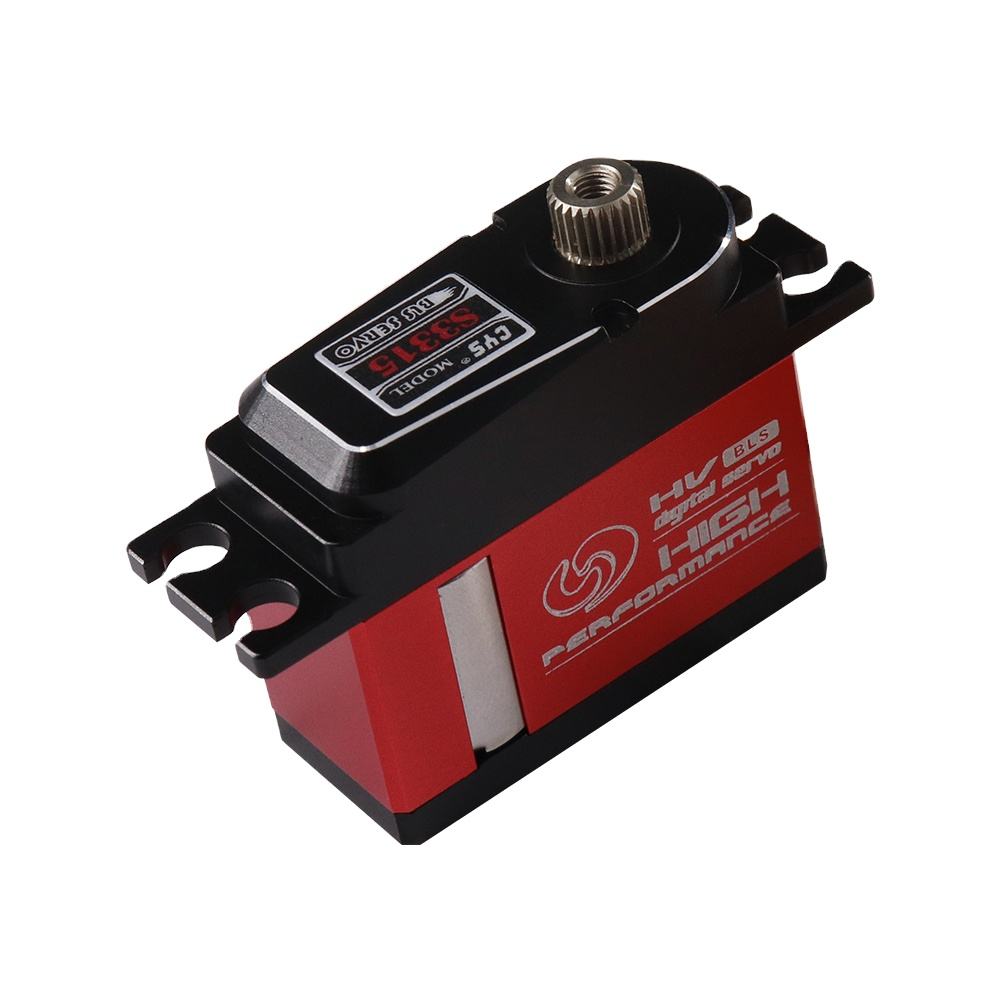

Helicopter Servo CYS-BLS3315-03 Unisex 8kg Mini Full Metal RC Helicopter High-Speed 500-550 Servo Digital Brushless Titanium Gear 7.4V 35mm Toy for
Helicopter Servo CYS-BLS3315-03 Unisex 8kg Mini Full Metal RC Helicopter High-Speed 500-550 Servo Digital Brushless Titanium Gear 7.4V 35mm Toy for
Regular price
$112.50 USD
Regular price
Sale price
$112.50 USD
|
Item NO.
|
CYS-BLS3315
|
|
Type
|
digital
|
|
Gear Type
|
Titanium Gear
|
|
Weight
|
43g
|
|

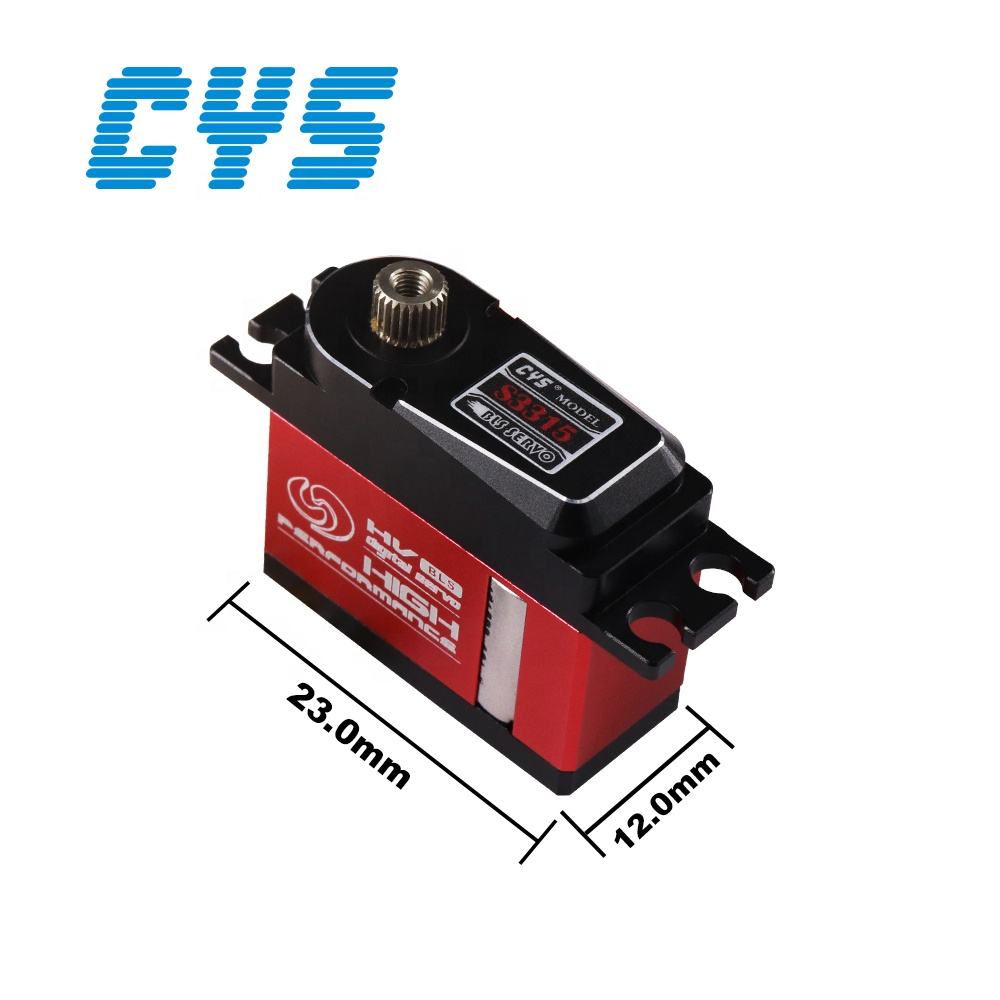

Size
|
35*15*29.5mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.07sec/60° / 0.06sec/60°
|
|
Stall Torque @ 6.0V -7.4V
|
7kg.cm-8kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
2.9A/3.6A
|
|
Dead Band Width
|
2usec
|
|
Bearing Type
|
/
|
|
Motor Type
|
Brushless Motor
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
