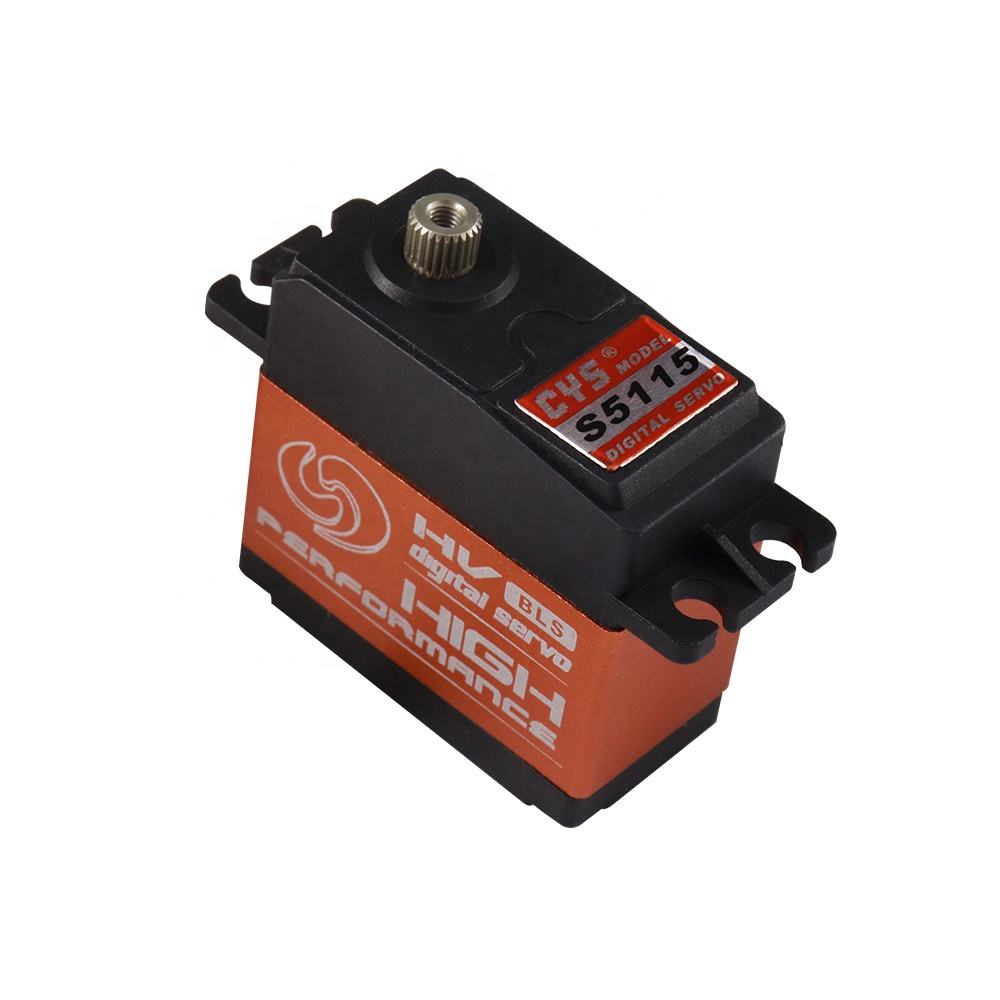

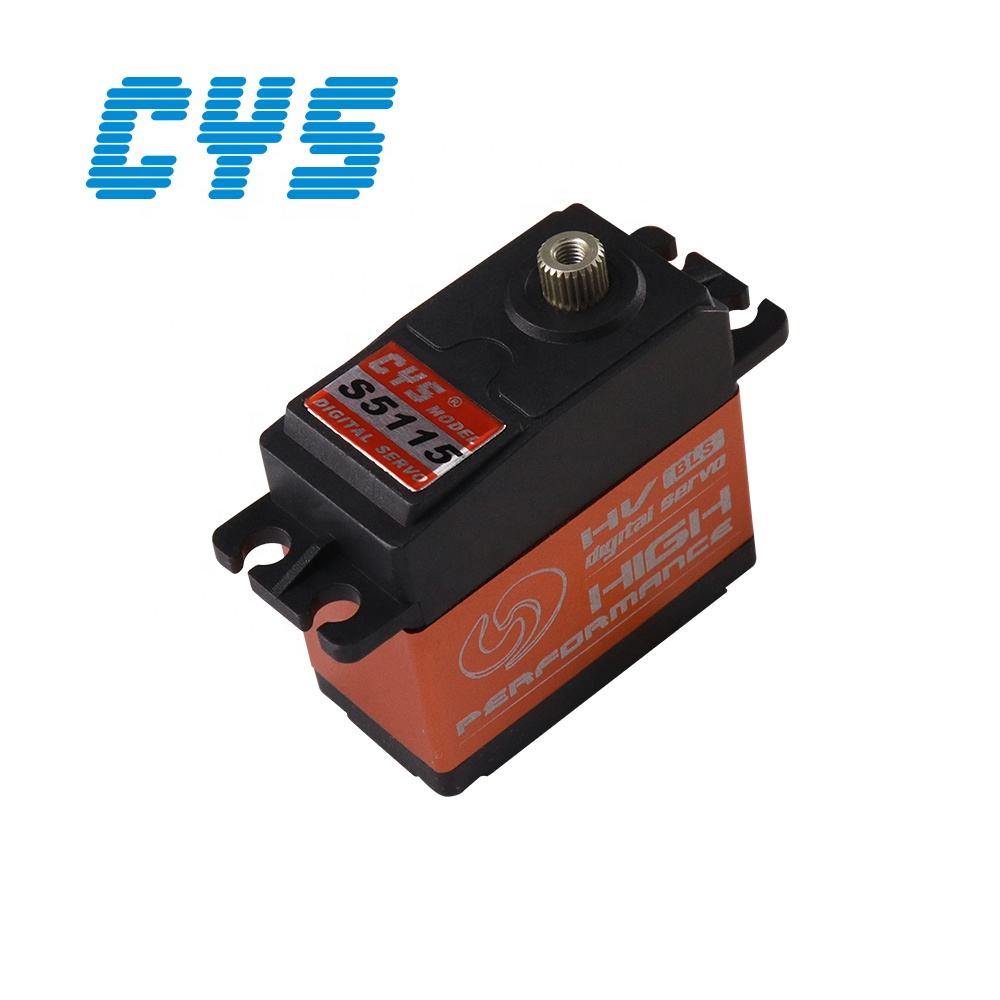

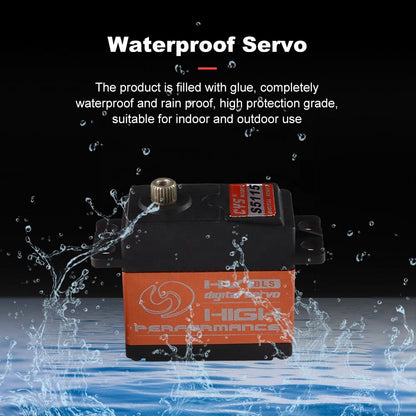

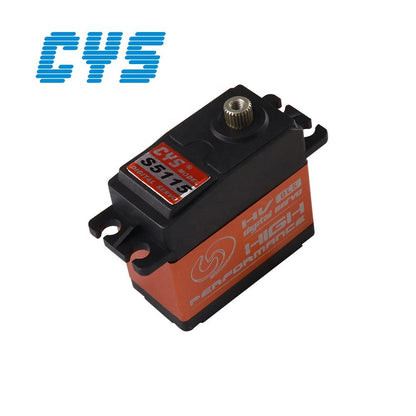

Helicopter Servo CYS-BLS5115-02 High-Tech 7.4V 15kg Brushless RC Aluminum Middle Case Waterproof Digital Servo Steel Gear for Standard Size RC Boat Truck
Helicopter Servo CYS-BLS5115-02 High-Tech 7.4V 15kg Brushless RC Aluminum Middle Case Waterproof Digital Servo Steel Gear for Standard Size RC Boat Truck
Regular price
$96.00 USD
Regular price
Sale price
$96.00 USD
|
Item No.
|
CYS-BLS5115
|
|
Control Type
|
Digital
|
|
Gear Type
|
Steel
|
|
Weight
|
64g±1g
|
|
Size
|
40x20x39mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.08 sec/60° - 0.07 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
13.0 kg.cm - 15.0 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
3.0A/3.5A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Brushless
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
