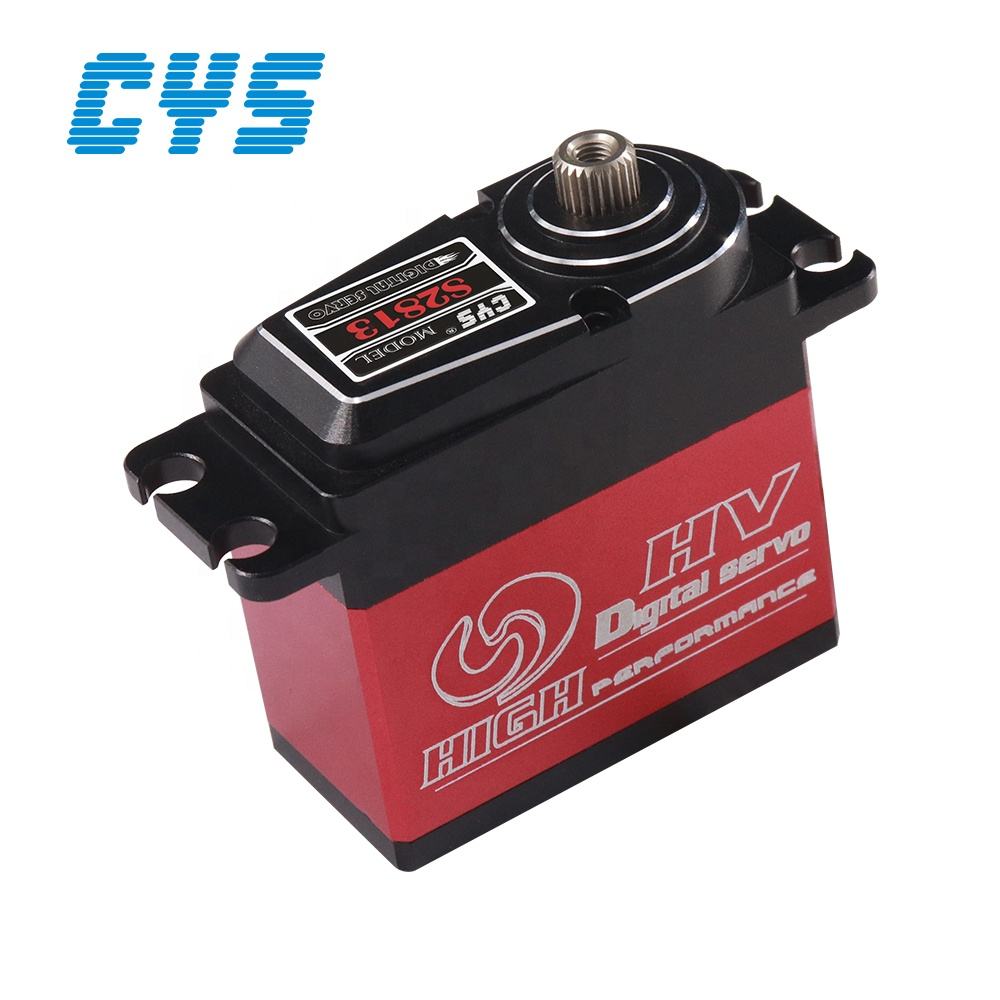

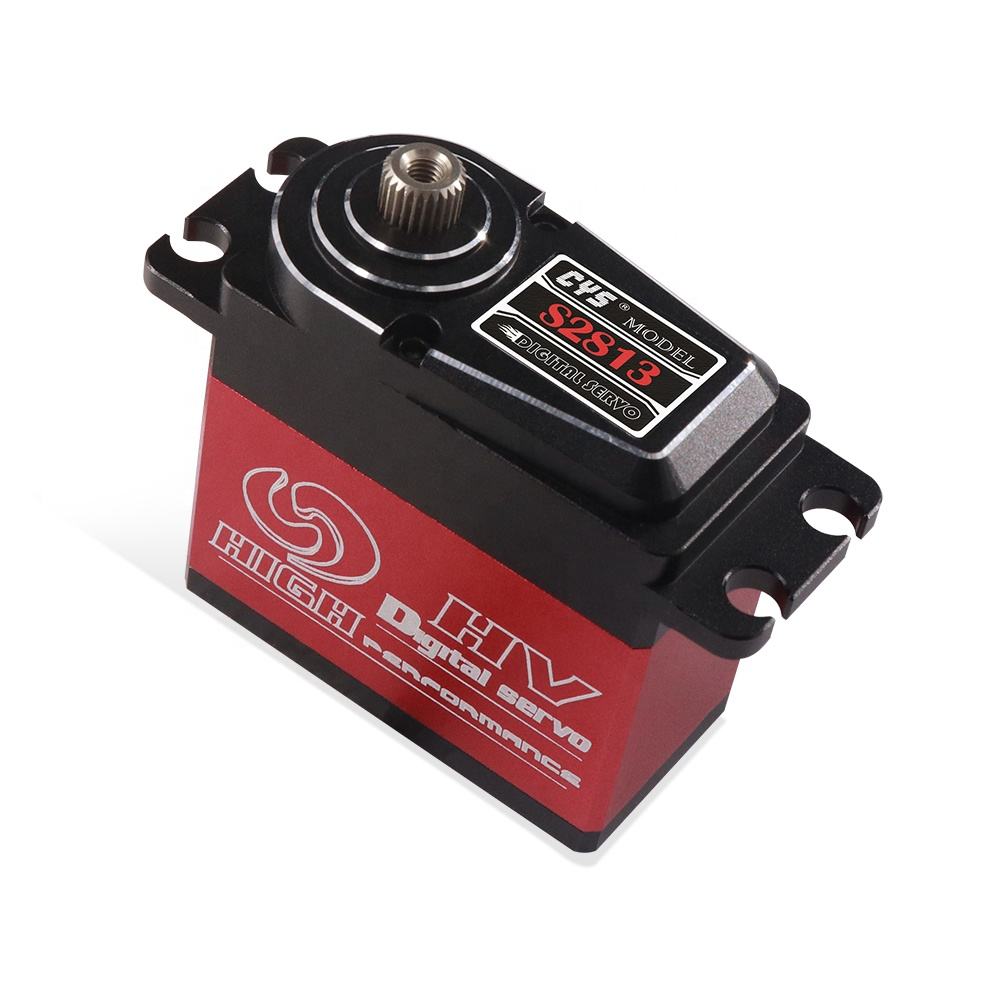

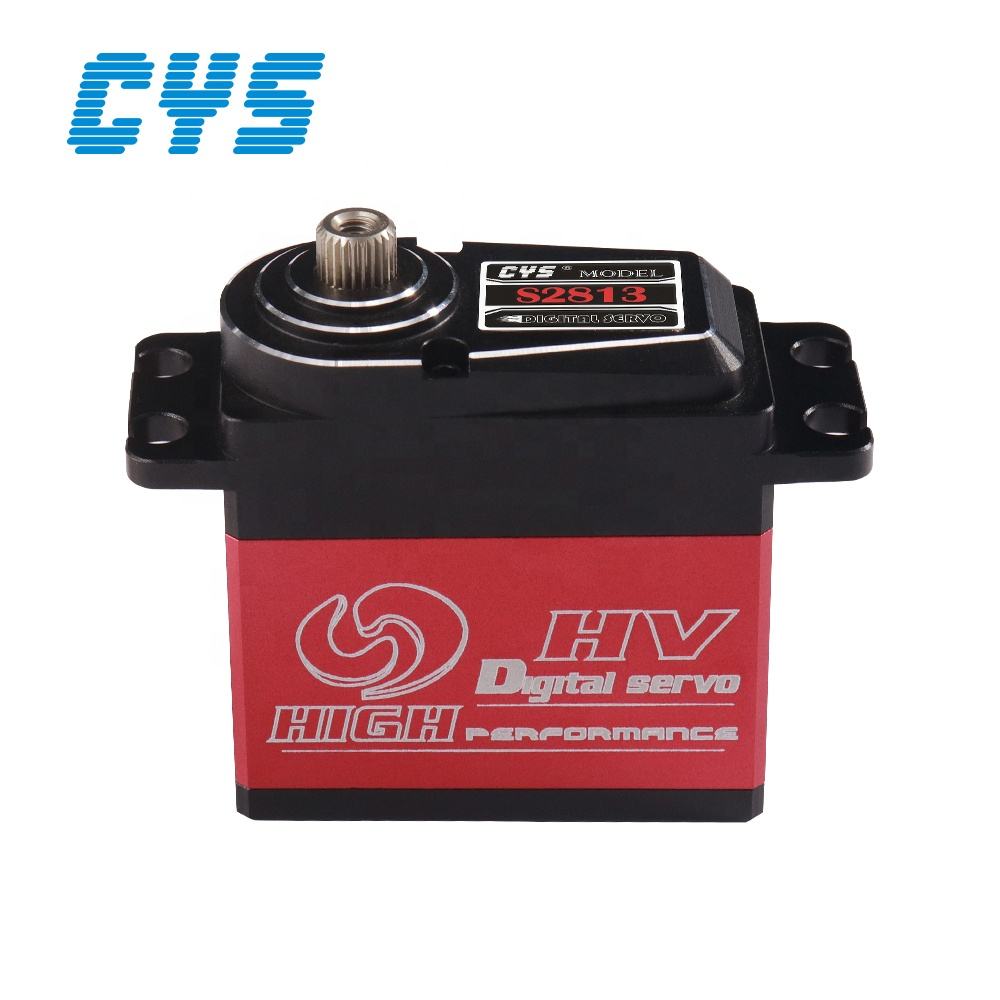

Helicopter Servo CYS-S2813 China Factory Sale 72g 13kg High Speed Waterproof Servo RC Car Plane Full Metal Case Coreless Titanium RC Parts Accs
Helicopter Servo CYS-S2813 China Factory Sale 72g 13kg High Speed Waterproof Servo RC Car Plane Full Metal Case Coreless Titanium RC Parts Accs
Regular price
$96.00 USD
Regular price
Sale price
$96.00 USD
|
Item NO.
|
CYS-S2813
|
|
Type
|
digital
|
|
Gear Type
|
Titanize Gear
|
|
Weight
|
72g
|
|

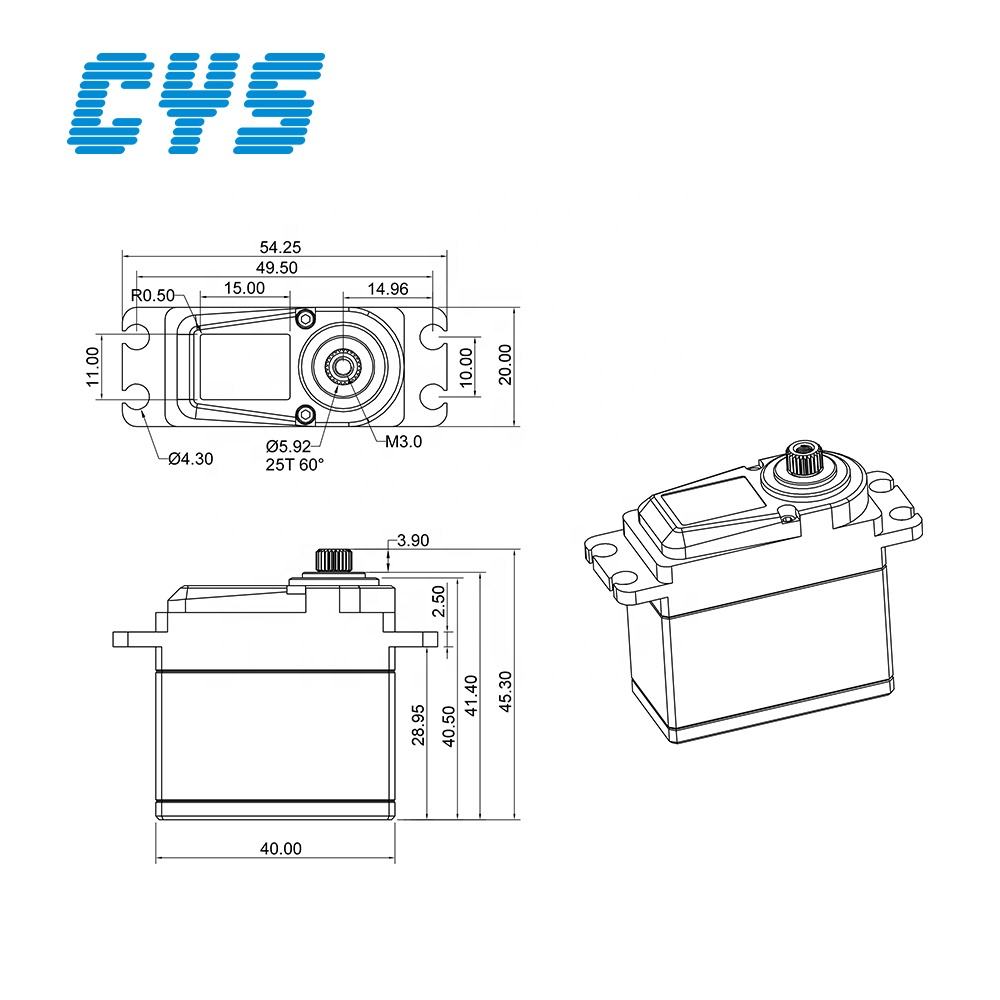

Size
|
40*20*41.4mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.13sec/60° / 0.11sec/60°
|
|
Stall Torque @ 6.0V -7.4V
|
12kg.cm-13kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 120mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 150mA no load operating
|
|
Stall Current
|
2.3A/2.5A
|
|
Dead Band Width
|
2usec
|
|
Bearing Type
|
/
|
|
Motor Type
|
Coreless Motor
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
