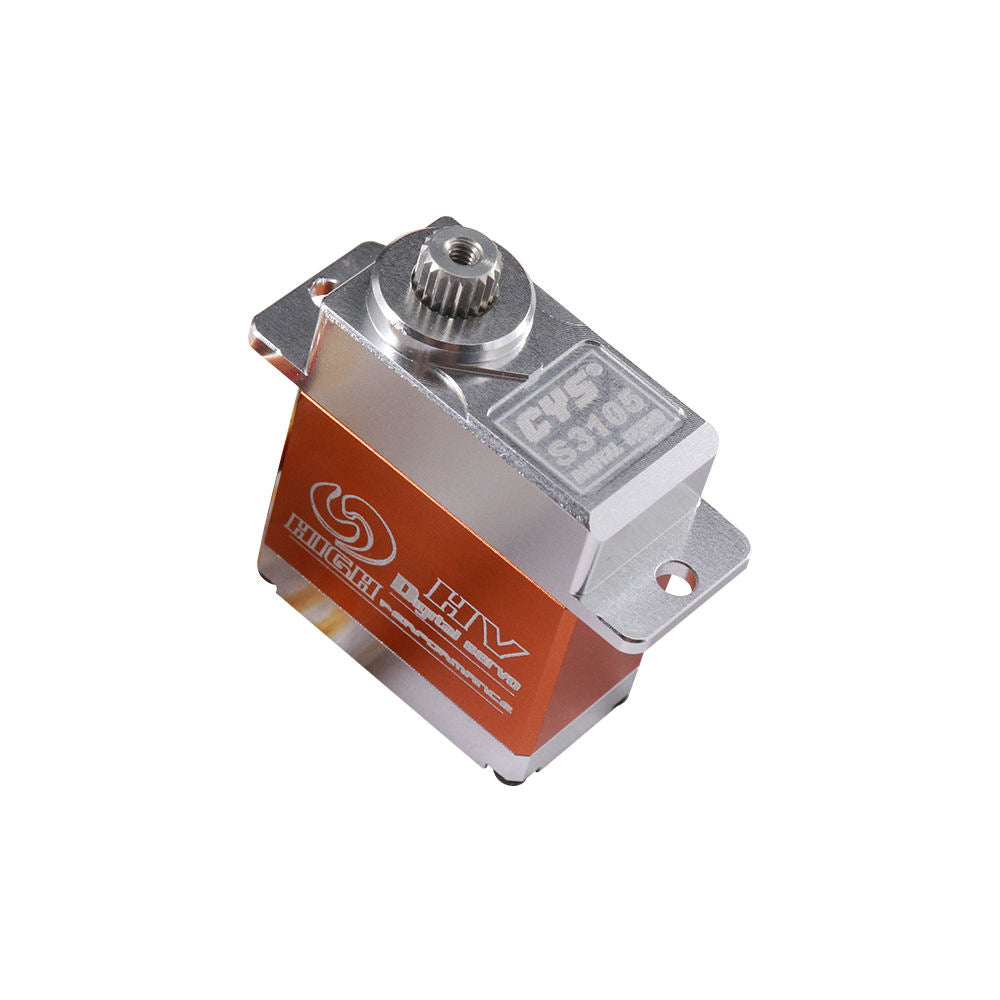

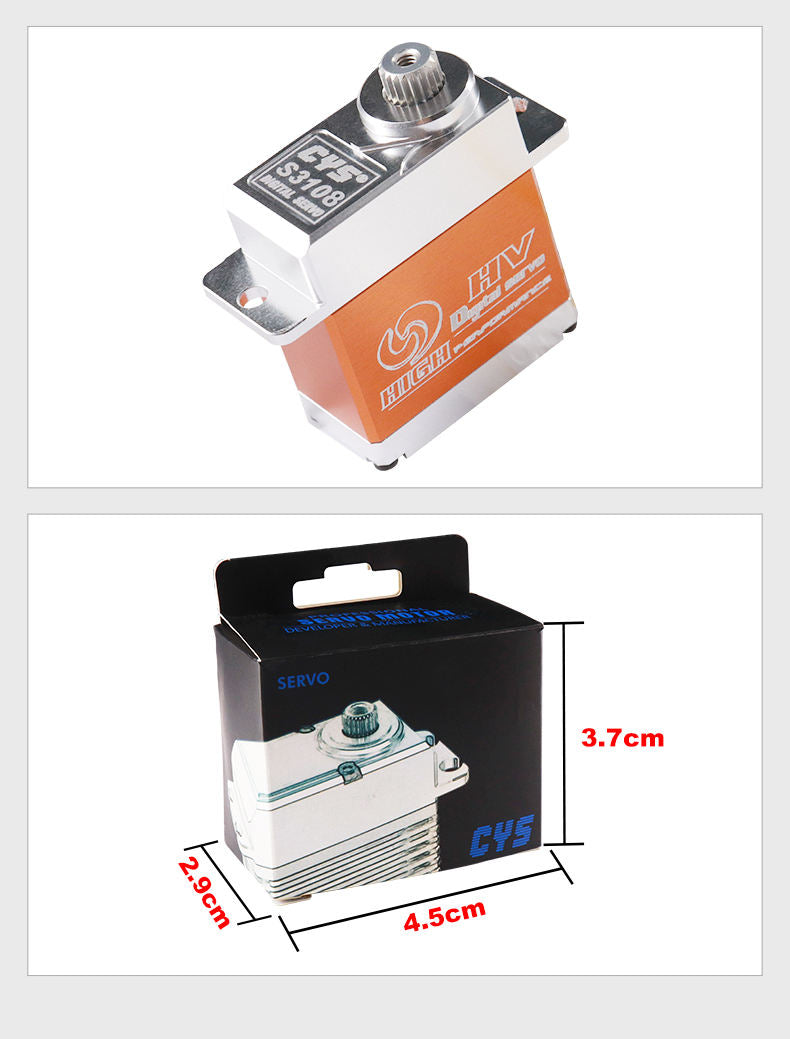

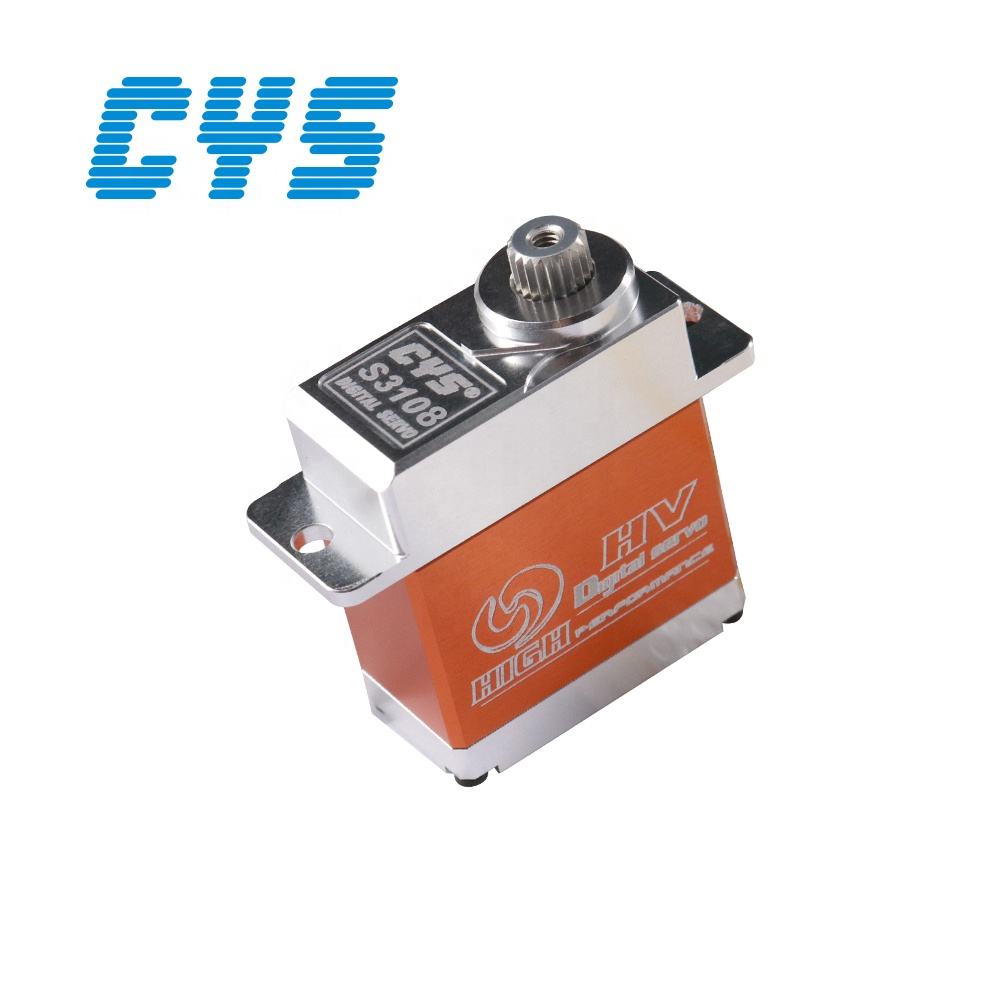

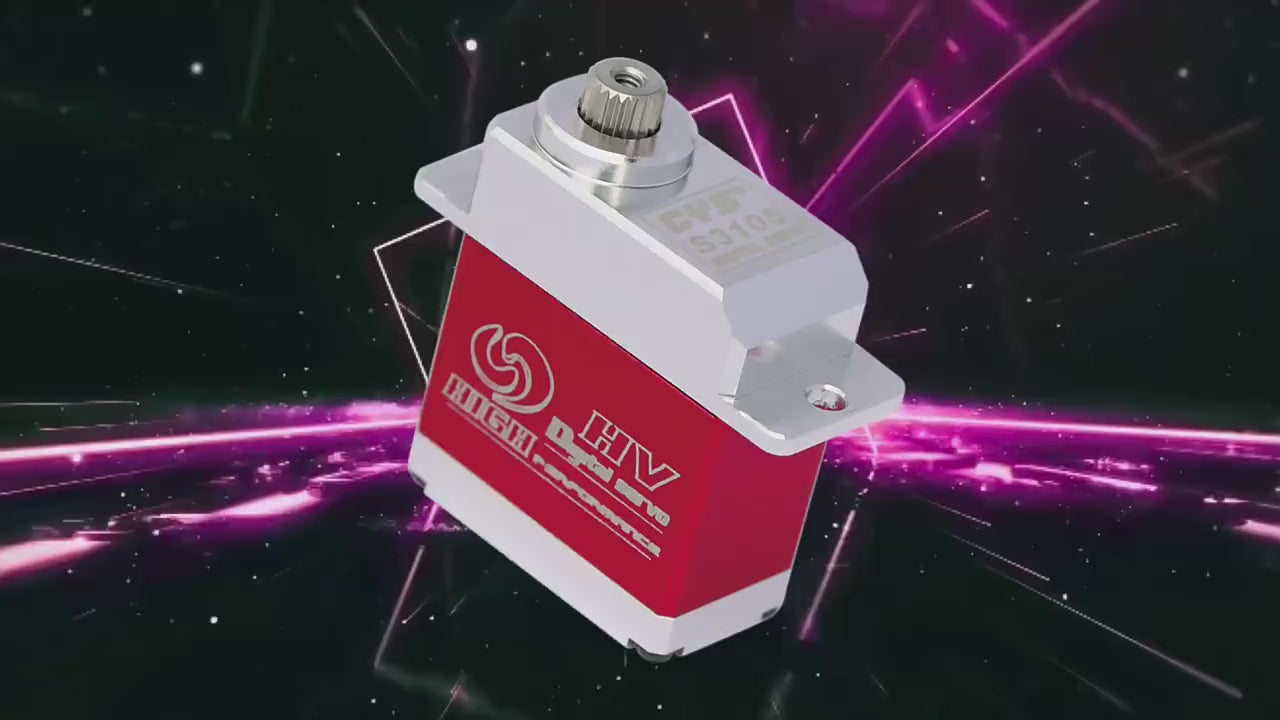

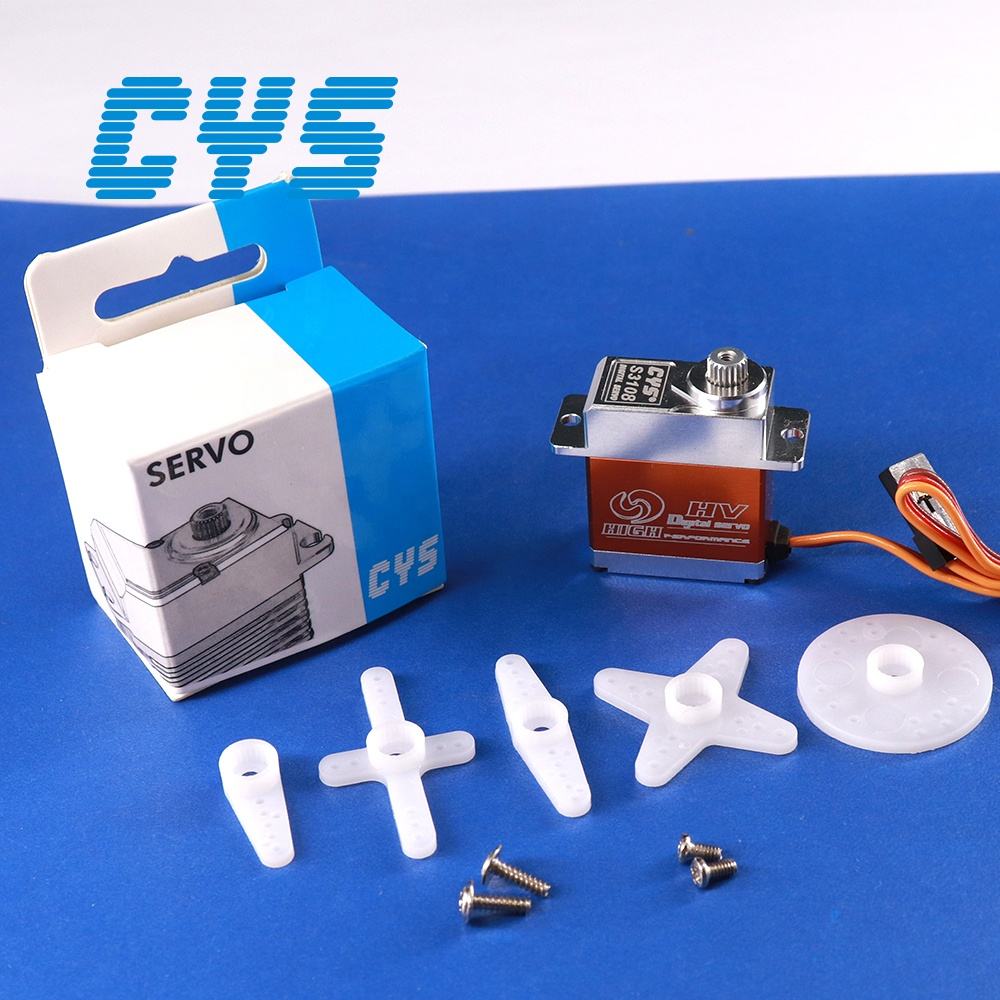

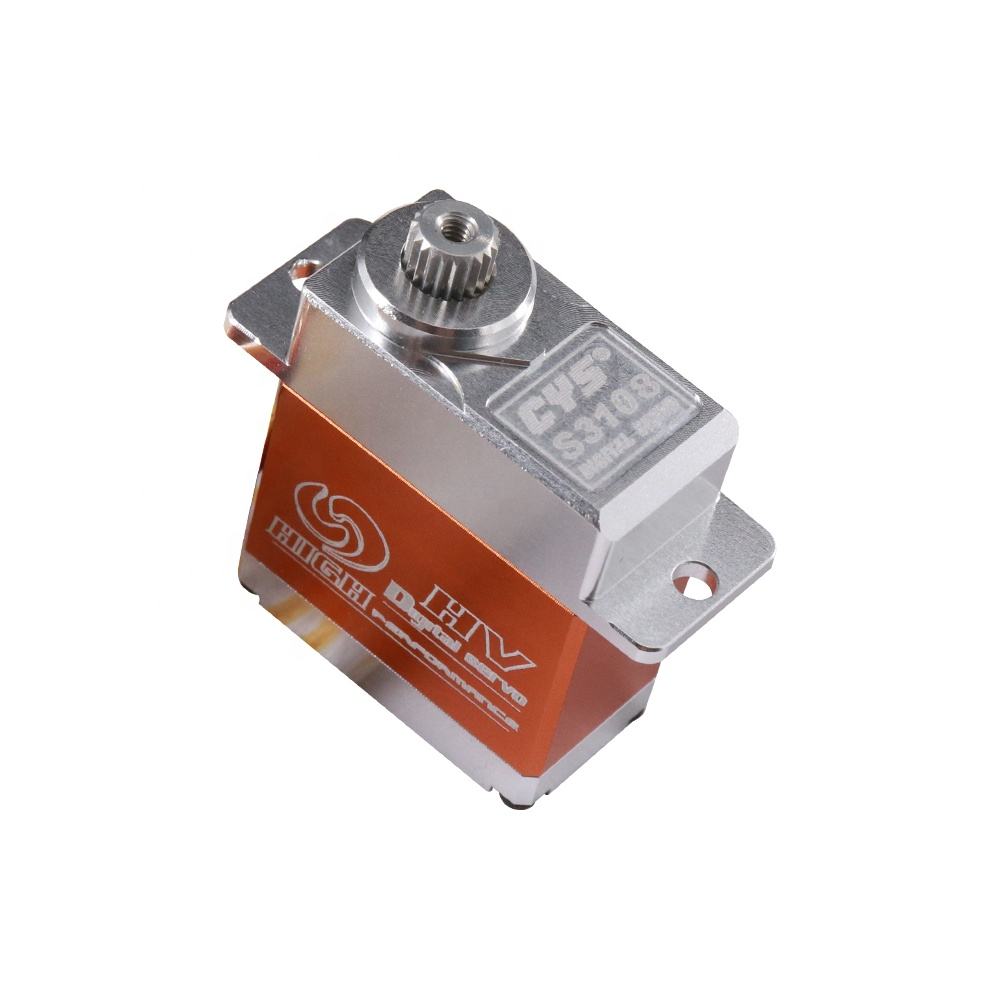

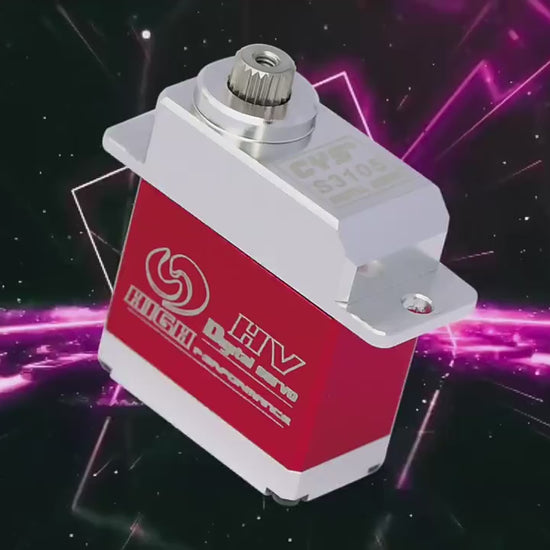

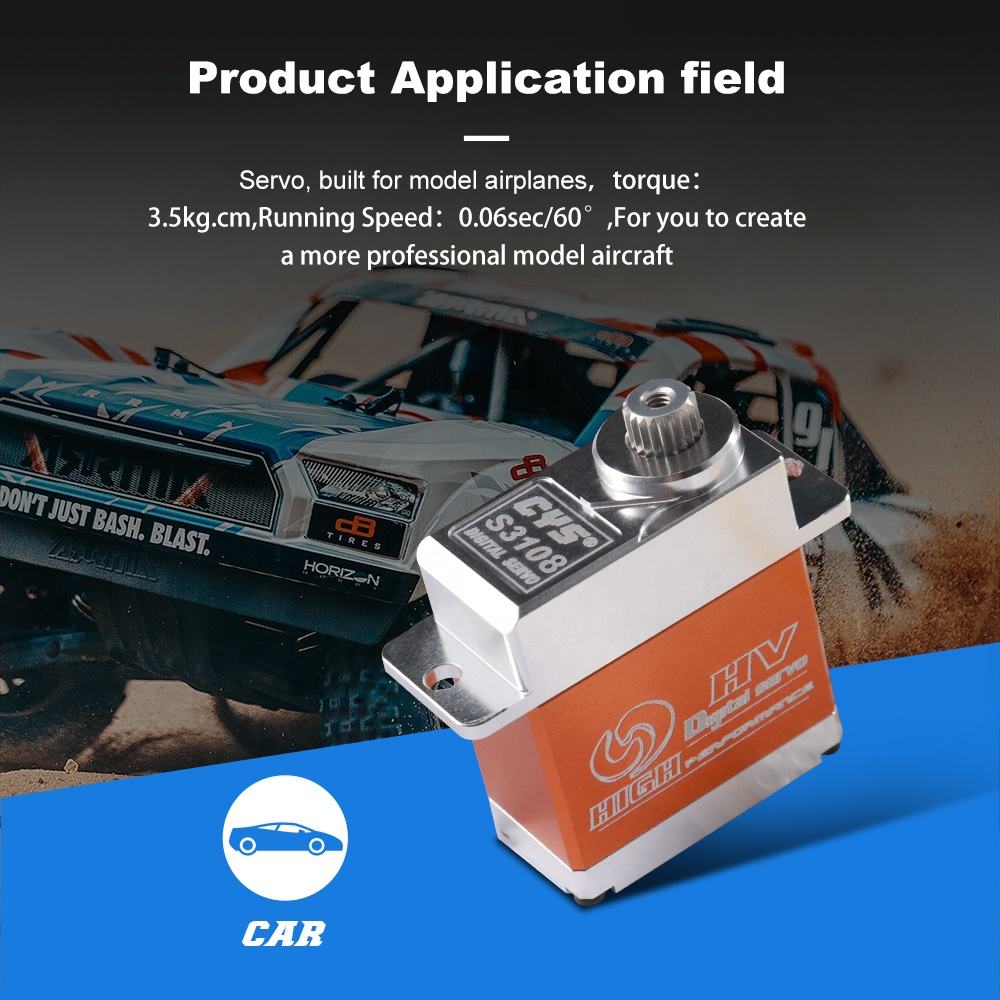

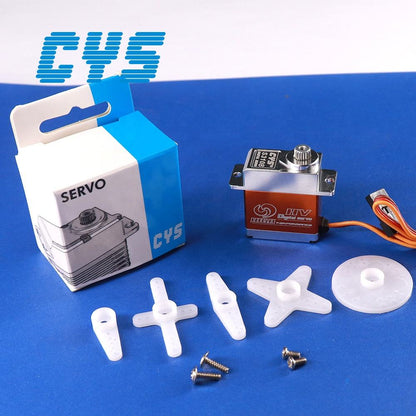

Helicopter Servo CYS-S3108-05 Servo 4.5KG 0.06sec High Speed Full Cnc Metal Case and Titanium Gear Coreless Servo for 450 Rc Helicopter
- Sale price
- $63.00
- Regular price
-
- Regular price
- $63.00
- Unit price
- per
-0%
Vendor: roboticu
Only
999
items in stock!
Out of stock!
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
|
Item No.
|
CYS-S3108
|
|
Control Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
20g±1g
|
|

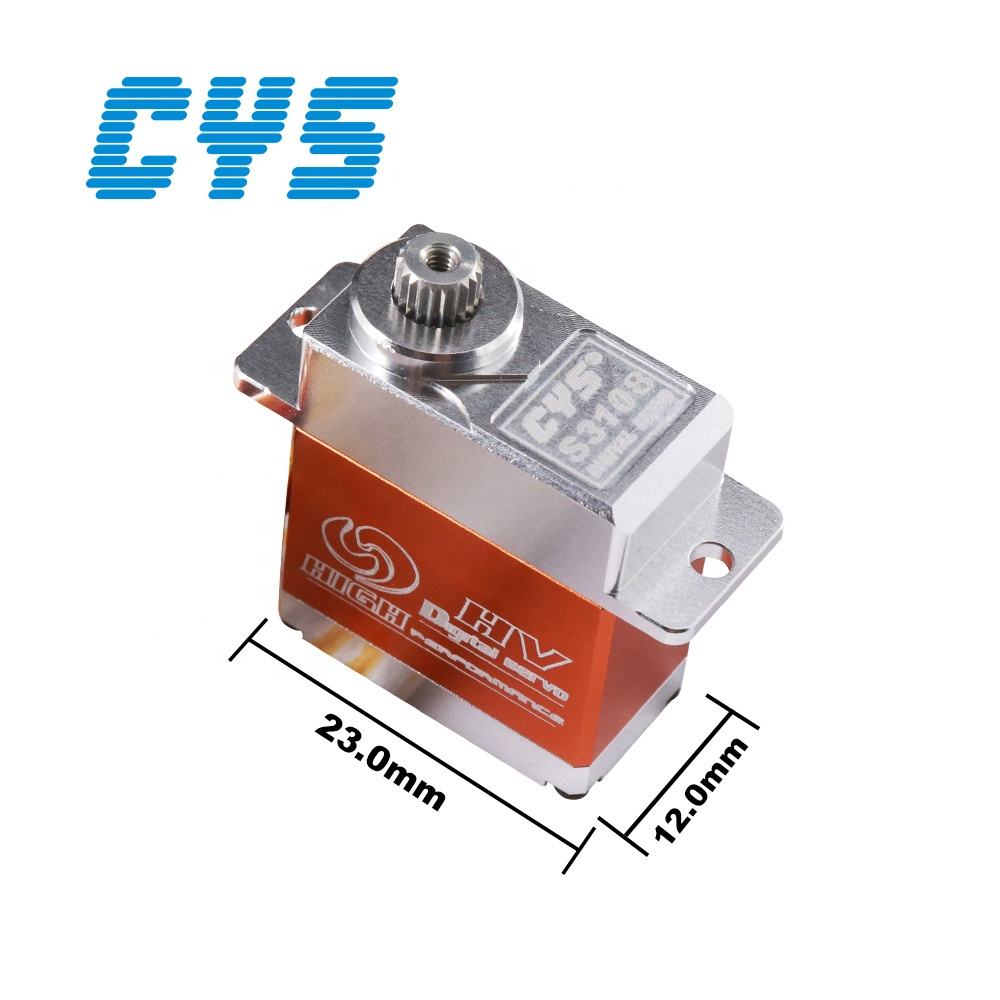

Size
|
23x12x28.56mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.08 sec/60° - 0.06 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
3.5 kg.cm - 4.5 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
1.3A/1.5A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
Single Ball Bearing
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
21T
|
|
Cable/Plug
|
180mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
