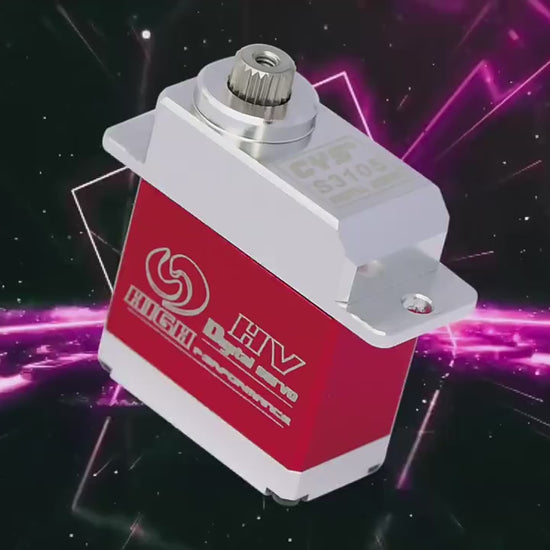

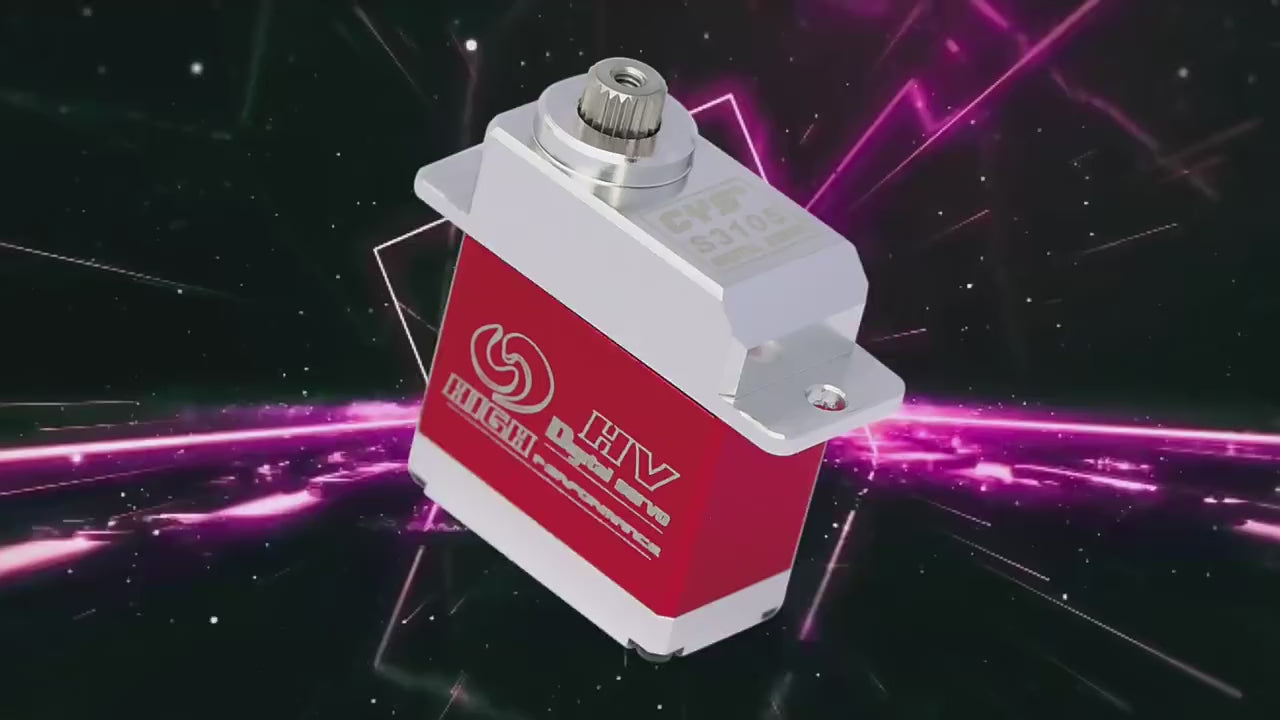

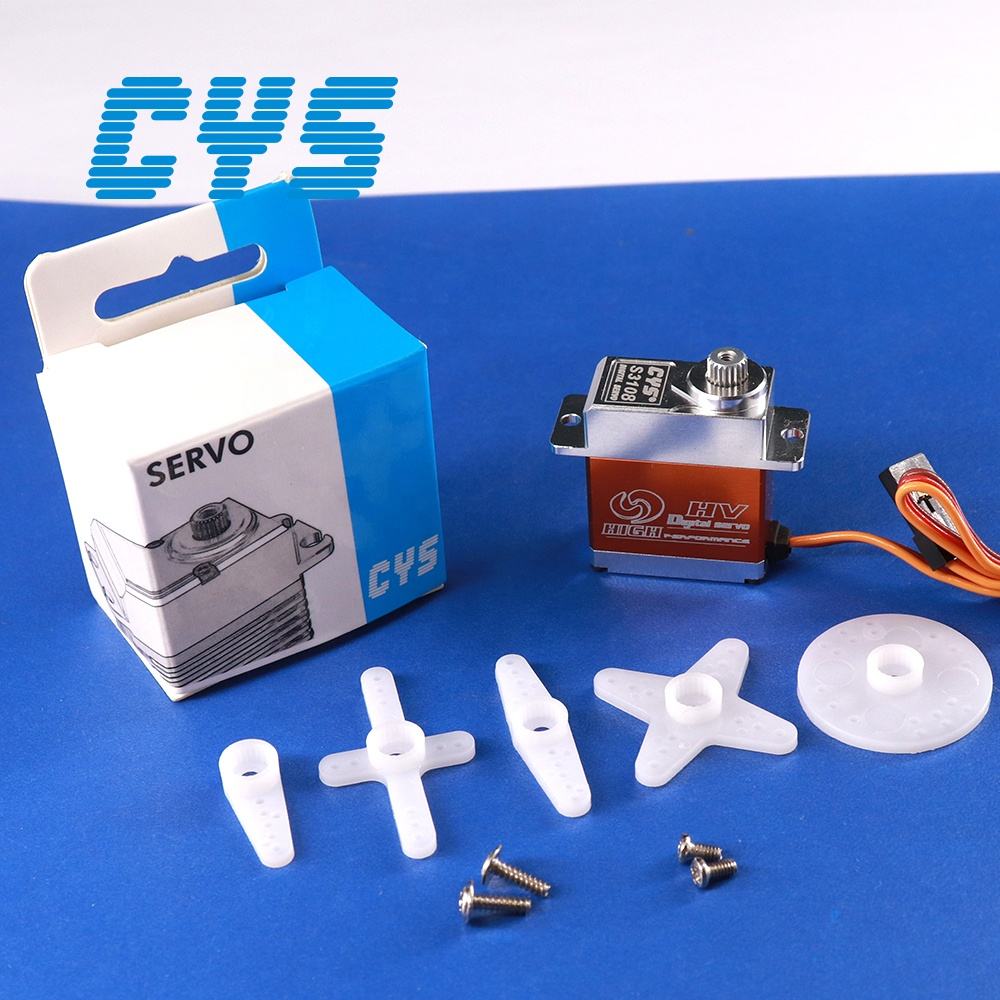

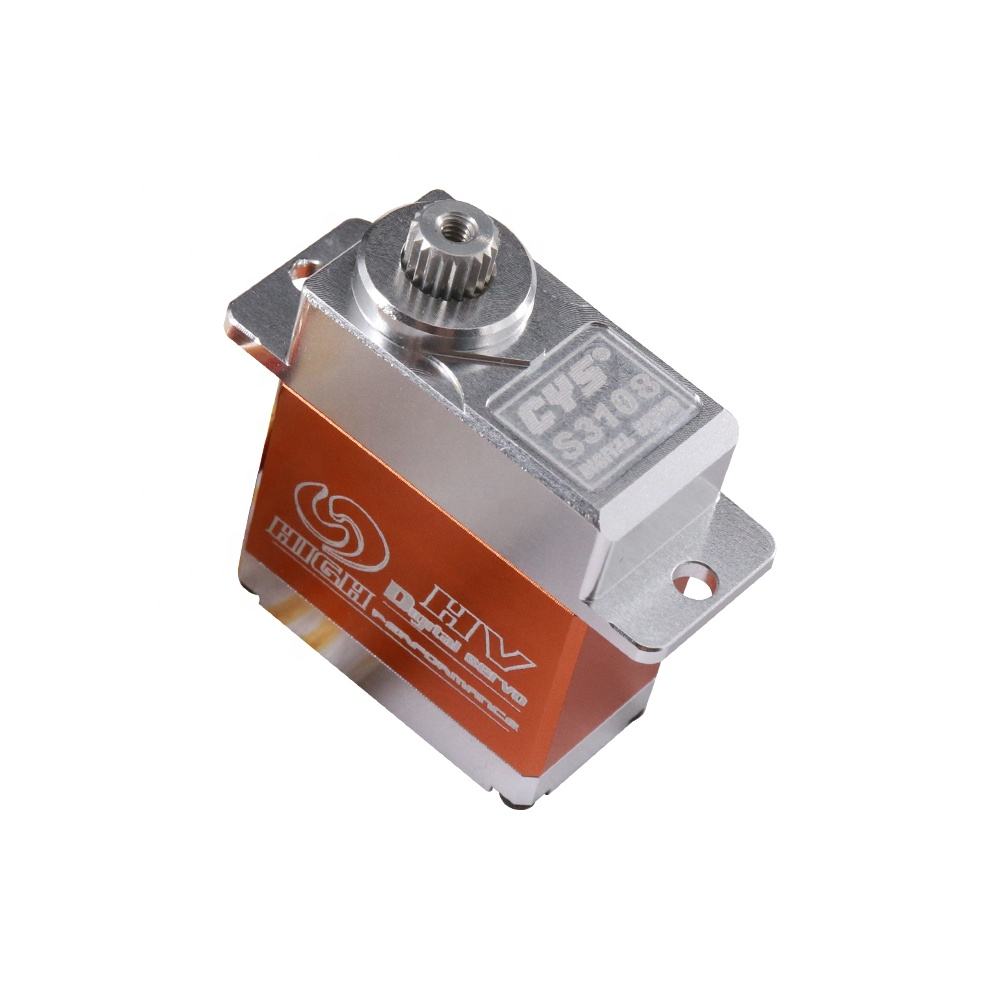

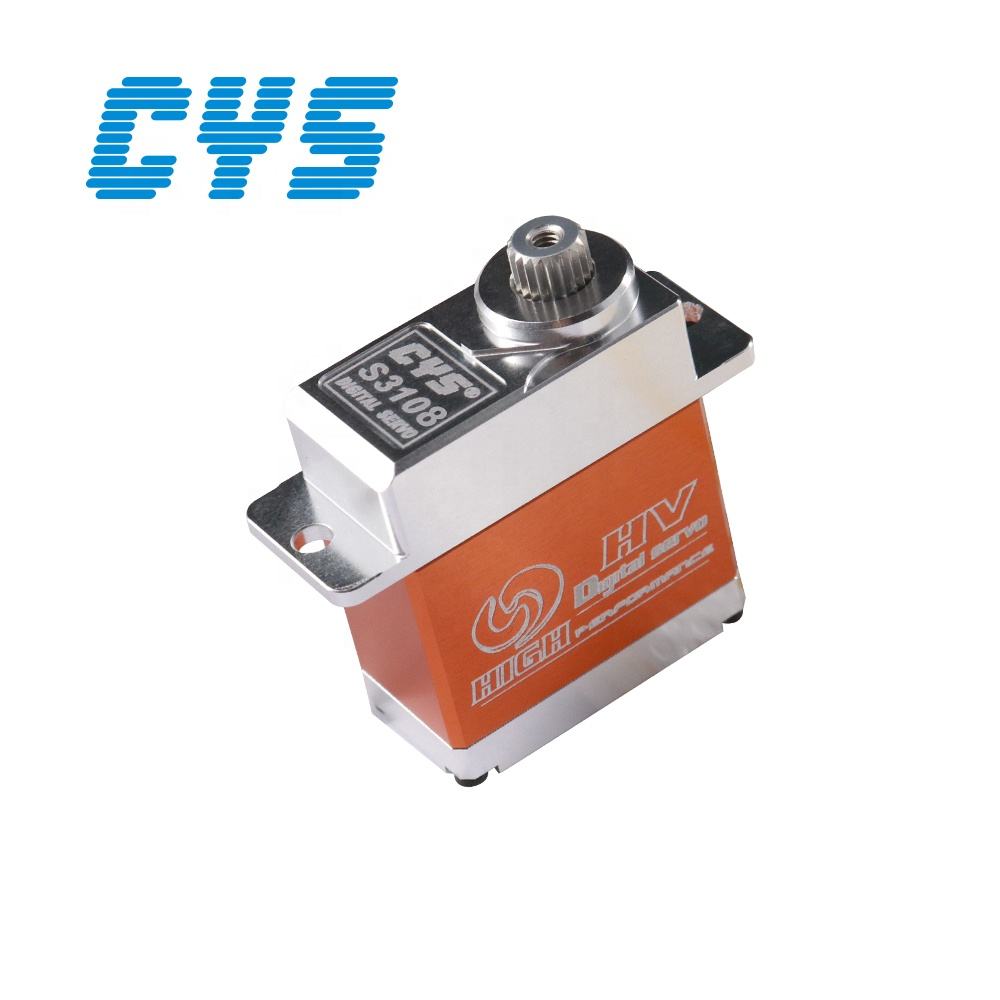

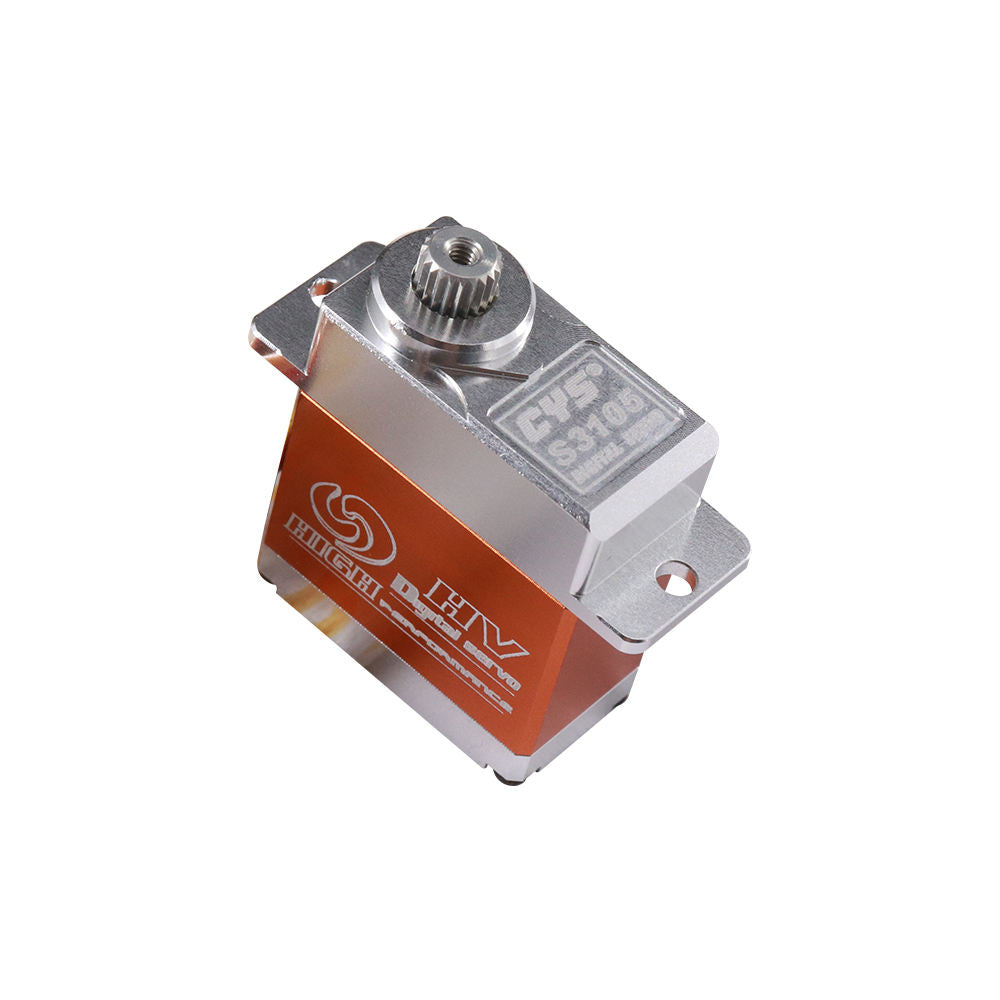

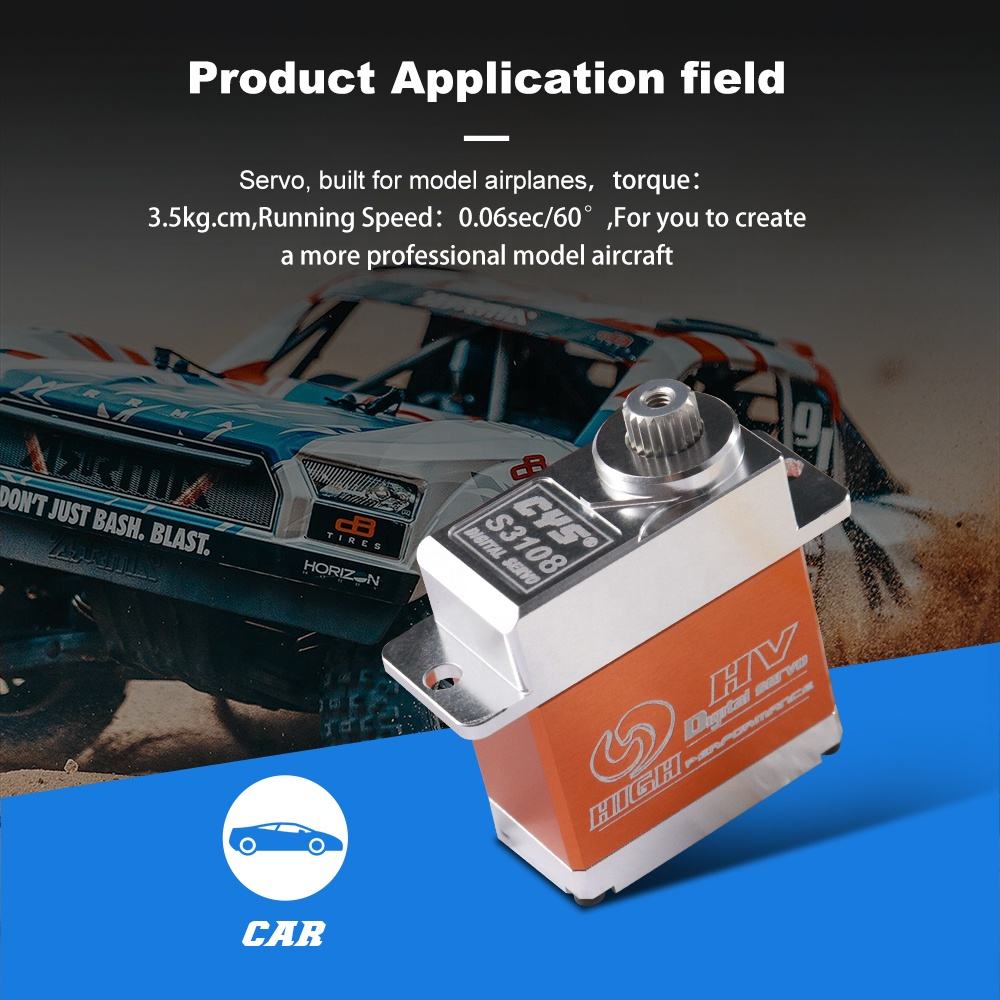

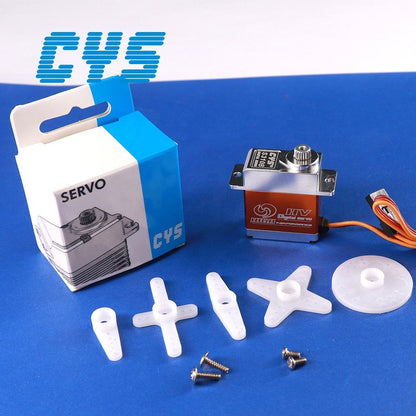

Helicopter Servo CYS-S3108-06 Feetech Servo 6v 6kg Ttl 360 Degree Coreless Motor Metal Gear Aluminium Case for Model Rc Robot Smart Curtain
Helicopter Servo CYS-S3108-06 Feetech Servo 6v 6kg Ttl 360 Degree Coreless Motor Metal Gear Aluminium Case for Model Rc Robot Smart Curtain
Regular price
$63.00 USD
Regular price
Sale price
$63.00 USD
|
Item No.
|
CYS-S3108
|
|
Control Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
20g±1g
|
|

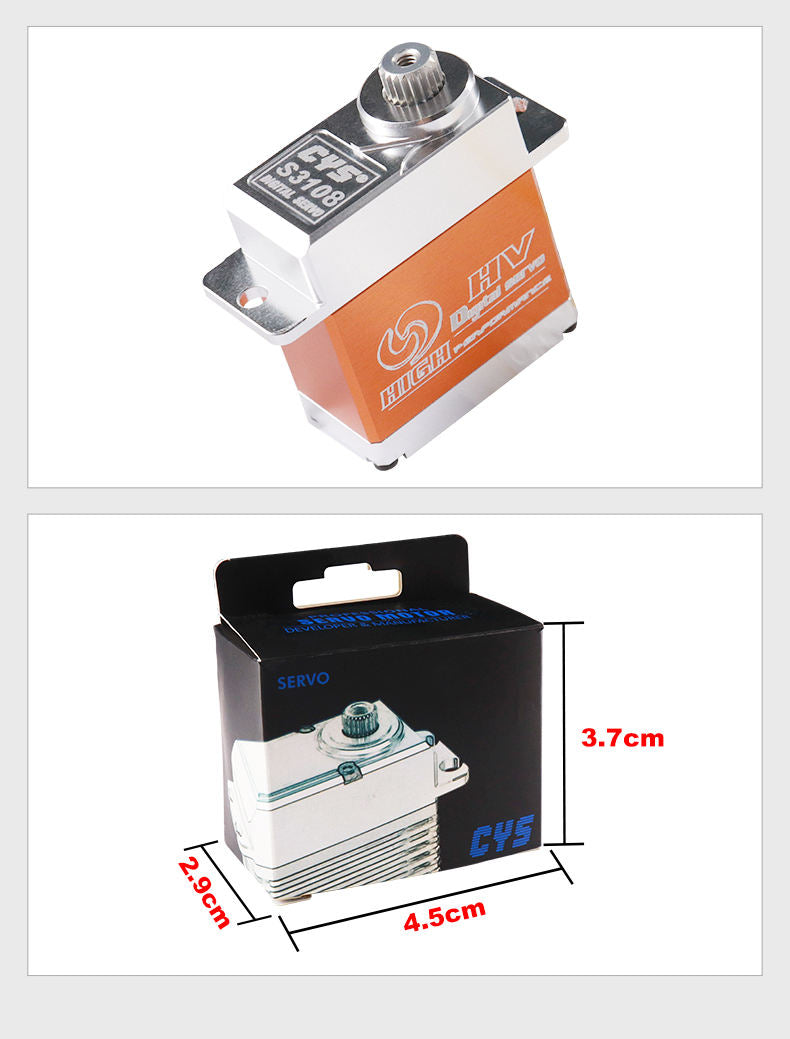

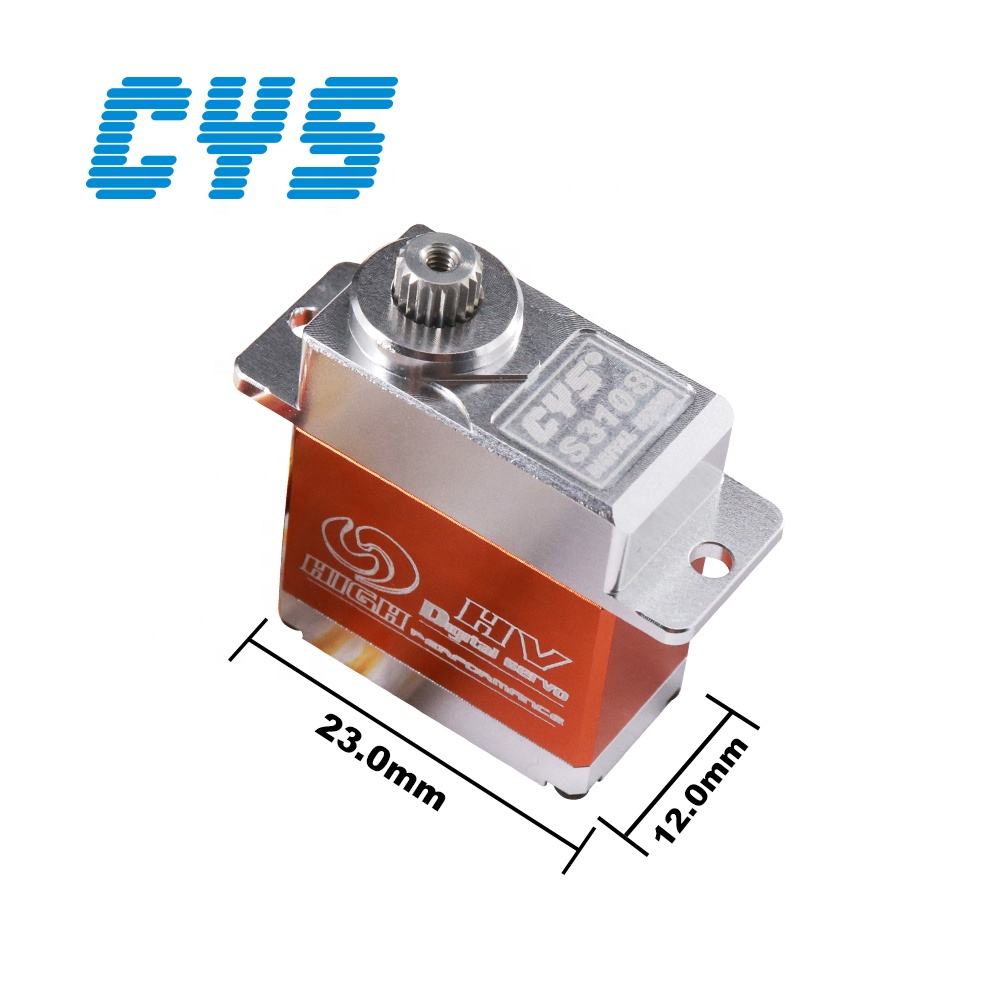

Size
|
23x12x28.56mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.08 sec/60° - 0.06 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
3.5 kg.cm - 4.5 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
1.3A/1.5A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
Single Ball Bearing
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
21T
|
|
Cable/Plug
|
180mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
