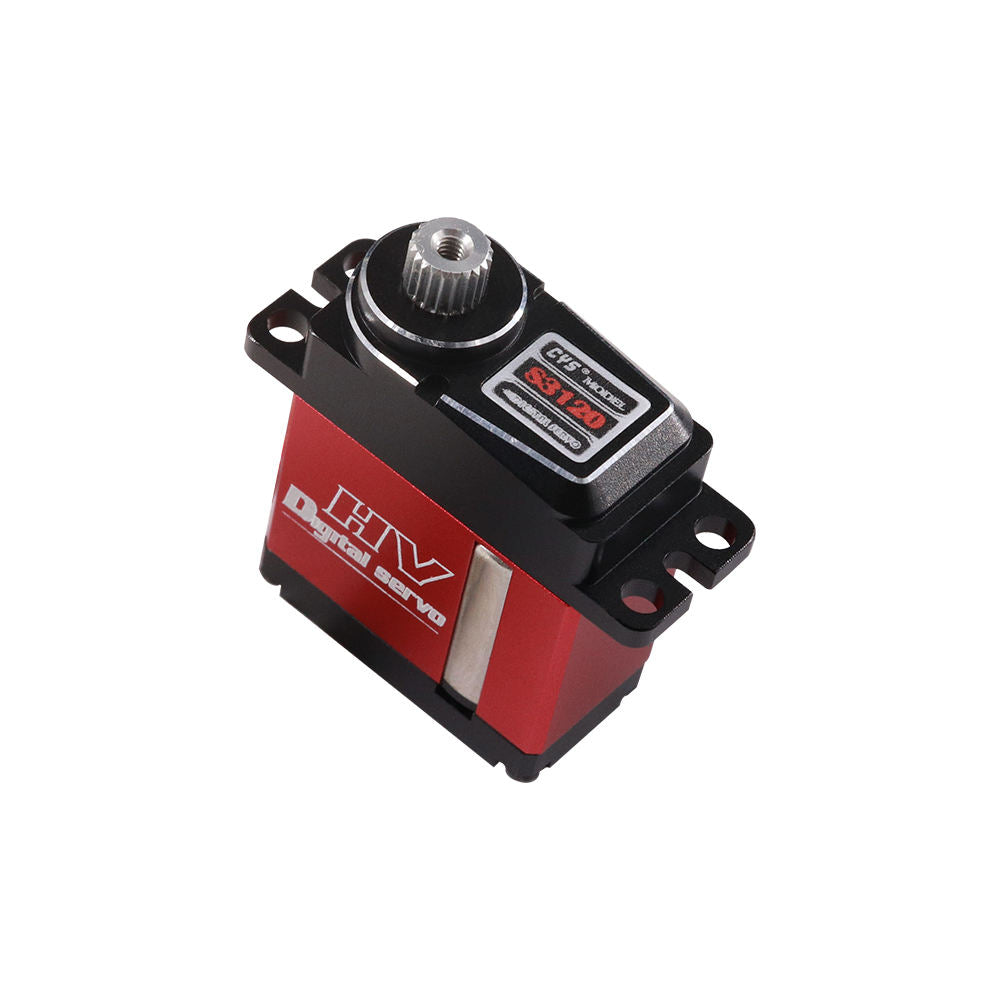

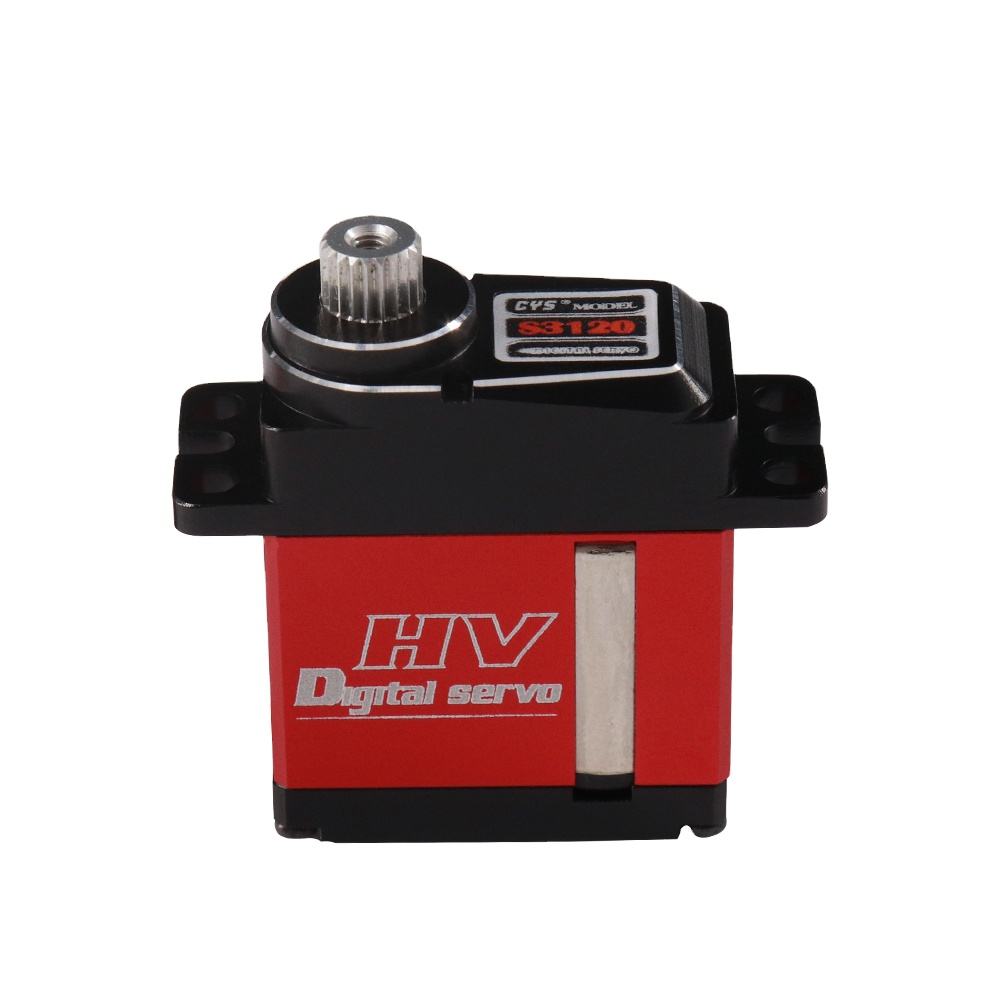

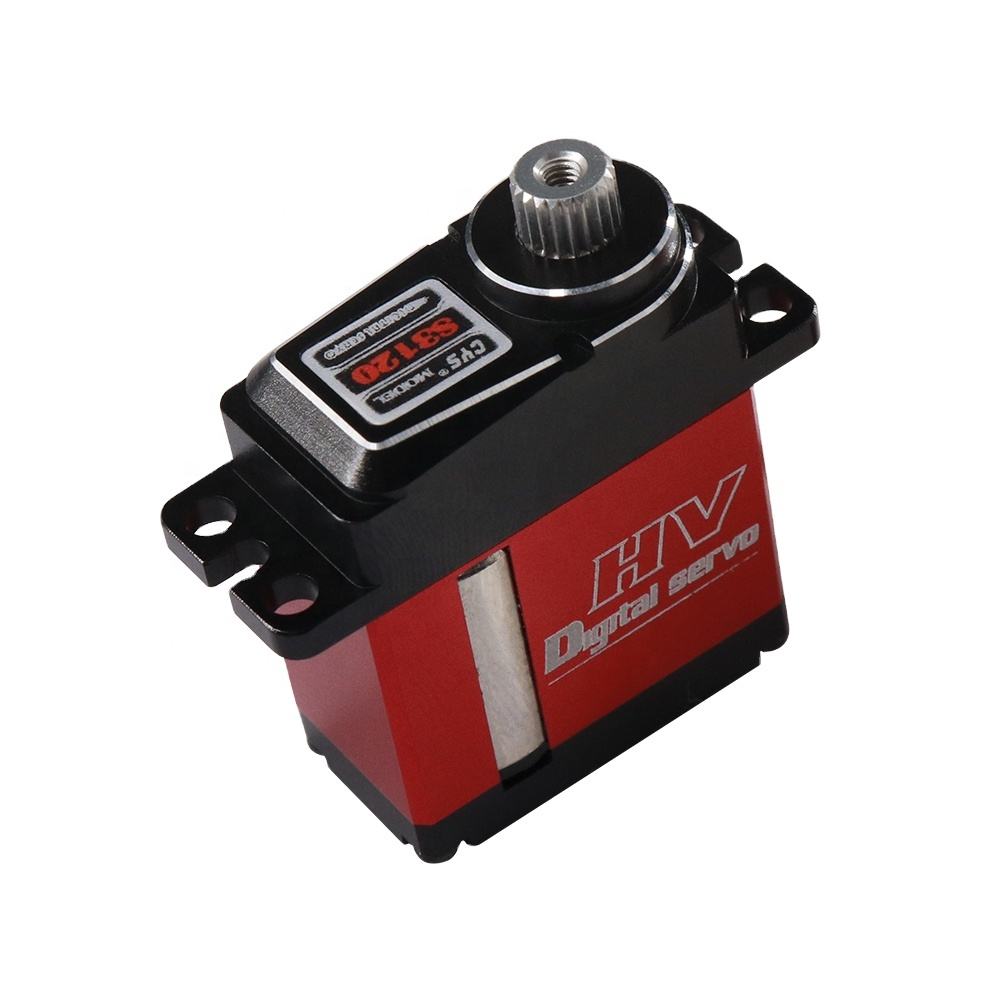

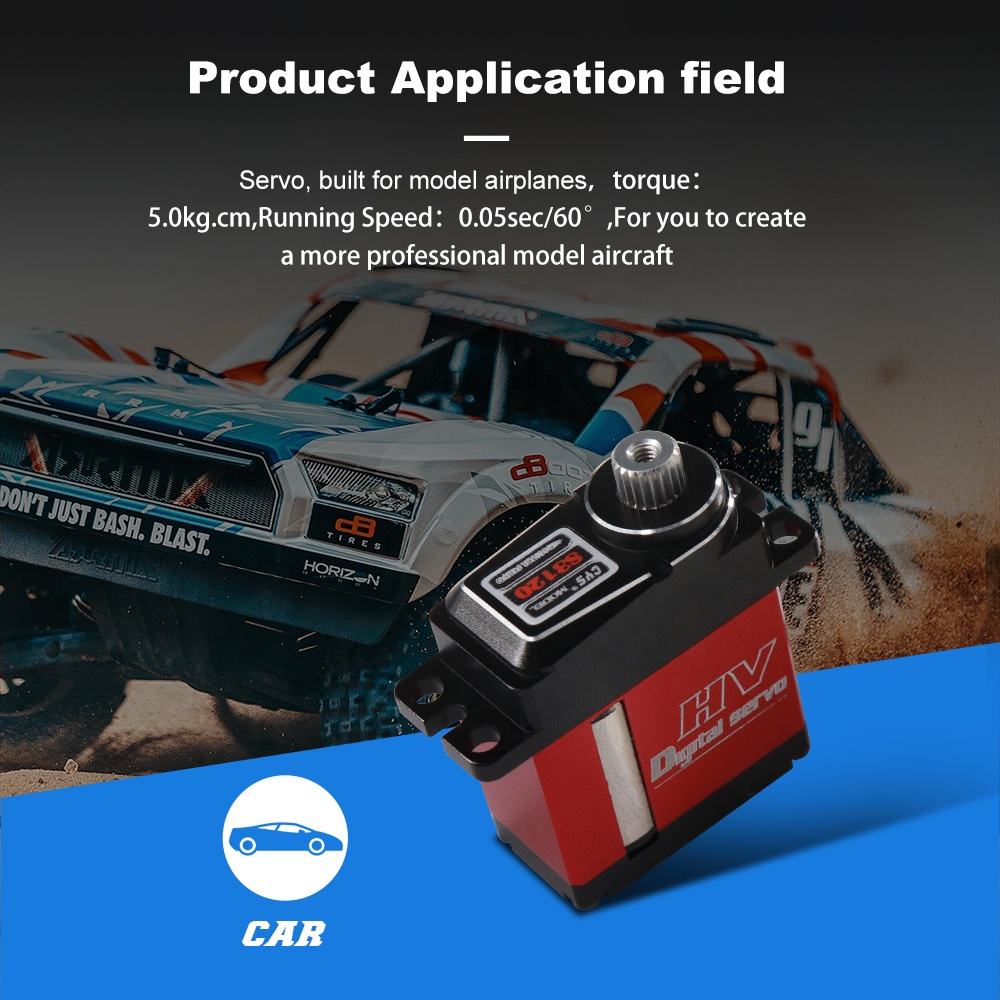

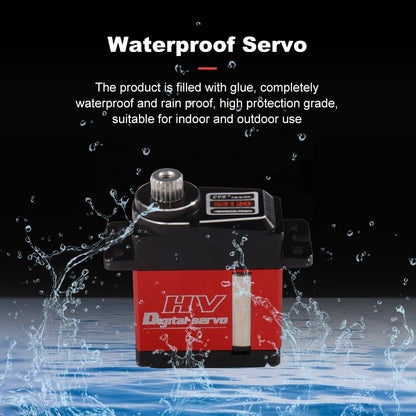

Helicopter Servo CYS-S3120-03 Unisex Mini 450 High-Speed RC Helicopter Full Metal Case Titanium Gear Coreless Servo Motor 9g Car Robot Plastic
Helicopter Servo CYS-S3120-03 Unisex Mini 450 High-Speed RC Helicopter Full Metal Case Titanium Gear Coreless Servo Motor 9g Car Robot Plastic
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
|
Item NO.
|
CYS-S3120
|
|
Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
20g
|
|

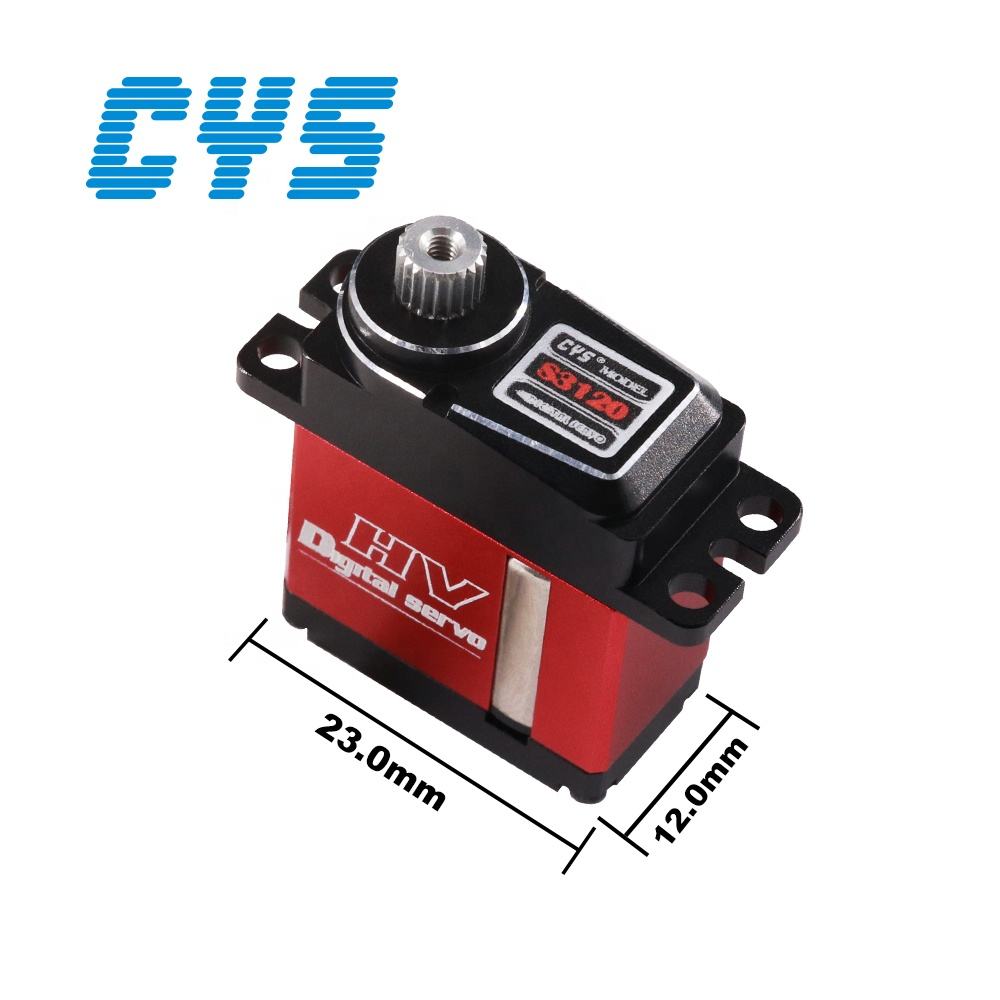

Size
|
23*12*28.56mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.08sec - 0.06sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
6kg.cm-7kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
1.6A/2.0A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Coreless
|
|
Horn gear spline
|
21T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
