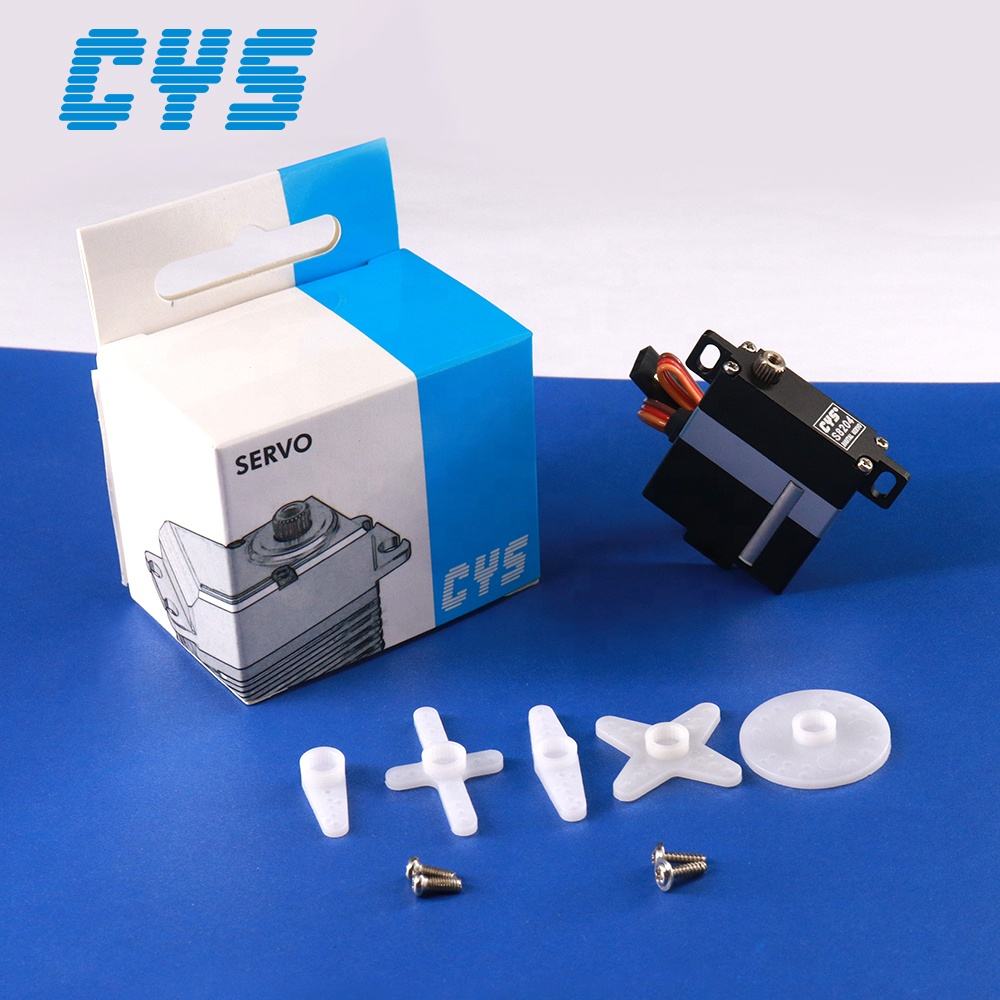

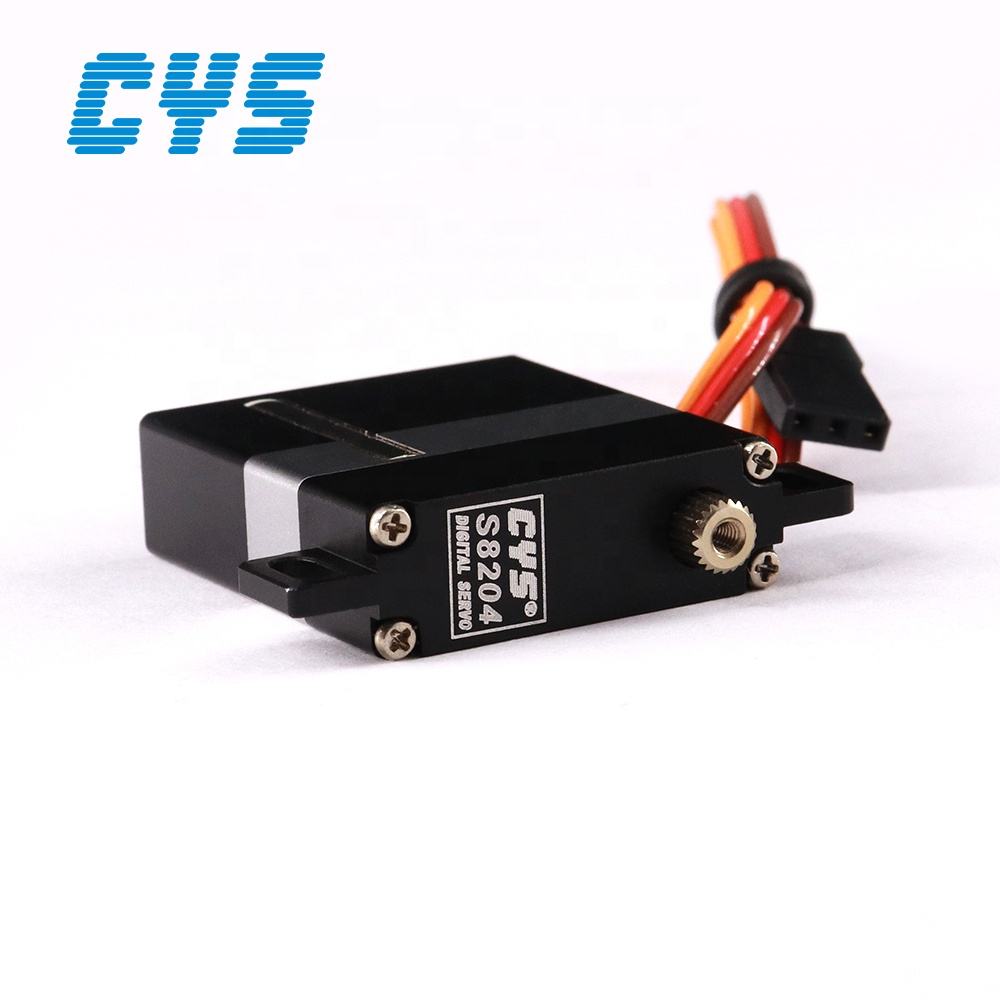

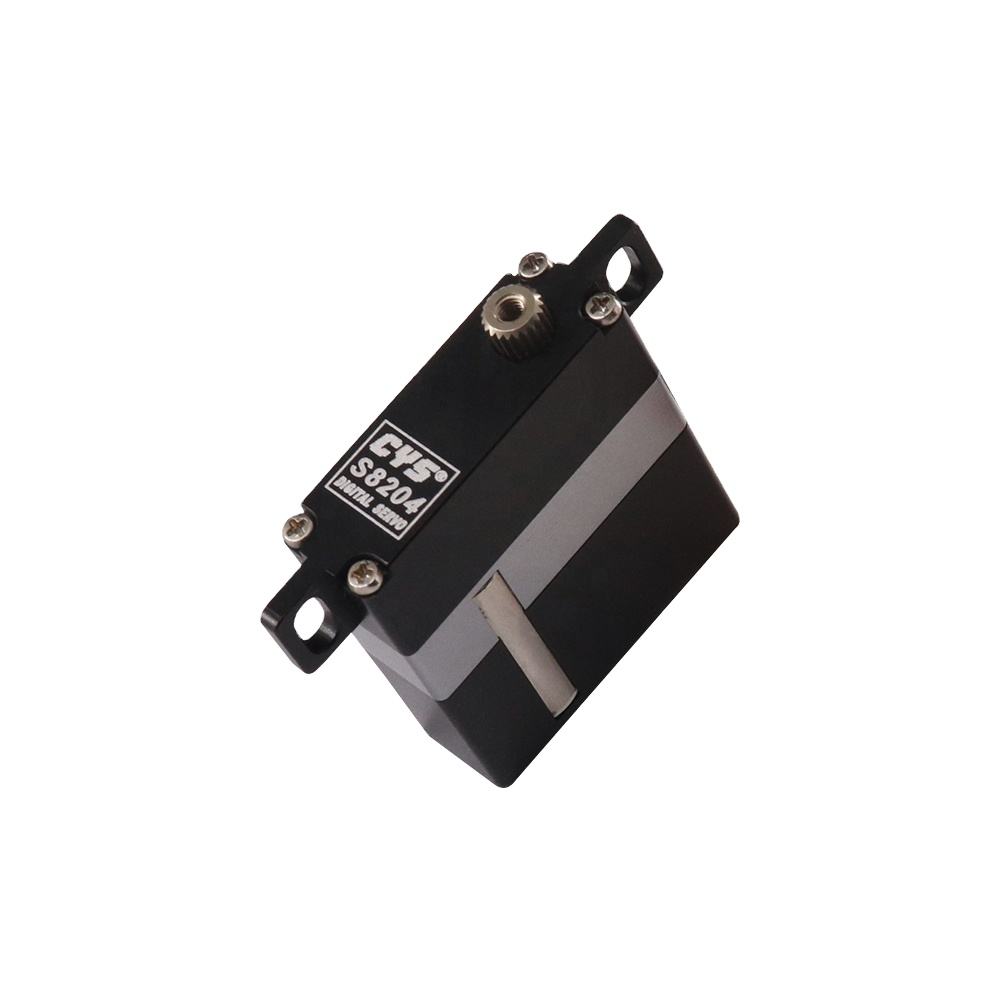

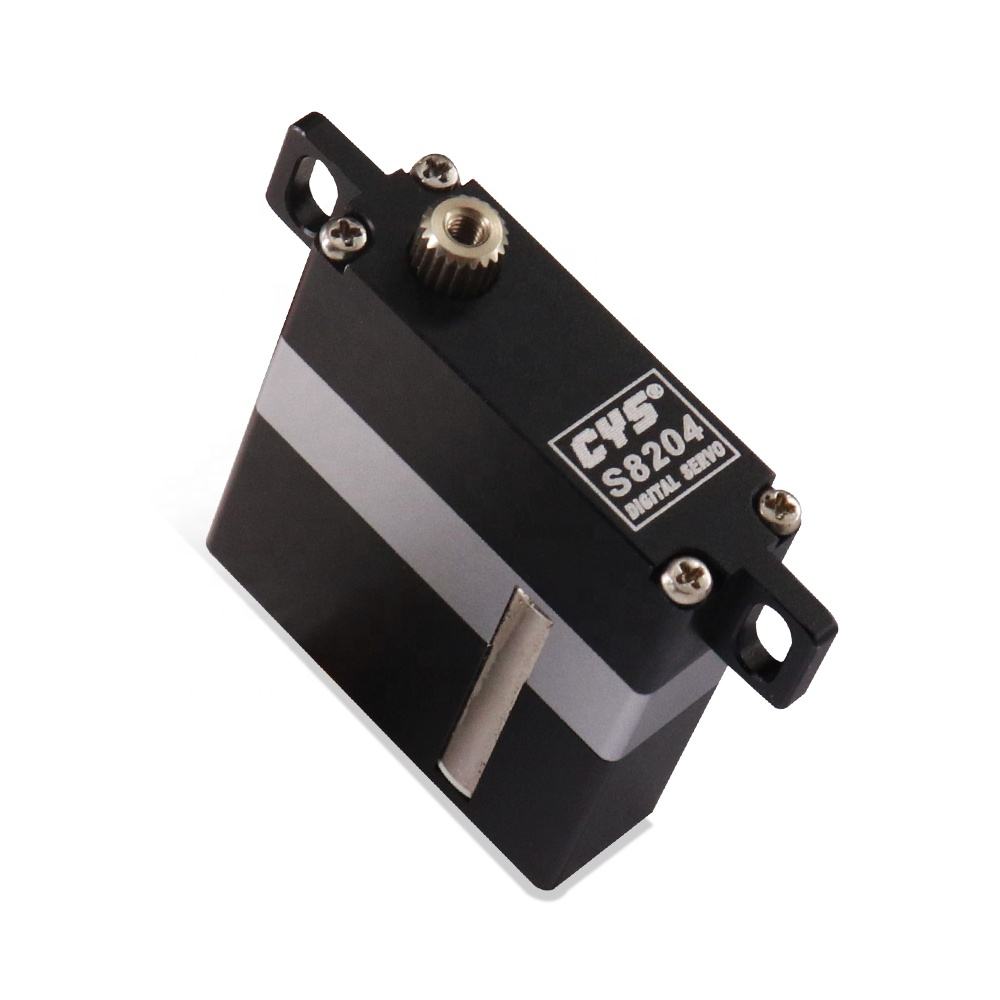

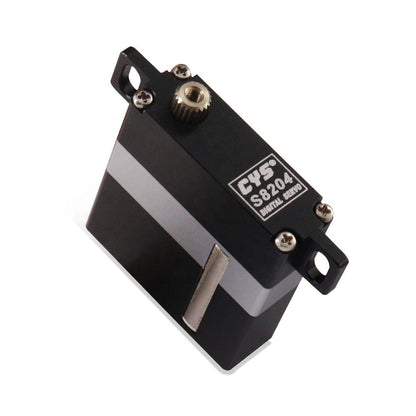

Helicopter Servo CYS-S8204-0428g 6kg Torque Coreless Metal Gear RC Plane Digital Servo
- Sale price
- $84.00
- Regular price
-
- Regular price
- $84.00
- Unit price
- per
-0%
Vendor: roboticu
Only
999
items in stock!
Out of stock!
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
|
Item NO.
|
CYS-S8204
|
|
Type
|
Digital Wing Servo
|
|
Gear Type
|
Titanize Gear
|
|
Weight
|
28g
|
|

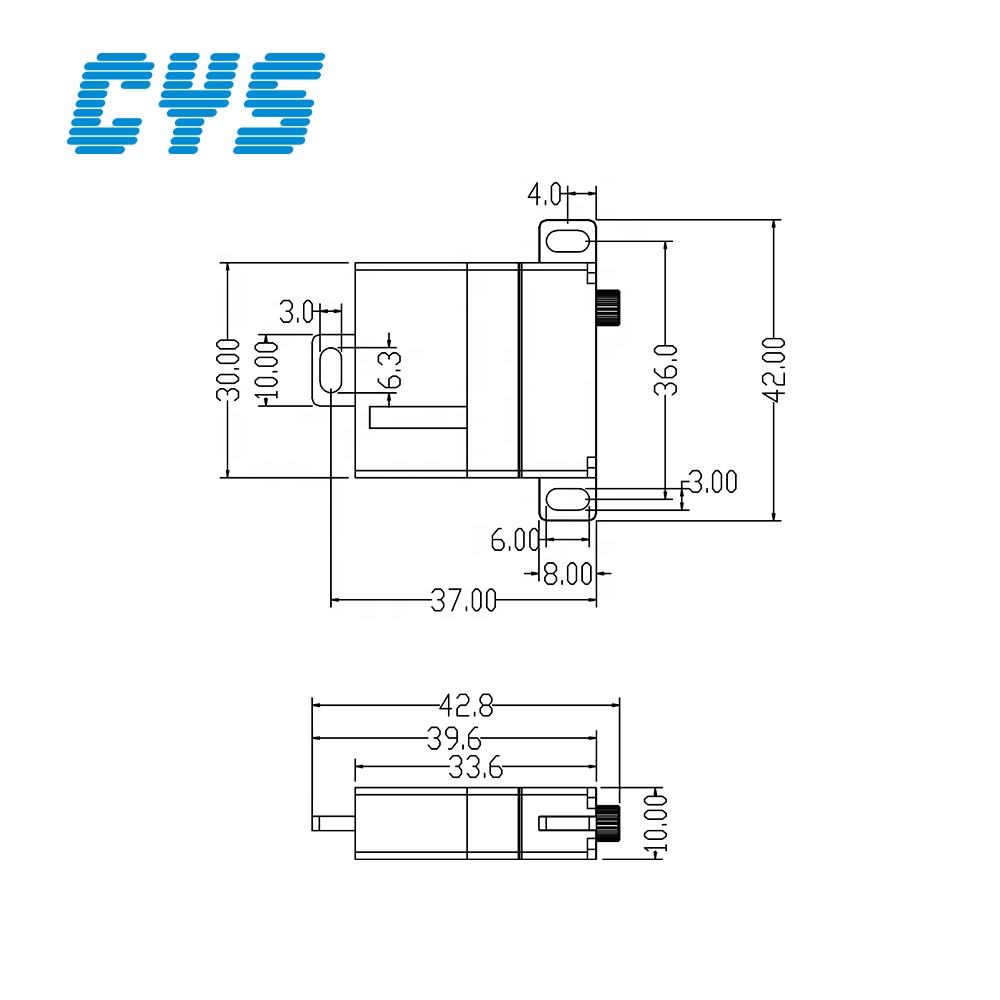

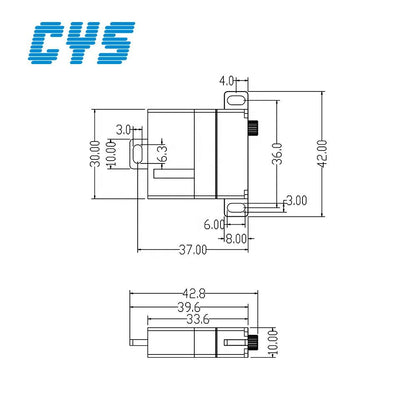

Size
|
33.6*10*30mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.12sec - 0.10sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
4.5kg.cm-6.0kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 100mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 120mA no load operating
|
|
Stall Current
|
1.6A/1.8A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Coreless Motor
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
