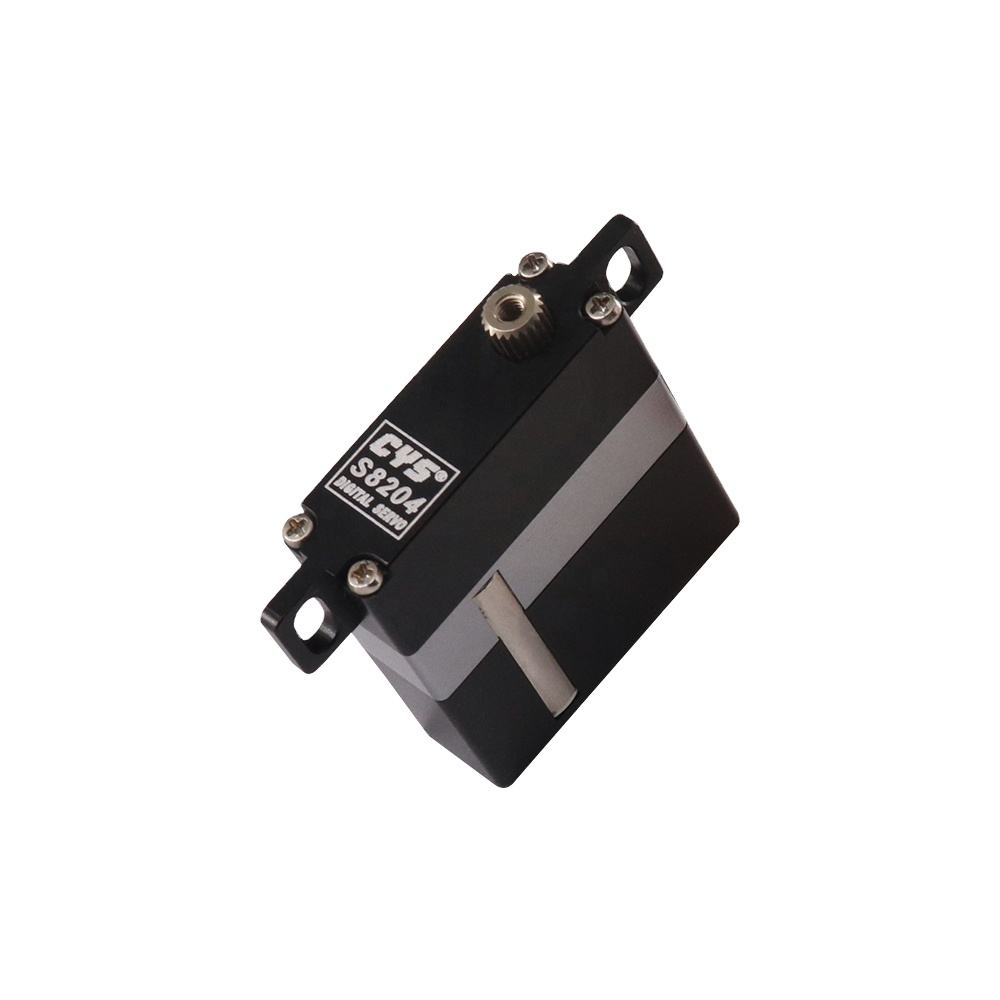

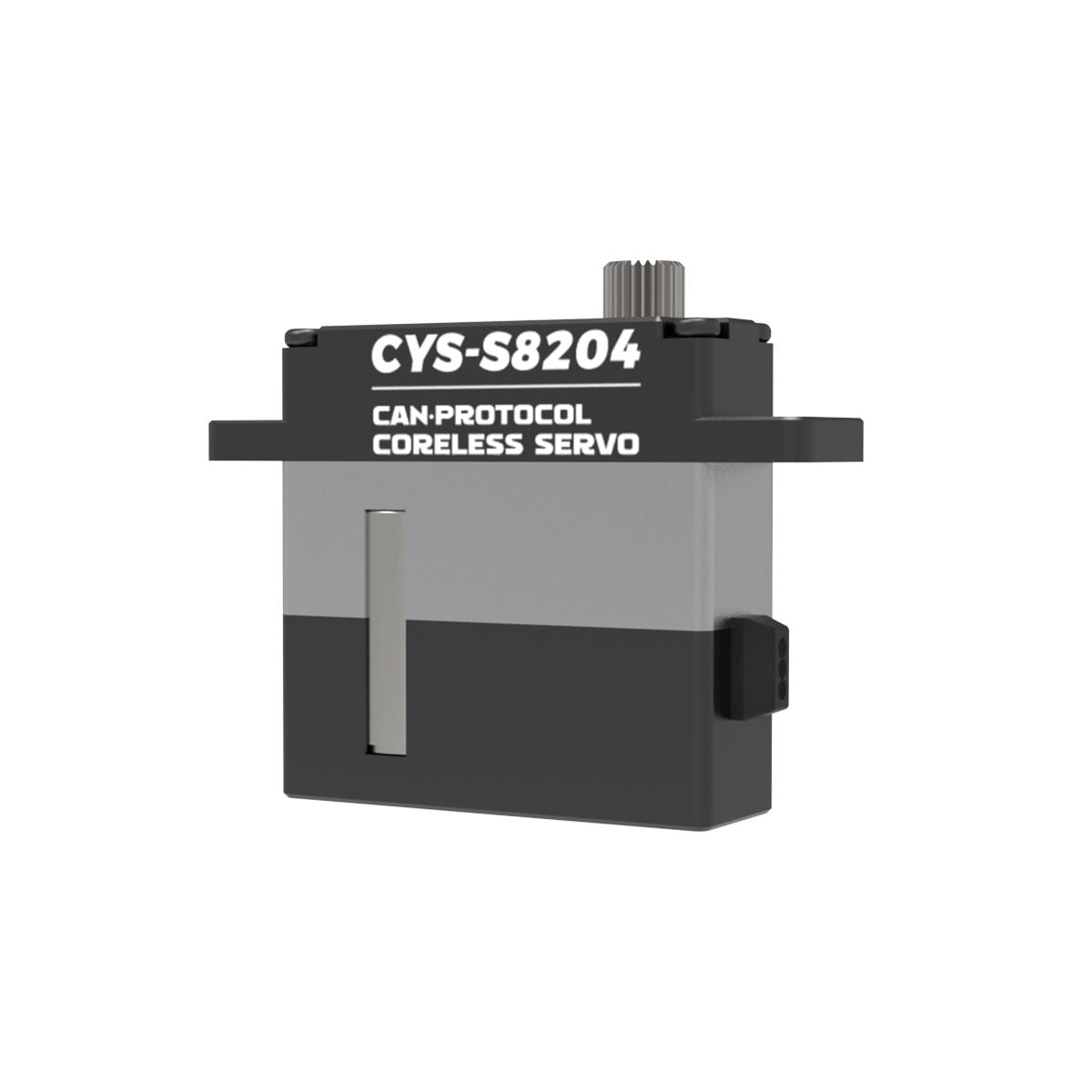

Helicopter Servo CYS-S8204-06 Can Protocol 28g 10kg Torque Coreless Metal Gear Digital Servo for Drone and RC Plane
Helicopter Servo CYS-S8204-06 Can Protocol 28g 10kg Torque Coreless Metal Gear Digital Servo for Drone and RC Plane
Regular price
$258.00 USD
Regular price
Sale price
$258.00 USD
|

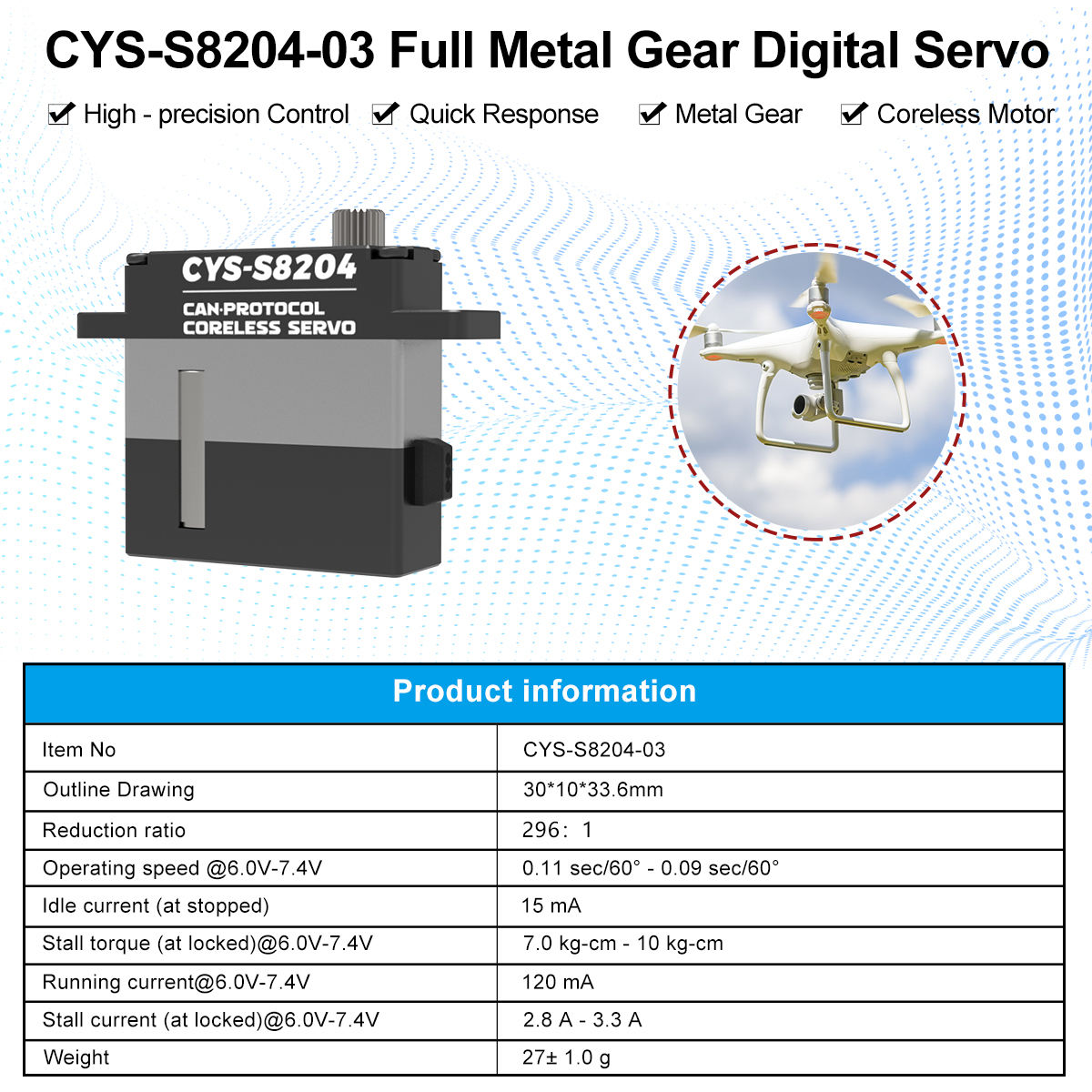

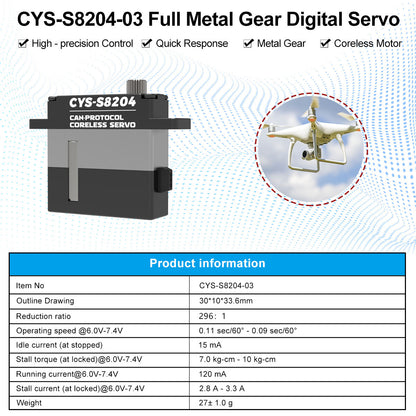

Item NO.
|
CYS-S8204-03
|
|
Type
|
Digital Drone Servo
|
|
Gear Type
|
Metal Gear
|
|
Weight
|
28g
|
|

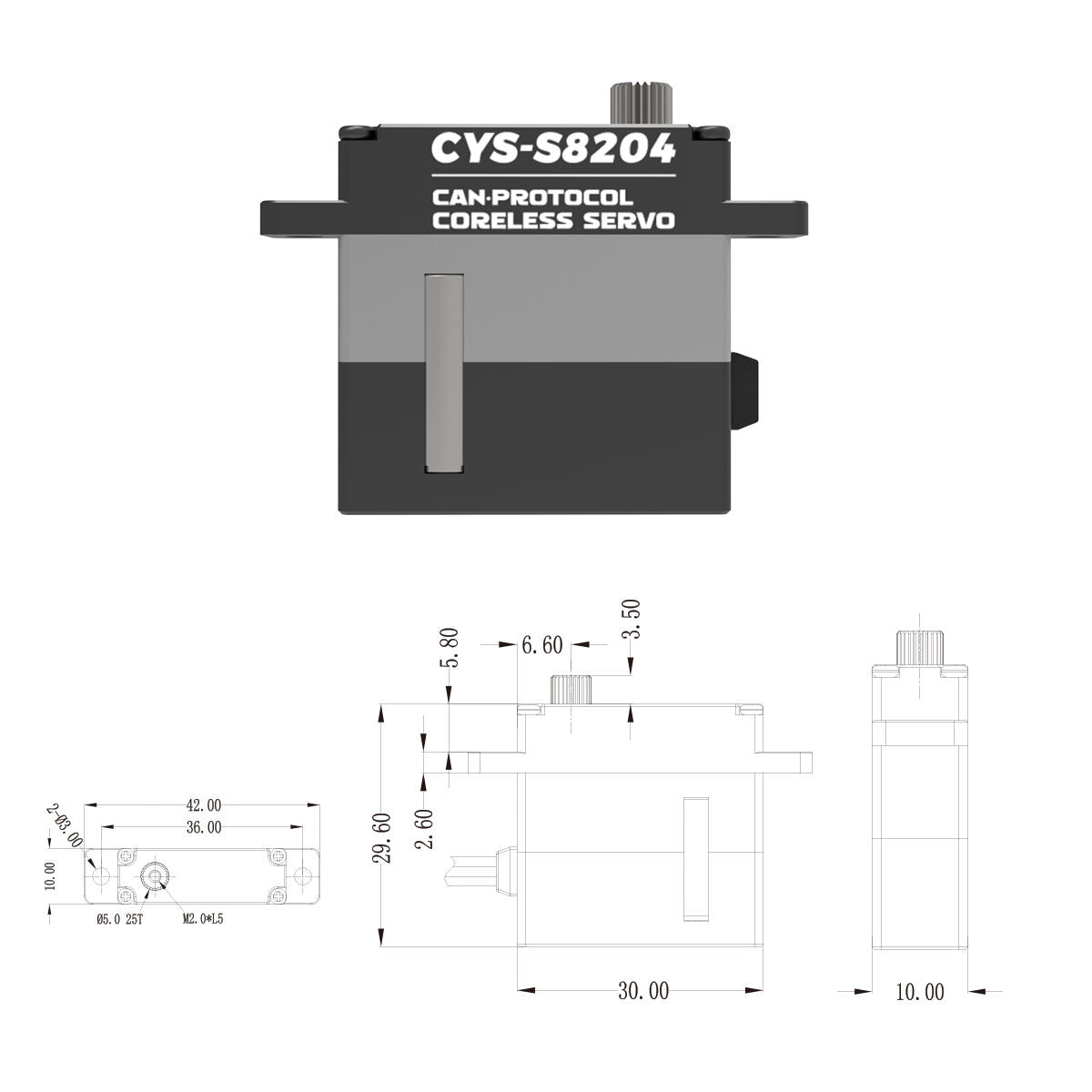

Size
|
30*10*33.6mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|

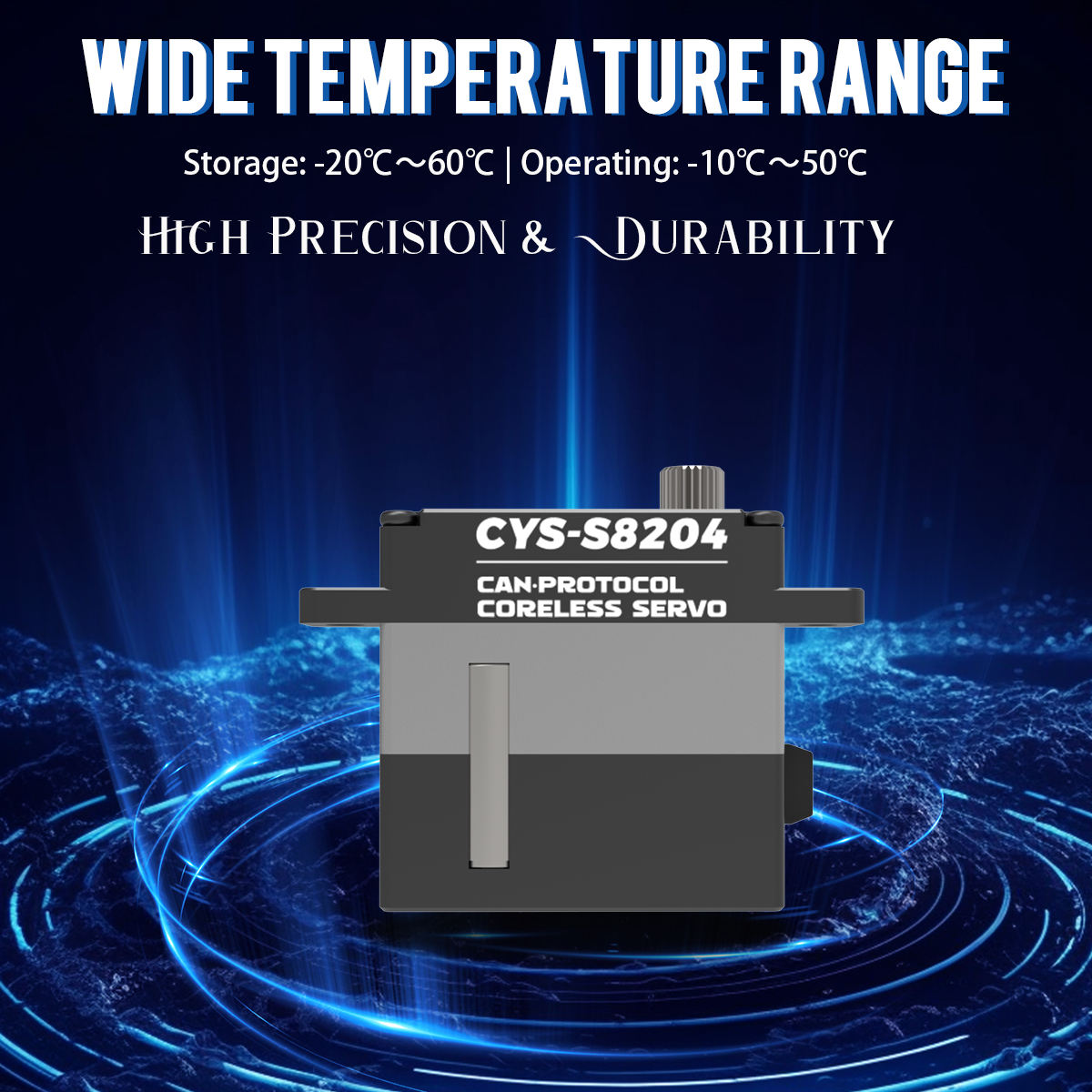

Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.11sec - 0.09sec at no load
|
|

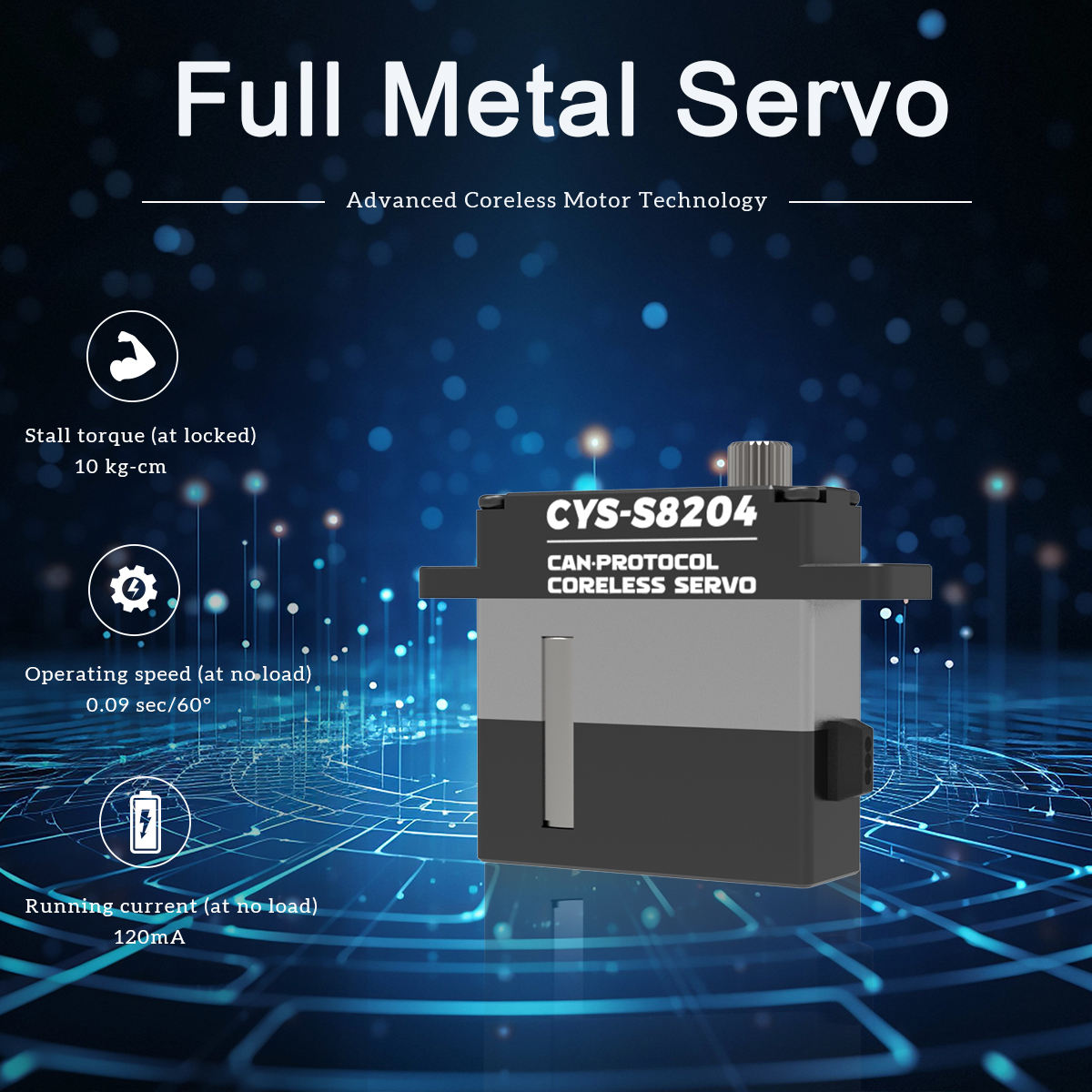

Stall Torque @ 6.0V -7.4V
|
7.0kg.cm-10kg.cm
|
|
Current Drain (6.0V)
|
15mA/idle and 120mA no load operating
|
|
Current Drain (7.4V)
|
15mA/idle and 120mA no load operating
|
|
Stall Current
|
2.8A/3.3A
|
|
Dead Band Width
|
5-6μsec
|
|
Bearing Type
|
BB*2
|
|

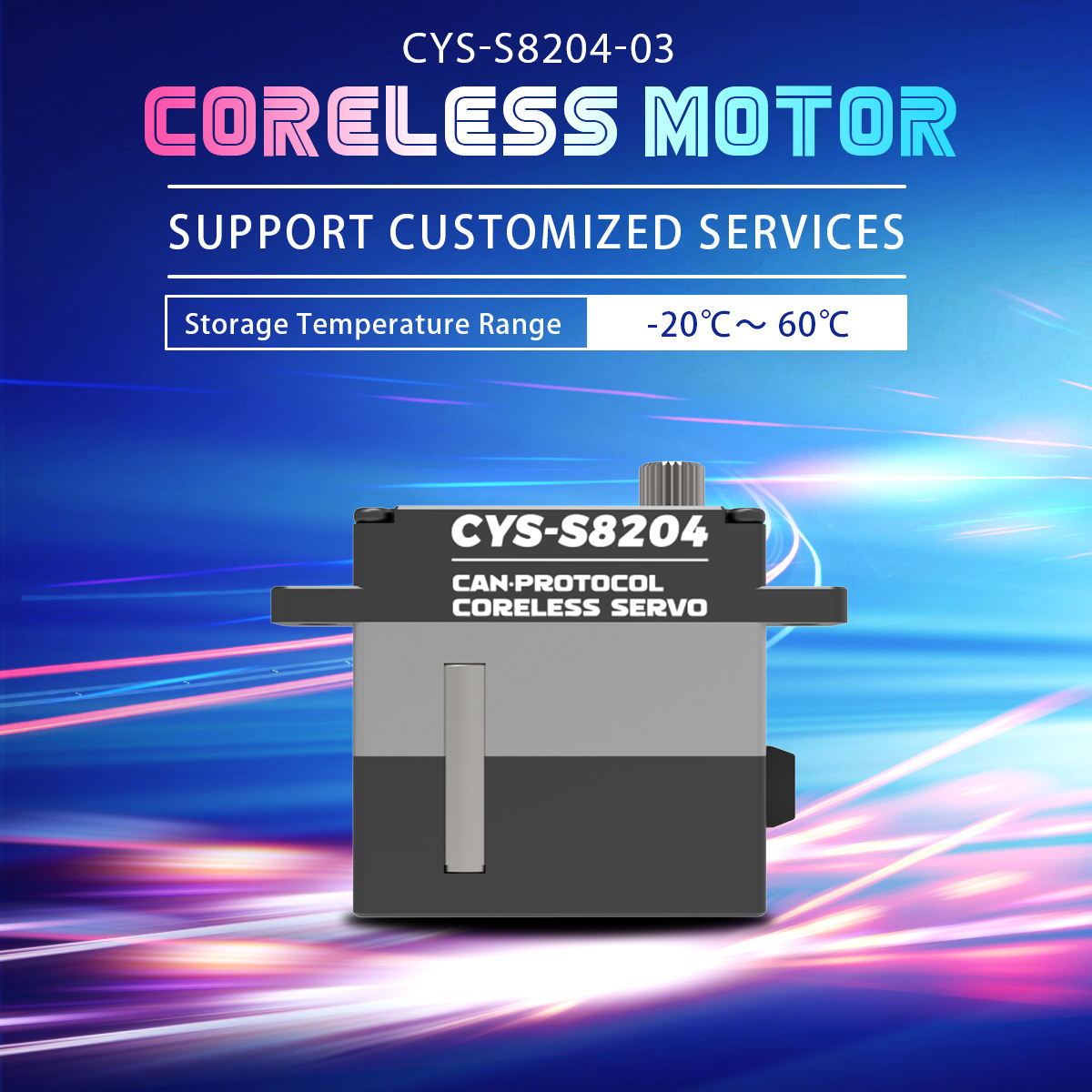

Motor Type
|
Coreless Motor
|
|
Horn gear spline
|
21T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
