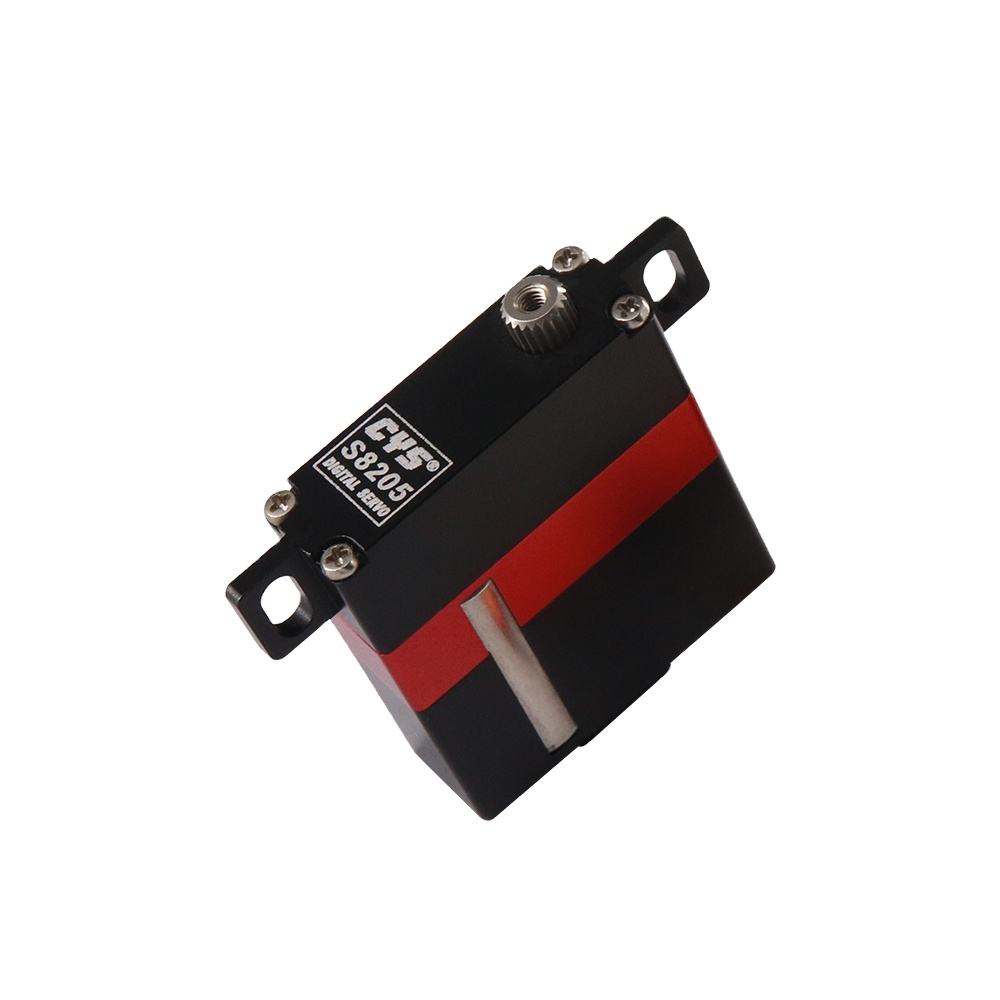

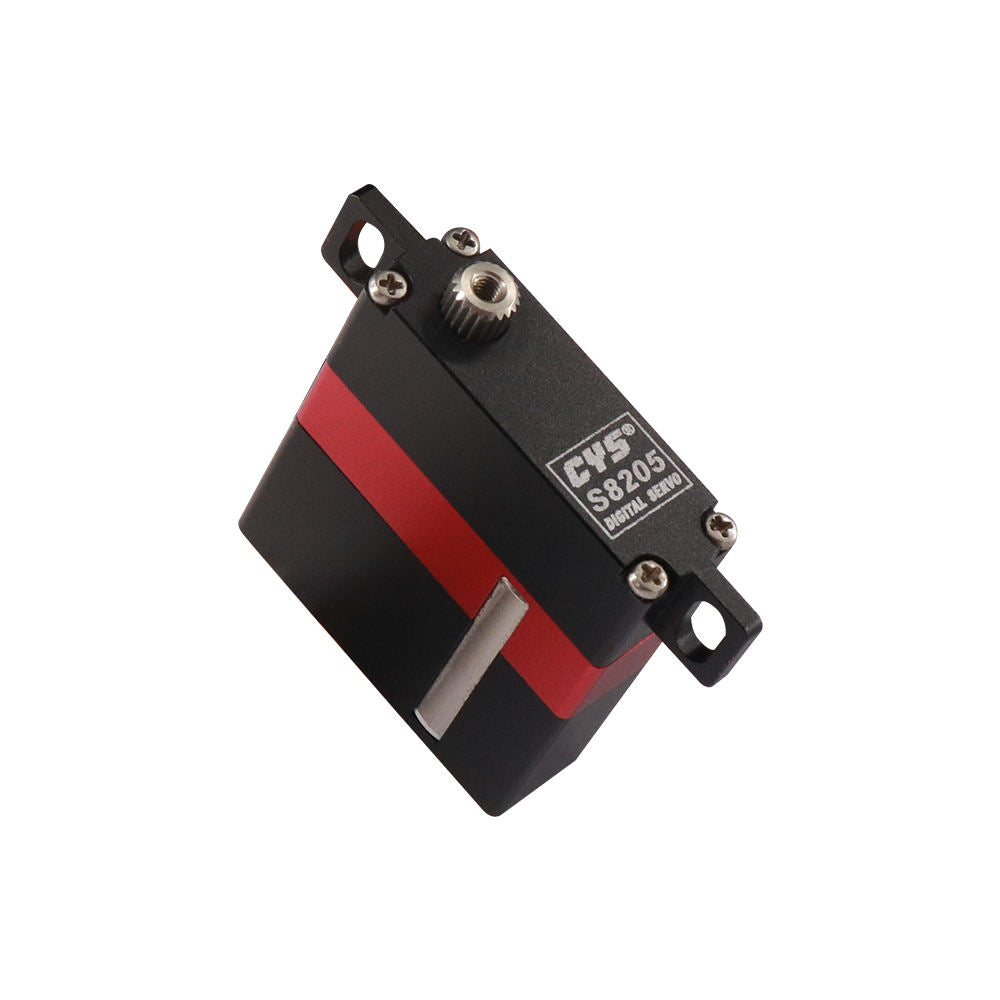

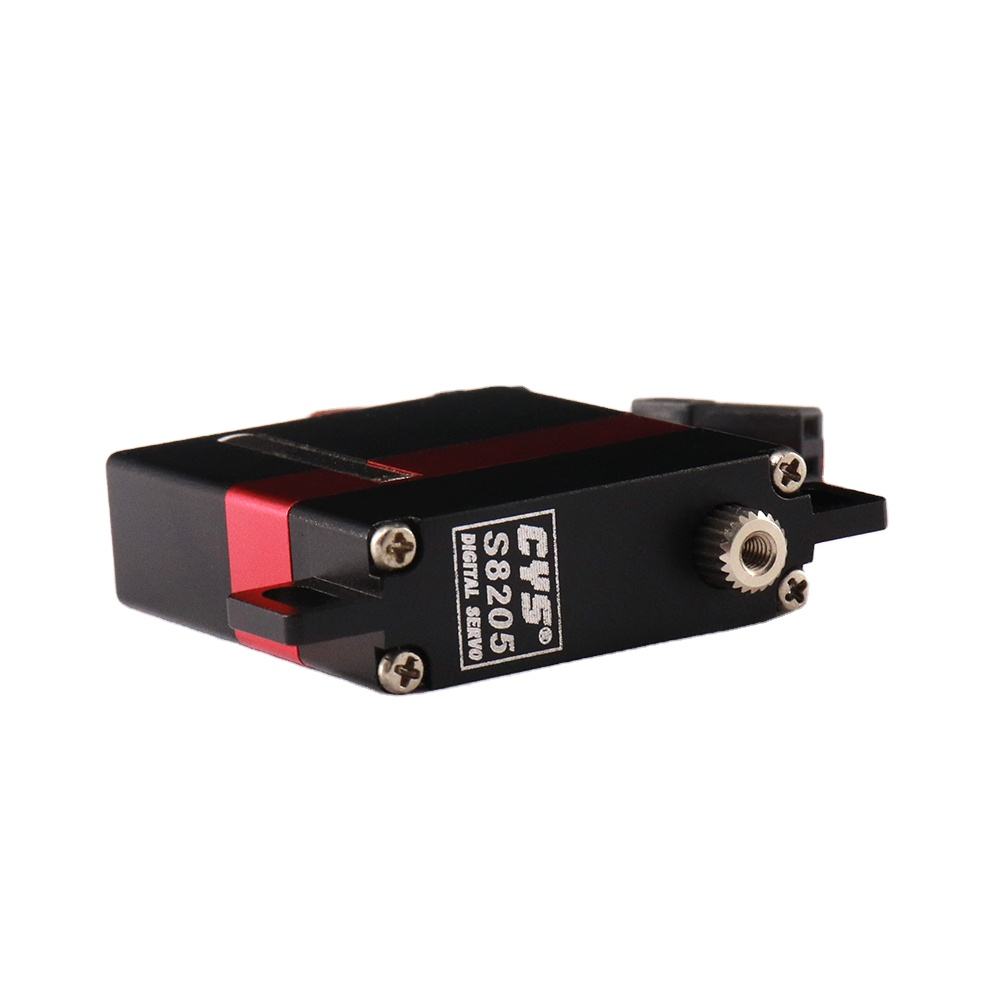

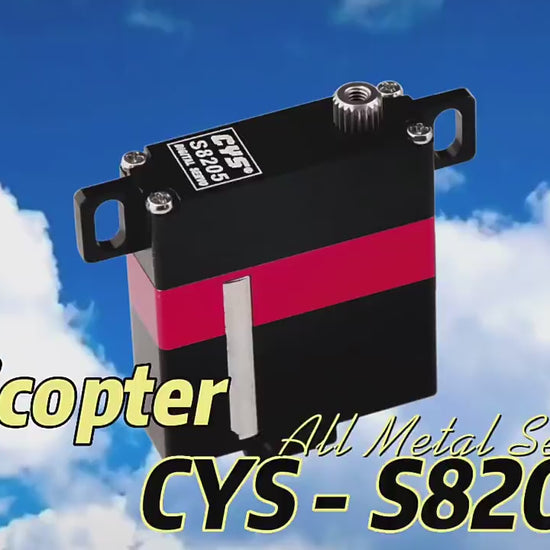

Helicopter Servo CYS-S8205-01 Unisex 4.5kg High-Speed Mini Remote Control Plane Full Metal Digital Wing Plastic Radio Systems RC RC Parts Accs
- Sale price
- $85.50
- Regular price
-
- Regular price
- $85.50
- Unit price
- per
-0%
Vendor: roboticu
Only
999
items in stock!
Out of stock!
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
|
Item No.
|
CYS-S8205
|
|
Control Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
28g±1g
|
|

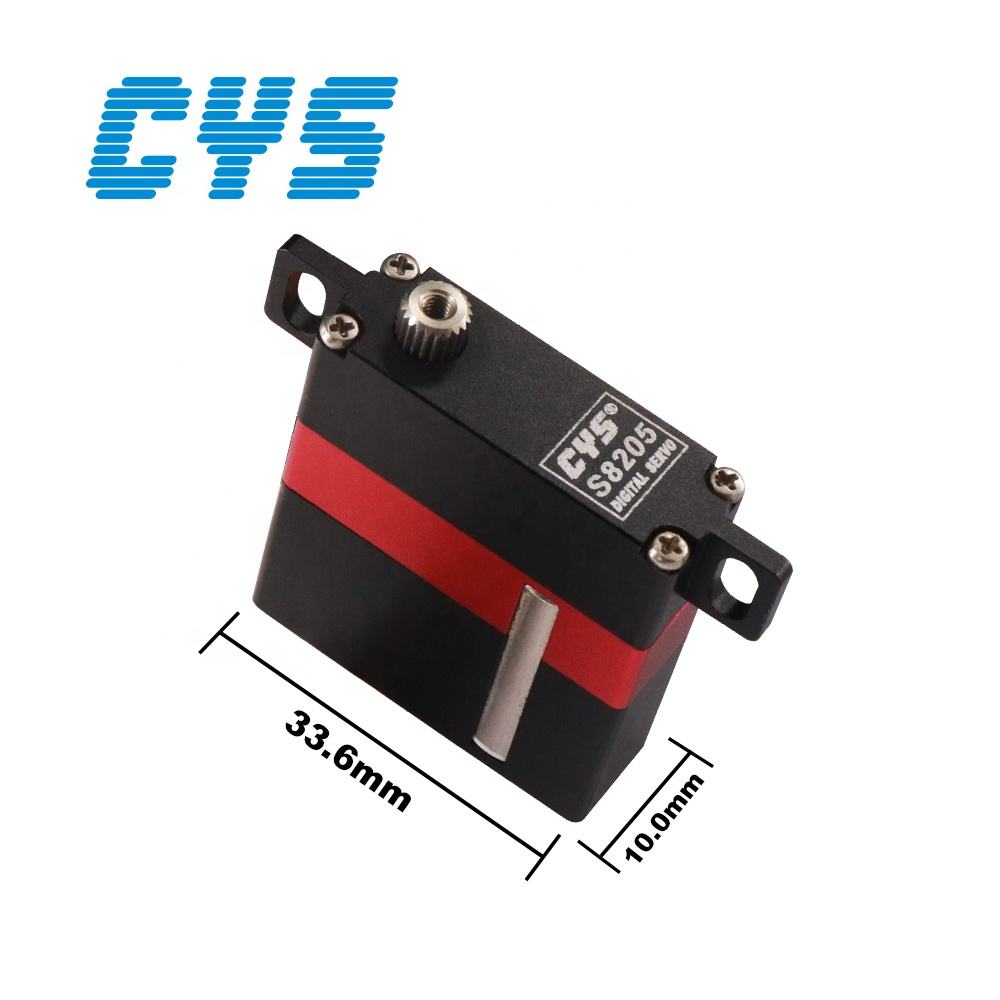

Size
|
33.6x10x30mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.10 sec/60° - 0.08 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
3.0 kg.cm - 4.5kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 100mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 120mA no load operating
|
|
Stall Current
|
1.6A/1.8A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
