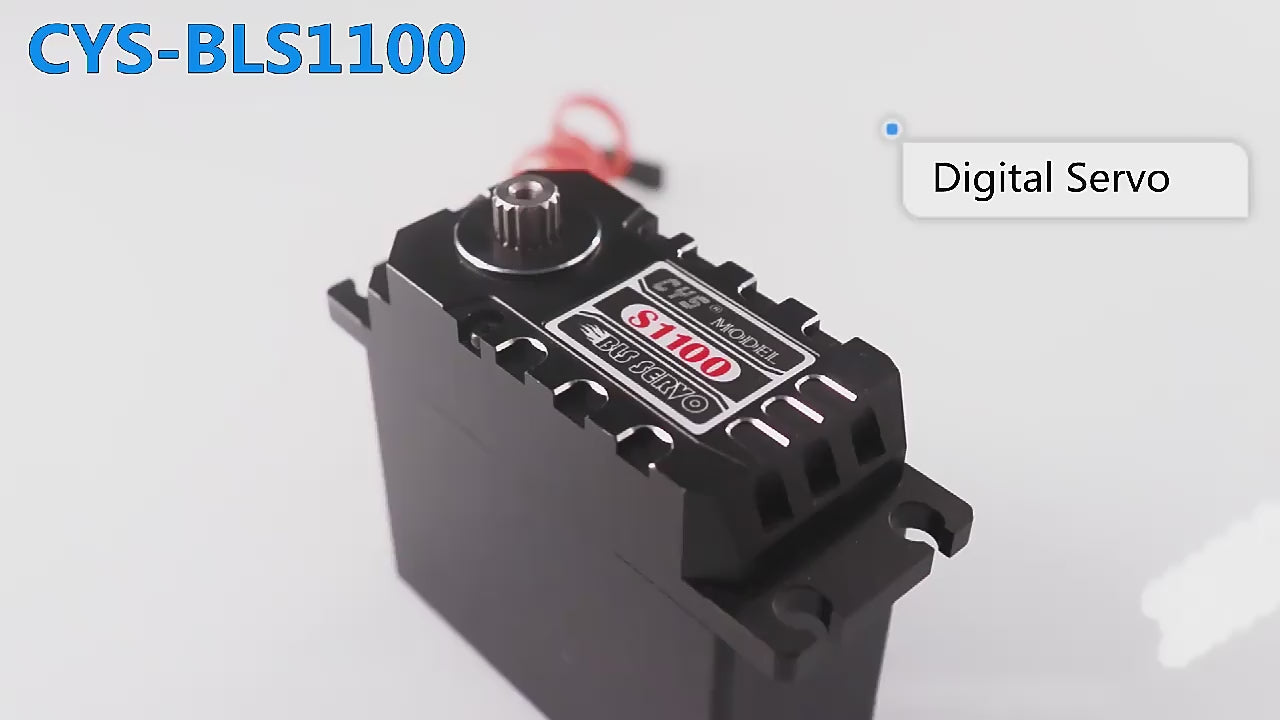

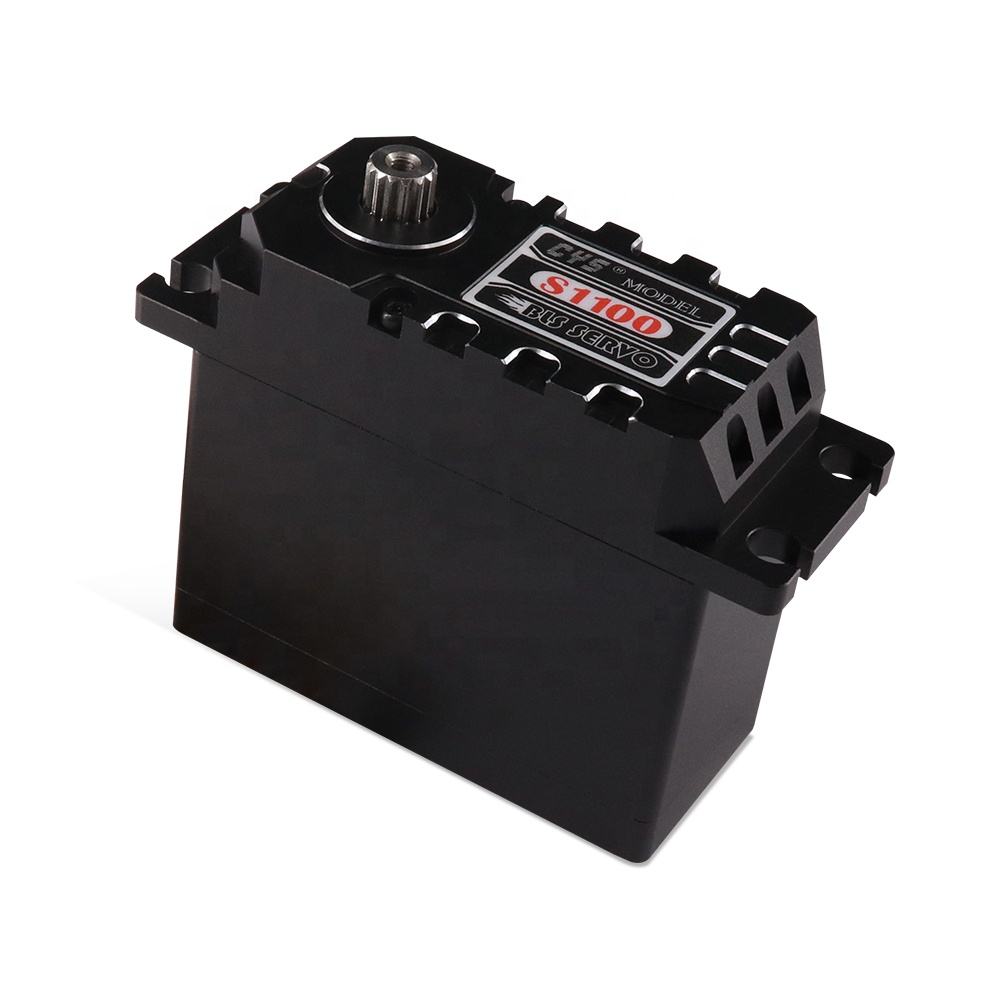

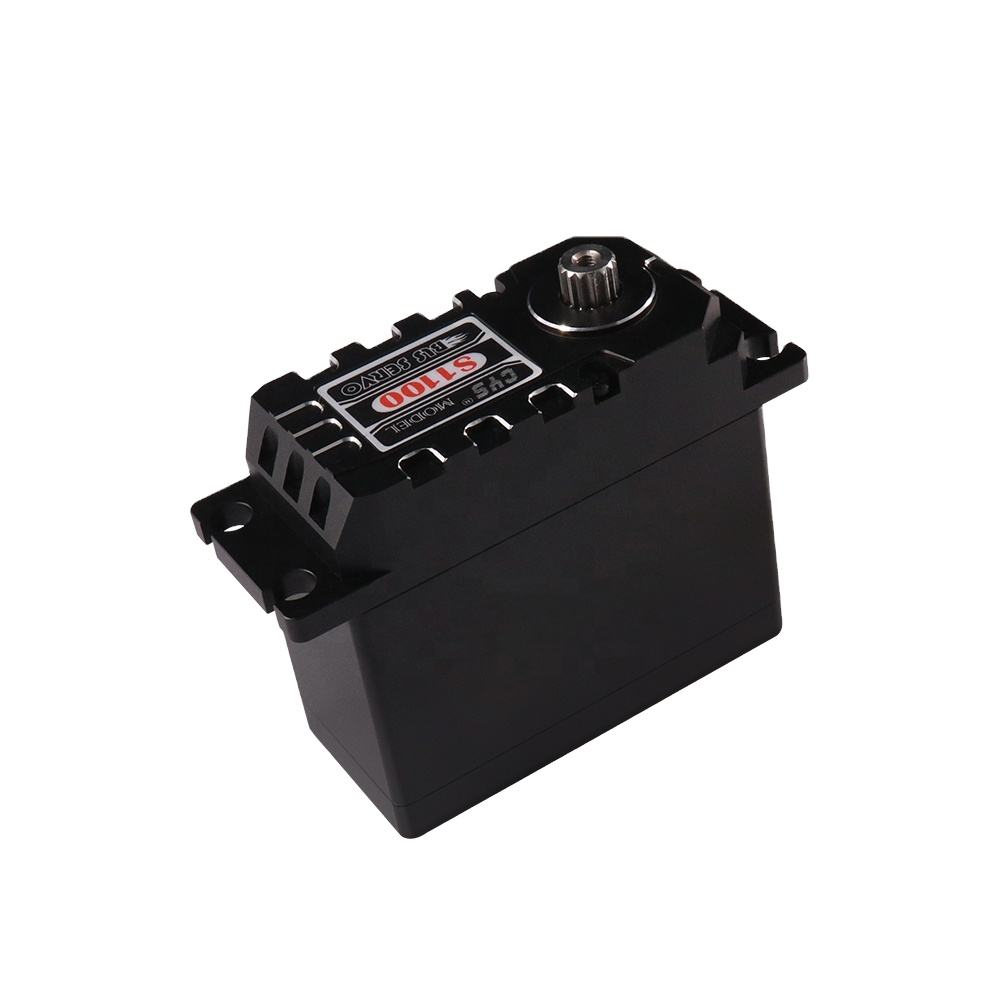

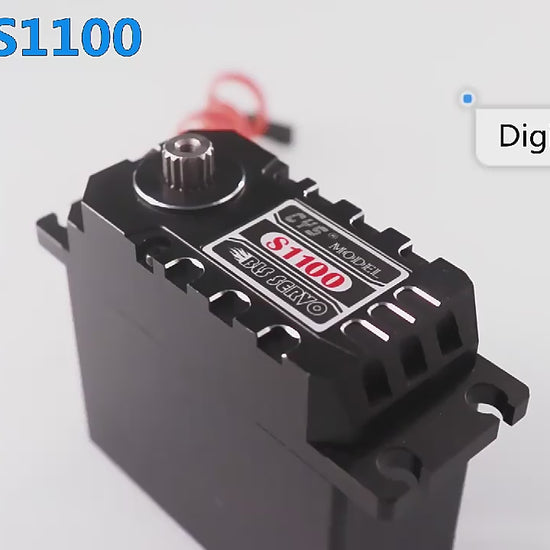

large torque CYS-BLS1100-02 High Torque 110 Kg.cm HV Brushless Motor Waterproof Digital RC Servo with Steel Gear for 1:5 Racing Car
large torque CYS-BLS1100-02 High Torque 110 Kg.cm HV Brushless Motor Waterproof Digital RC Servo with Steel Gear for 1:5 Racing Car
Regular price
$144.00 USD
Regular price
Sale price
$144.00 USD
|
Item No.
|
CYS-BLS1100
|
|
Control Type
|
Digital
|
|
Gear Type
|
Steel
|
|
Weight
|
274g±5g
|
|

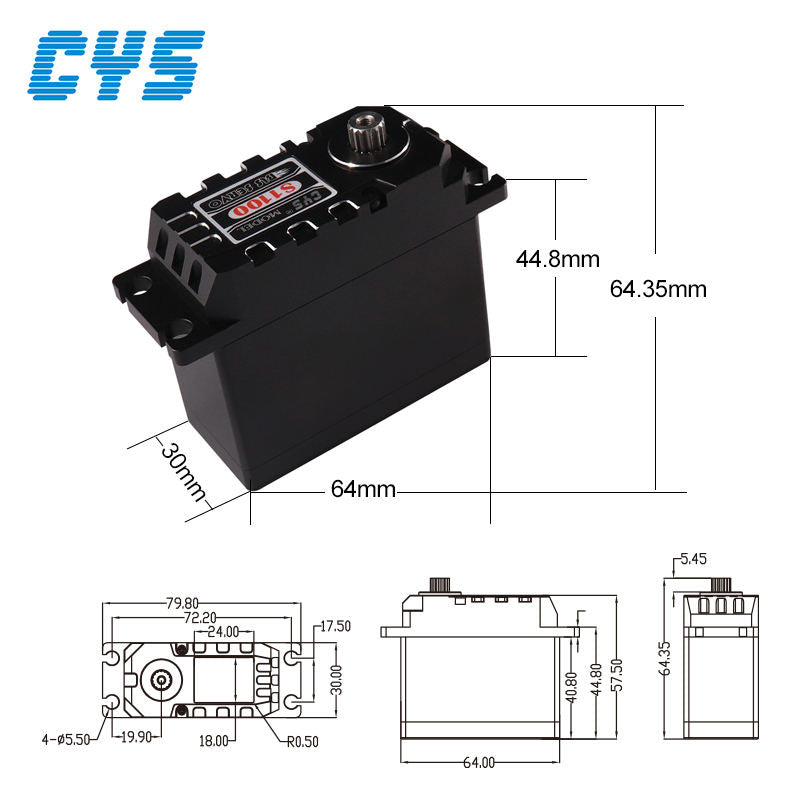

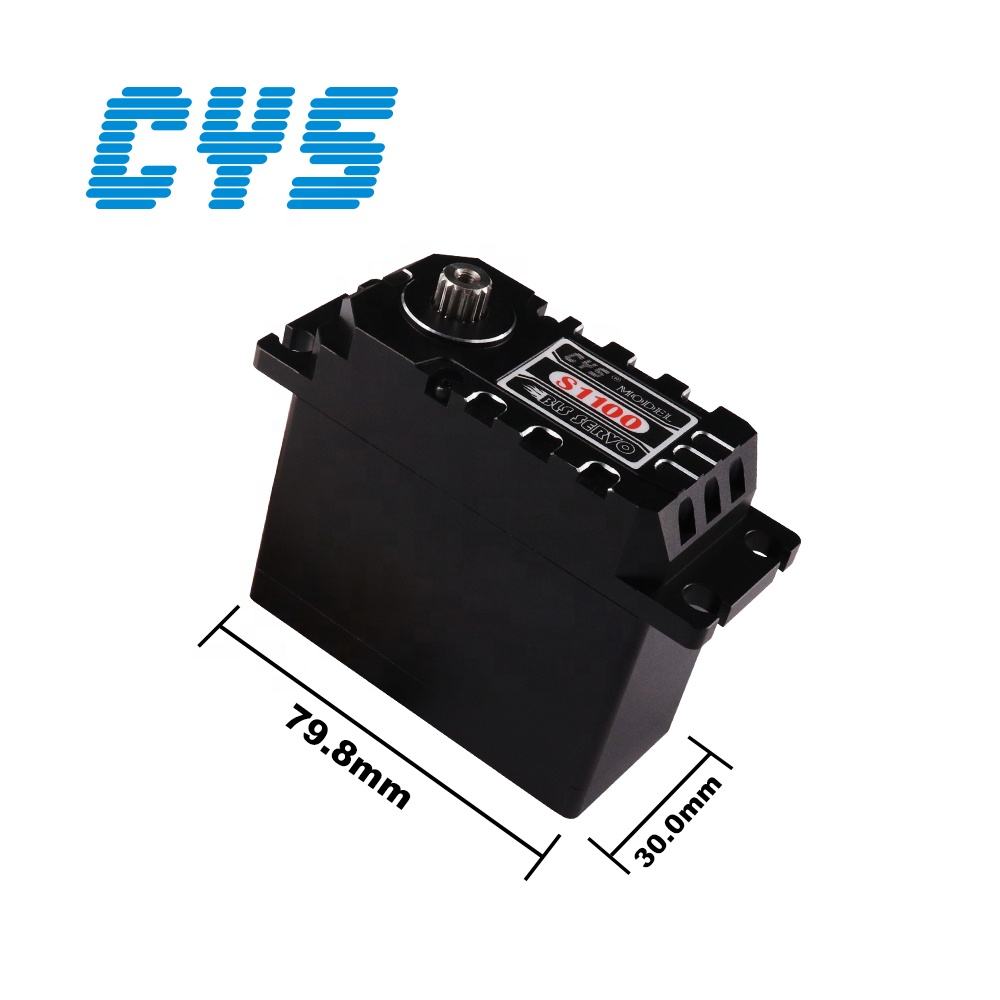

Size
|
79.8x30x64.35mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
9.0V-12V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.4 sec/60° - 0.3 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
90.0 kg.cm - 110.0 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 110mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 210mA no load operating
|
|
Stall Current
|
5.8A/7.5A
|
|
Dead Band Width
|
4μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Brushless
|
|
Horn Gear Spline
|
15T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
