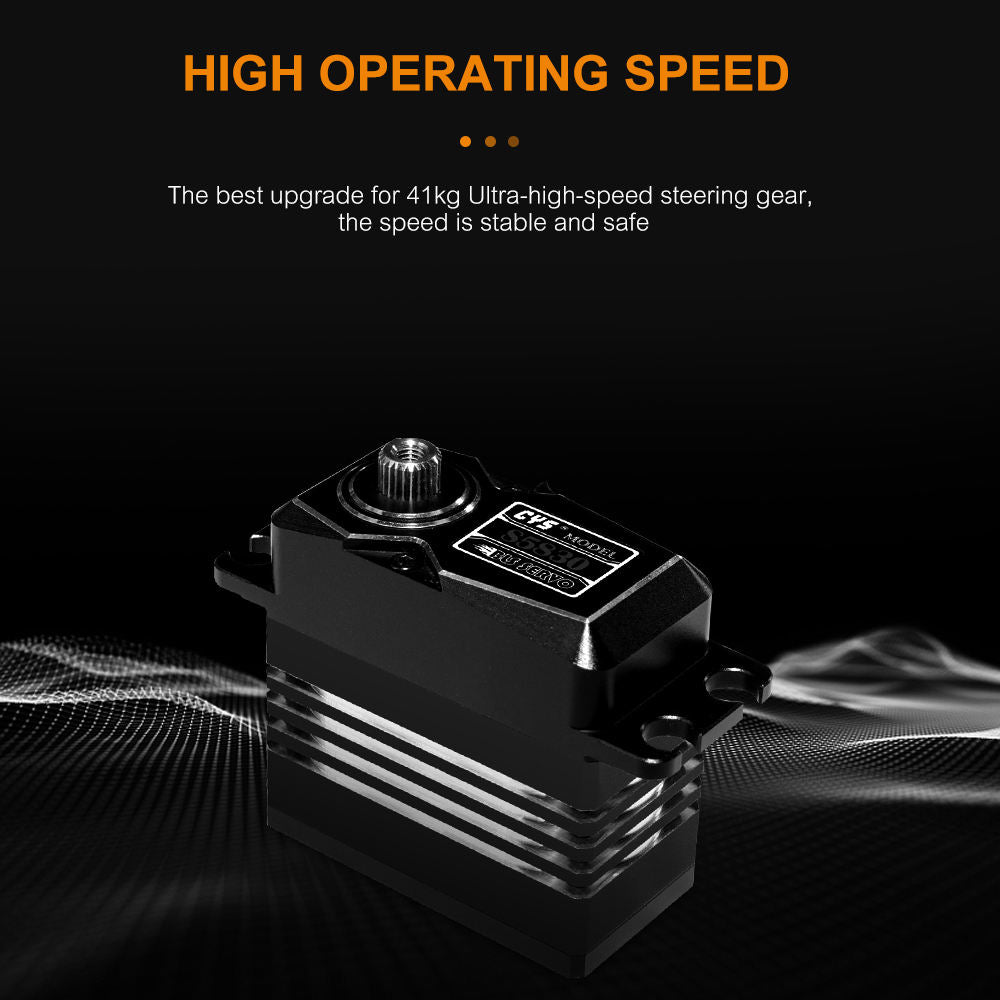

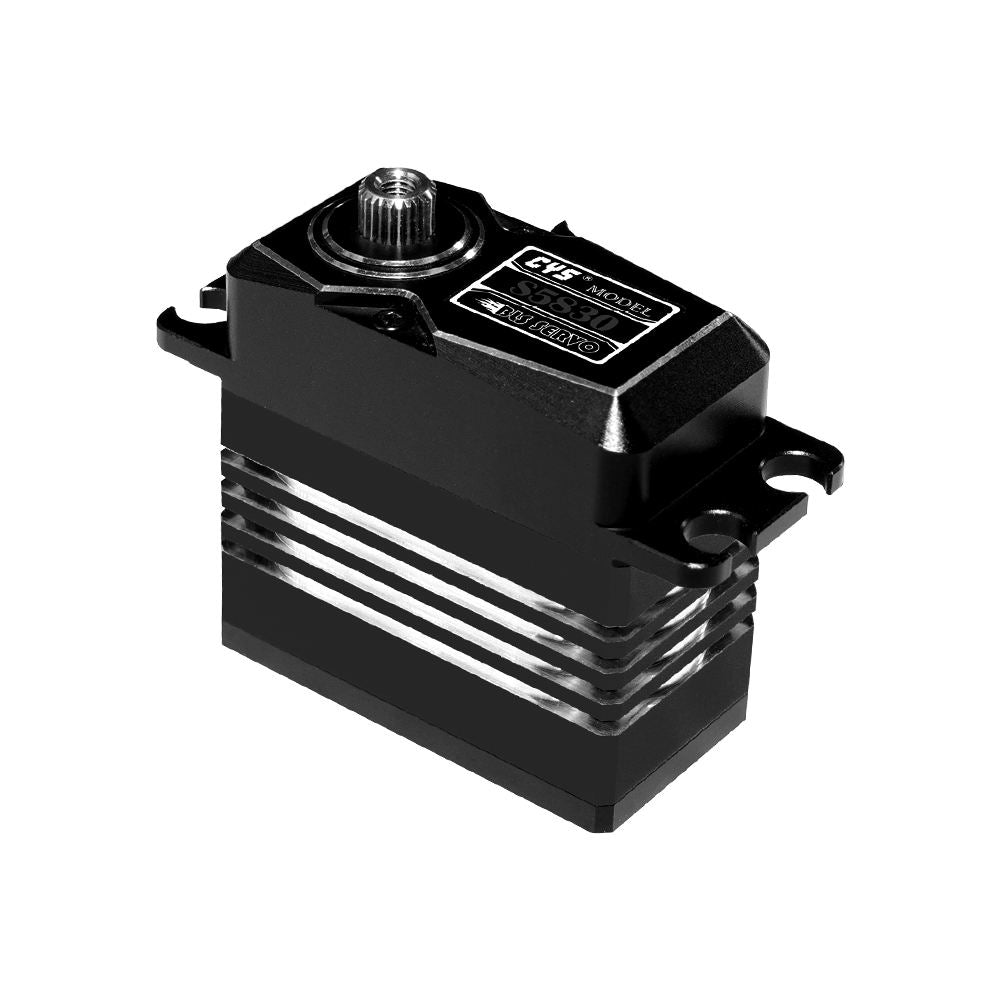

large torque CYS-BLS5840-02 45kg High Speed 25T Brushless with Metal Gear Digital Servo for RC Helicopter
large torque CYS-BLS5840-02 45kg High Speed 25T Brushless with Metal Gear Digital Servo for RC Helicopter
Regular price
$165.00 USD
Regular price
Sale price
$165.00 USD
|
item NO.
|
CYS-BLS5840
|
|
Control Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
85g±1g
|
|
Size
|
54.25*20*39.35mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V/7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.11sec/60° /0.09sec/60°
|
|
Stall Torque @ 6.0V -7.4V
|
35.0/41.0kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 230mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 230mA no load operating
|
|
Stall Current
|
7A/8.3A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Brushless
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
