large torque CYS-S2220 Unisex 1/10 RC Boat Servo Waterproof Digital Titanium Gear High Torque 60g 20kg Plastic Metal 7.4V Wholesale
large torque CYS-S2220 Unisex 1/10 RC Boat Servo Waterproof Digital Titanium Gear High Torque 60g 20kg Plastic Metal 7.4V Wholesale
Regular price
$60.90 USD
Regular price
Sale price
$60.90 USD
|
Item NO.
|
CYS-S2220
|
|
Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
60g
|
|
Size
|

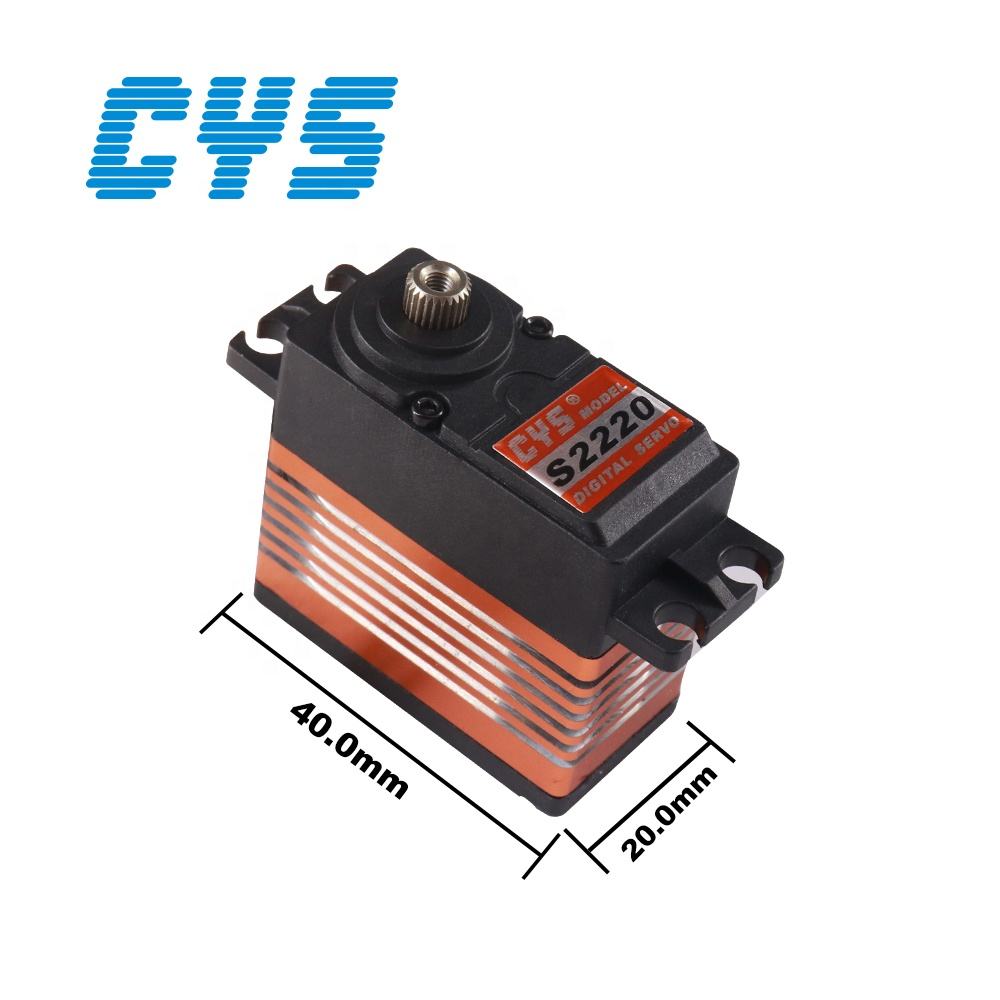

40*20*41.4mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.16sec - 0.140sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
18kg.cm-20.0kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 120xmA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 150mA no load operating
|
|
Stall Current
|
2.8A/3.2A
|
|
Dead Band Width
|
2usec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Coreless
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
