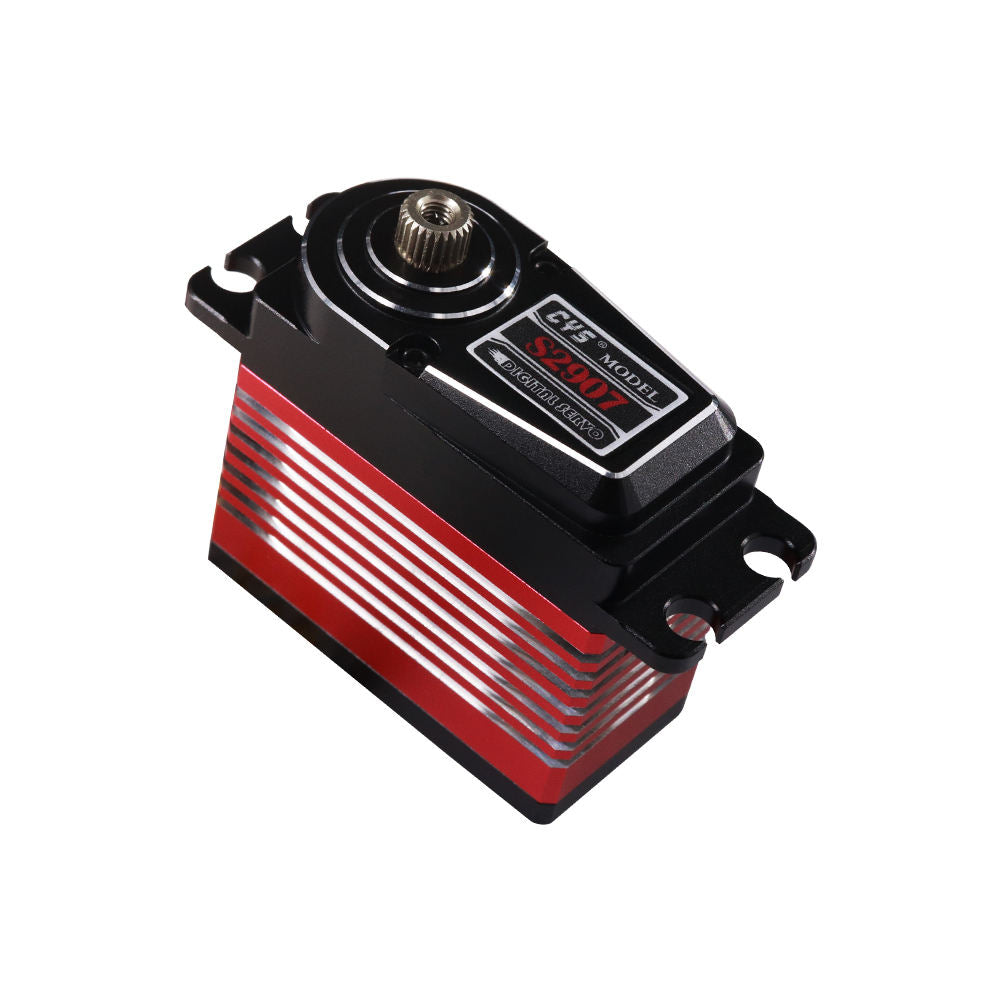

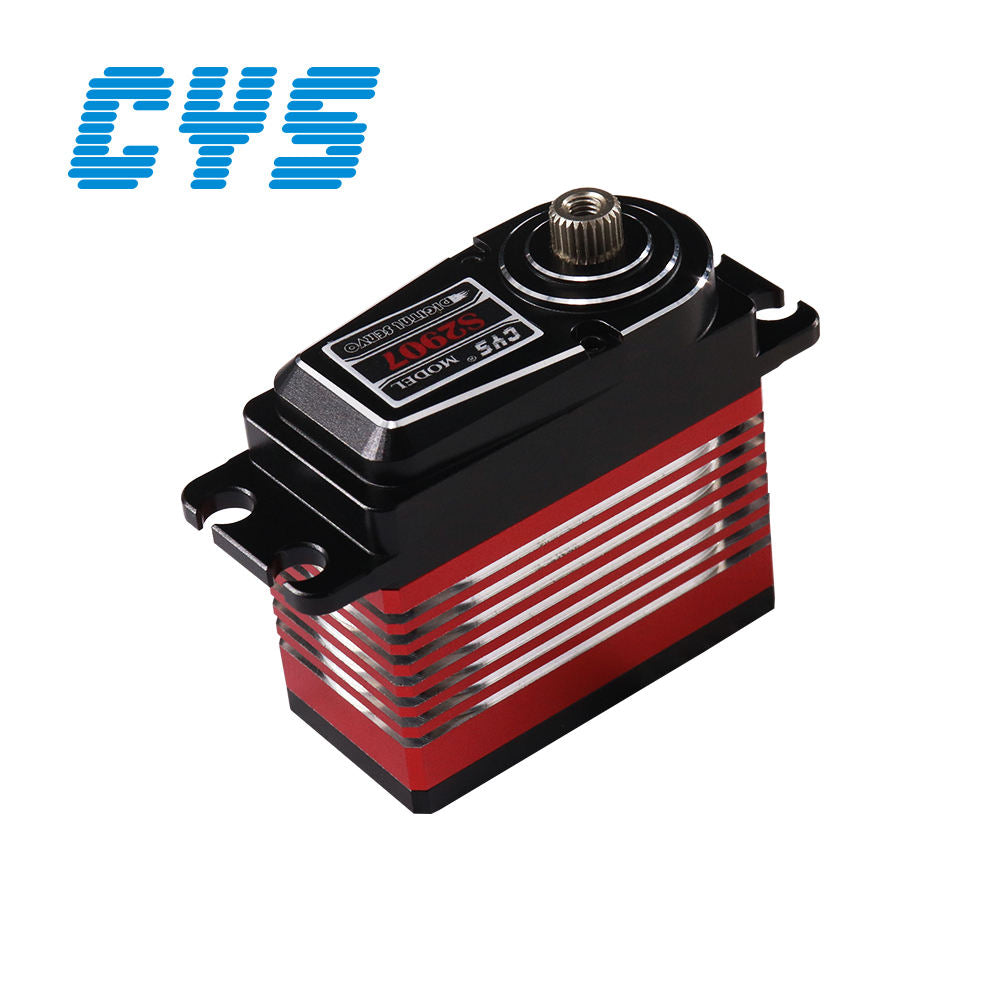

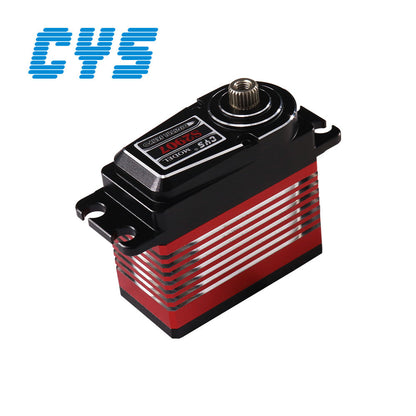

large torque CYS-S2907-02 0.08sec/0.06sec Titanium Gear Digital Full Aluminium Coreless Motor Servo for RC Model Plane 1/10 Car
- Sale price
- $102.90
- Regular price
-
- Regular price
- $102.90
- Unit price
- per
-0%
Vendor: roboticu
Only
999
items in stock!
Out of stock!
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
|
Item NO.
|
CYS-S2907
|
|
Type
|
Digital Servo
|
|
Gear Type
|
Full Aluminium Case
|
|
Weight
|
68g
|
|

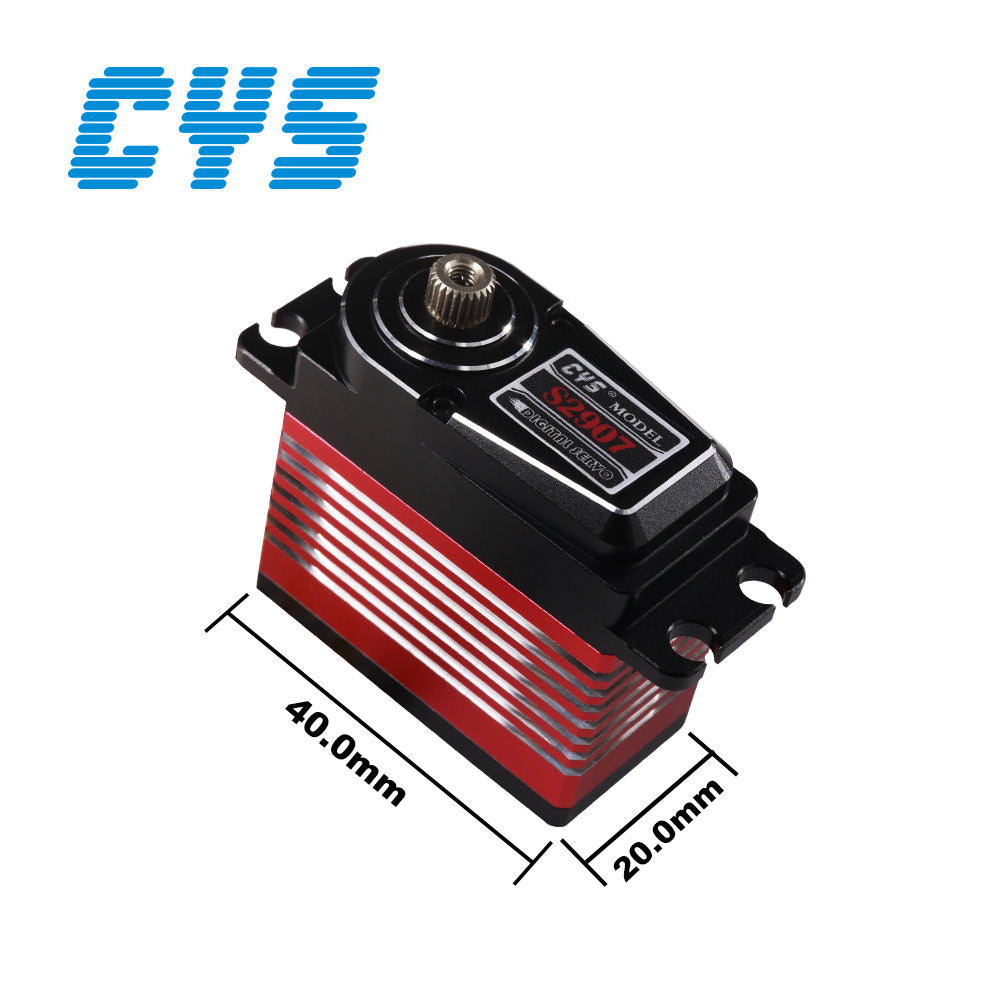

Size
|
40*20*39mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.05sec -0.04sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
6kg.cm-7kg.cm
|
|
Current Drain (6.0V)
|
20 mA/idle and 120 mA no load operating
|
|
Current Drain (7.4V)
|
20 mA/idle and 150 mA no load operating
|
|
Stall Current
|
2.8A/3.2A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Coreless Motor
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
