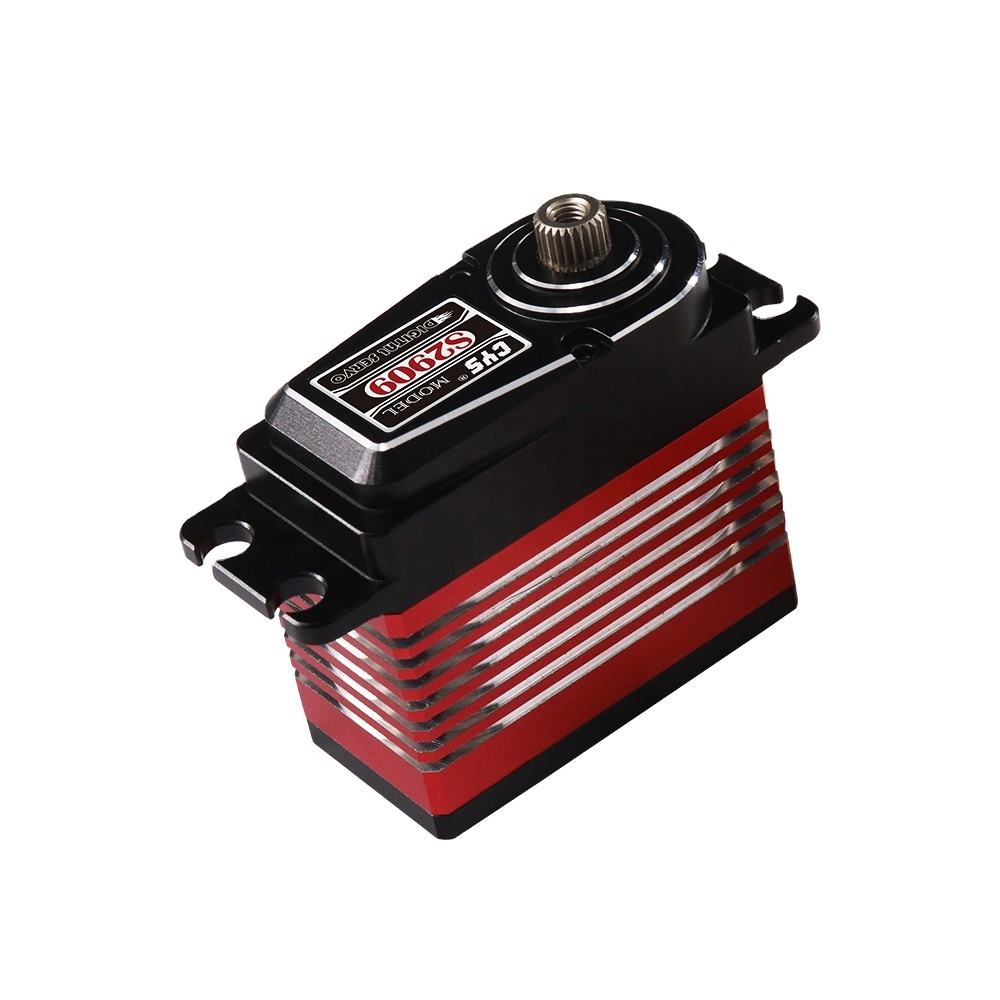

large torque CYS-S2909-02 High-Speed 9kg Digital Servo Coreless Motor and Aluminum Case Unisex Toy for Airplanes and Cars Metal System
large torque CYS-S2909-02 High-Speed 9kg Digital Servo Coreless Motor and Aluminum Case Unisex Toy for Airplanes and Cars Metal System
Regular price
$123.60 USD
Regular price
Sale price
$123.60 USD
|
Item No.
|
CYS-S2909
|
|
Control Type
|
Digital
|
|
Gear Type
|
Titanize
|
|
Weight
|
68g±1g
|
|

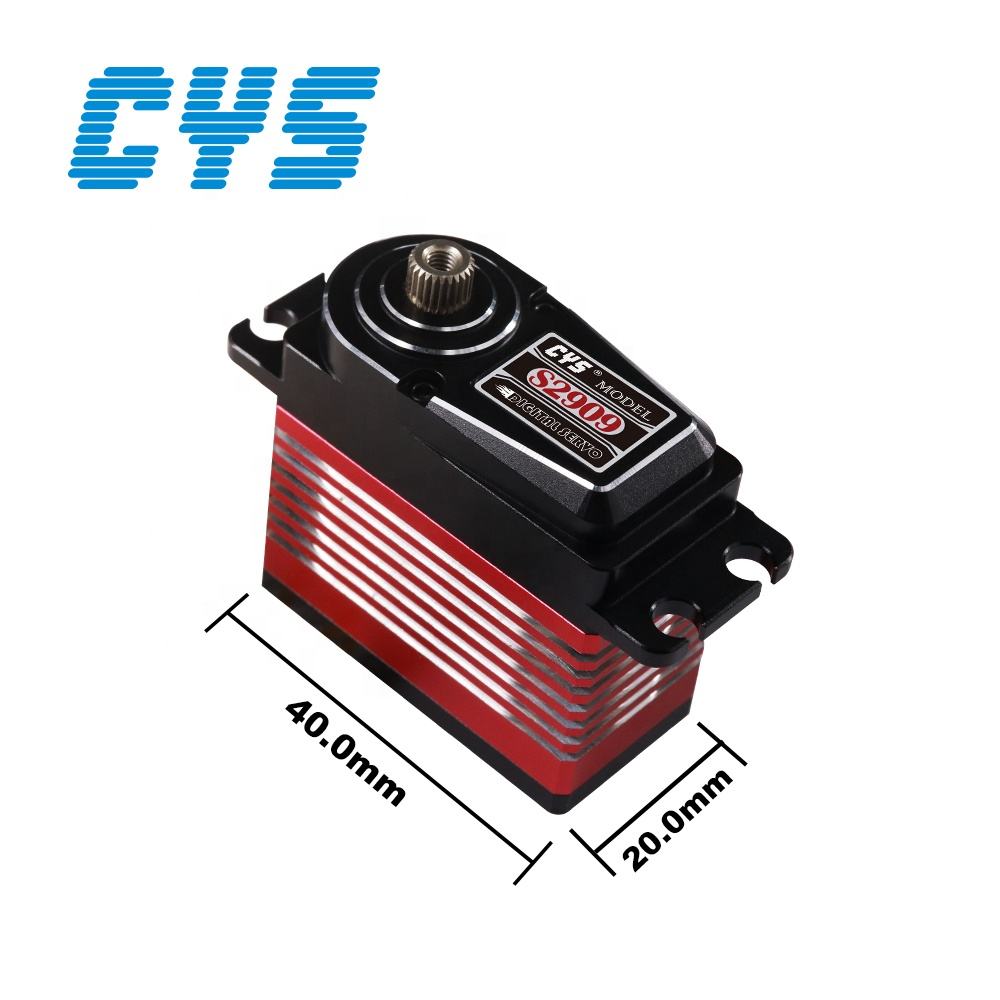

Size
|
40x20x39mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.11 sec/60° - 0.09 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
8.0 kg.cm - 9.0 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 100mA no load operating
|
|
Stall Current
|
2.6A/3.2A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
