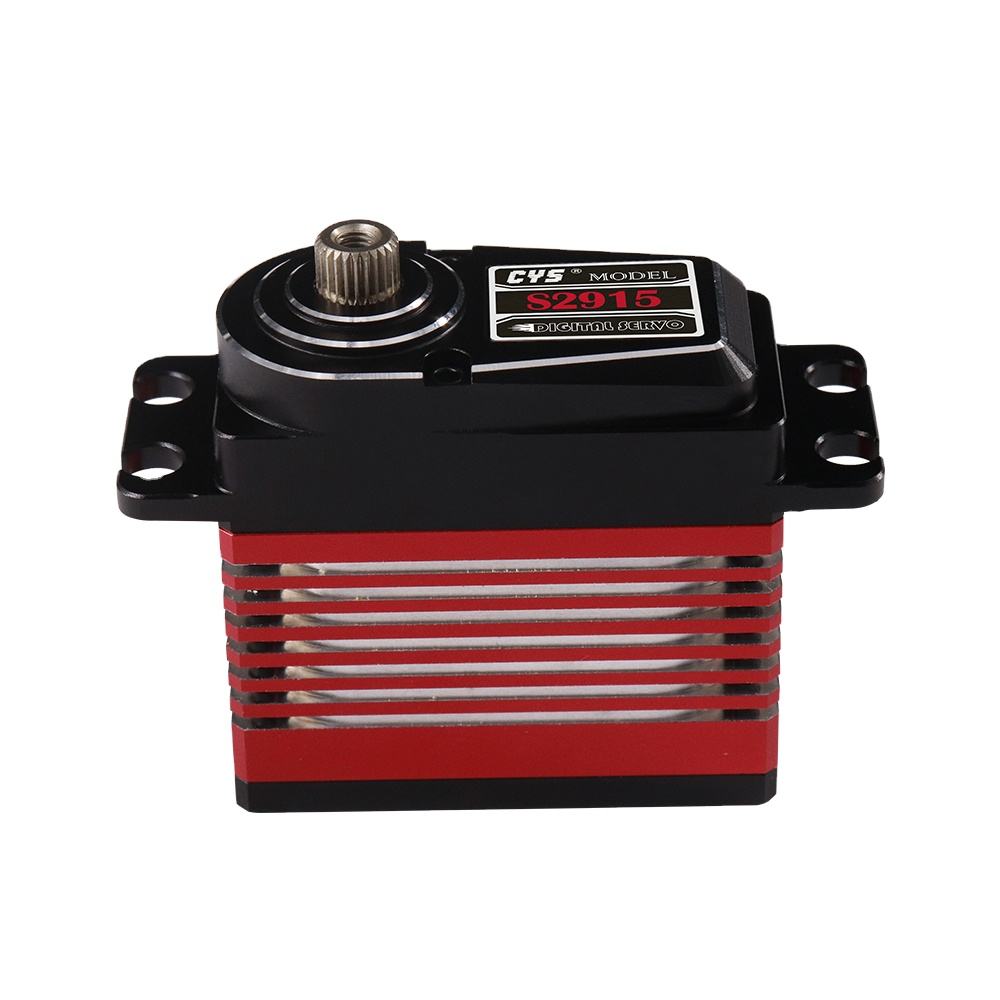

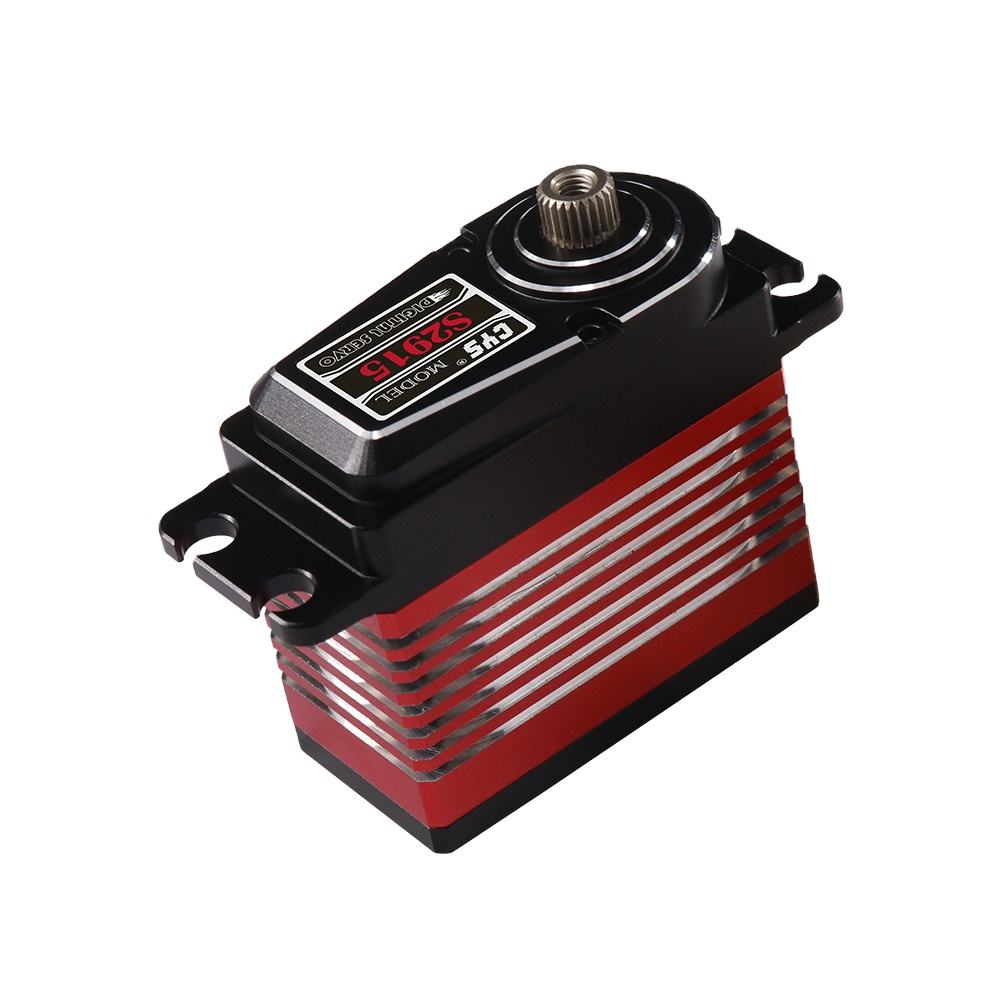

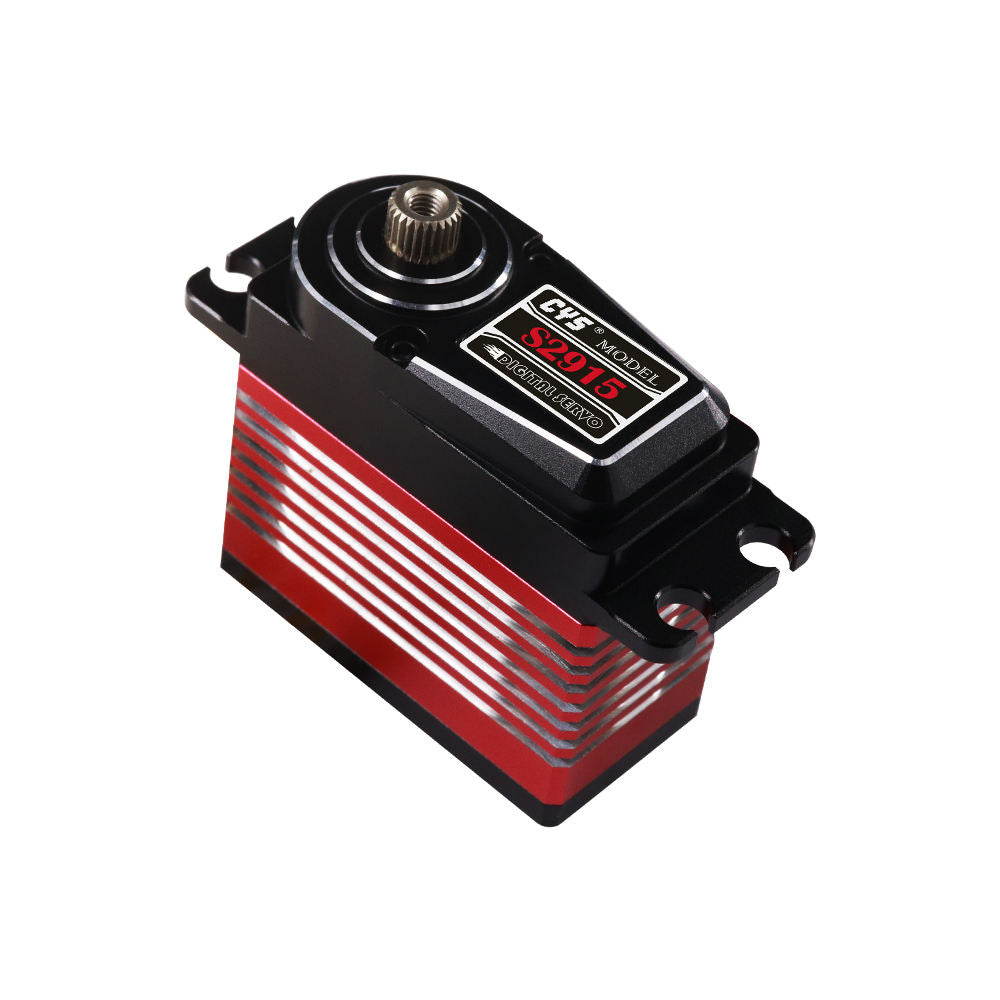

large torque CYS-S2915-01 Unisex Toy Kits 15kg Torque Full Aluminum Case Coreless RC Digital Servo Aircraft/Car/Boat Standard Size Metal Plastic

Description

Item No.	CYS-S2915
Control Type	Digital
Gear Type	Titanize
Weight	68g±1g

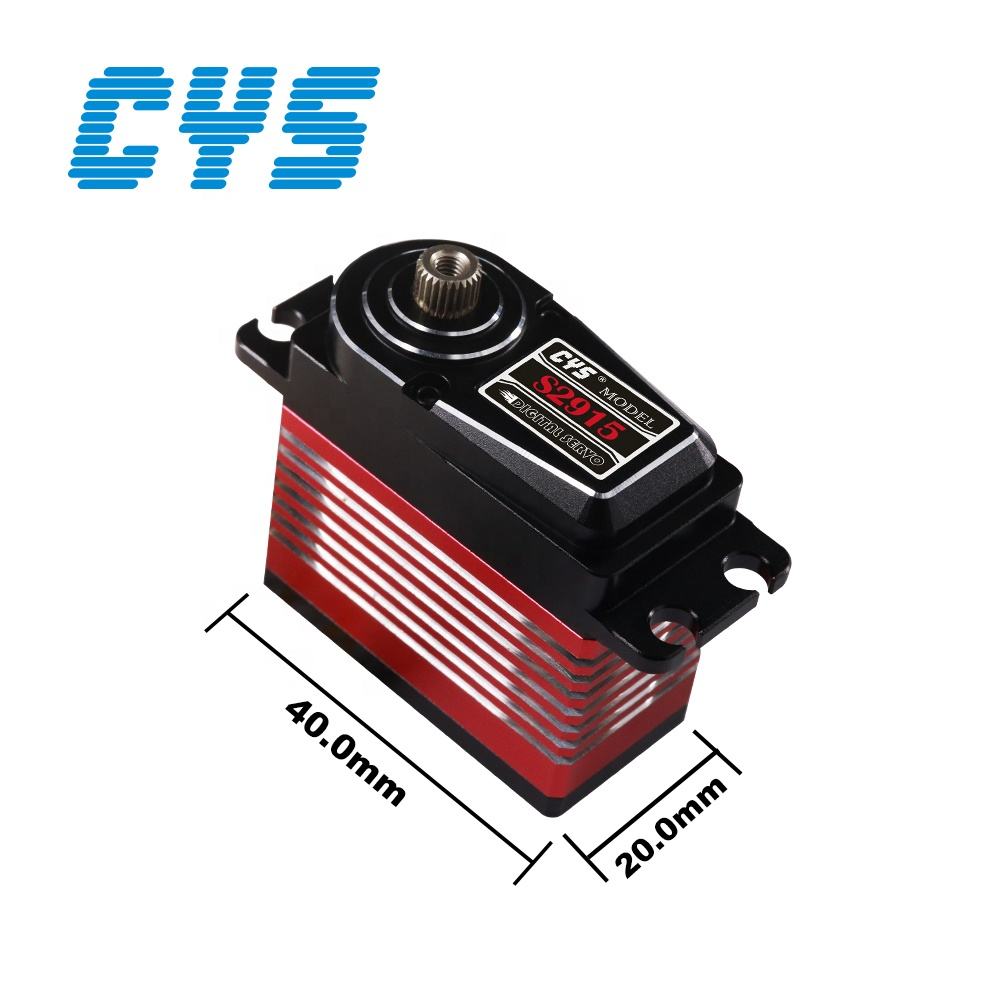

Size	40x20x39mm
Control System	(+)Pulse Width Control 1500μsec Neutral
Operating Voltage	6.0V-7.4V
Operating Temperature Range	-10 °C ~ +50 °C
Operating Speed @ 6.0V-7.4V	0.13 sec/60° - 0.11 sec/60° at no load
Stall Torque @ 6.0V -7.4V	14.0 kg.cm - 15.0 kg.cm
Current Drain (6.0V)	20mA/idle and 80mA no load operating
Current Drain (7.4V)	20mA/idle and 100mA no load operating
Stall Current	2.8A/3.2A
Dead Band Width	2μsec
Bearing Type	Double Ball Bearing
Motor Type	Coreless
Horn Gear Spline	25T
Cable/Plug	300mm/JR
Wire Information	Brown(N) Red (P) Orange(S)
