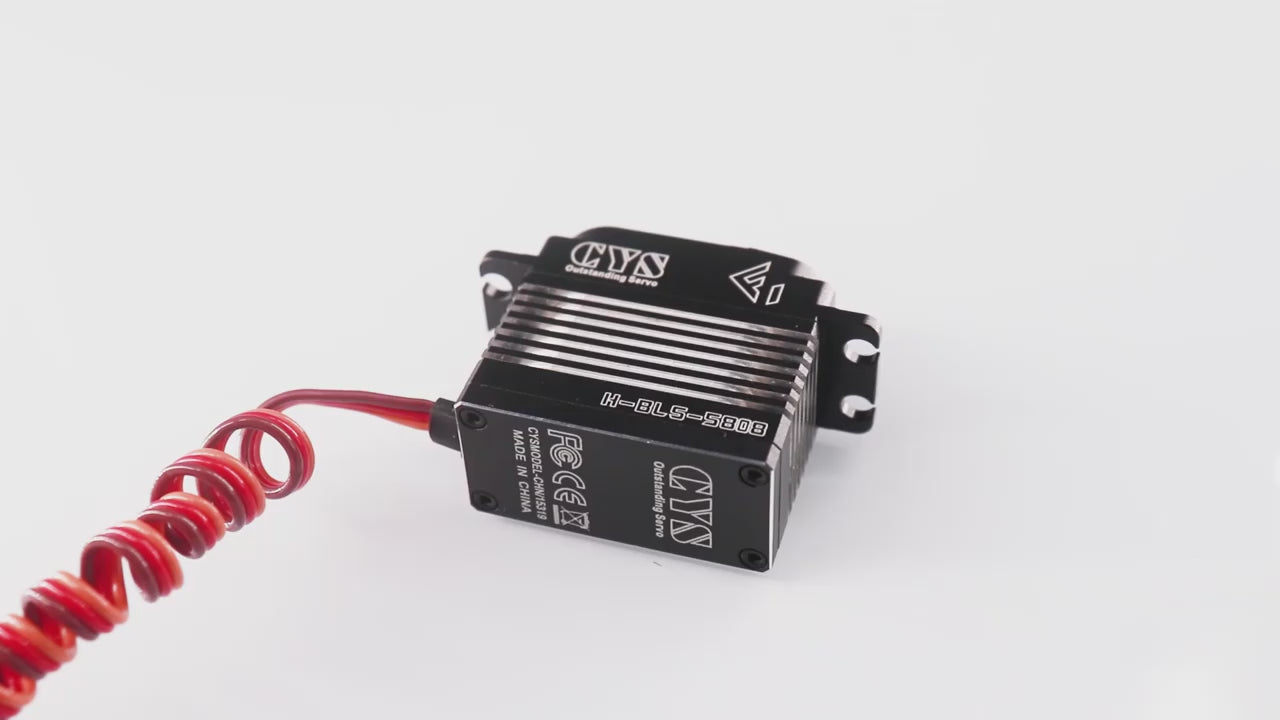

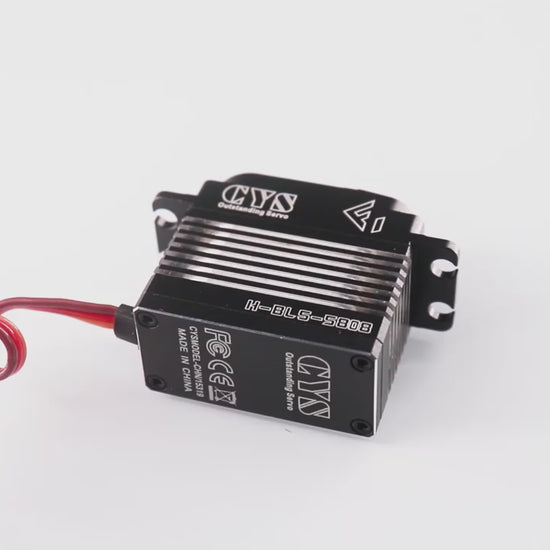

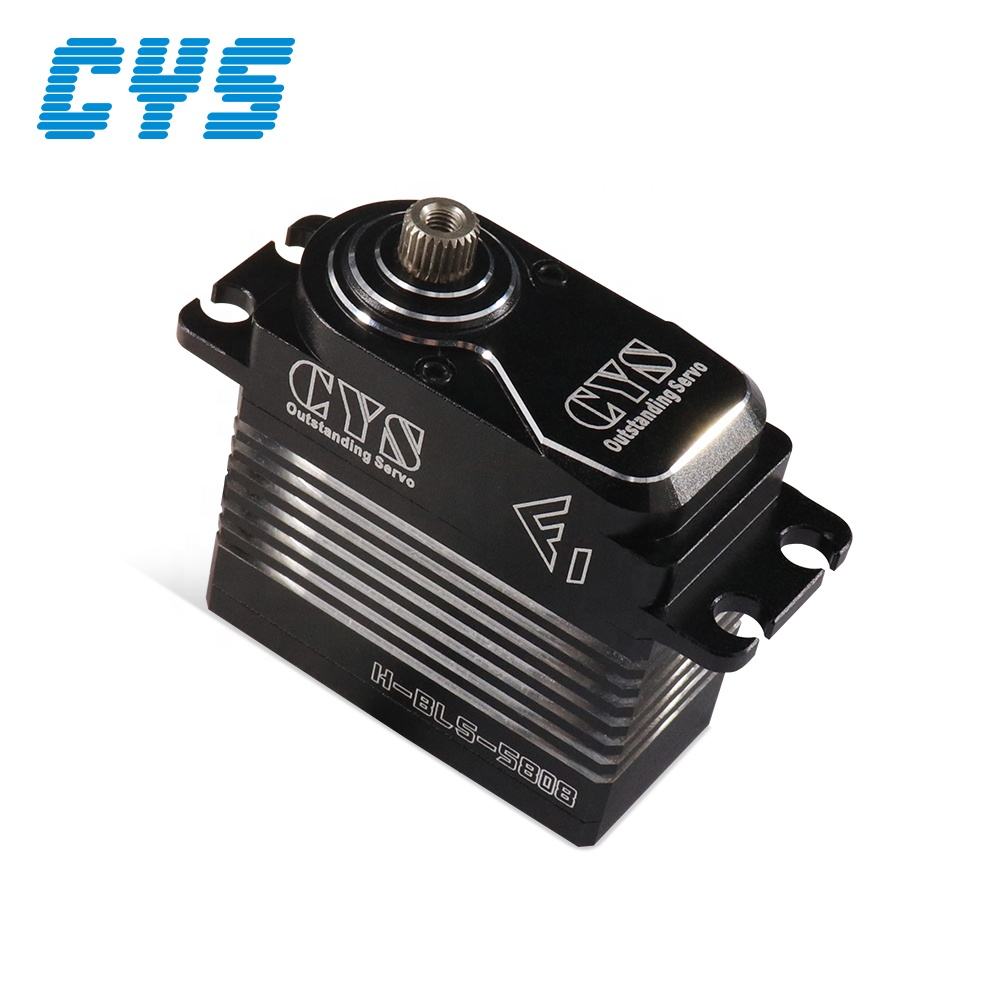

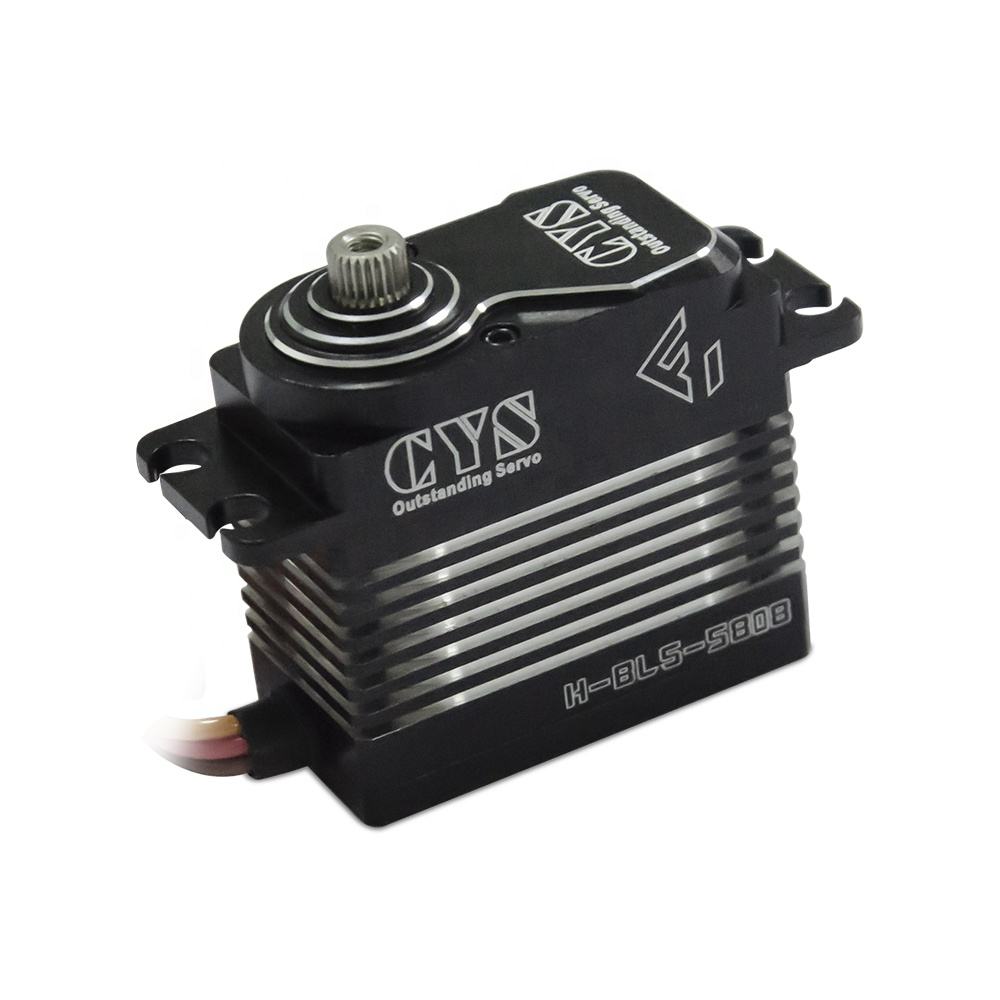

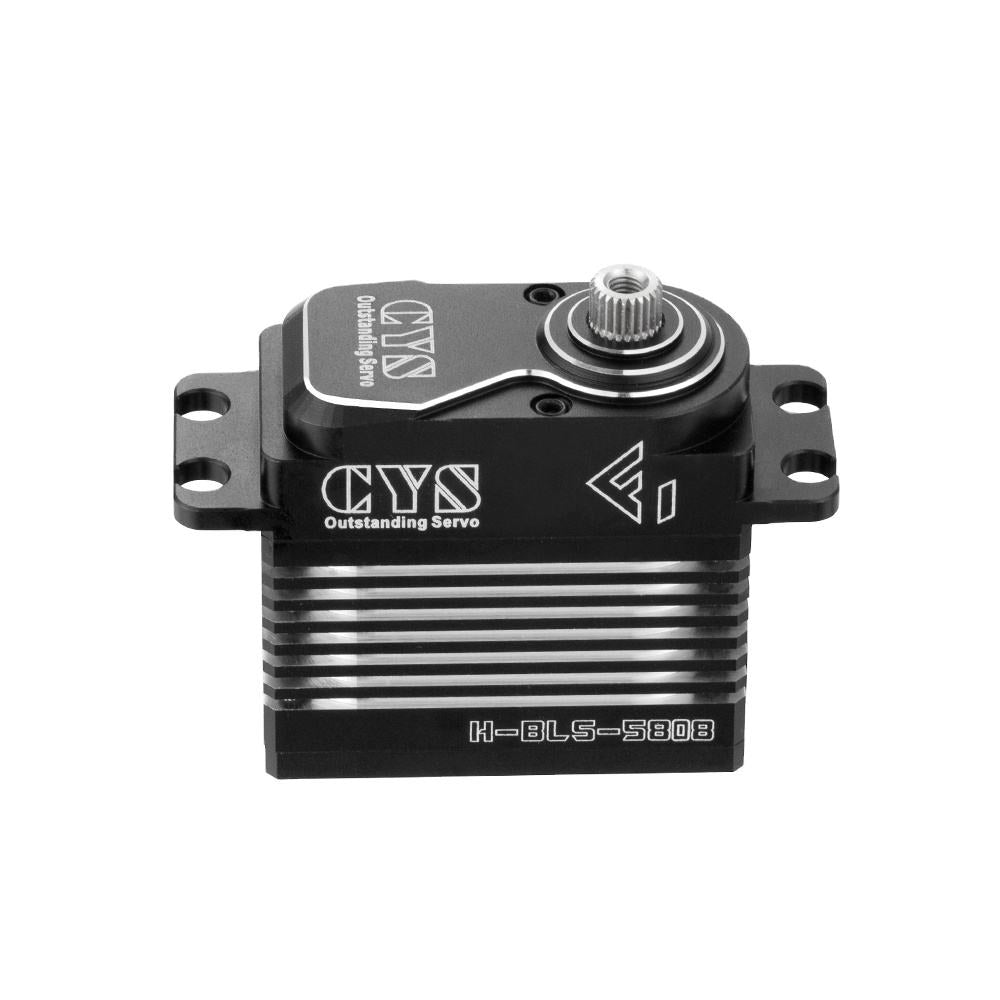

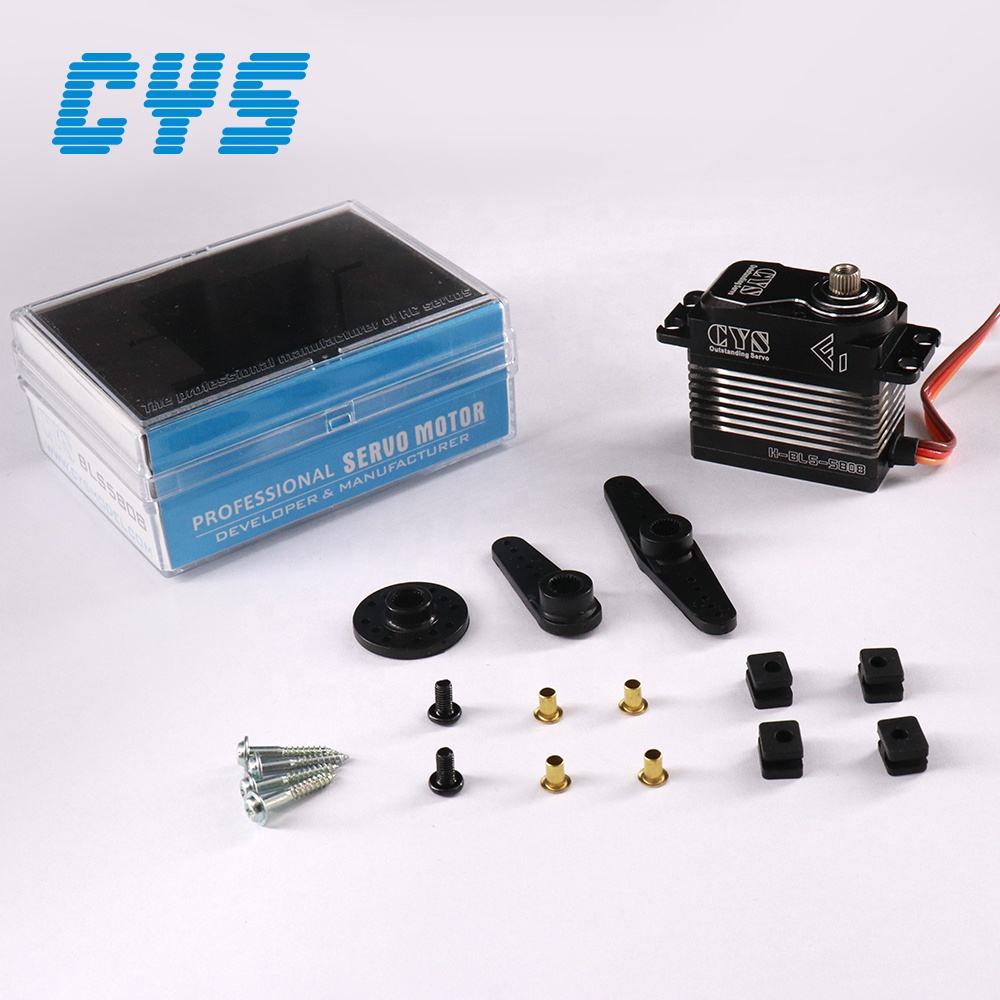

large torque H-BLS-5808-02 Full Aluminum 6kg High Speed Steel Gear Brushless Digital RC Servo for RC 700 Helicopter

$159.00
$159.00
-0%
Vendor: roboticu
Only 999 items in stock! Out of stock!

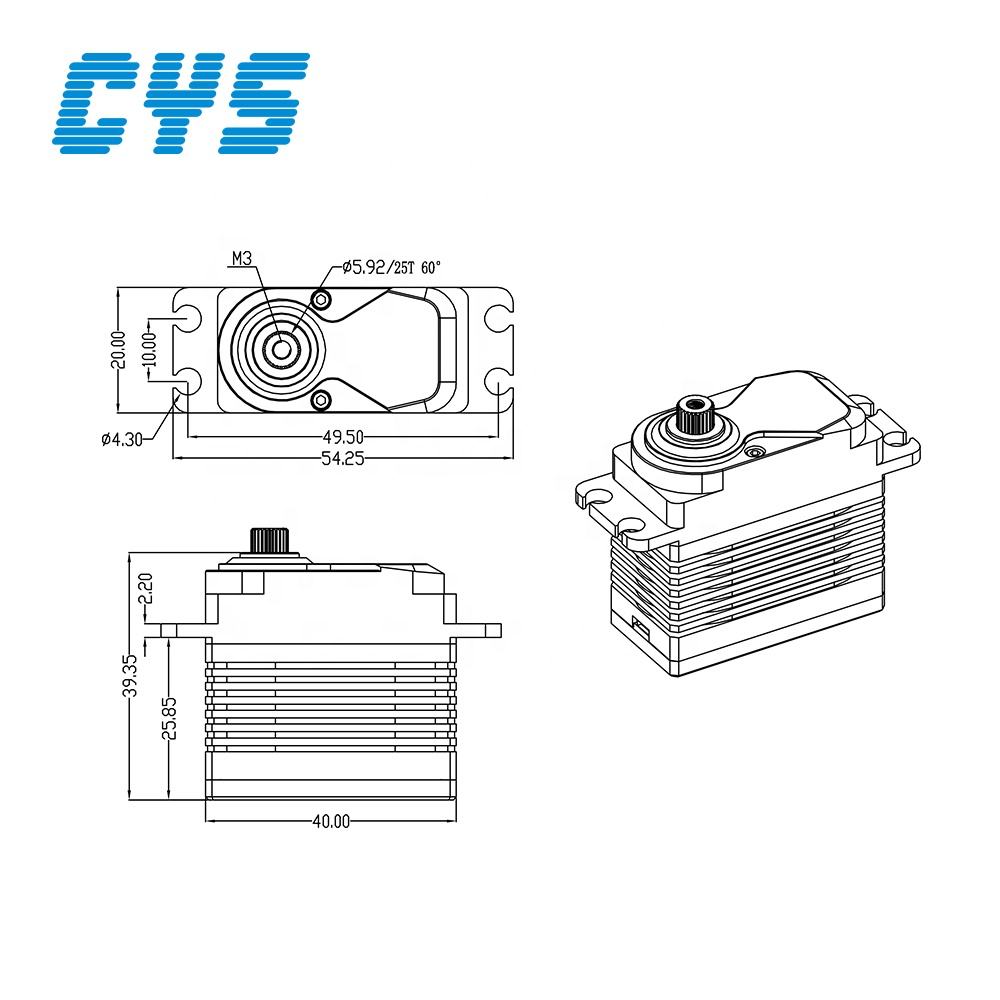

size: 40*20*39.35mm

Guaranteed safe checkout

    Description

    Item NO.
    H-BLS-5808
    Type
    Digital
    Gear Type
    Steel
    Weight
    77g
    Size
    40*20*39.35mm
    Control System
    (+)Pulse Width Control 1500μsec Neutral
    Operating Voltage
    6.0V-7.4V
    Operating Temperature Range
    (-)10 to +50 degree C
    Operating Speed @ 6.0V-7.4V
    0.029sec - 0.024sec at no load
    Stall Torque @ 6.0V -7.4V
    4.5kg.cm-6.0kg.cm
    Current Drain (6.0V)
    20mA/idle and 80mA no load operating
    Current Drain (7.4V)
    20mA/idle and 80mA no load operating
    Stall Current
    3.2A/4.0A
    Dead Band Width
    3μsec
    Bearing Type
    BB*2
    Motor Type
    Brushless
    Horn gear spline
    25T
    Cable/Plug
    300mm/JR
    Wire information
    Brown(N) Red (P) Orange(S)

    Terms and conditions

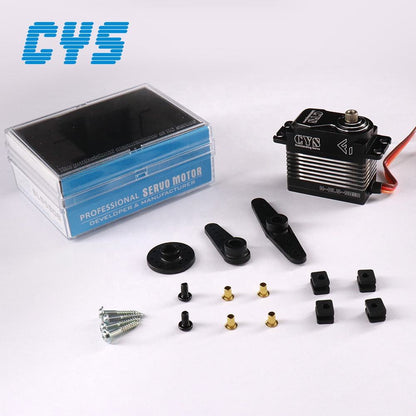

    large torque H-BLS-5808-02 Full Aluminum 6kg High Speed Steel Gear Brushless Digital RC Servo for RC 700 Helicopter
