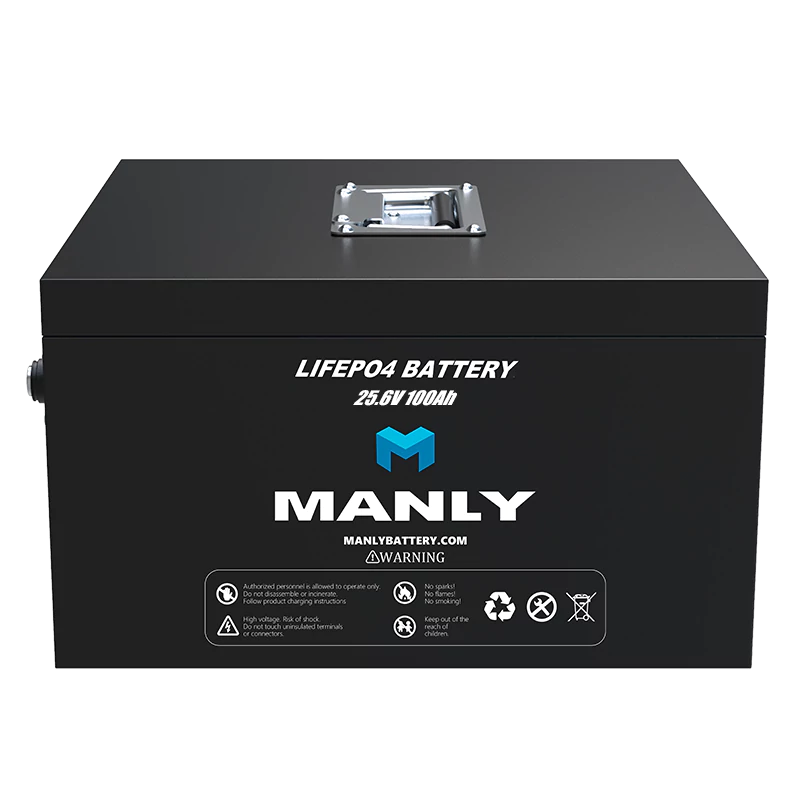

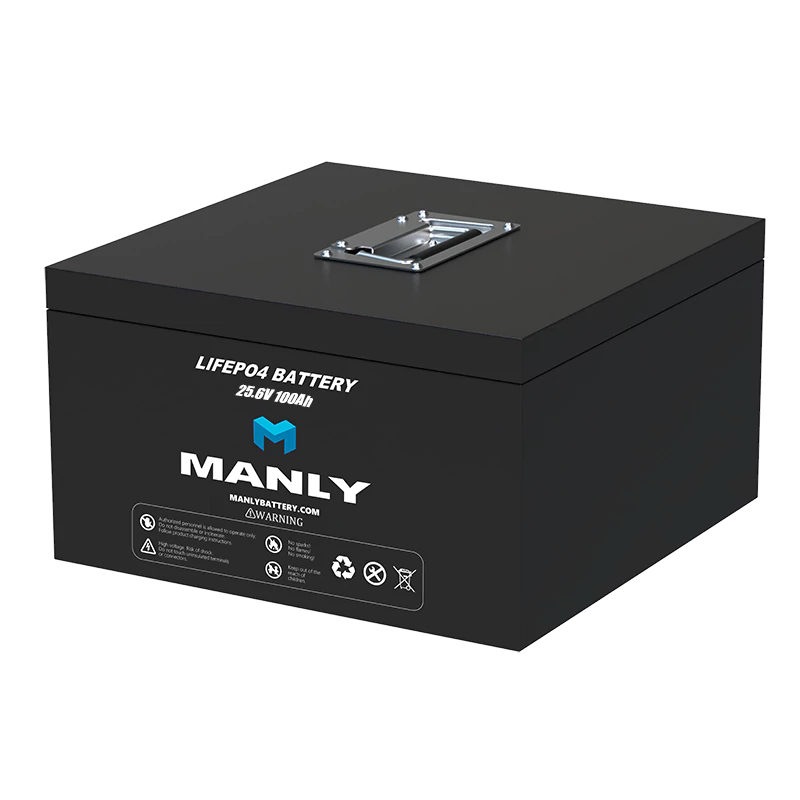

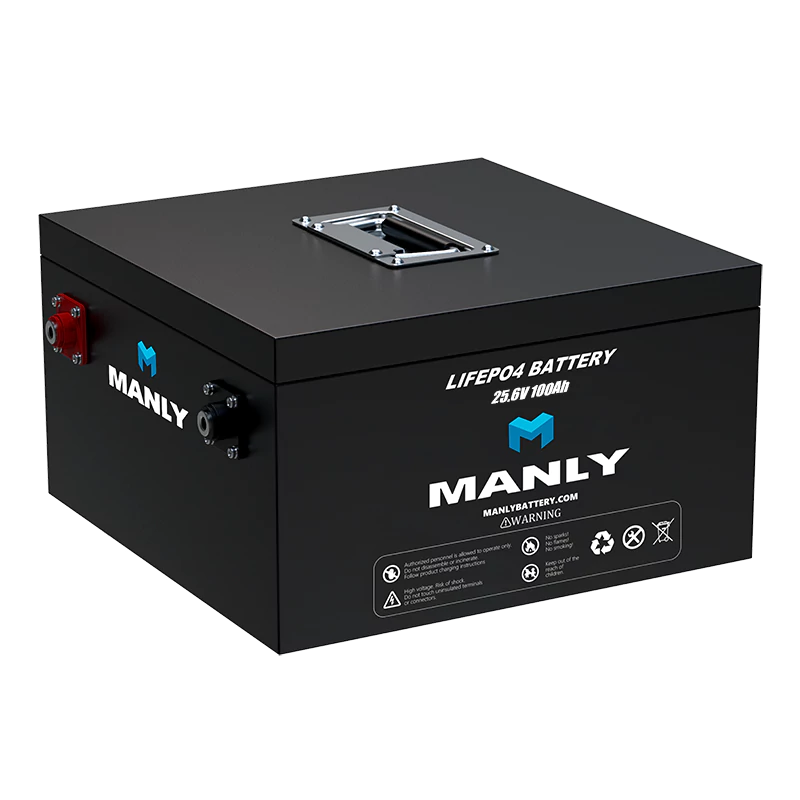

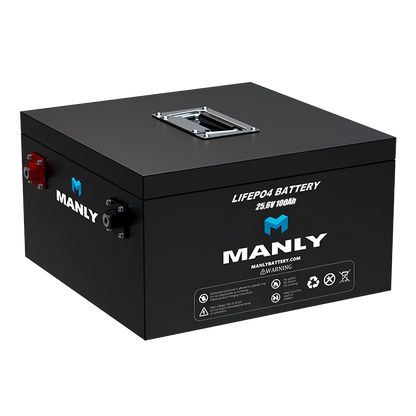

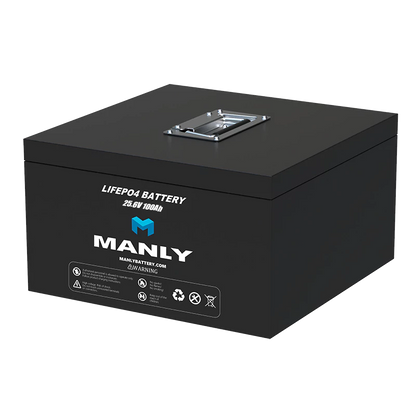

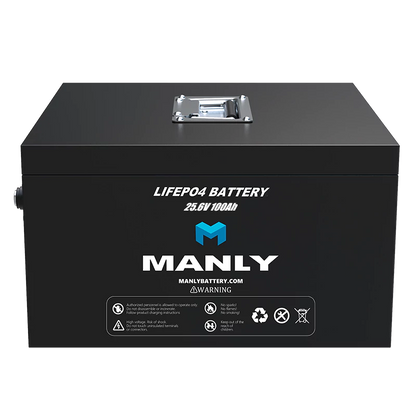

MANLY Robot Battery 24V 100Ah LiFePO4 Battery for Industrial Robot Applications

The 24V 100Ah LiFePO4 battery is a high-performance battery with many features. It has a long cycle life of over 8,000 cycles, making it suitable for a variety of applications. It also has a fast charging time of 4-5 hours and can operate at a wide temperature range of -20°C to 75°C. Additionally, it is environmentally friendly, with no harmful substances and a low self-discharge rate.

Features Of 24V 100AH LiFePO4 Battery:

1. Maintenance-free operation;
2. The long service life of 10~15 years;
3. Inbuilt BMS multiple security protection;
4. High-quality lithium iron phosphate batteries, safe and reliable;
5. More rechargeable time, longer lifetime, economic and environmental protection.

   Specification Of 24V 100AH LiFePO4 Battery:

   24V 100Ah LiFePo4 Battery for Robotic Applications
   Electric Characteristics
   Battery Type	LiFePO4/LFP	Nominal Capacity	100Ah
   Nominal Voltage	24V	Actual Voltage	25.6V
   Energy	2560Wh	Cycle Life	5,000+ times
   Charging and Discharging Parameters
   Full charge volt	29.2V	Discharge cut-off volt	20V
   Max charge current	50A	Max continuous discharge current	100A/Customizable
   Peak discharge current	200A@1~3 Seconds	Suggested charge Volt	29.2V
   Mechanical Properties
   Dimension	Customizable	Housing materials	ABS/PVC/Customize
   Weight	About 24kg	Communication protocol	RS485/RS232/CANBus/Optional
   Waterproof level	IP65	Output	Cable/Connector/Optional
   Operation Temperature Parameters
   Charge	0 ~ 45℃	Storage less than 12 months	-20 ~ +25℃
   Discharge	-20 ~ +75℃	Storage less than three months	-20 ~ +35℃
   Recommended	18 ~ 28℃	Storage over 12 months	25 ℃
   BMS function
   Protect battery from Overcharge, Over-discharge, Over-current, Short circuit
   Advantage
   High safety (no fire, no explosion)	No memory effect	High energy density	Long lifespan more than 10 years
   Fast Charge Capability	Waterproof	Individual cell balancing	Easy maintenance
