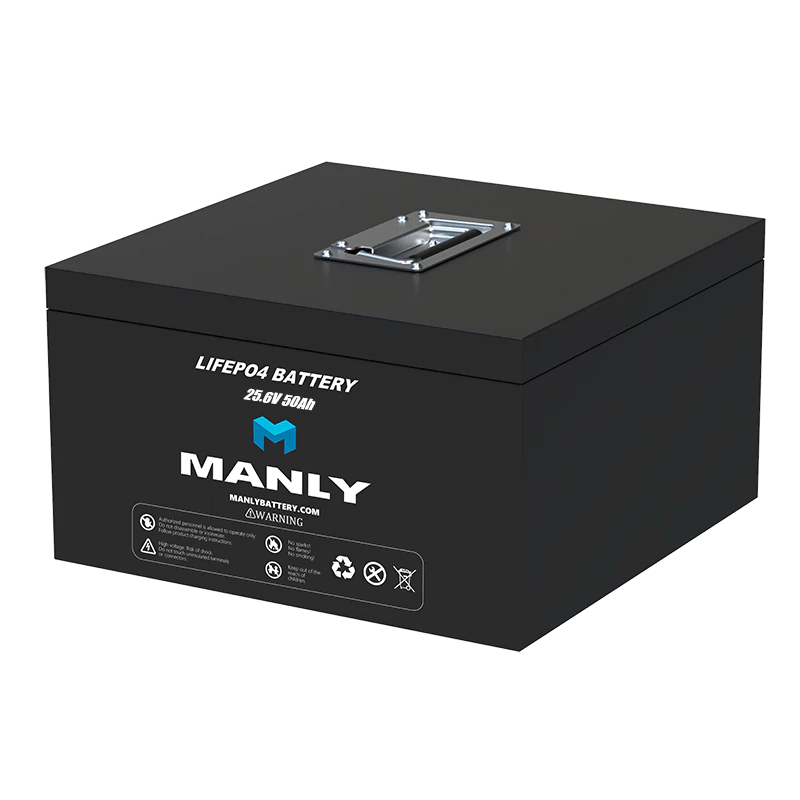

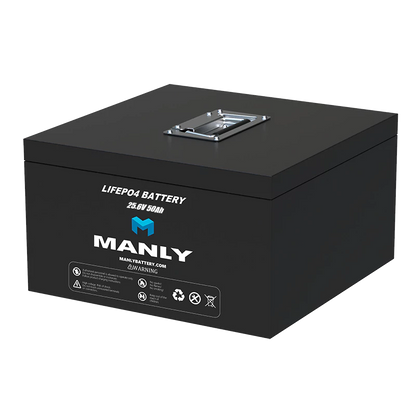

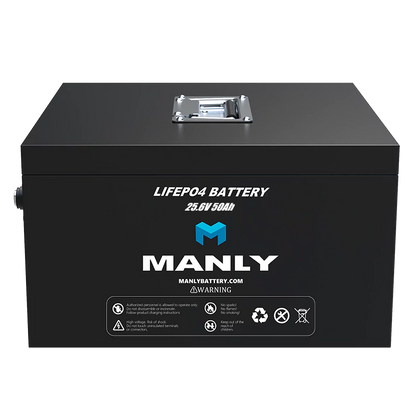

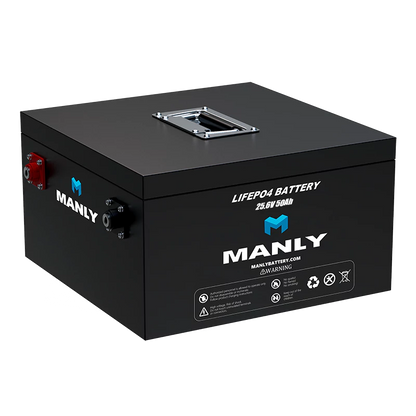

MANLY Robot Battery 24V 50Ah Lithium Battery for Industrial Robot Applications

The 24V 50Ah lithium battery is a deep cycle rechargeable power source designed for robotics applications. It can be customized to a 24V 50Ah lithium-ion battery and offers reliable performance, long cycle life, and a 36 months warranty for assured quality.

Features Of 24v 50ah lithium battery:

1. Maintenance-free operation;
2. The long service life of 10~15 years;
3. Inbuilt BMS multiple security protection;
4. High-quality lithium iron phosphate batteries, safe and reliable;
5. More rechargeable time, longer lifetime, economic and environmental protection.

   24V 50Ah LiFePo4 Battery | 24V 50Ah Lithium ion Battery for Robotic/AGV/RGV Applications
   Electric Characteristics
   Battery Type	LiFePo4	Nominal Capacity	50Ah
   Nominal Voltage	24V	Actual Voltage	25.6V
   Energy	1280Wh	Cycle Life	3500+
   Charging and Discharging Parameters
   Full charge volt	29.2V	Discharge cut-off volt	20V
   Max charge current	25A	Max continuous discharge current	50A
   Peak discharge current	100A@1~3 Seconds	Suggested charge Volt	29.2V
   Mechanical Properties
   Dimension	Customize	Housing materials	ABS/PVC/Customize
   Weight	About 6.5kg	Communication protocol	RS485/RS232/CANBus/Optional
   Waterproof level	IP65	Output	Cable/Connector/Optional
   Operation Temperature Parameters
   Charge	0~45℃	Storage less than 12 months	-20 ~25℃
   Discharge	-20~60℃	Storage less than three months	-20~35℃
   Recommended	18~28℃	Storage over 12 months	25 ℃
   BMS function
   Protect battery from Overcharge, Over-discharge, Over-current, Short circuit
   Advantage
   High safety (no fire, no explosion)	No memory effect	High energy density	Long lifespan
   Fast Charge Capability	Waterproof	Individual cell balancing	Easy maintenance
