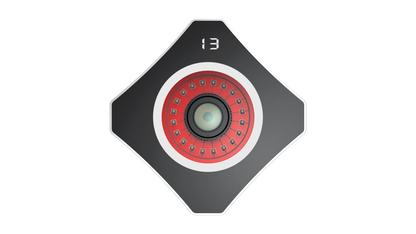

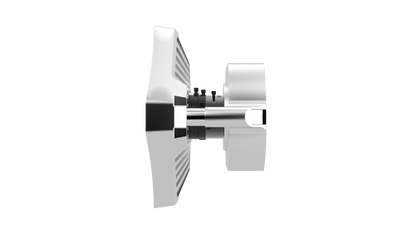

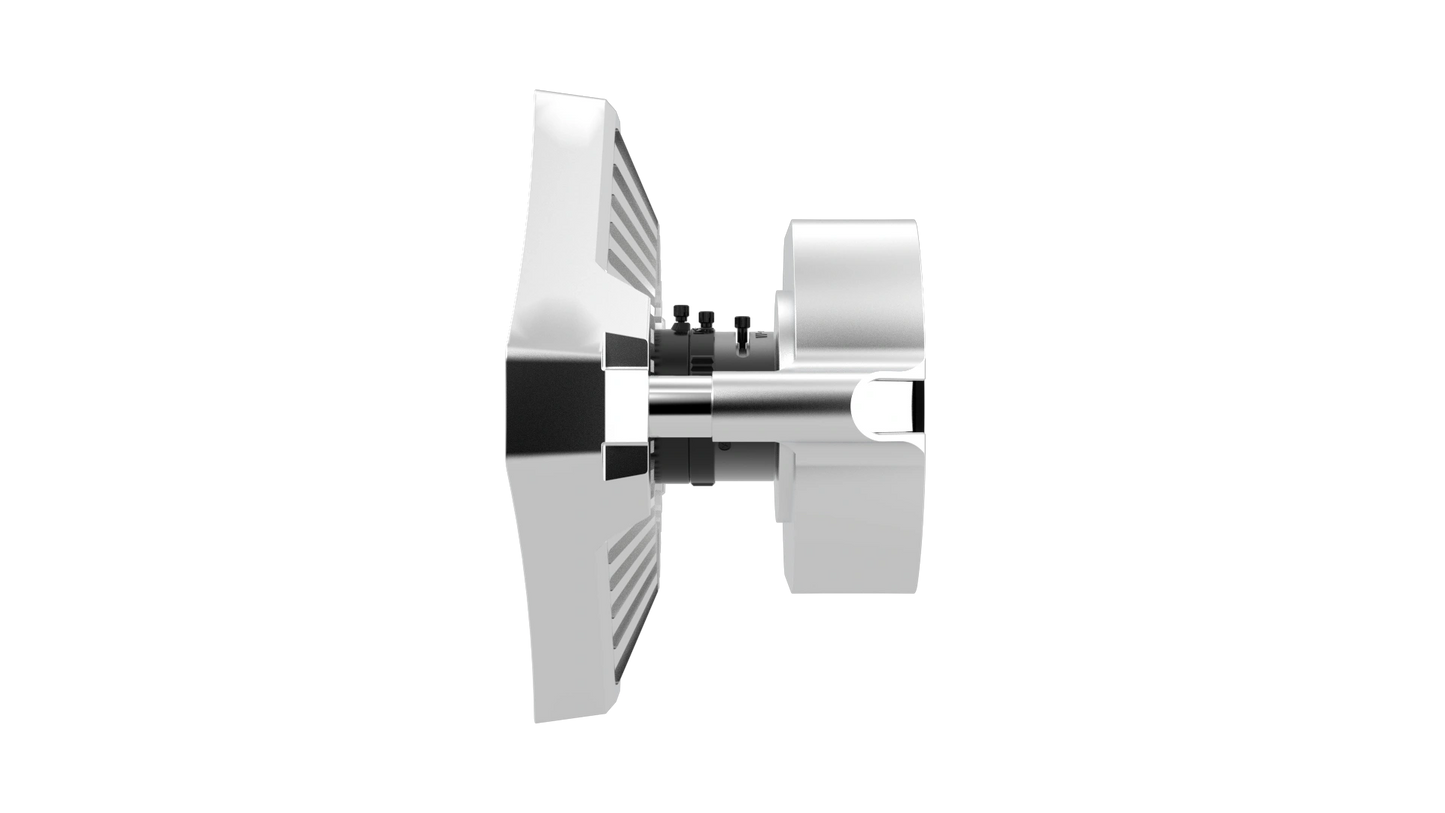

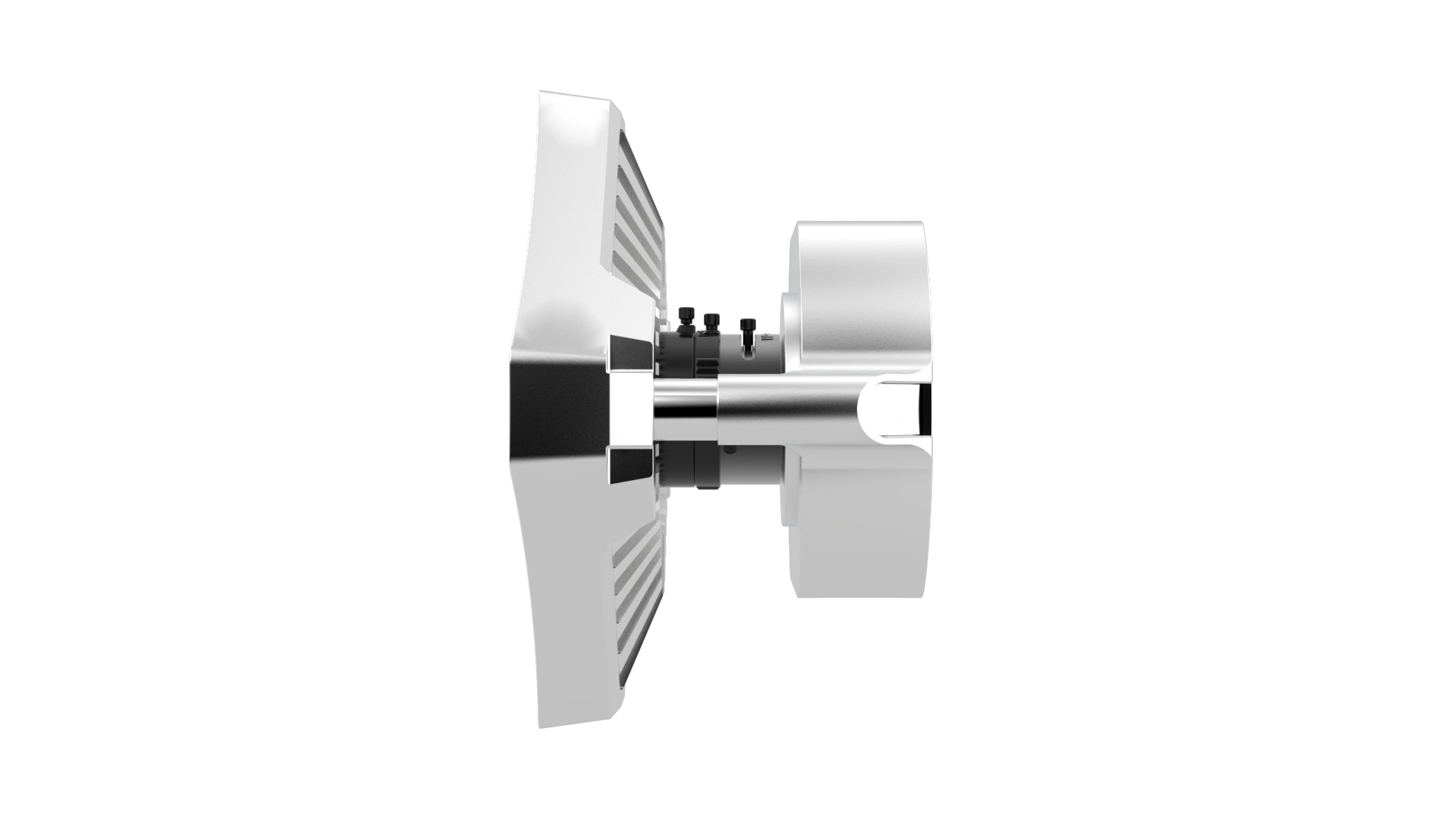

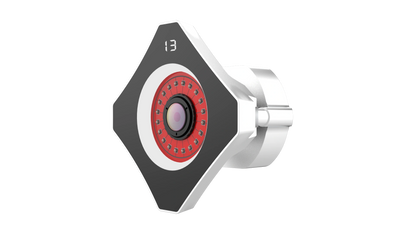

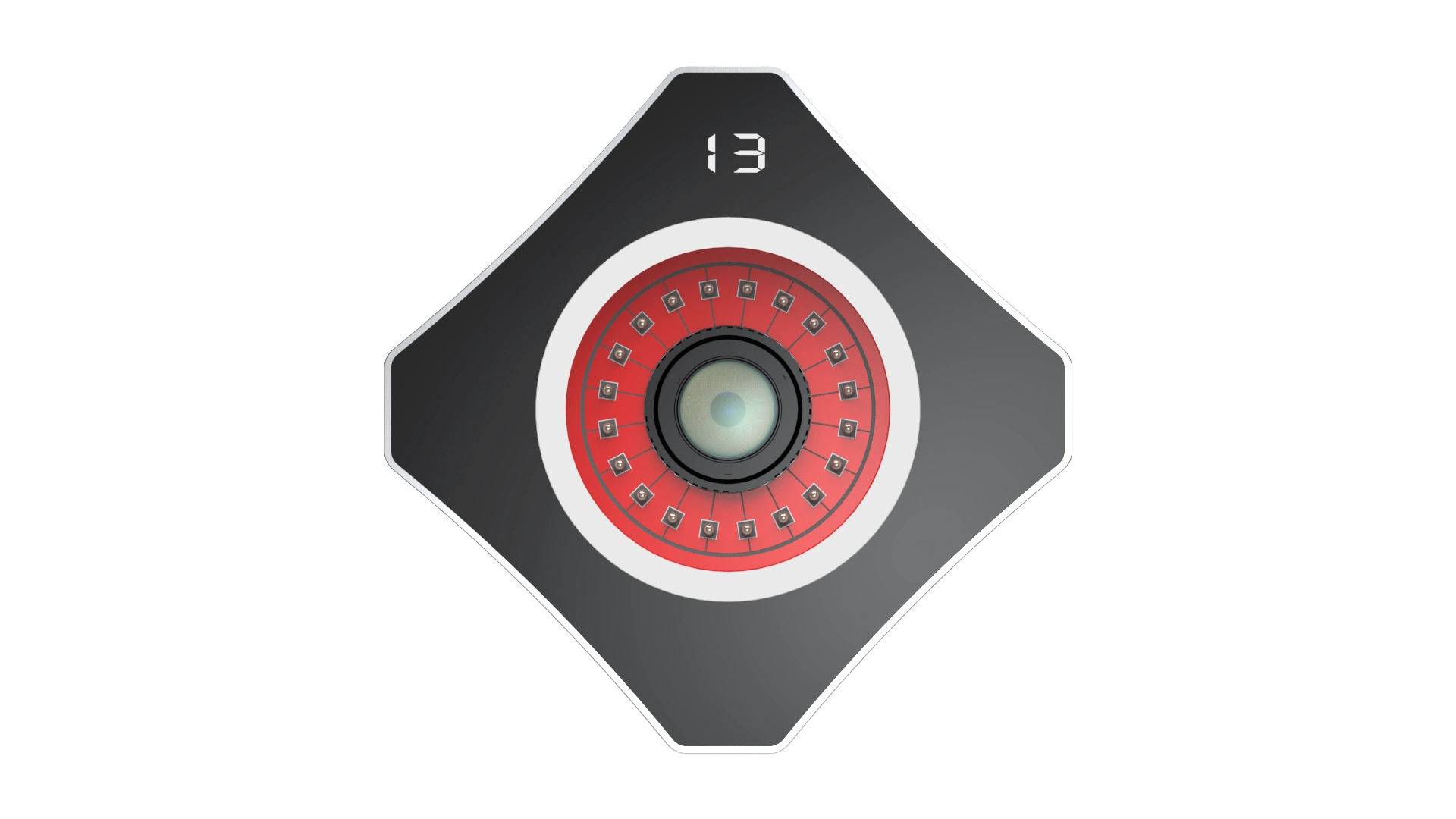

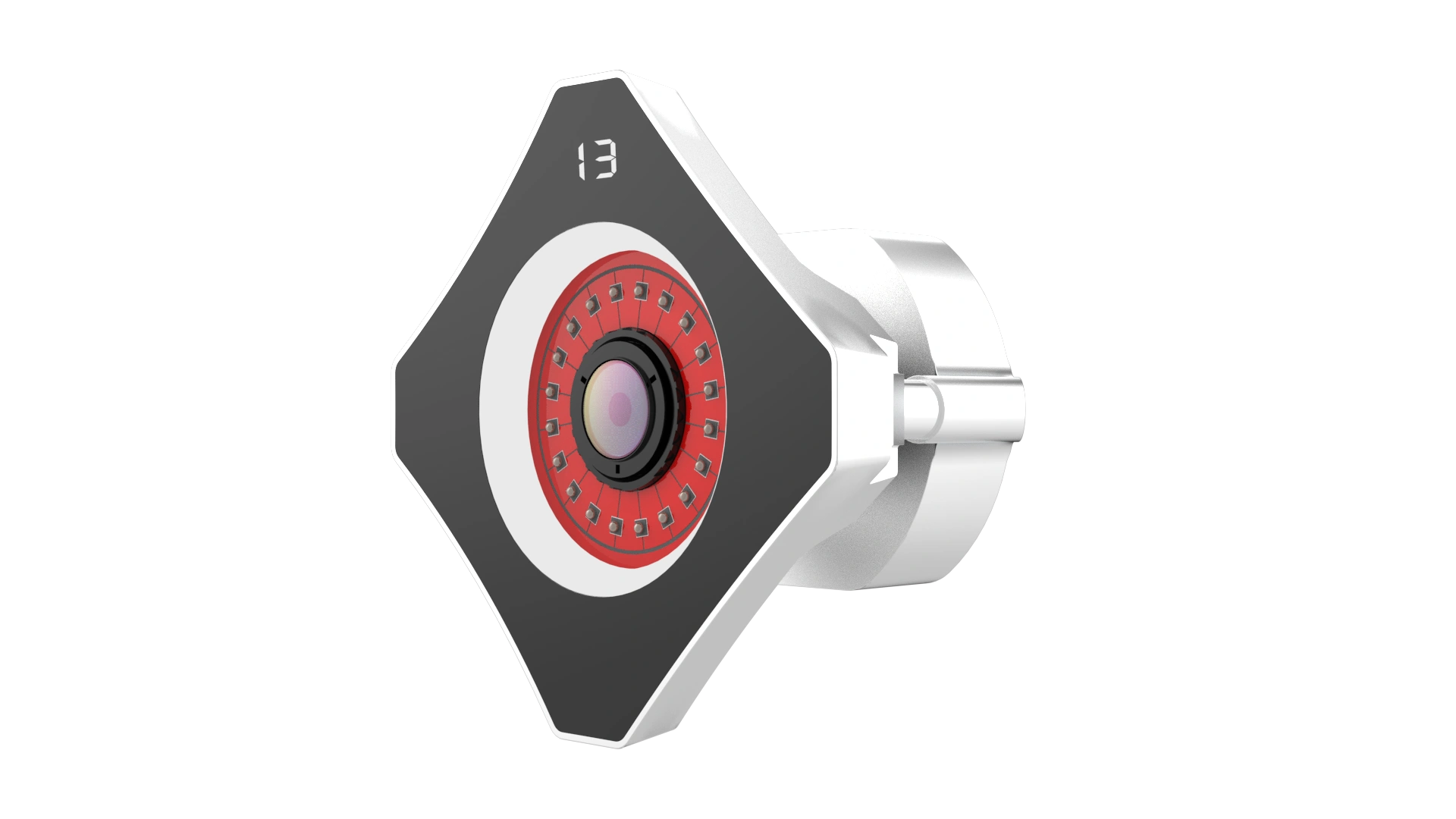

MC1300 Wide-Application Optical Motion Capture Camera

Large wide angle, high precision, long capture distance, adaptable to various application fields, the first choice for professional motion capture studios.

Passive Cooling

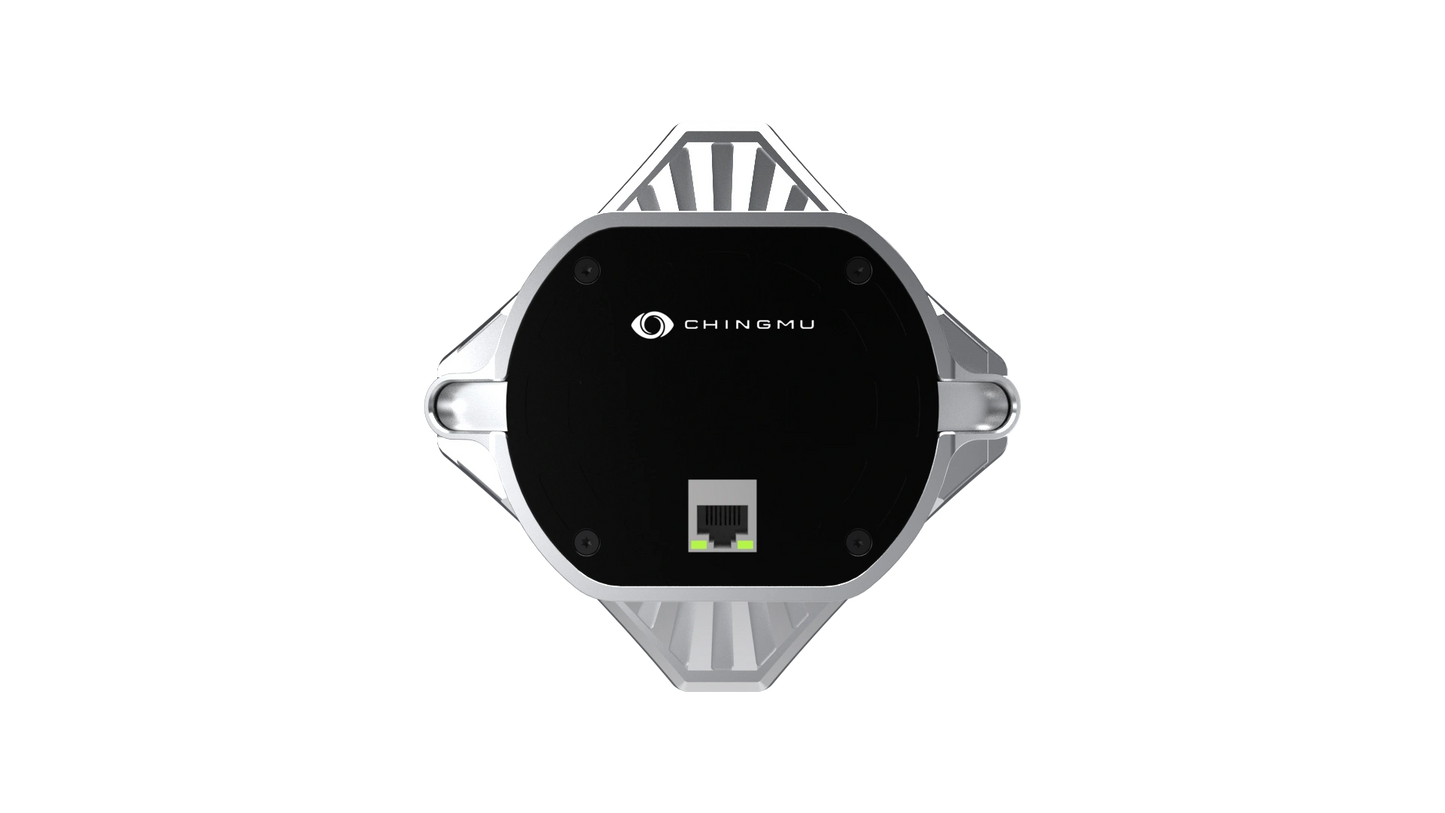

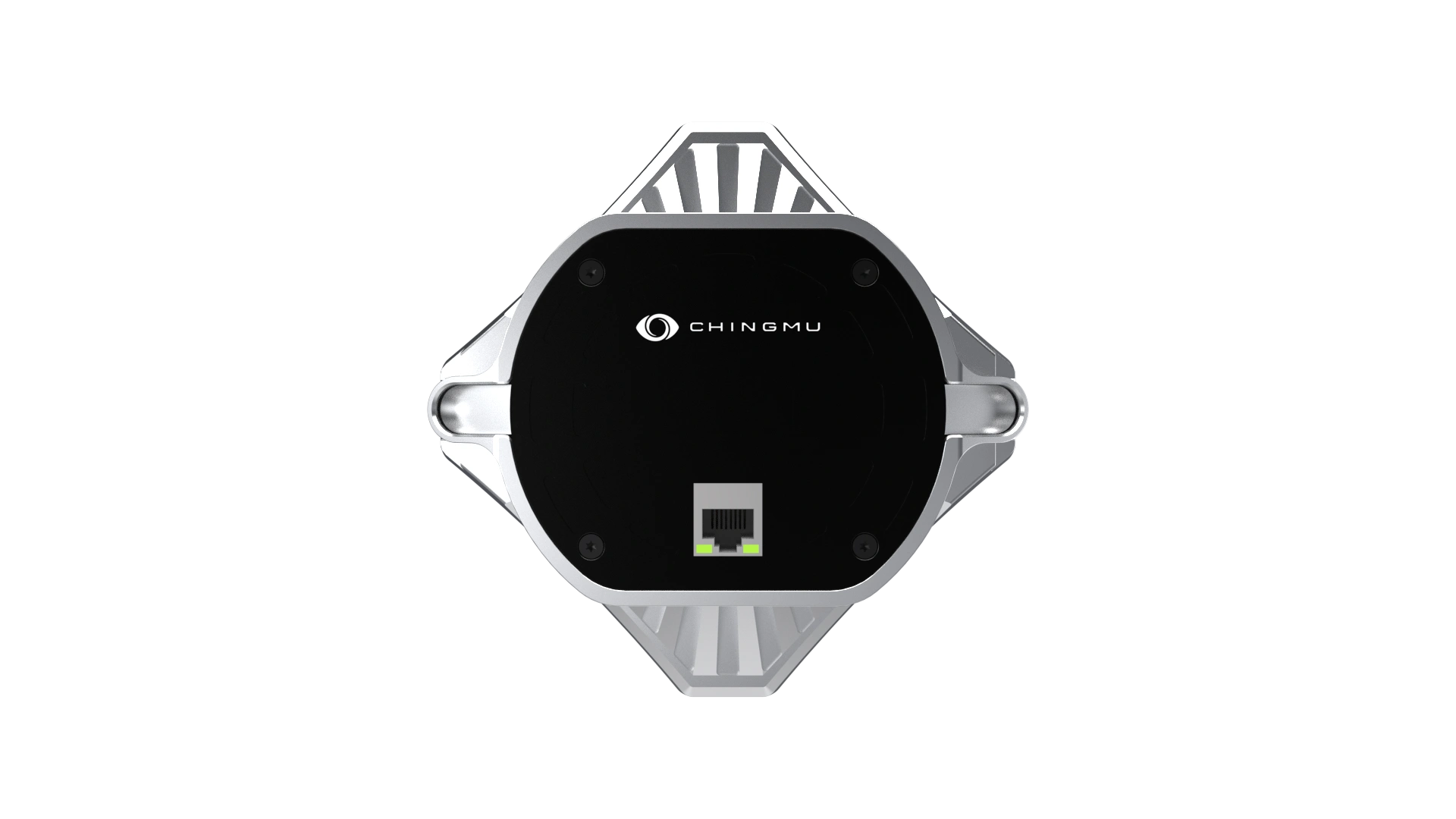

The large heat sink on the back of the light panel has a closed design and passive heat dissipation, which keeps it away from dust, water and noise interference while maintaining high performance.

Extra Large FOV

The unique anti-lens distortion algorithm allows the MC1300 to achieve an effective tracking distance of 15 meters while maintaining an FOV of up to 90°

Zoom Lens

The lens can be continuously changed in the 4-12mm range, and can flexibly switch between blind-angle tracking and high-precision small-range positioning.

Intuitive Status Indication

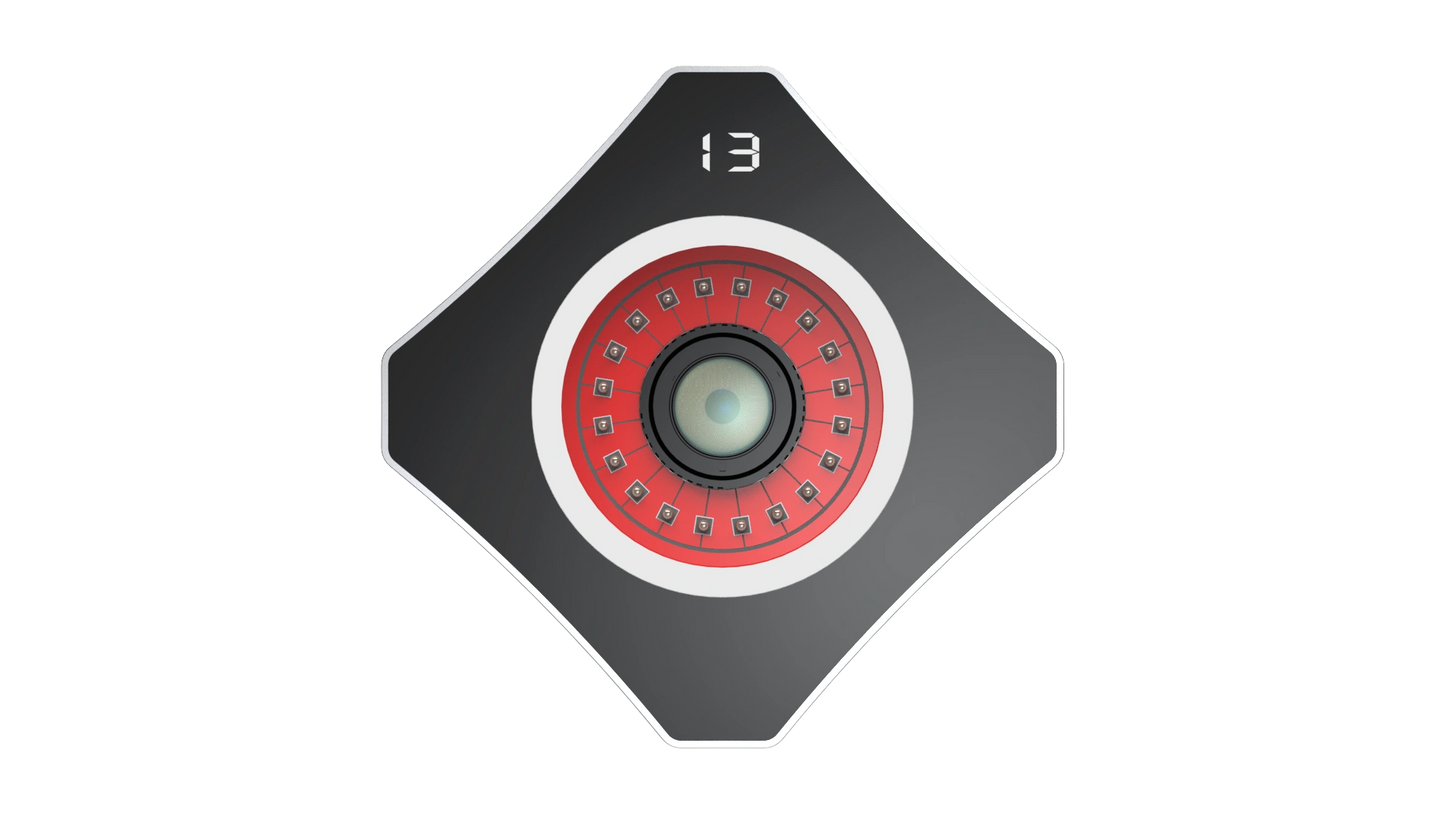

The three-color LED light ring in front of the lens can change different colors and flash frequencies. Thanks to this, the different working status of the camera can be clearly seen even from a long distance.

Built-in Inertial Sensor

Built-in 9-axis inertial sensor, gyroscope programmable FSR supports up to ±2000 dps, accelerometer programmable FSR supports up to ±16g, 3-axis compass range is wide to ±4900μt, which can effectively monitor camera status in real time.

Supports active/passive Markers

Compatible with active and passive marker points, active marker points can be individually encoded. In active light mode, the tracking distance is further improved and the anti-interference ability is stronger. No matter what kind of marking point, the position tracking accuracy is 0.1mm, the angle accuracy is 0.1°, and the repetition error is less than 0.02mm.

Powerful on-chip Image Processing Capabilities

Embedded with high-performance FPGA and two 512MB DDR3 chips, dual-core ARM A9, 16MB QSPI, and 4GB on-chip storage, it can perform real-time synchronous analysis of data captured by the sensor during the photo taking process.

Mixed use with other cameras

The MC series cameras use a compatible design, thus they can be mixed and used according to actual conditions.

Easy Installation

No POE splitter is needed, and functions such as power supply, data transmission, and synchronization can be completed with one network cable. A single network cable can be up to 100 meters long, and can also be extended through POE switch relays.

Supports synchronization with other devices

MC series cameras can be synchronized with various signals such as VESA, LTC, and GENLOCK with synchronizers, and can also synchronously drive any third-party equipment such as force plates, myoelectrics, and projectors.

Reliable Performance

Reliable performance. Our cameras have passed ROHS, CE, FCC, and VCCI certifications. At the same time, the camera's performance in high and low temperature environments, vibration environments, and humid environments has been certified by professional testing agencies.

Product Specifications
