Micro Servo CYS-S0005MG Fast Speed 2kg Coreless Motor Micro Digital Full Aluminum Case Servo for RC Mini Car
Micro Servo CYS-S0005MG Fast Speed 2kg Coreless Motor Micro Digital Full Aluminum Case Servo for RC Mini Car
Regular price
$73.30 USD
Regular price
Sale price
$73.30 USD
|

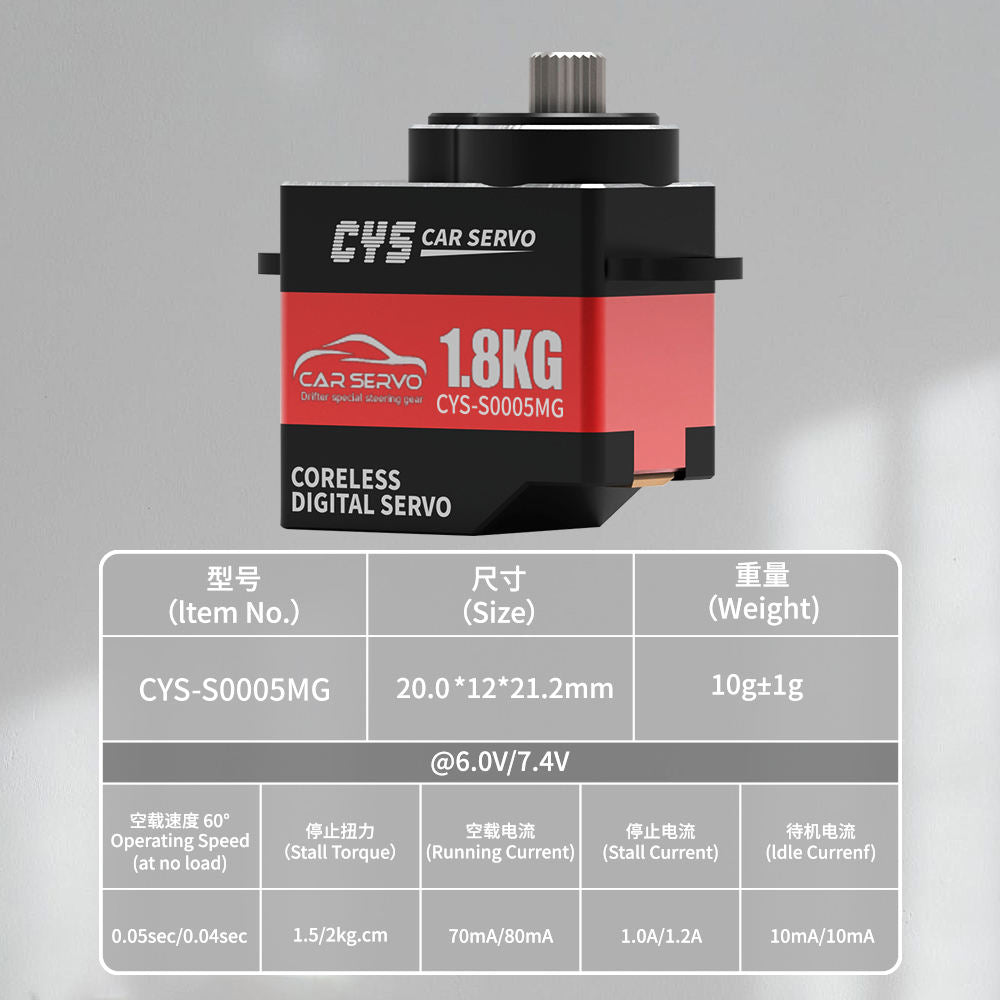

Item NO.
|
CYS-S0005MG
|
|
Type
|
Digital
|
|

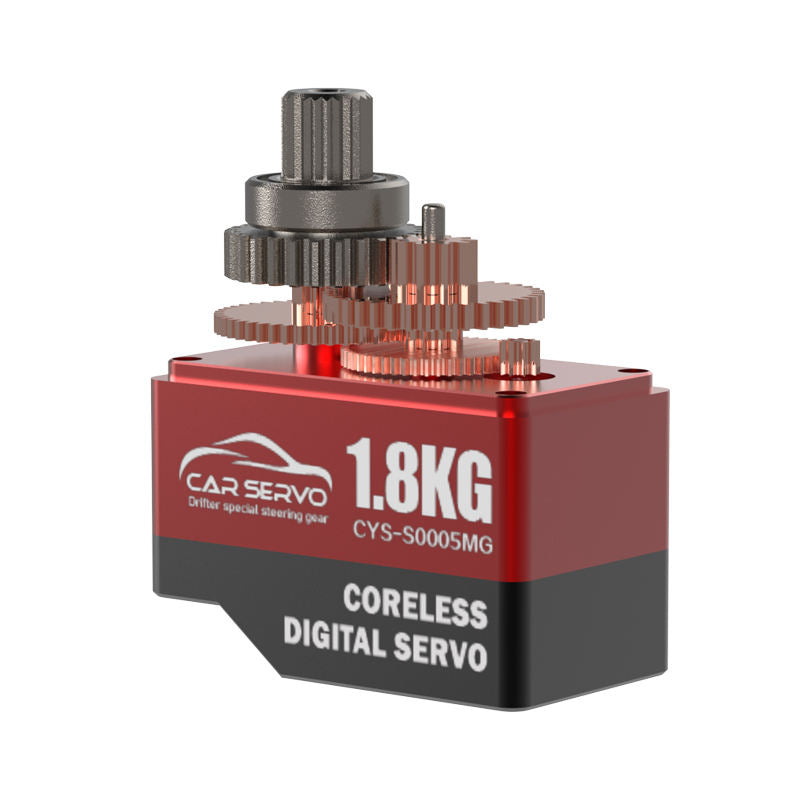

Gear Type
|
Metal
|
|
Weight
|
10G
|
|
Size
|
20*12*21.2mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.05sec - 0.04sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
1.5kg.cm-2.0kg.cm
|
|
Current Drain (6.0V)
|
10mA/idle and 70mA no load operating
|
|
Current Drain (7.4V)
|
10mA/idle and 80mA no load operating
|
|
Stall Current
|
1.0A/1.2A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
Single
|
|
Motor Type
|
Coreless
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
180mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
