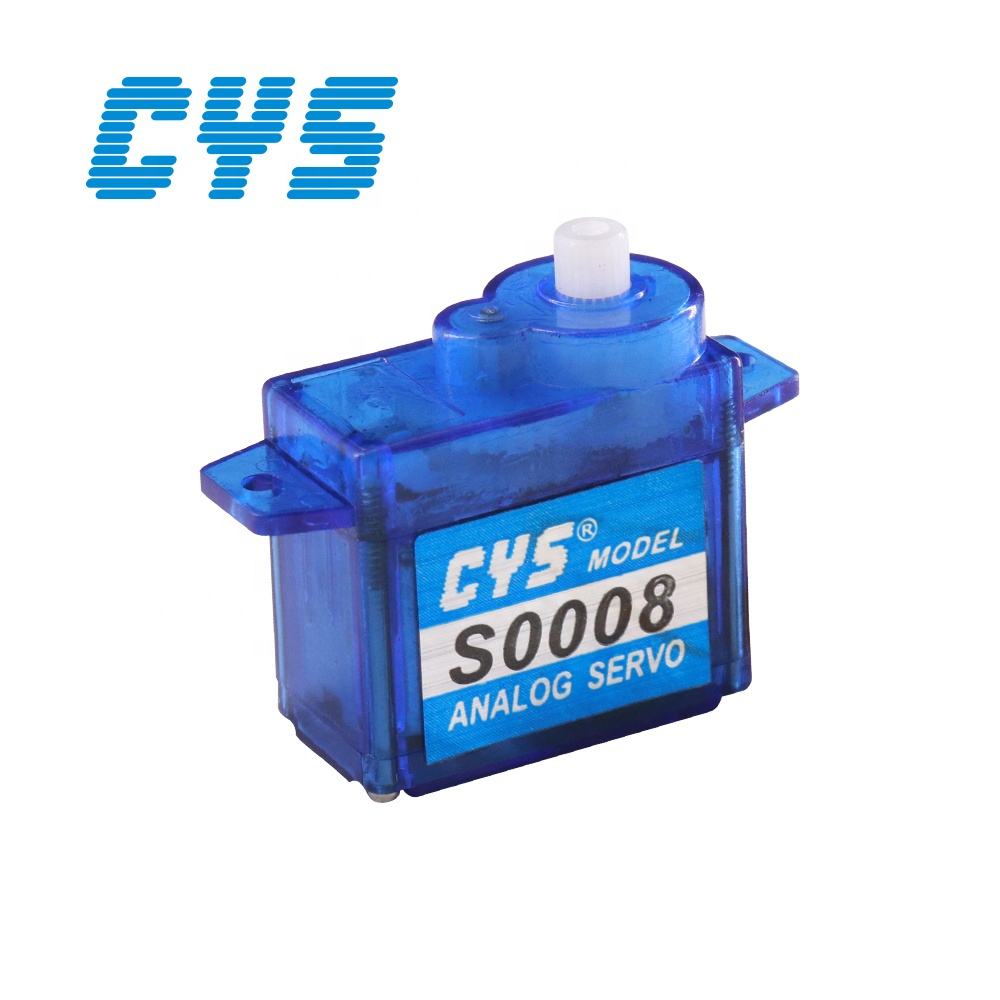

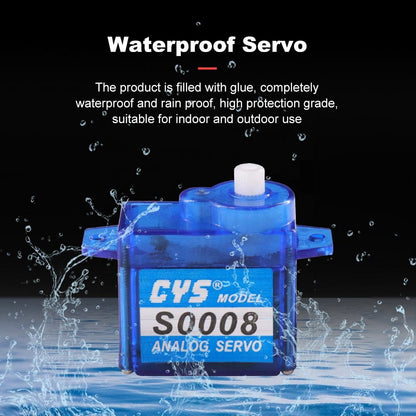

Micro Servo CYS-S0008 Mini & Micro Servo
Micro Servo CYS-S0008 Mini & Micro Servo
Regular price
$12.98 USD
Regular price
Sale price
$12.98 USD

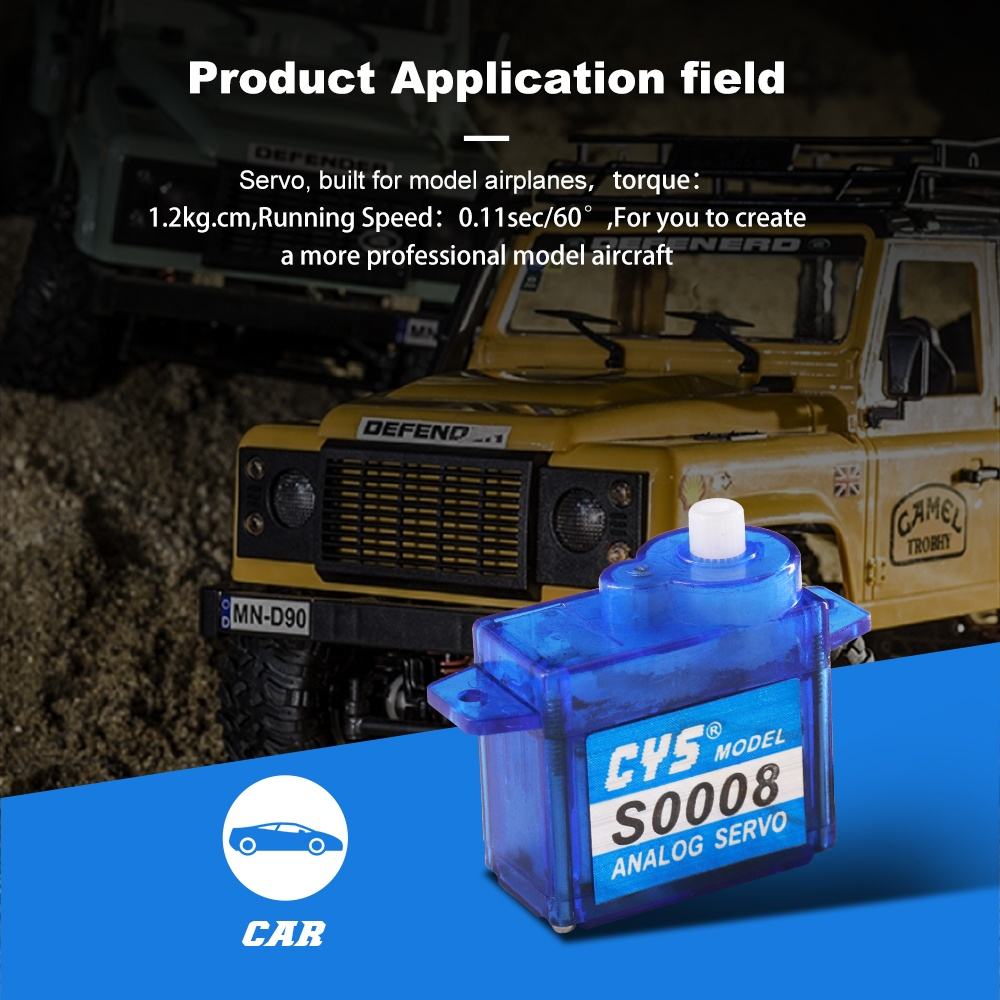

Super lightweight mini servo with coreless motor high speed for RC aircraft models
Product Paramenters
|
Item NO.
|
CYS-S0008
|
|
Type
|
Analog Servo
|
|
Gear Type
|
Plastic Case
|
|
Weight
|
8g
|
|

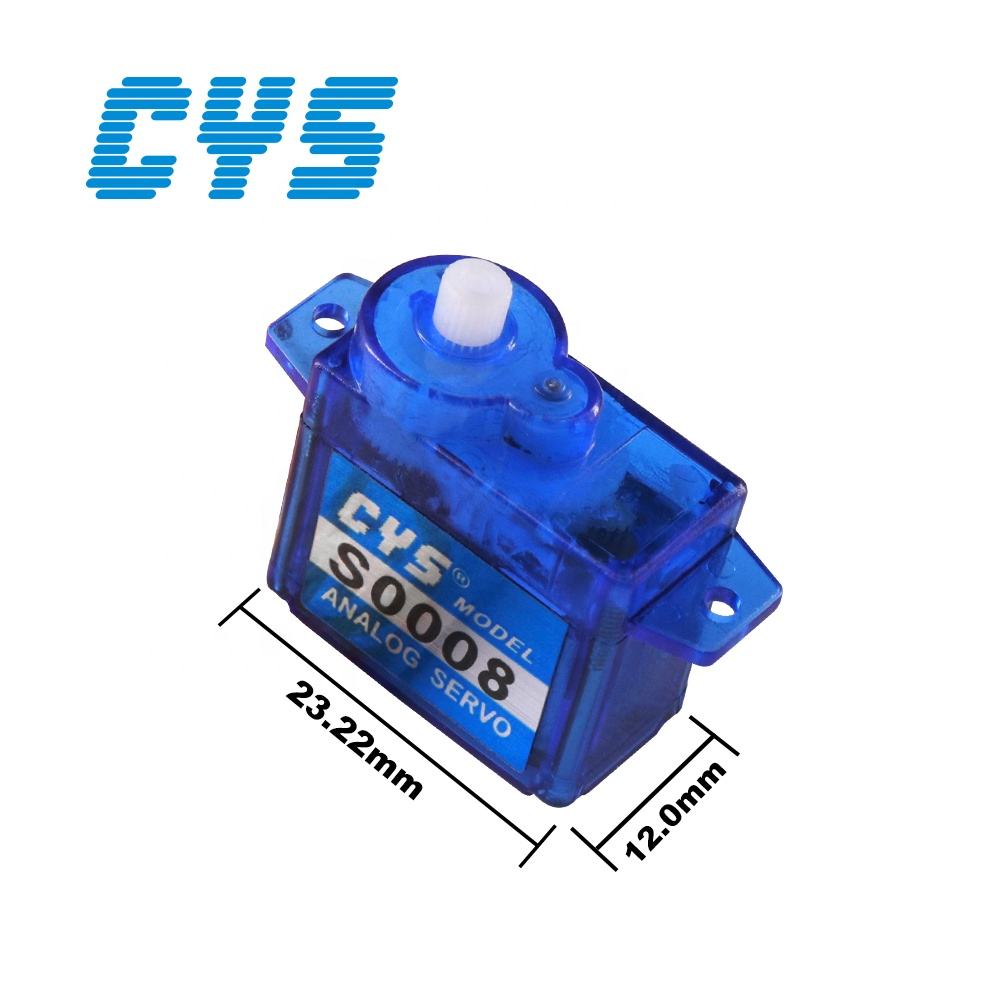

Size
|
22.8*11.6*23.6mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.12sec -0.10sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
1kg.cm-1.2kg.cm
|
|
Current Drain (6.0V)
|
20 mA/idle and 120 mA no load operating
|
|
Current Drain (7.4V)
|
20 mA/idle and 150 mA no load operating
|
|
Stall Current
|
390mA/460mA
|
|
Dead Band Width
|
5μsec
|
|
Bearing Type
|
/
|
|
Motor Type
|
Coreless Motor
|
|
Horn gear spline
|
20T
|
|
Cable/Plug
|
180mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
