Micro Servo CYS-S0403 Unisex Lightweight 0.8kg Coreless Torque RC Airplane Toy Micro Servo Mini GPS Radio Systems Analog RC Parts Accs
Micro Servo CYS-S0403 Unisex Lightweight 0.8kg Coreless Torque RC Airplane Toy Micro Servo Mini GPS Radio Systems Analog RC Parts Accs
Regular price
$12.34 USD
Regular price
Sale price
$12.34 USD

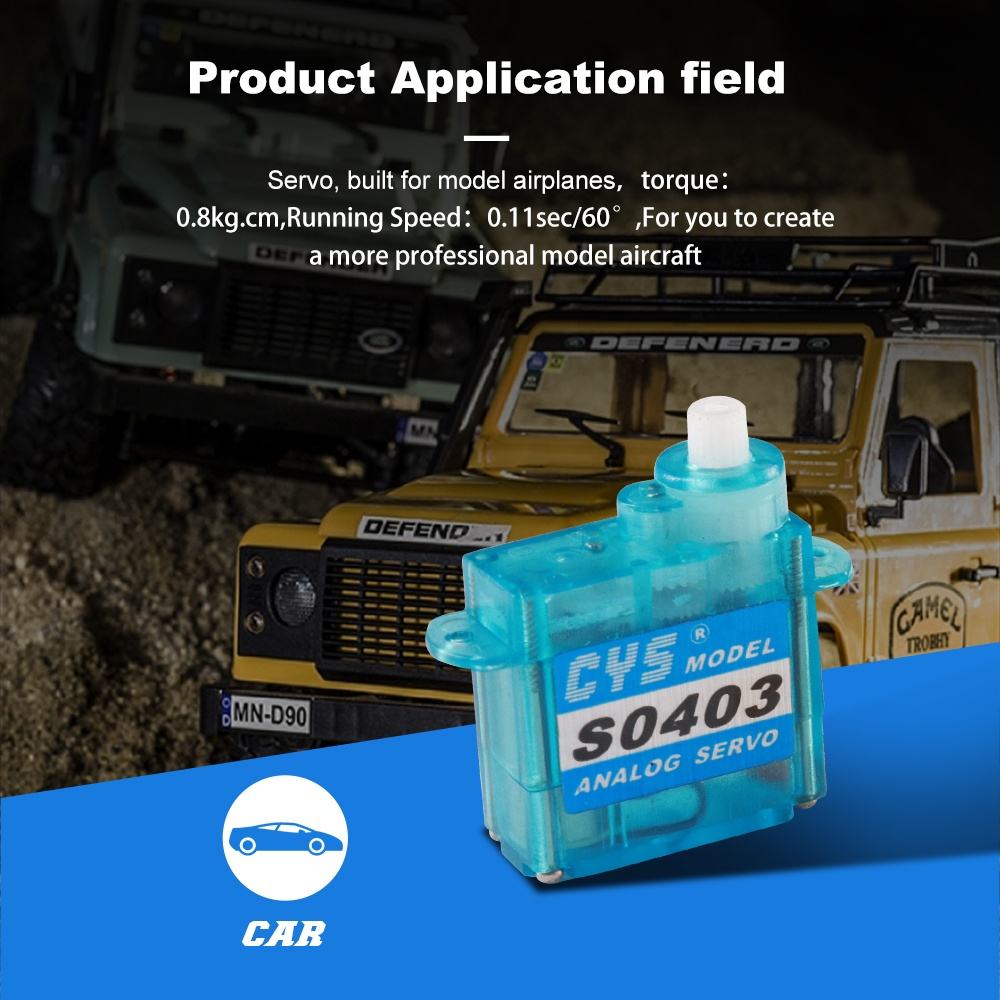

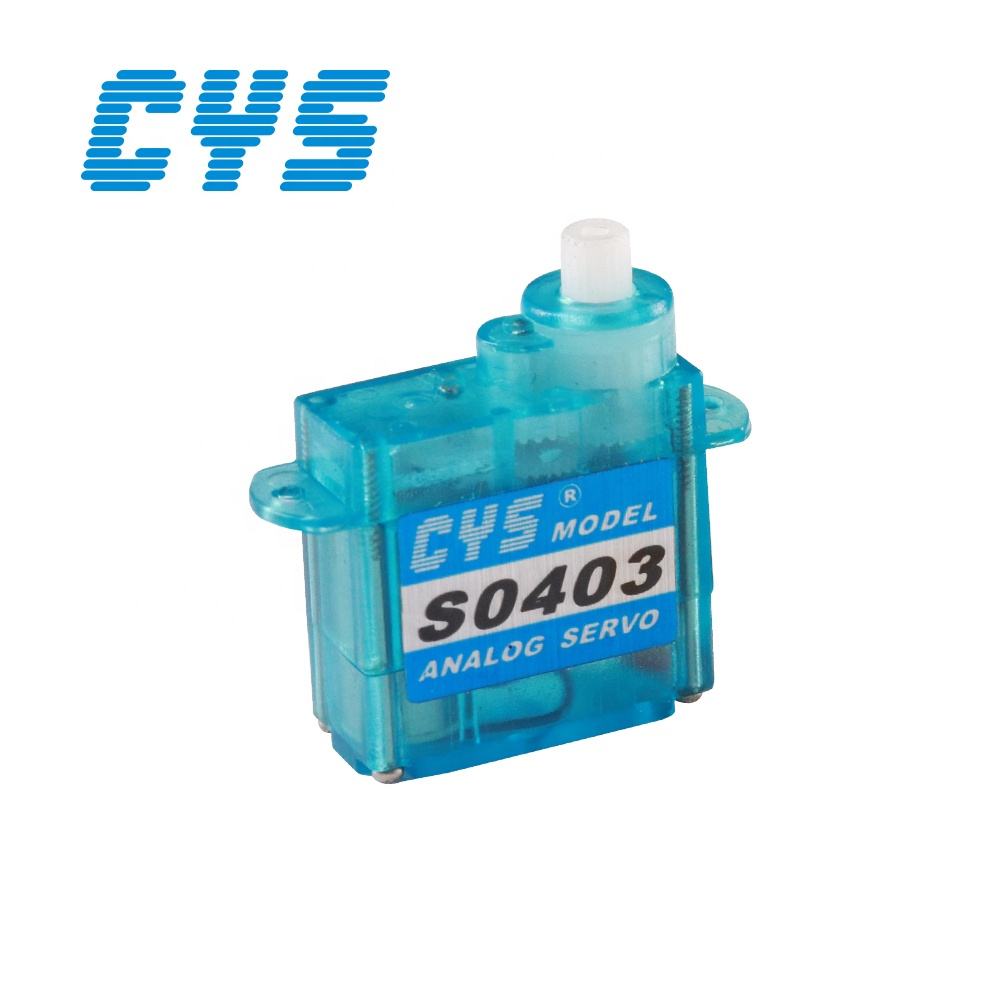

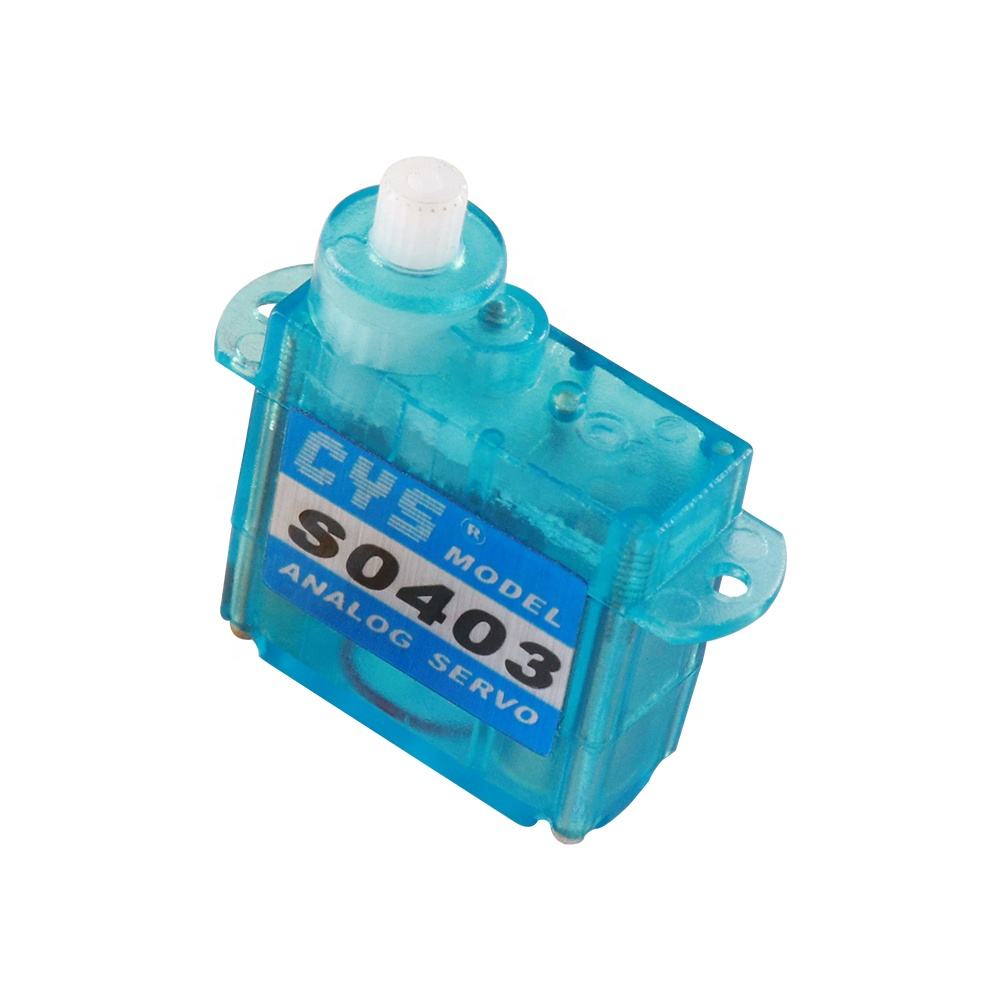

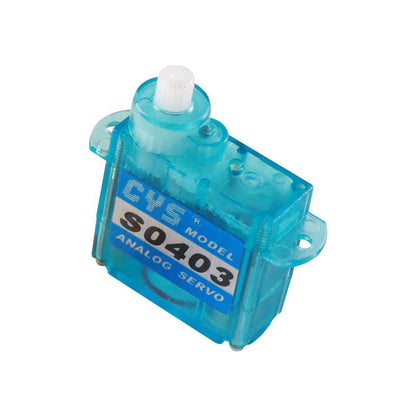

4.3g Light Weight 0.8kg Torque Coreless Motor Plastic Case and Gear Micro Analog Servo for RC Aircraft Model
Product Paramenters
|
Item No.
|
CYS-S0403
|
|
Control Type
|
Analog
|
|
Gear Type
|
Plastic
|
|
Weight
|
4.3g
|
|

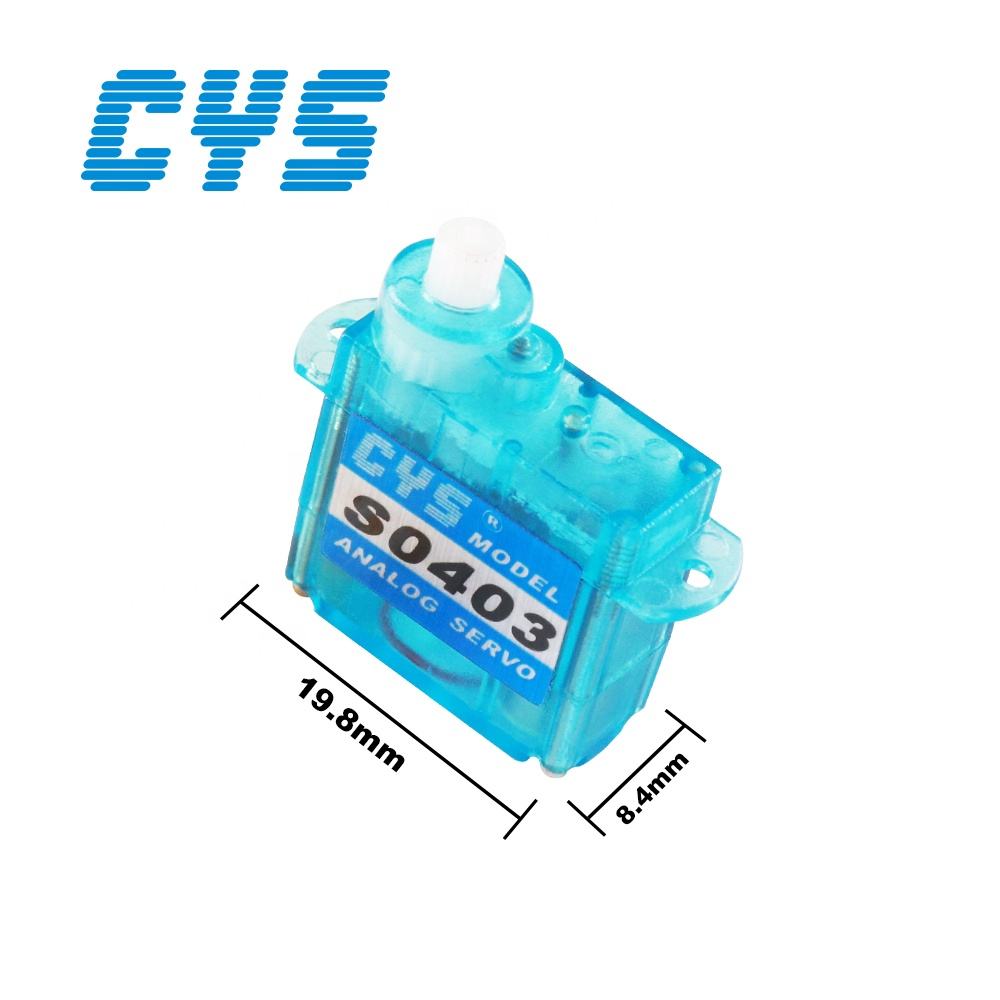

Size
|
19.8x8.4x23.3mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
4.8V-6.0V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 4.8V-6.0V
|
0.13 sec/60° - 0.11 sec/60° at no load
|
|
Stall Torque @ 4.8V-6.0V
|
0.6 kg.cm - 0.8 kg.cm
|
|
Current Drain (4.8V)
|
10mA/idle and 100mA no load operating
|
|
Current Drain (6.0V)
|
10mA/idle and 140mA no load operating
|
|
Stall Current
|
0.5A/0.6A
|
|
Dead Band Width
|
4μsec
|
|
Bearing Type
|
/
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
24T
|
|

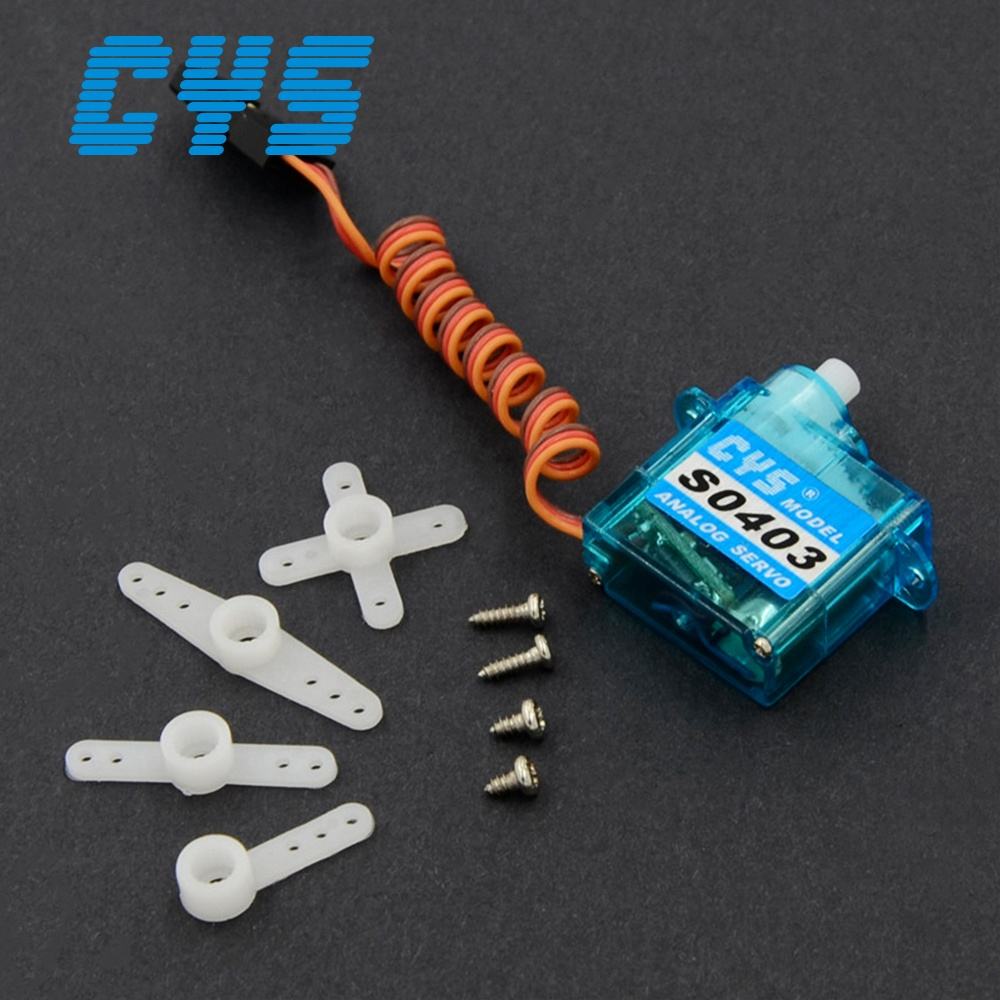

Cable/Plug
|
150mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
