Micro Servo CYS-S3027MG Mini 3kg Digital Servo Metal Gear GPS Remote Control Toy for Boys RC Aircraft Drones Helicopters Iron Core Motor Radio Systems
Micro Servo CYS-S3027MG Mini 3kg Digital Servo Metal Gear GPS Remote Control Toy for Boys RC Aircraft Drones Helicopters Iron Core Motor Radio Systems
Regular price
$16.70 USD
Regular price
Sale price
$16.70 USD
Product Paramenters
|
Item No.
|
CYS-S3027MG
|
|
Control Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
20g
|
|

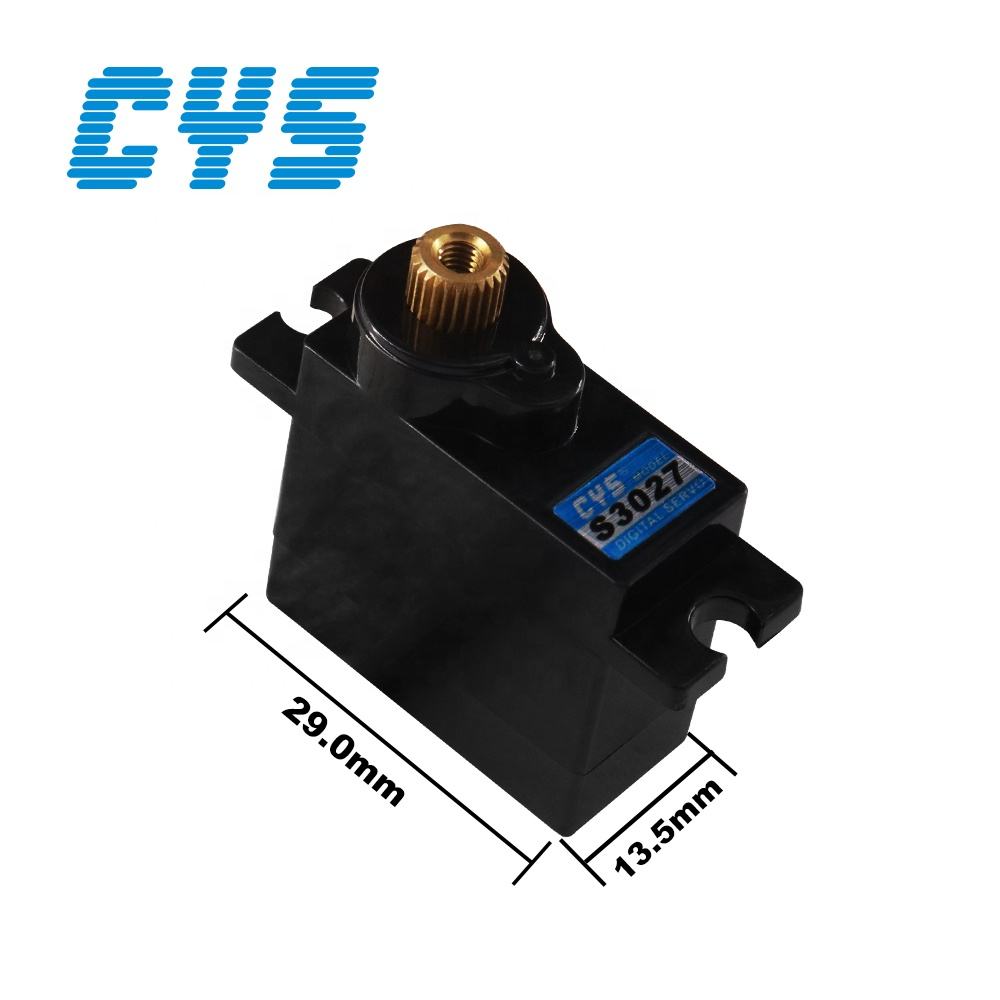

Size
|
29x13.5x30mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
4.8V-6.0V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 4.8V-6.0V
|
0.12 sec/60° - 0.10 sec/60° at no load
|
|
Stall Torque @ 4.8V-6.0V
|
2.5 kg.cm - 3.0 kg.cm
|
|
Current Drain (4.8V)
|
20mA/idle and 120mA no load operating
|
|
Current Drain (6.0V)
|
20mA/idle and 150mA no load operating
|
|
Stall Current
|
1.1A/1.3A
|
|
Dead Band Width
|
4μsec
|
|
Bearing Type
|
Single Ball Bearing
|
|
Motor Type
|
Iron Core
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
180mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
