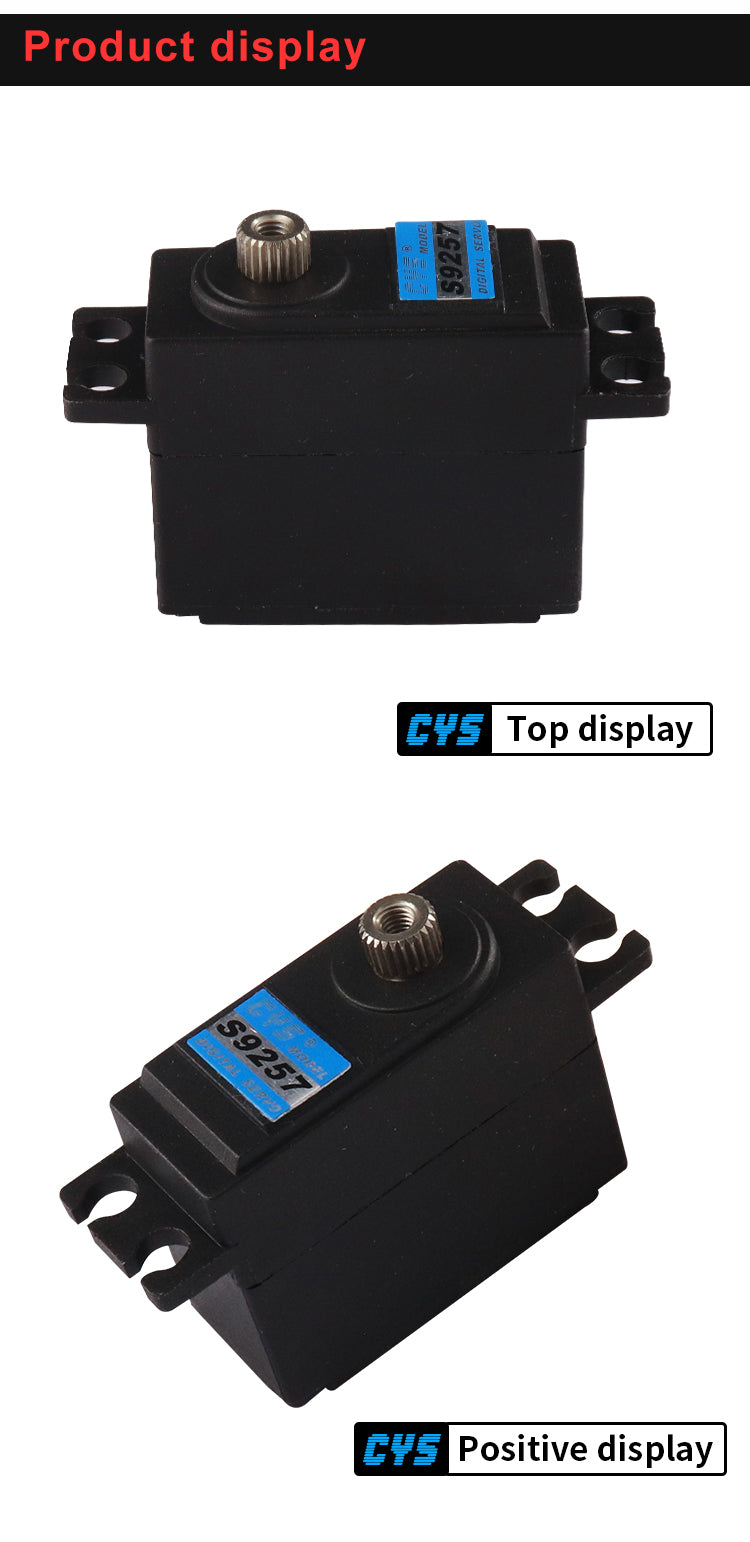

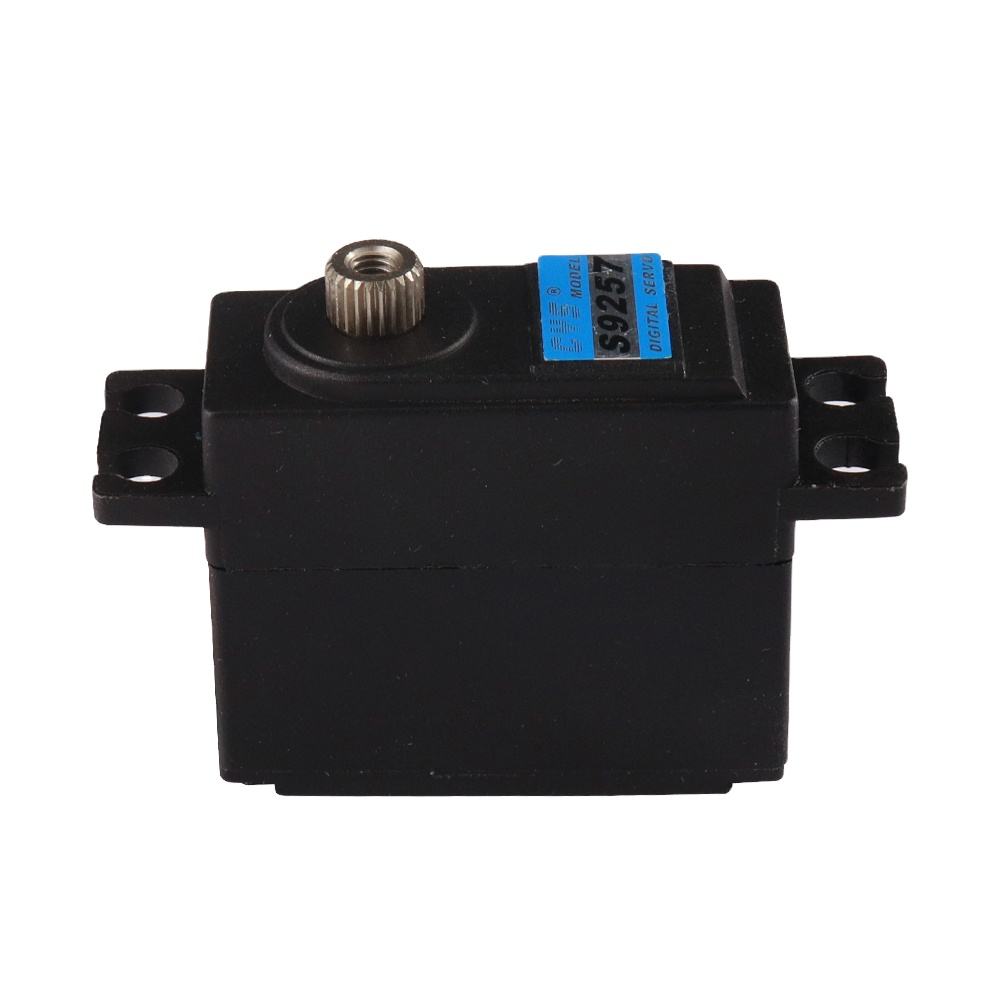

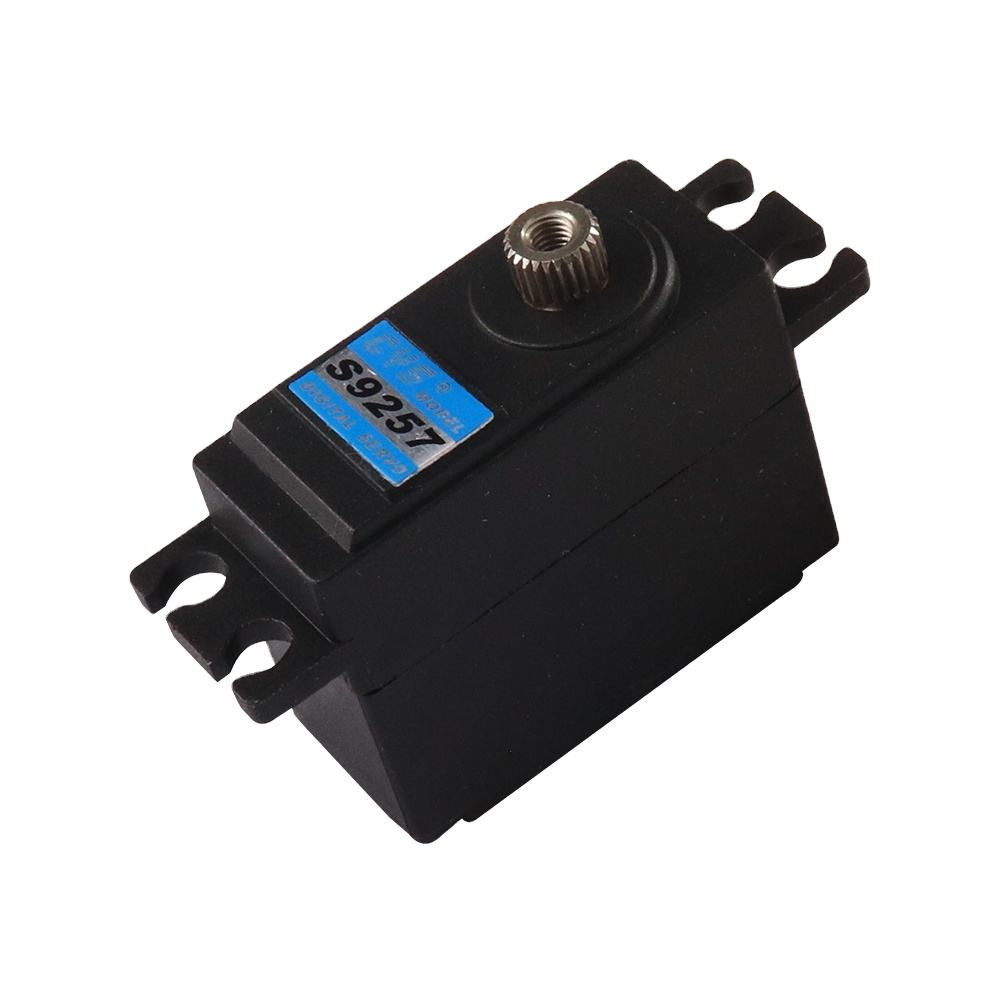

Micro Servo CYS-S9257D Lightweight 28g Plastic Case 2.5kg Torque Coreless with Metal Gear for Radio Control Toy Airplanes and Robots
Micro Servo CYS-S9257D Lightweight 28g Plastic Case 2.5kg Torque Coreless with Metal Gear for Radio Control Toy Airplanes and Robots
Regular price
$18.84 USD
Regular price
Sale price
$18.84 USD
Product Paramenters
|
Item No.
|
CYS-S9257D
|
|
Control Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
28g
|
|
Size
|
36x25x28.8mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
4.8V-6.0V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 4.8V-6.0V
|
0.18 sec/60° - 0.16 sec/60° at no load
|
|
Stall Torque @ 4.8V-6.0V
|
2.8 kg.cm - 3.0 kg.cm
|
|
Current Drain (4.8V)
|
10mA/idle and 120mA no load operating
|
|
Current Drain (6.0V)
|
10mA/idle and 150mA no load operating
|
|
Stall Current
|
0.8A/0.9A
|
|
Dead Band Width
|
2μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Coreless
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
250mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
