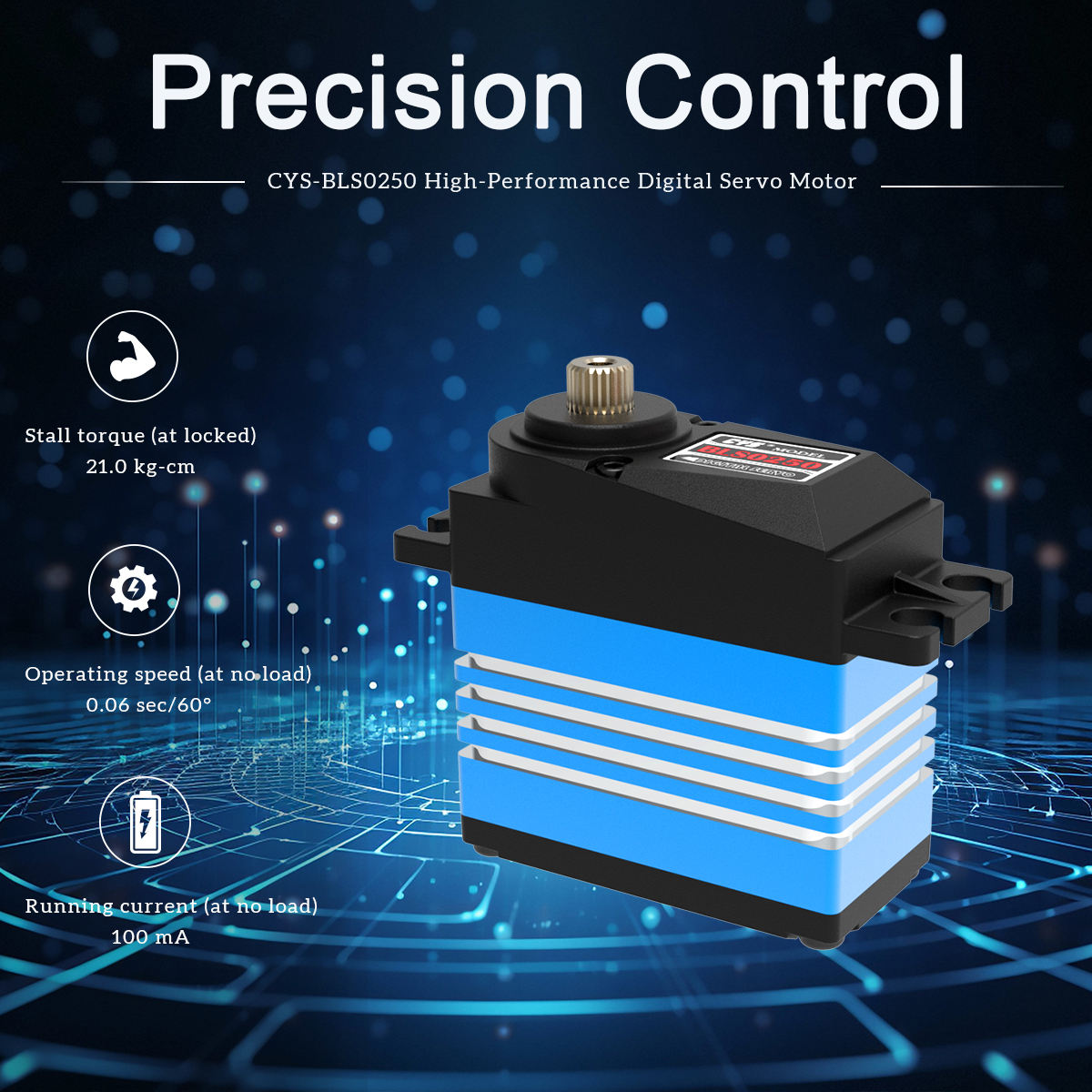

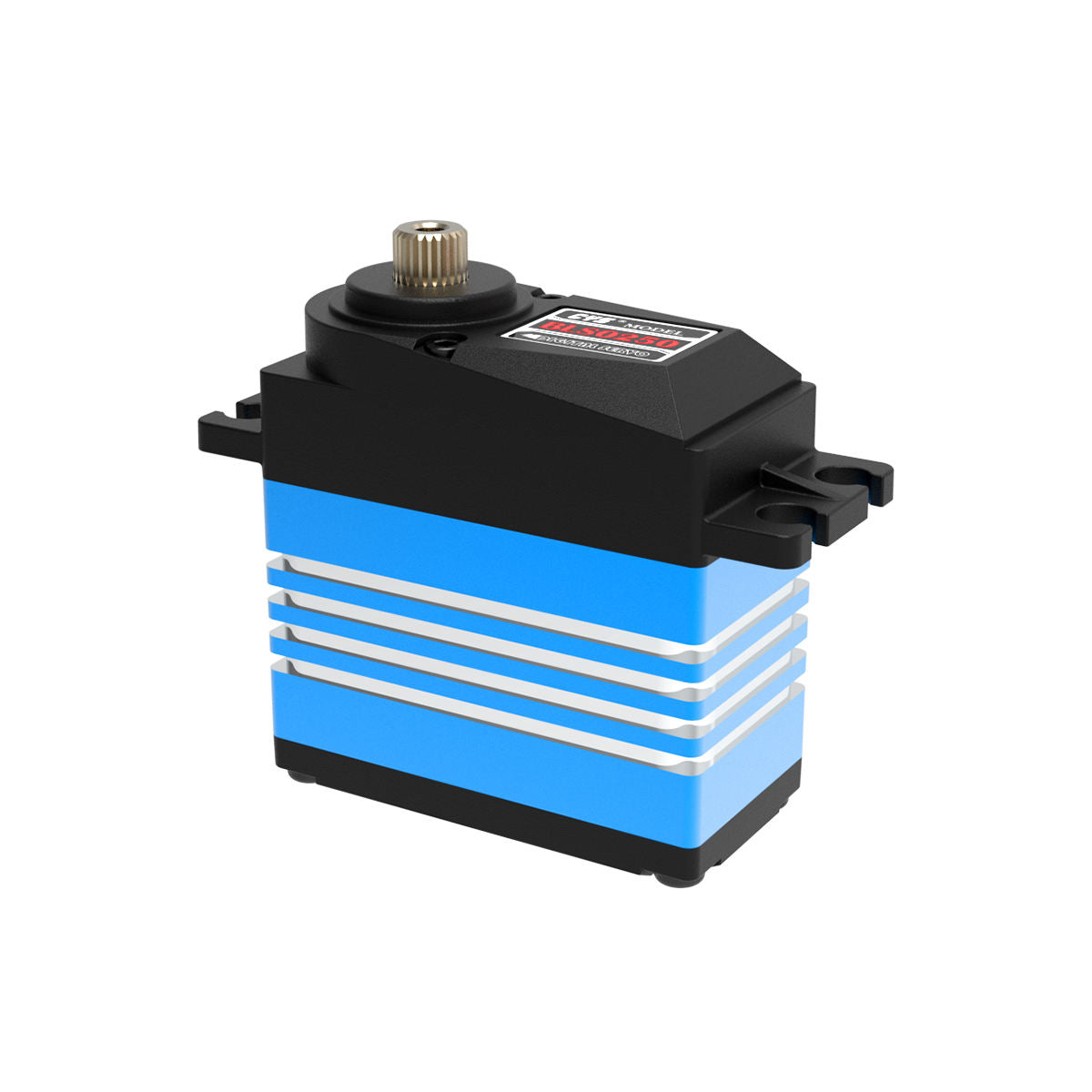

RC Car Servo CYS-BLS0250 Fast Speed Brushless Motor 22kg Torque Steel Gear Digital Servo for 1/8 1/10 Rc Car
RC Car Servo CYS-BLS0250 Fast Speed Brushless Motor 22kg Torque Steel Gear Digital Servo for 1/8 1/10 Rc Car
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
|

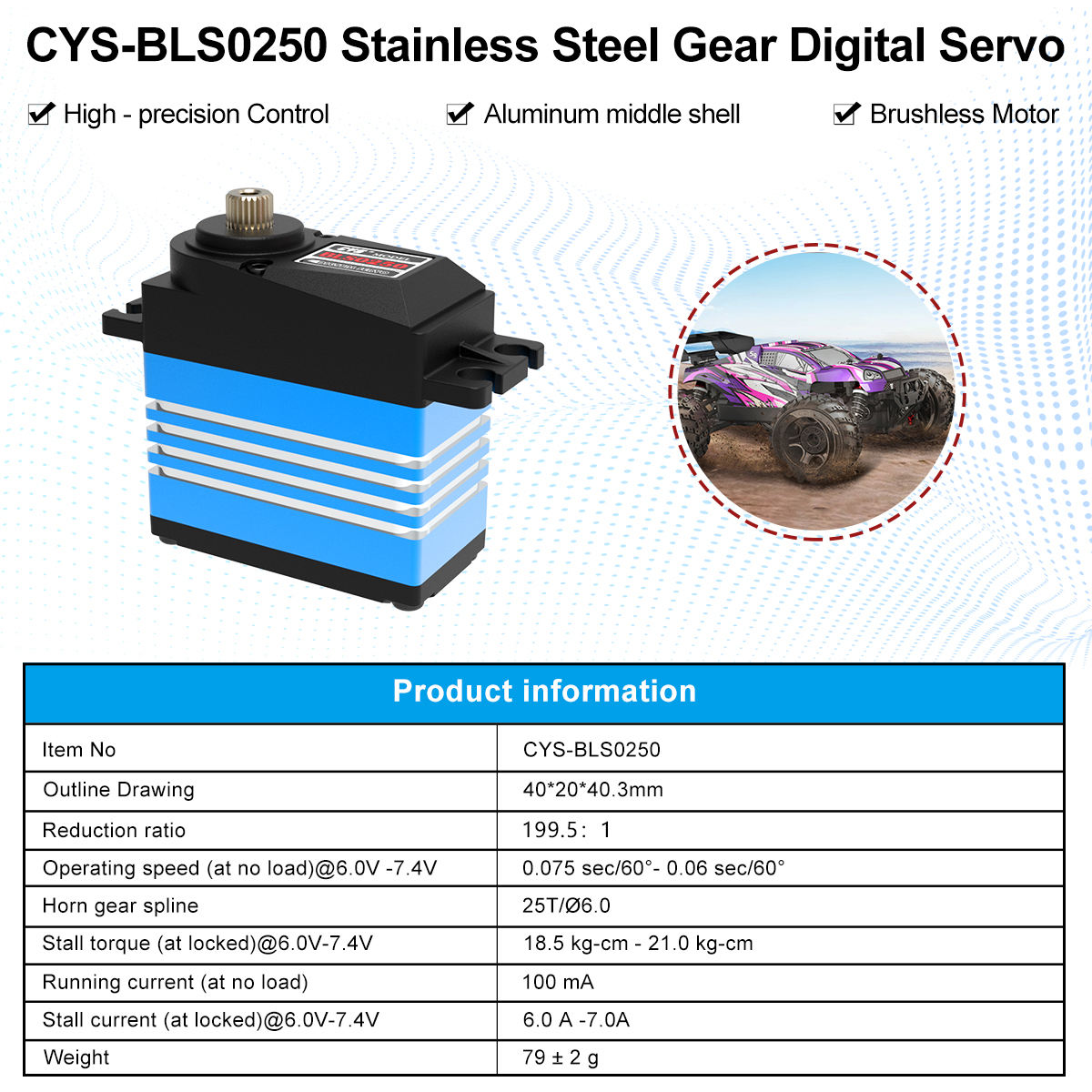

Item NO.
|
CYS-BLS0250
|
|
Type
|
Digital
|
|

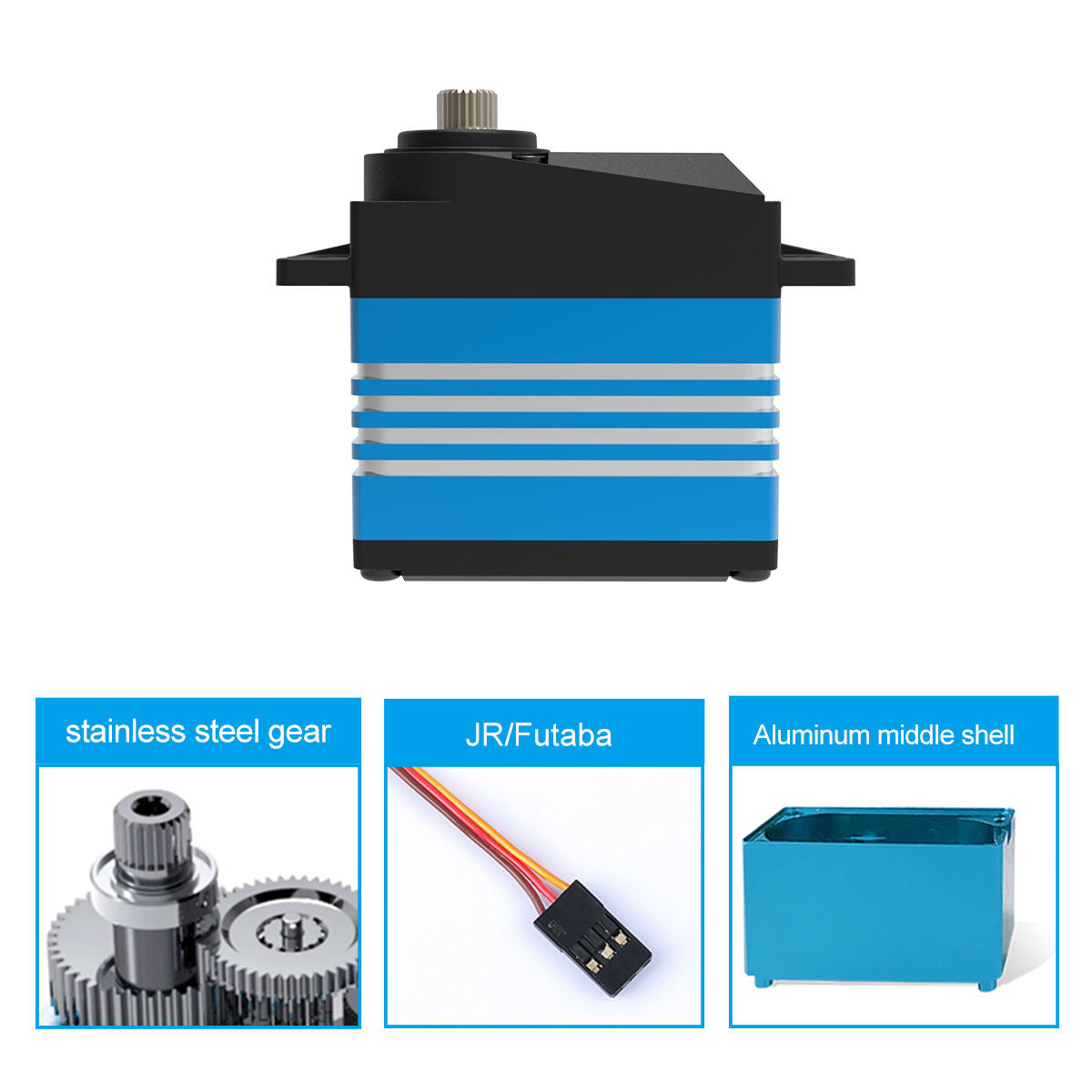

Gear Type
|
Steel
|
|
Weight
|
80g
|
|
Size
|
40*20*40.3mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|

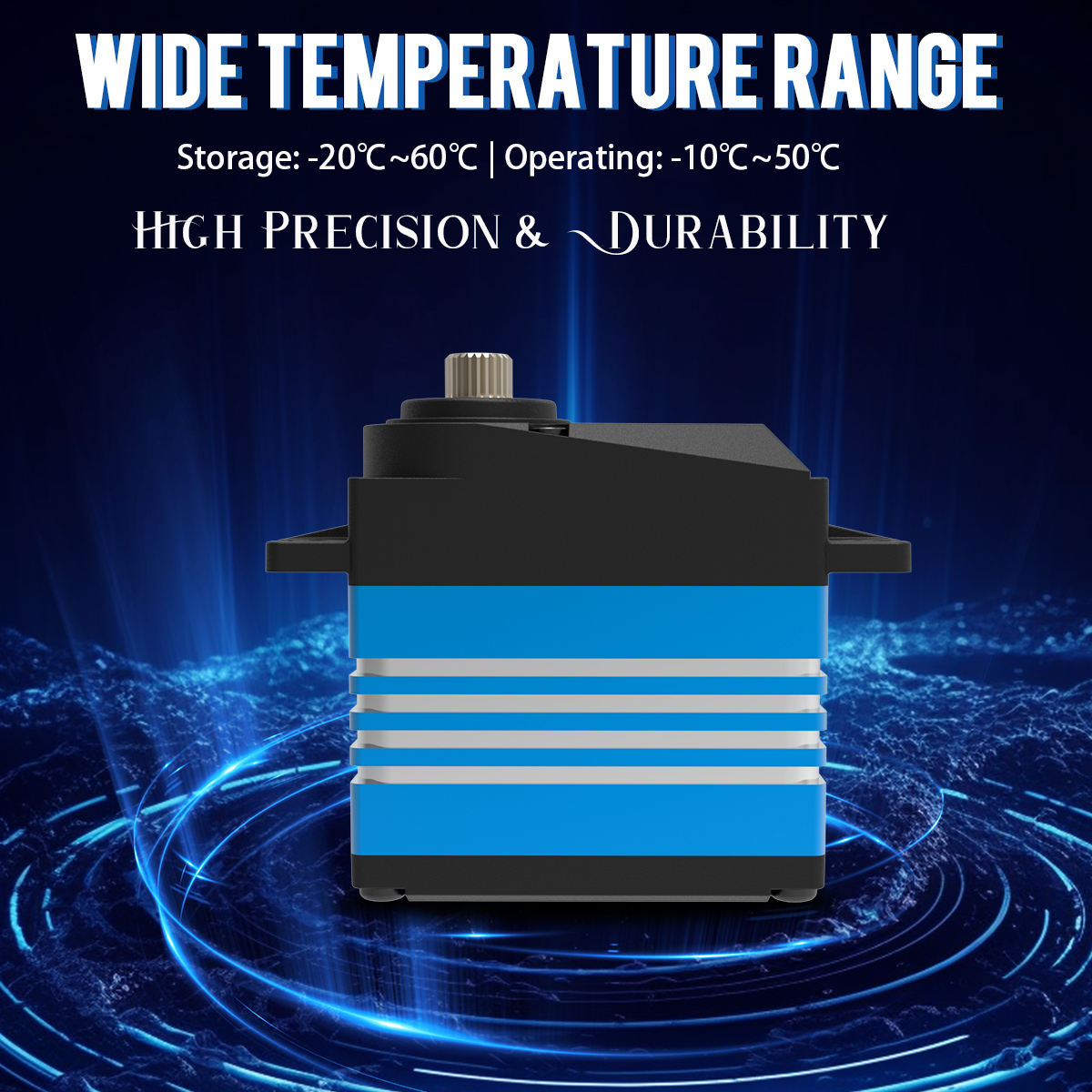

Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.075sec - 0.06sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
19kg.cm-22kg.cm
|
|
Current Drain (6.0V)
|
10mA/idle and 100mA no load operating
|
|
Current Drain (7.4V)
|
10mA/idle and 100mA no load operating
|
|
Stall Current
|
10A/10A
|
|
Dead Band Width
|
2-3μsec
|
|
Bearing Type
|
BB*2
|
|
Motor Type
|
Brushless
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
