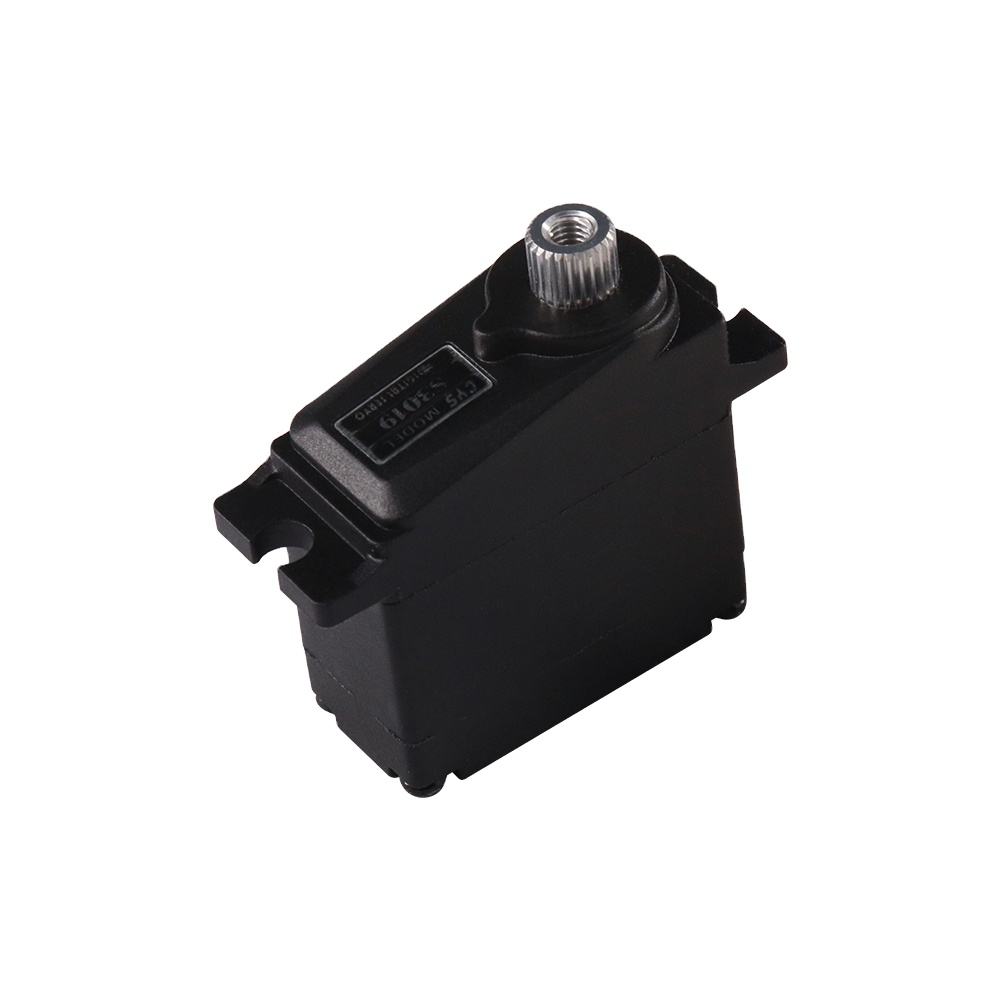

RC Car Servo CYS S3019MG 17g 0.09sec High Speed 25T Micro Mini Metal Gear Servo for RC Helicopter & Airplane
RC Car Servo CYS S3019MG 17g 0.09sec High Speed 25T Micro Mini Metal Gear Servo for RC Helicopter & Airplane
Regular price
$15.00 USD
Regular price
Sale price
$15.00 USD
|
Item NO.
|
CYS-S3019MG
|
|
Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
23g
|
|
Size
|
29*13.3*33.8mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|

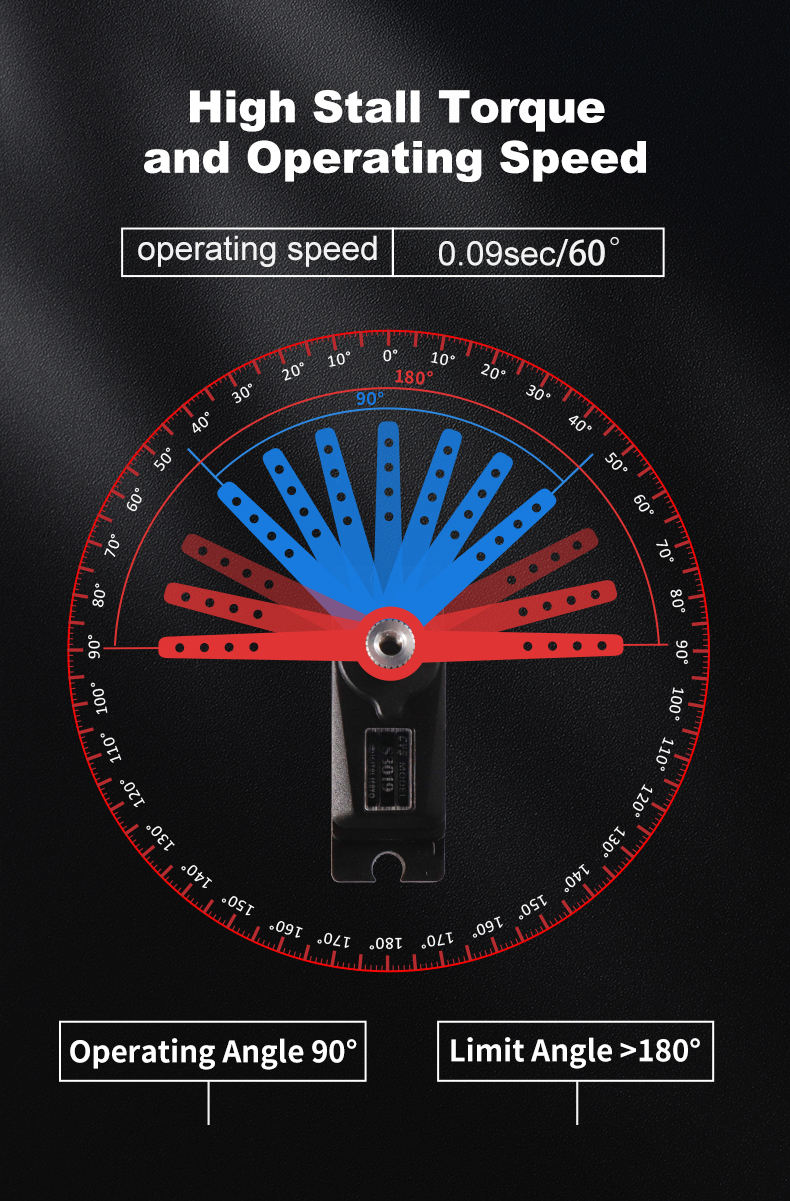

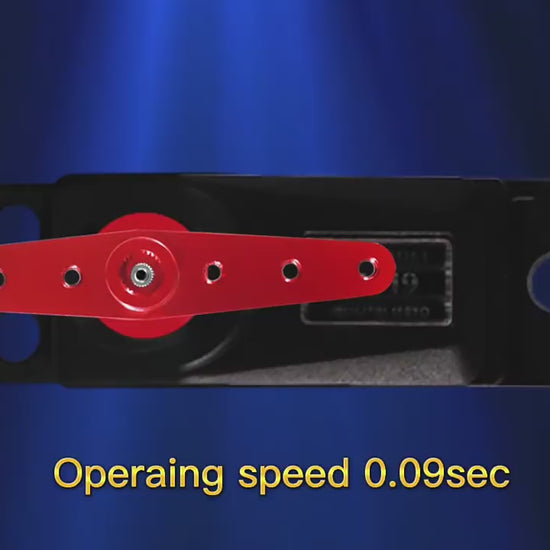

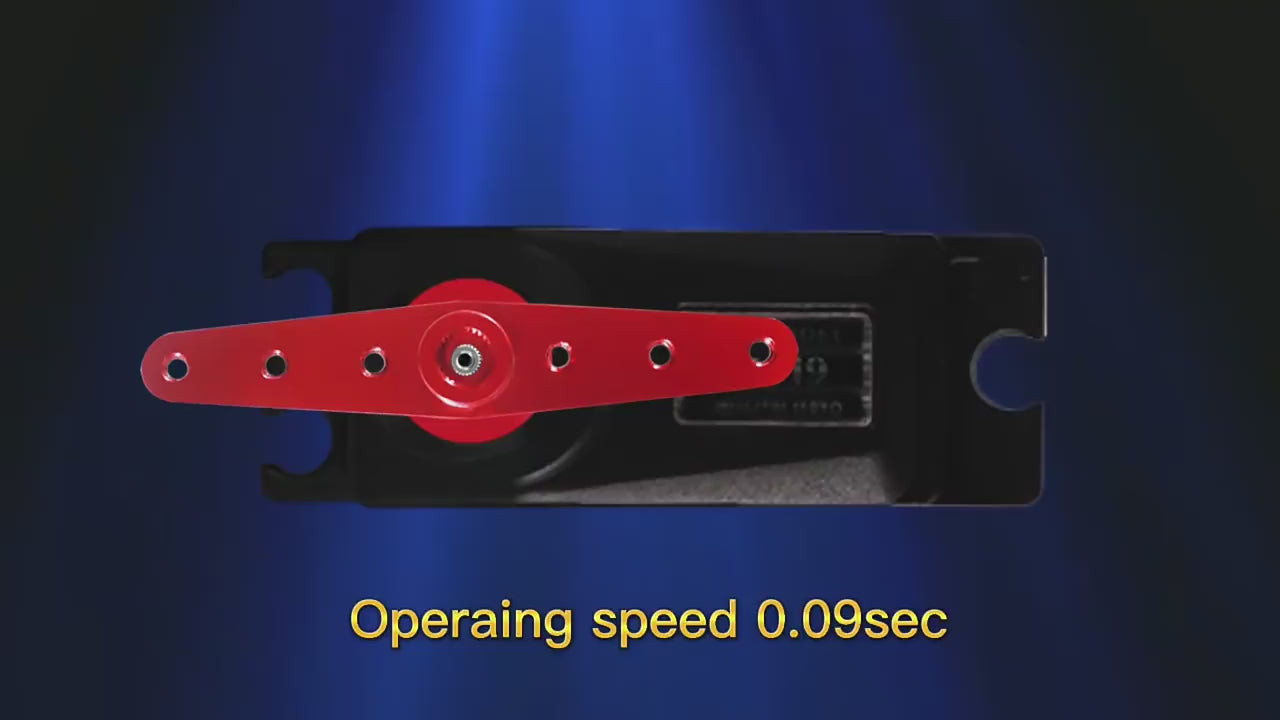

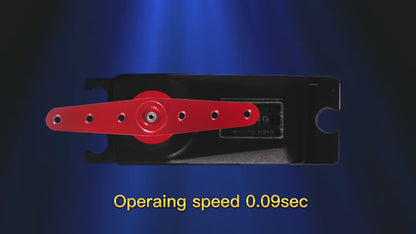

Operating Speed @ 6.0V-7.4V
|
0.13sec - 0.09sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
3.0kg.cm-3.4kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 80mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 80mA no load operating
|
|
Stall Current
|
1.2A/1.5A
|
|
Dead Band Width
|
3usec
|
|
Motor Type
|
Iron Core
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
180mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
