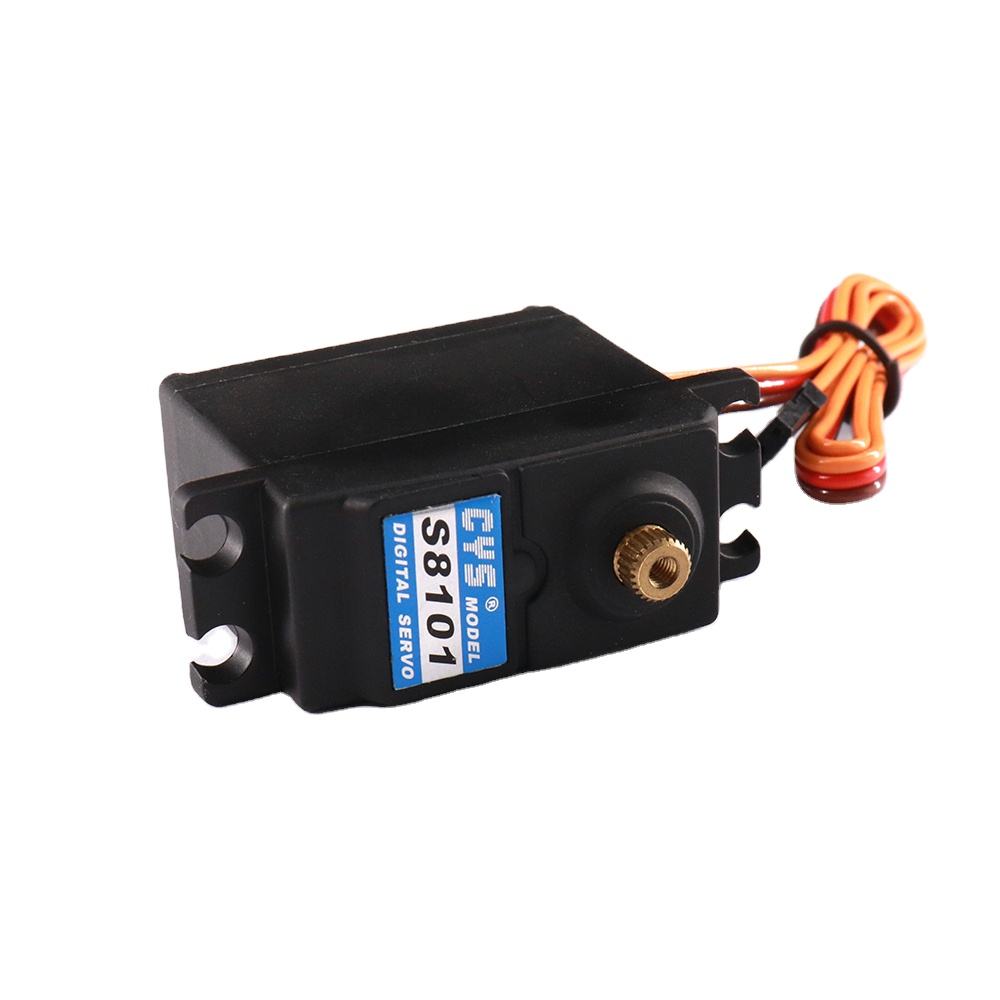

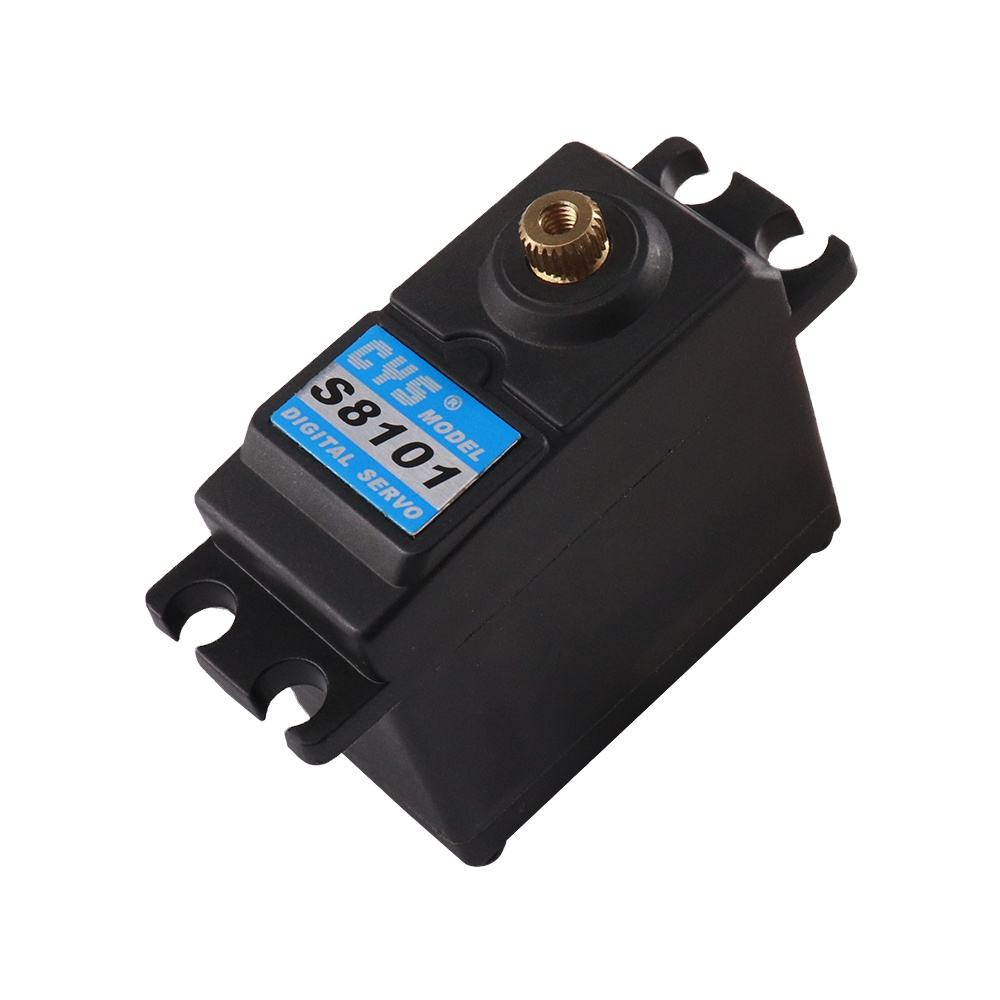

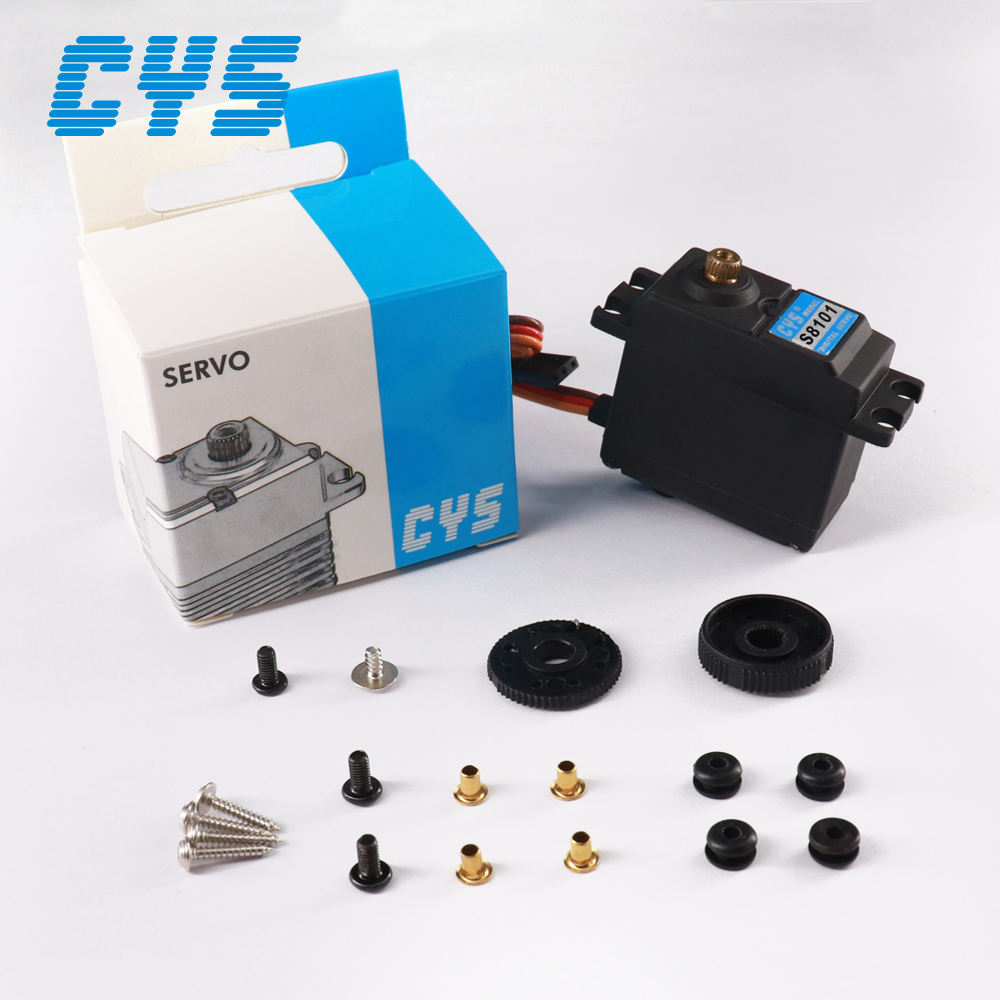

Robotics Servo CYS-S8101-02 Premium Unisex 13kg Digital RC Servo High-Speed Metal Plastic Remote Control Robot Mini 6mm Shaft Diameter Unisex RC
Robotics Servo CYS-S8101-02 Premium Unisex 13kg Digital RC Servo High-Speed Metal Plastic Remote Control Robot Mini 6mm Shaft Diameter Unisex RC
Regular price
$24.00 USD
Regular price
Sale price
$24.00 USD
|
Item NO.
|
CYS-S8101
|
|
Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
56±1g
|
|

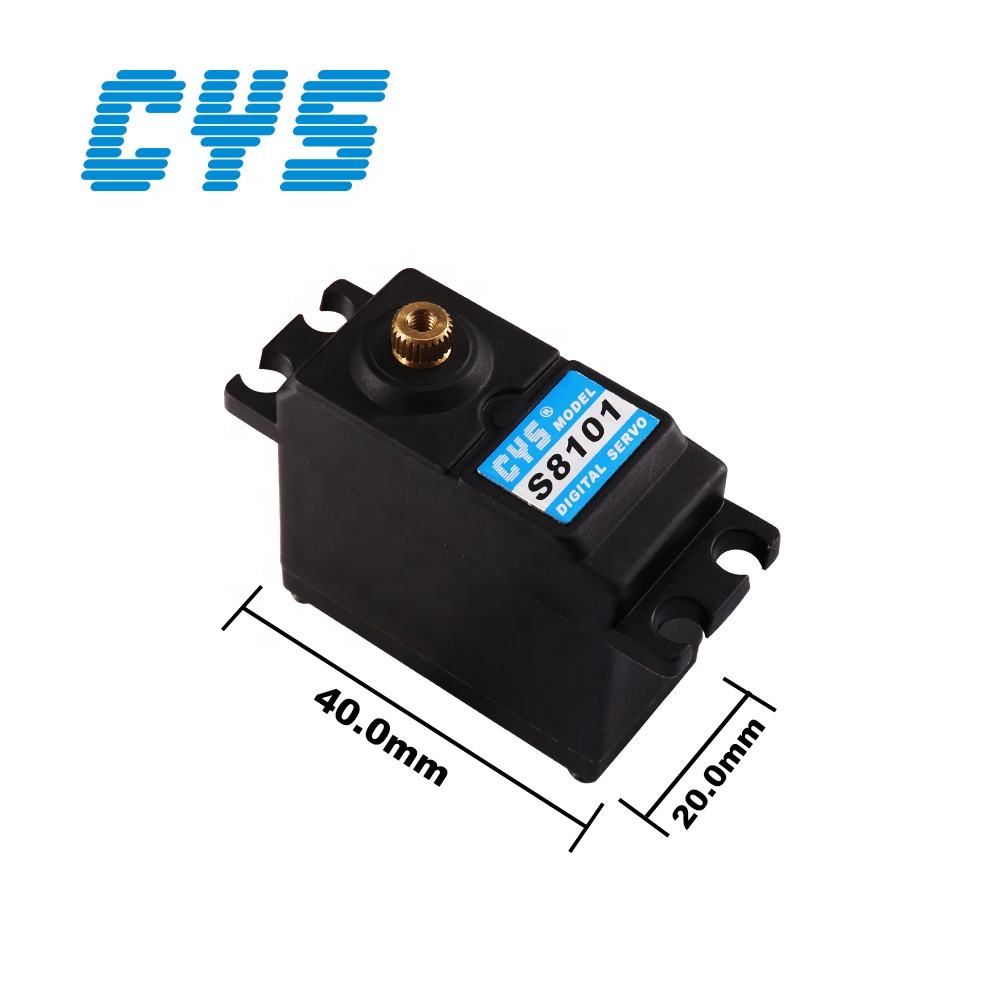

Size
|
40*20*37.6mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
(-)10 to +50 degree C
|
|
Operating Speed @ 6.0V-7.4V
|
0.16sec - 0.14sec at no load
|
|
Stall Torque @ 6.0V -7.4V
|
12kg.cm-13kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 160xmA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 200mA no load operating
|
|
Stall Current
|
2.7A/2.8A
|
|
Dead Band Width
|
3usec
|
|
Motor Type
|
Iron Core
|
|
Horn gear spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire information
|
Brown(N) Red (P) Orange(S)
|
