Robotics Servo CYS-S8102-02 Digital RC Micro Servo Motor High Torque 13kg Remote Control for Robot & Humanoid Robotics Factory Direct Sale
- Sale price
- $26.70
- Regular price
-
- Regular price
- $26.70
- Unit price
- per
-0%
Vendor: roboticu
Only
999
items in stock!
Out of stock!
Guaranteed safe checkout
Couldn't load pickup availability
Description
Description
|
Item No.
|
CYS-S8102
|
|
Control Type
|
Digital
|
|
Gear Type
|
Metal
|
|
Weight
|
54g
|
|
Size
|

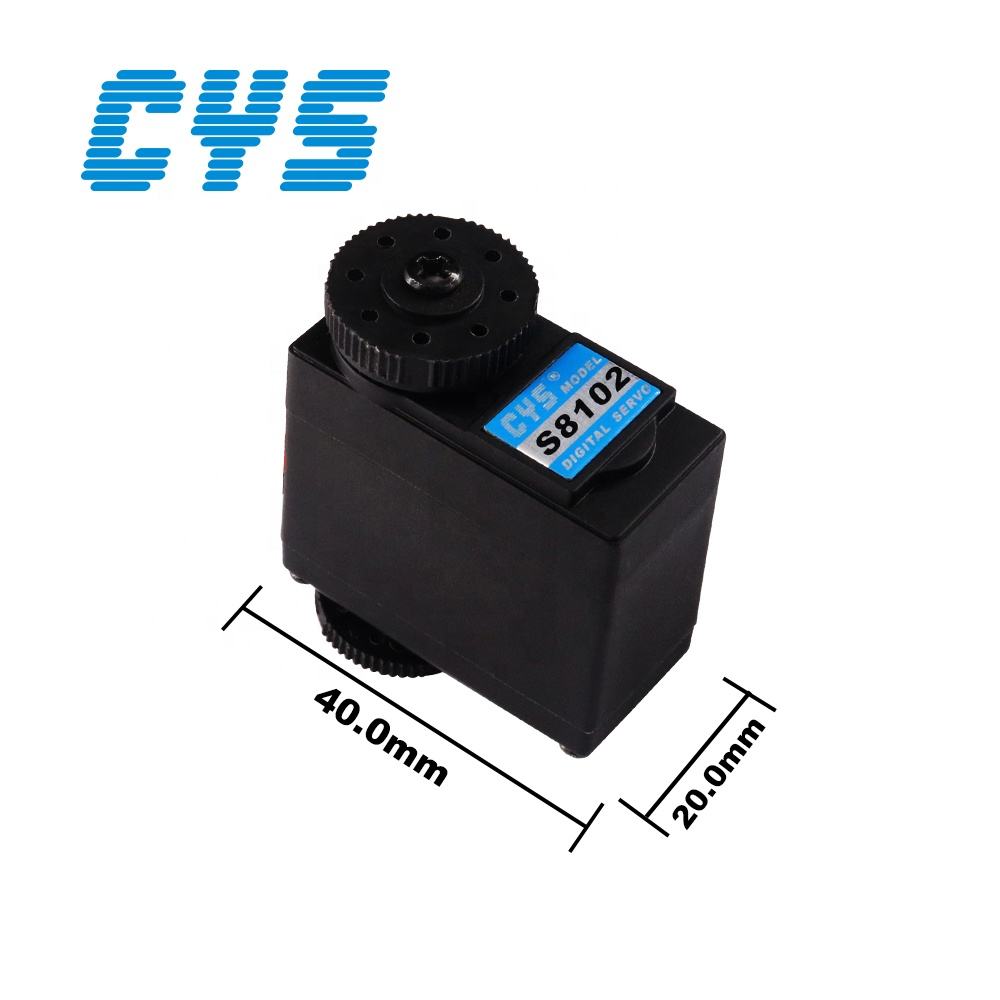

40x20x37.6mm
|
|
Control System
|
(+)Pulse Width Control 1500μsec Neutral
|
|
Operating Voltage
|
6.0V-7.4V
|
|
Operating Temperature Range
|
-10 °C ~ +50 °C
|
|
Operating Speed @ 6.0V-7.4V
|
0.16 sec/60° - 0.14 sec/60° at no load
|
|
Stall Torque @ 6.0V -7.4V
|
12.0 kg.cm - 13.0 kg.cm
|
|
Current Drain (6.0V)
|
20mA/idle and 100mA no load operating
|
|
Current Drain (7.4V)
|
20mA/idle and 120mA no load operating
|
|
Stall Current
|
2.7A/3.2A
|
|
Dead Band Width
|
3μsec
|
|
Bearing Type
|
Double Ball Bearing
|
|
Motor Type
|
Iron Core
|
|
Horn Gear Spline
|
25T
|
|
Cable/Plug
|
300mm/JR
|
|
Wire Information
|
Brown(N) Red (P) Orange(S)
|
