Regular price
$8,382.00 USD
Regular price
Sale price
$8,382.00 USD

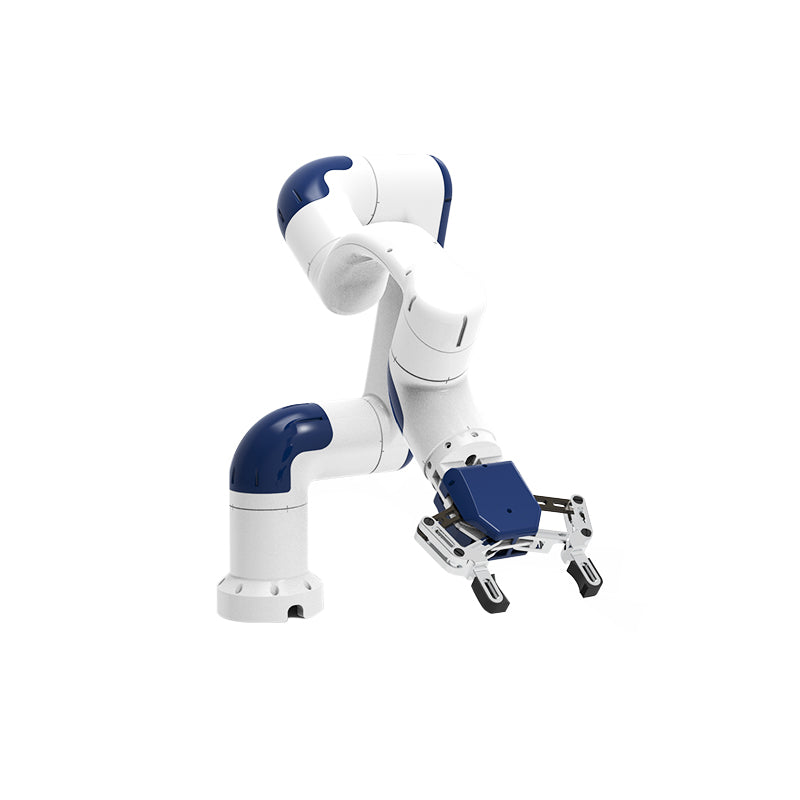

Ti5 Eblm-1 is a high-precision 6-axis collaborative robot with ±0.05mm repeatability. Safe human-robot collaboration, easy programming, and flexible deployment. Ideal for assembly, handling, inspection, and packaging applications. Compact design, IP54 rated.
| Parameter |
Specification |
| Name |
Ti5 Robot_Eblm-1 |

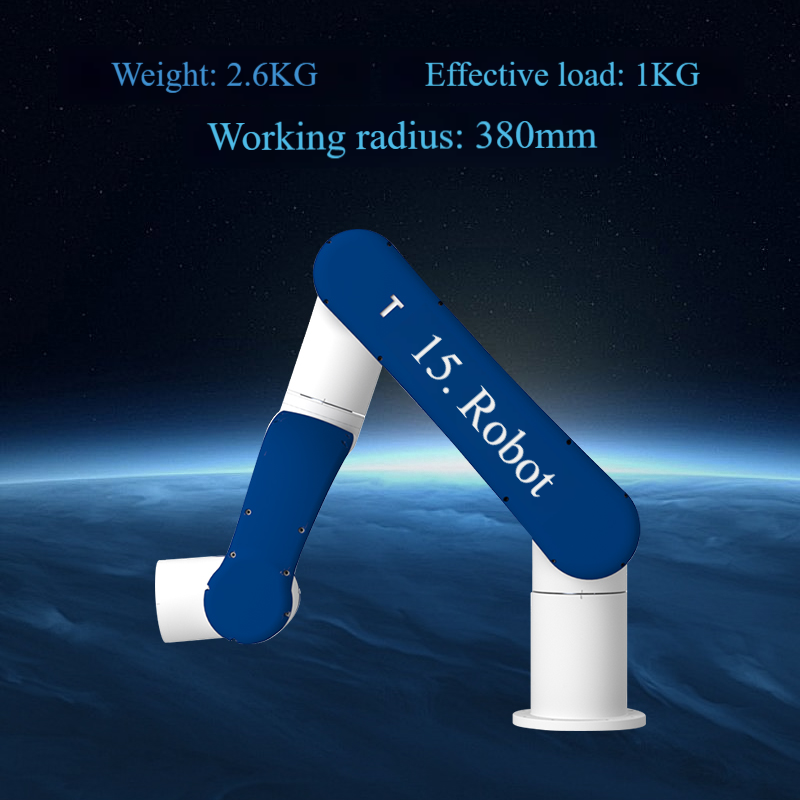

| Mass |
2.6kg |
| Payload |
1kg |

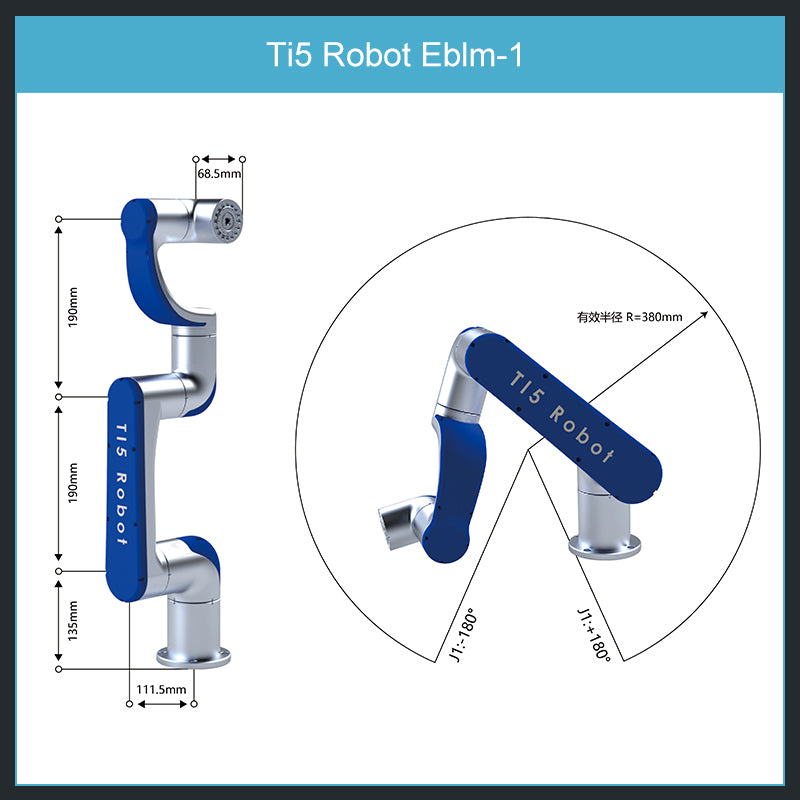

| Working Radius |
380mm |
| Repetitive Positioning Accuracy |
0.05mm |
| DOF |
6 |
| Power |
50W |
| Interface and Openness |
ROS, PYTHON, C++ |
| Power Supply Voltage Range |
28~48V |
| Joint Range |
J1(±180°), J2(-265°~-85°), J3(±150°), J4(±180°), J5(±175°), J6(±175°) |

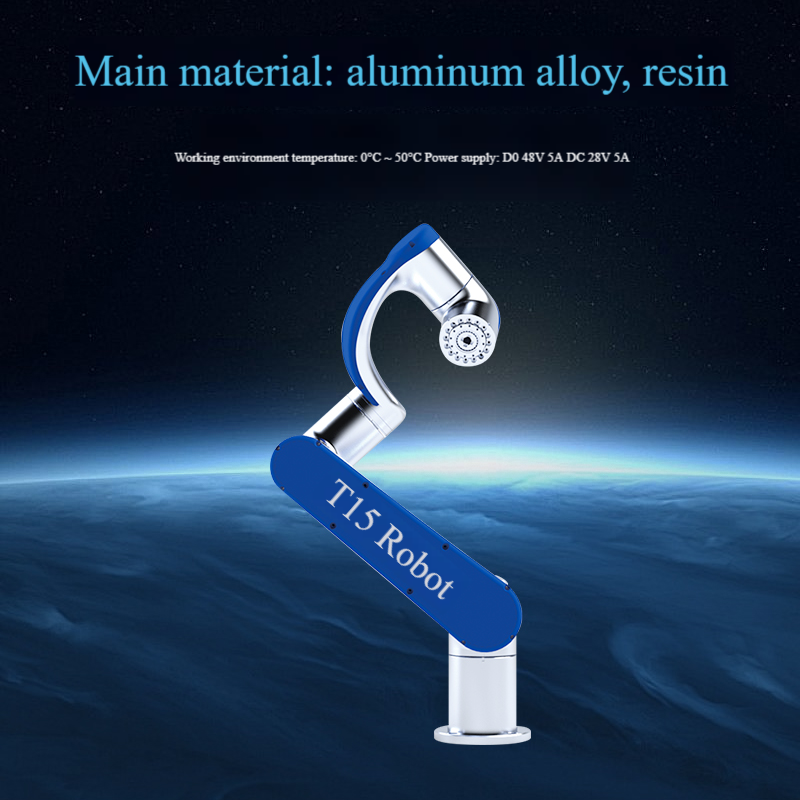

| Material |
Aluminum alloy, resin |
| Temperature Range |
0℃~50℃ |
| Power Supply |
DC 48V, 5A; DC 28V 5A |
| USB |
USB3.0*4 |
| HDMI |
HDMI2.0 |
| I/O Interface |
SPI/I2C/GPIO/UART |
