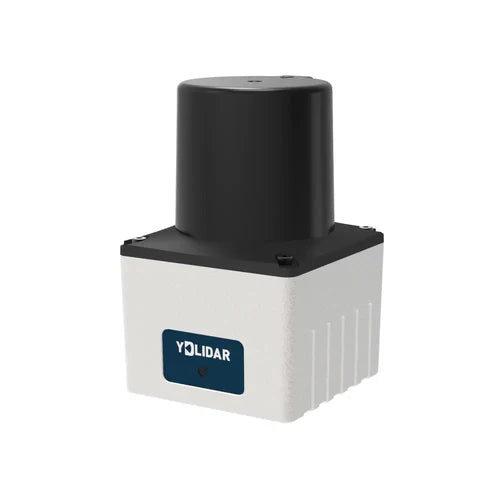

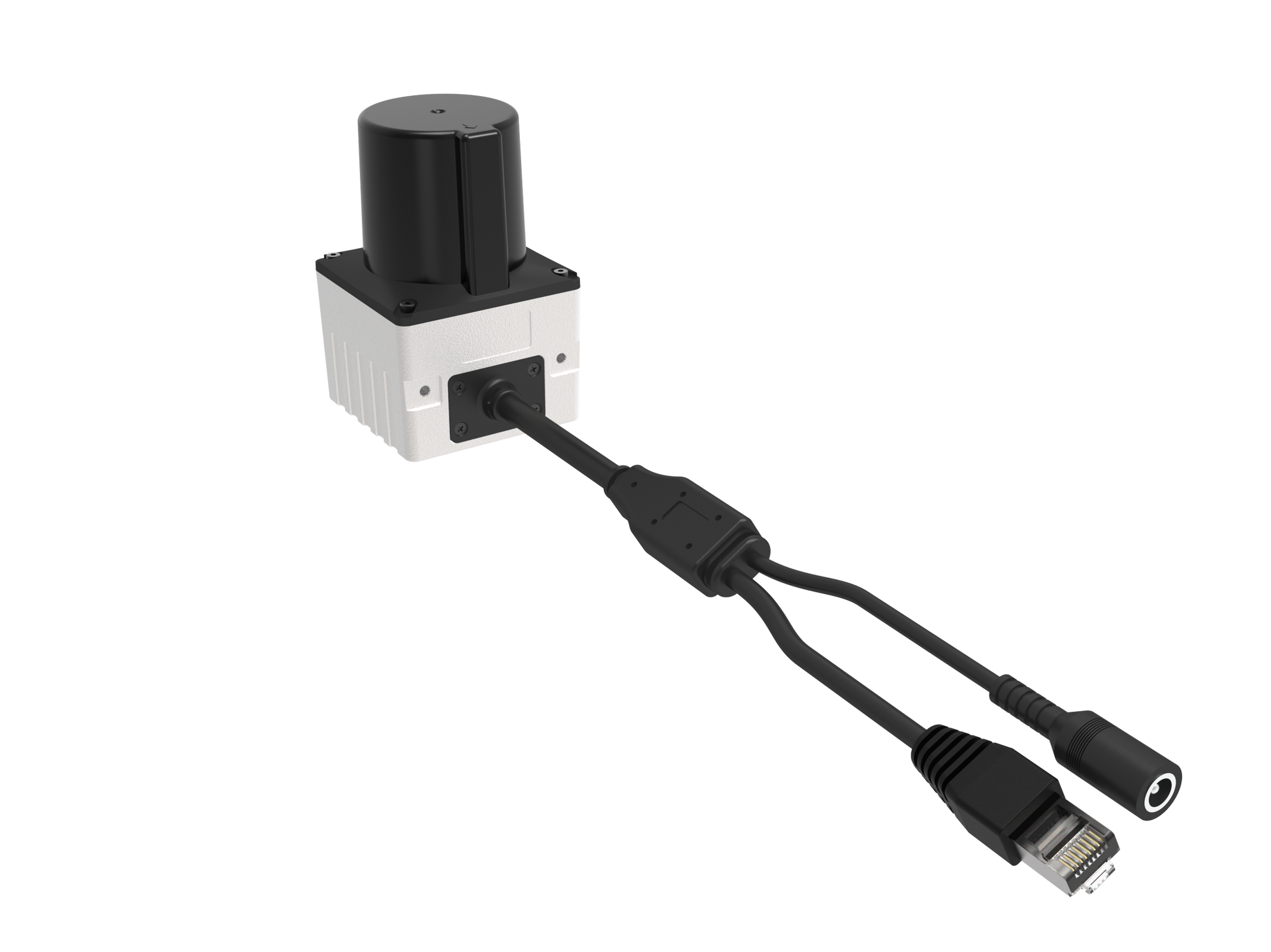

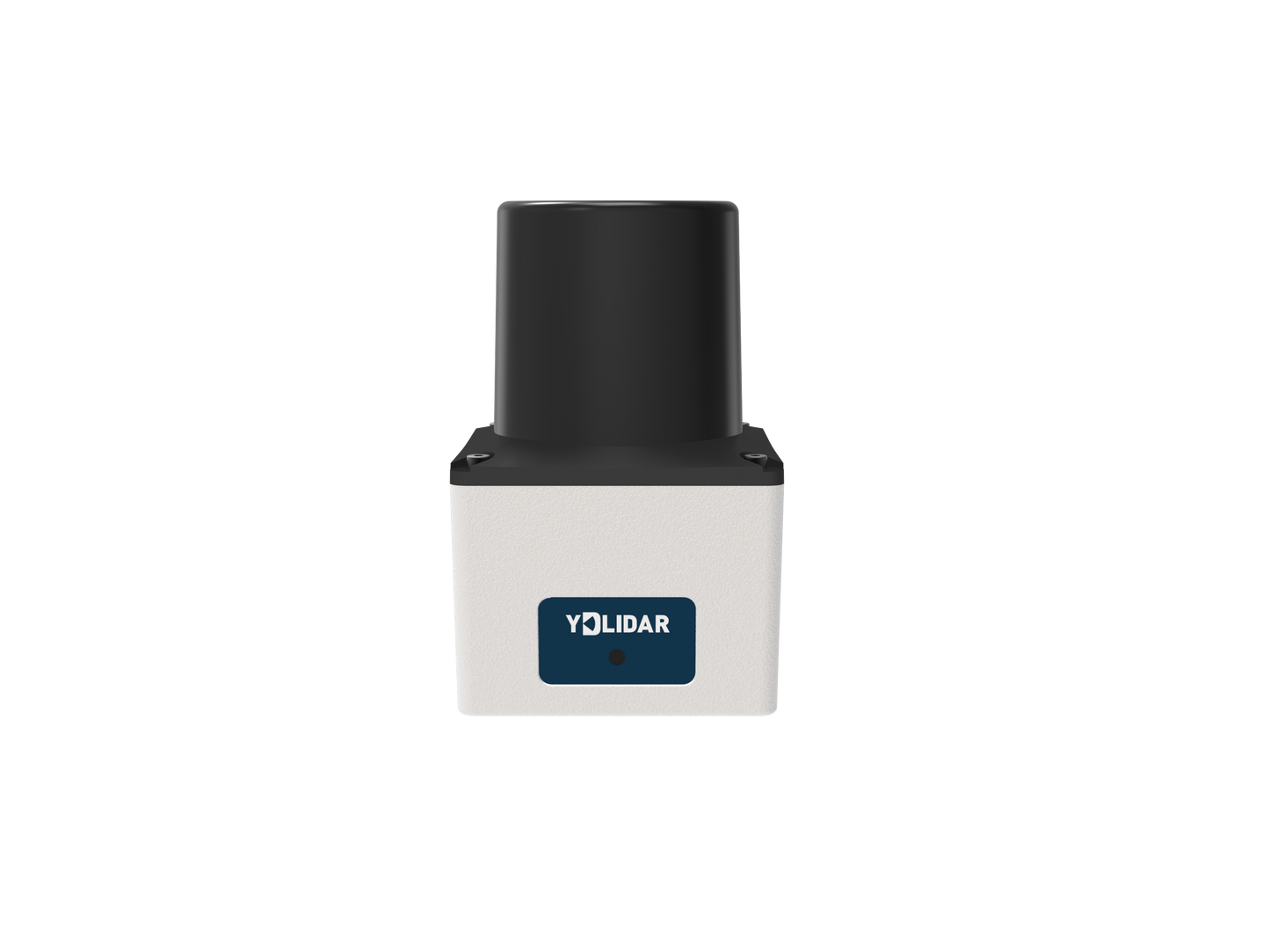

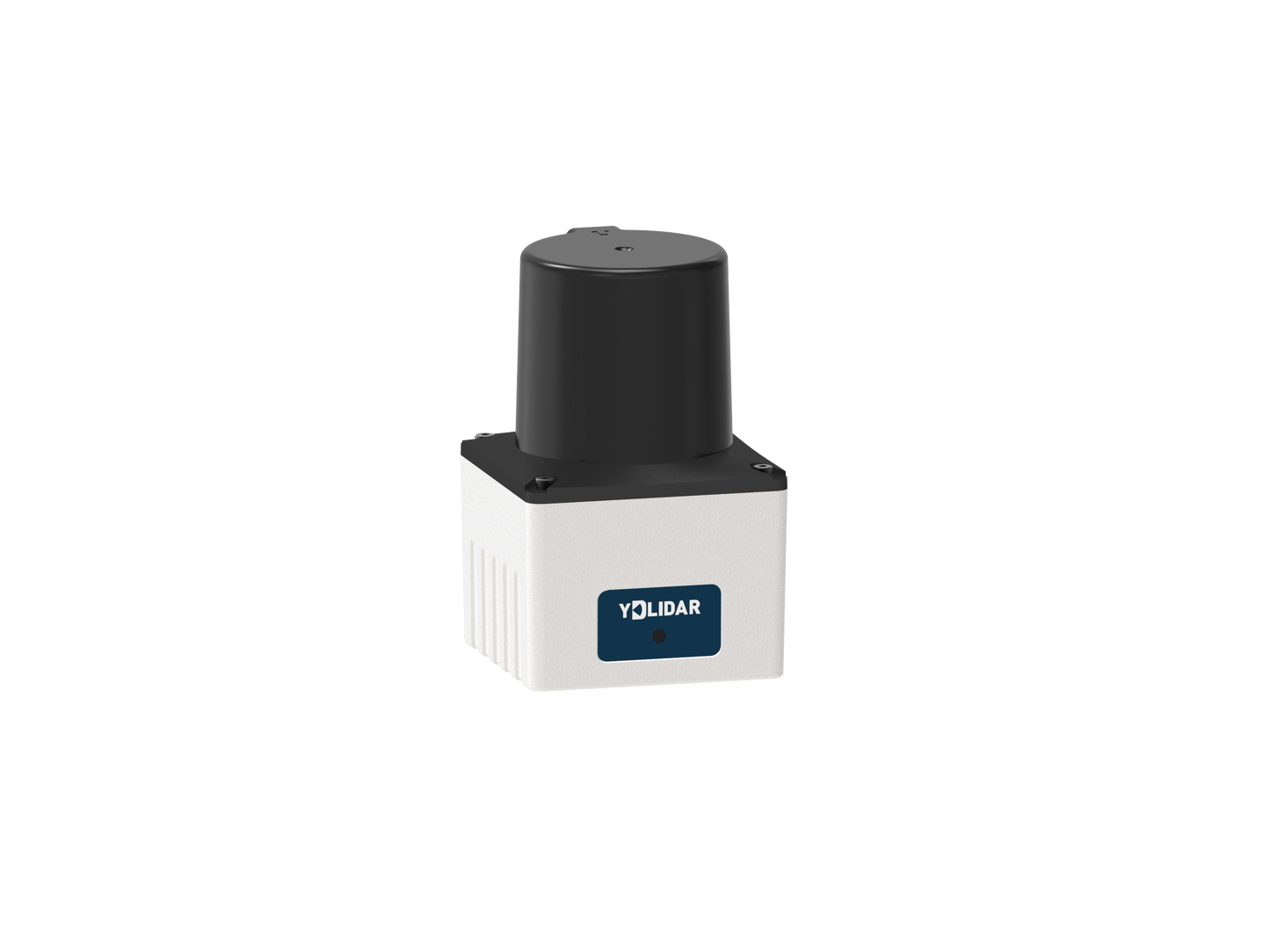

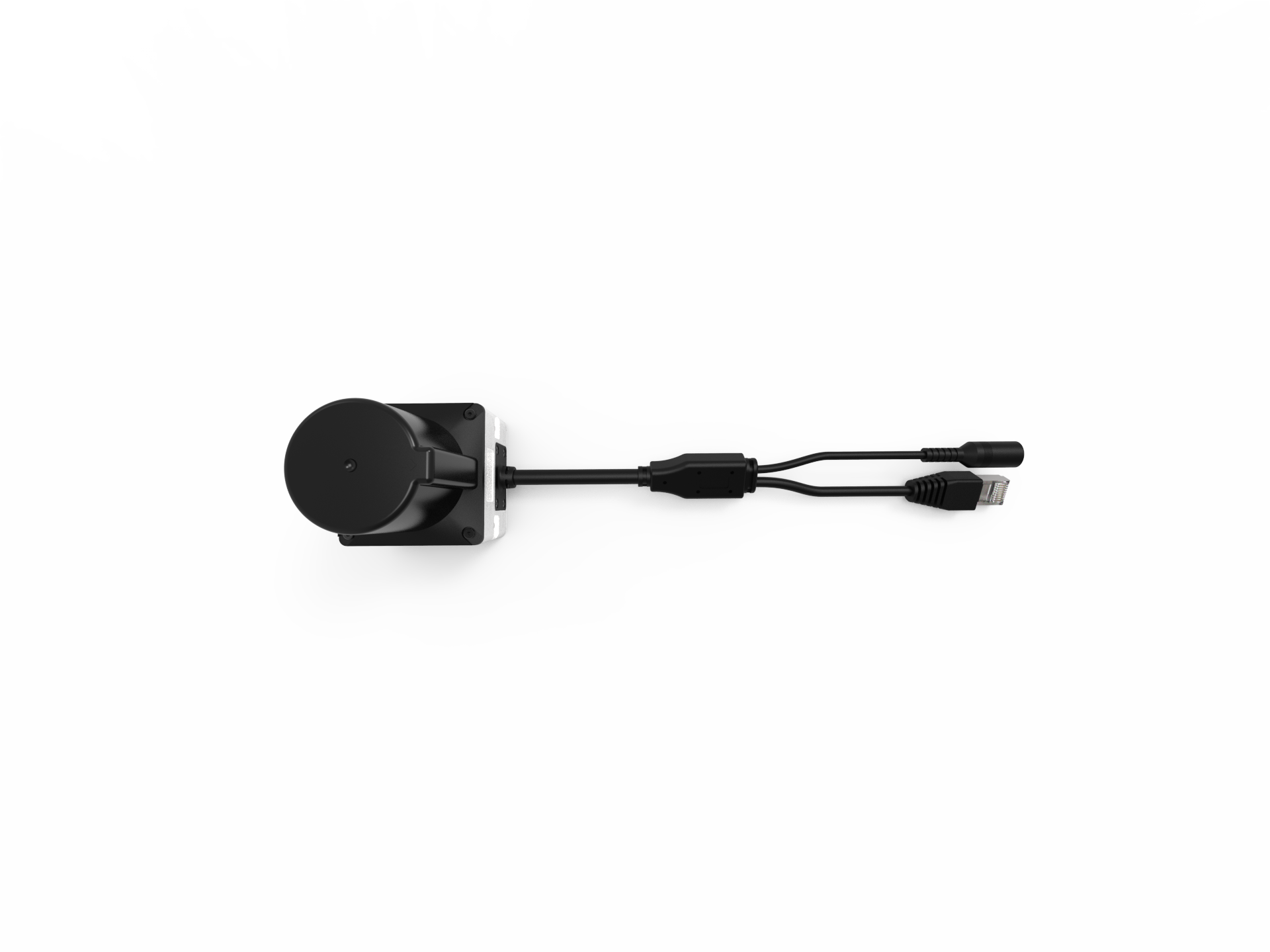

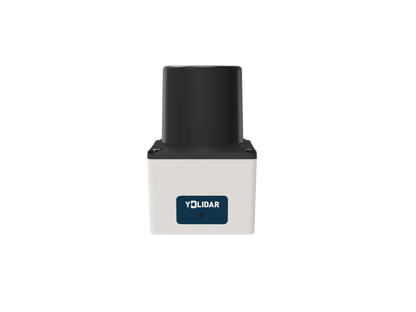

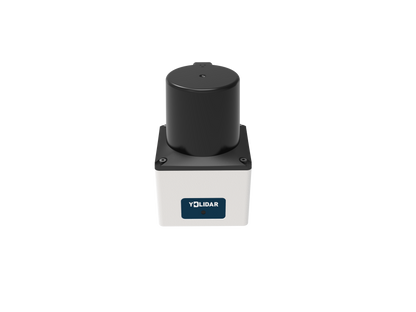

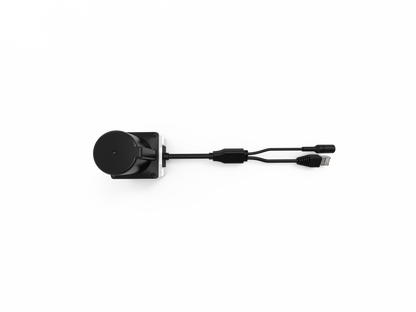

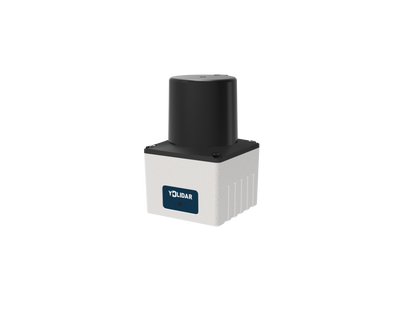

YDLIDAR TEA 2D LiDAR for Robotics & Automation – 30kHz, 30Hz, 300° FOV, IP65, 25m range

1.PRODUCT OVERVIEW

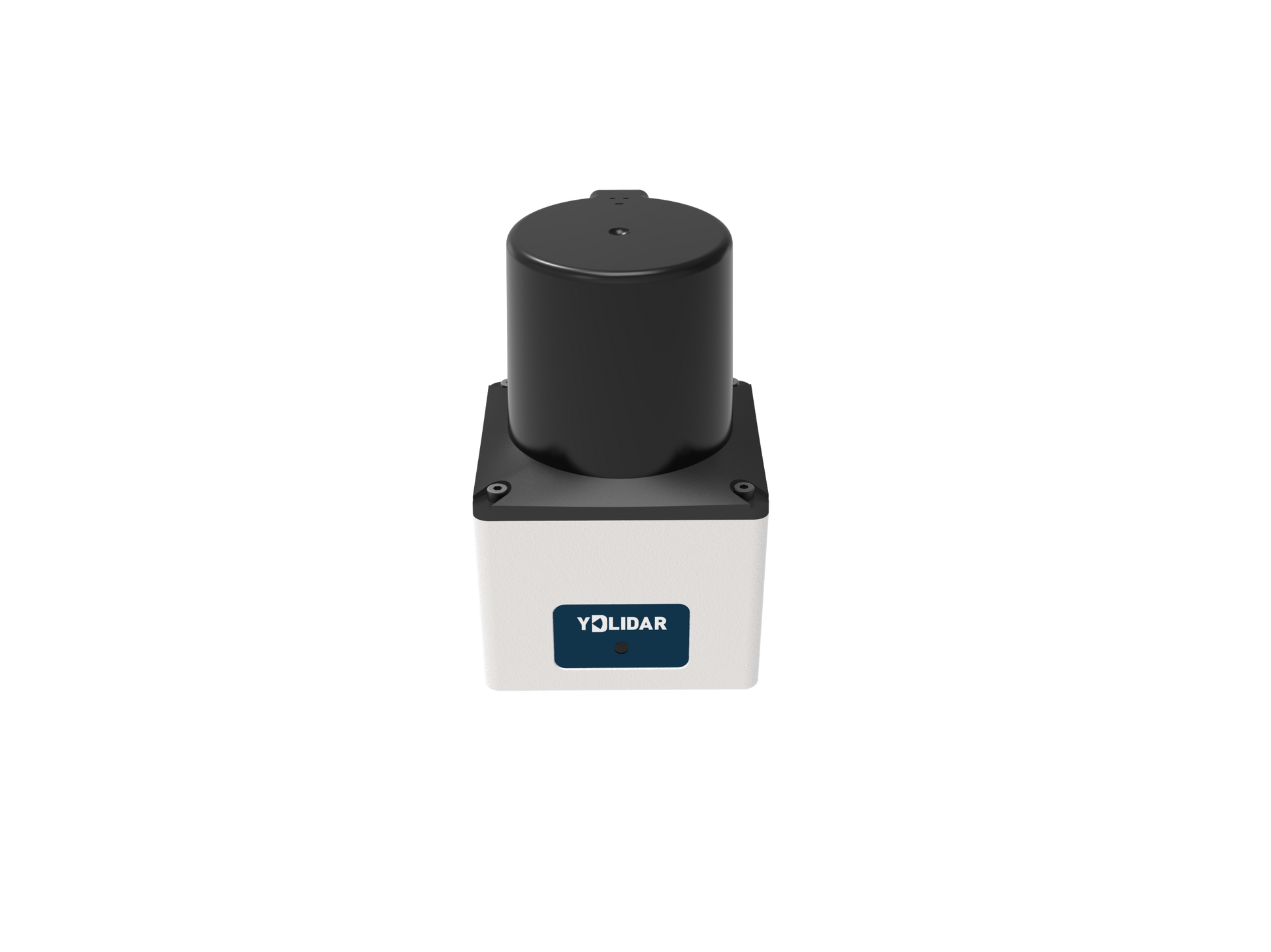

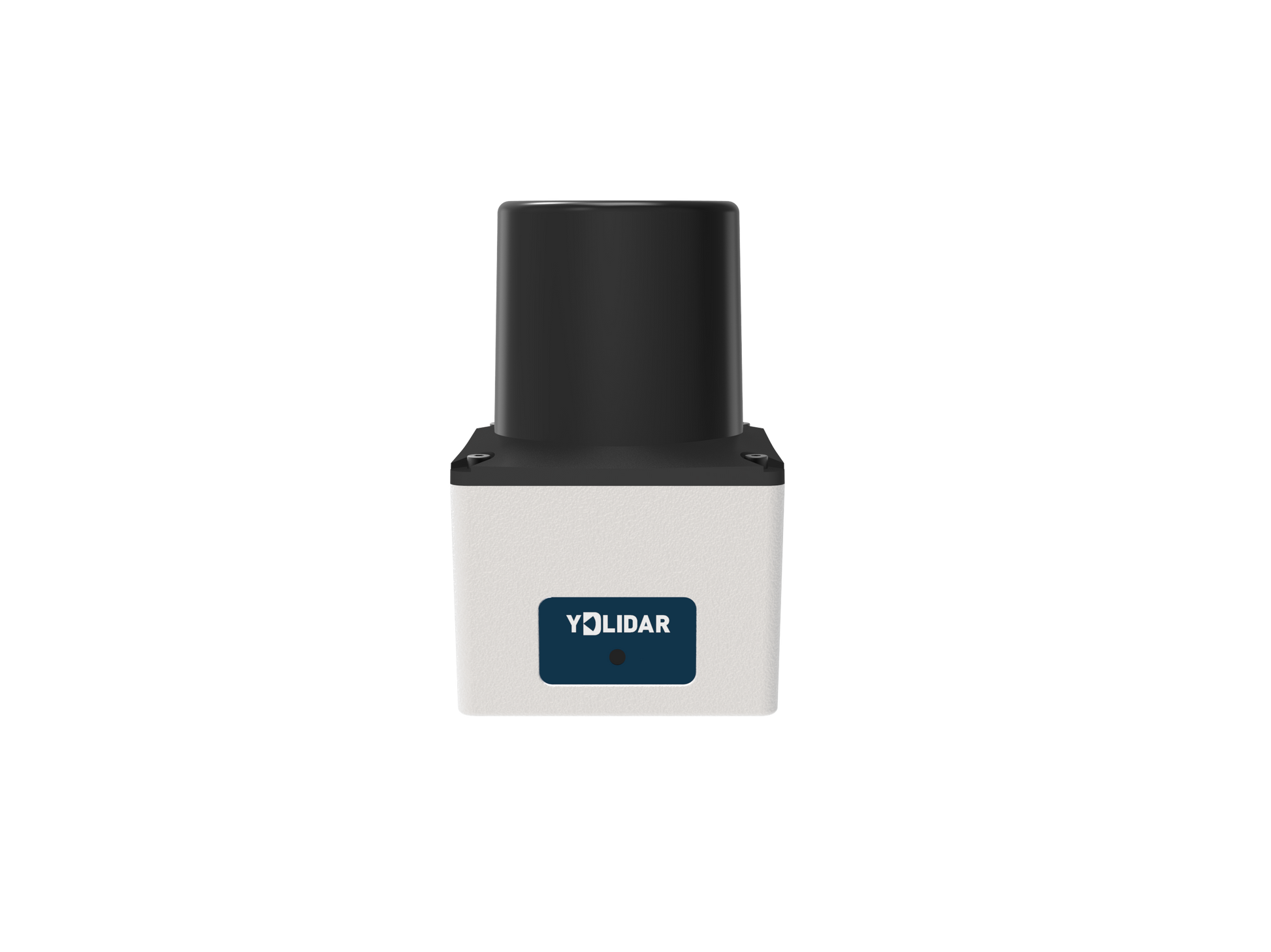

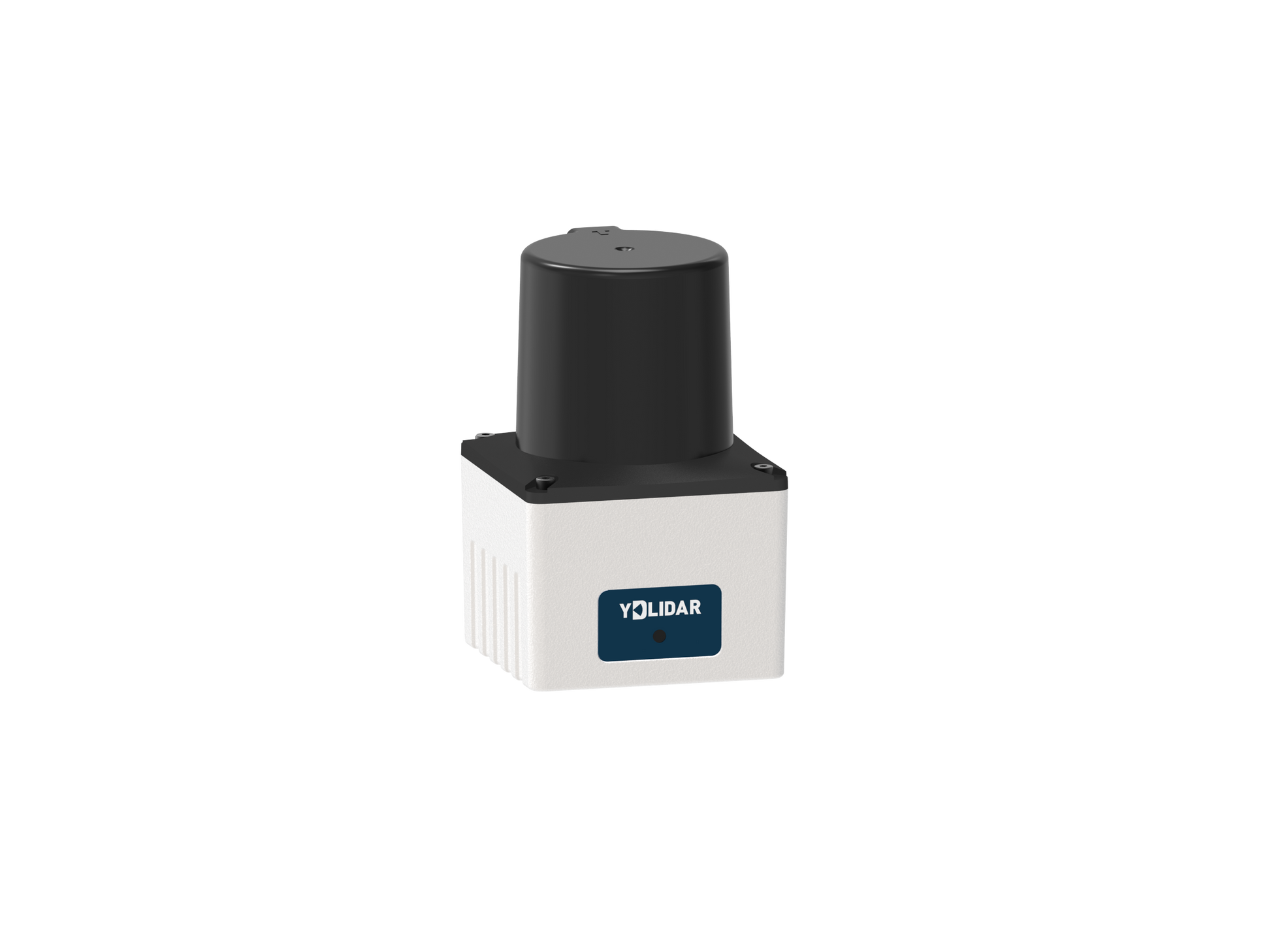

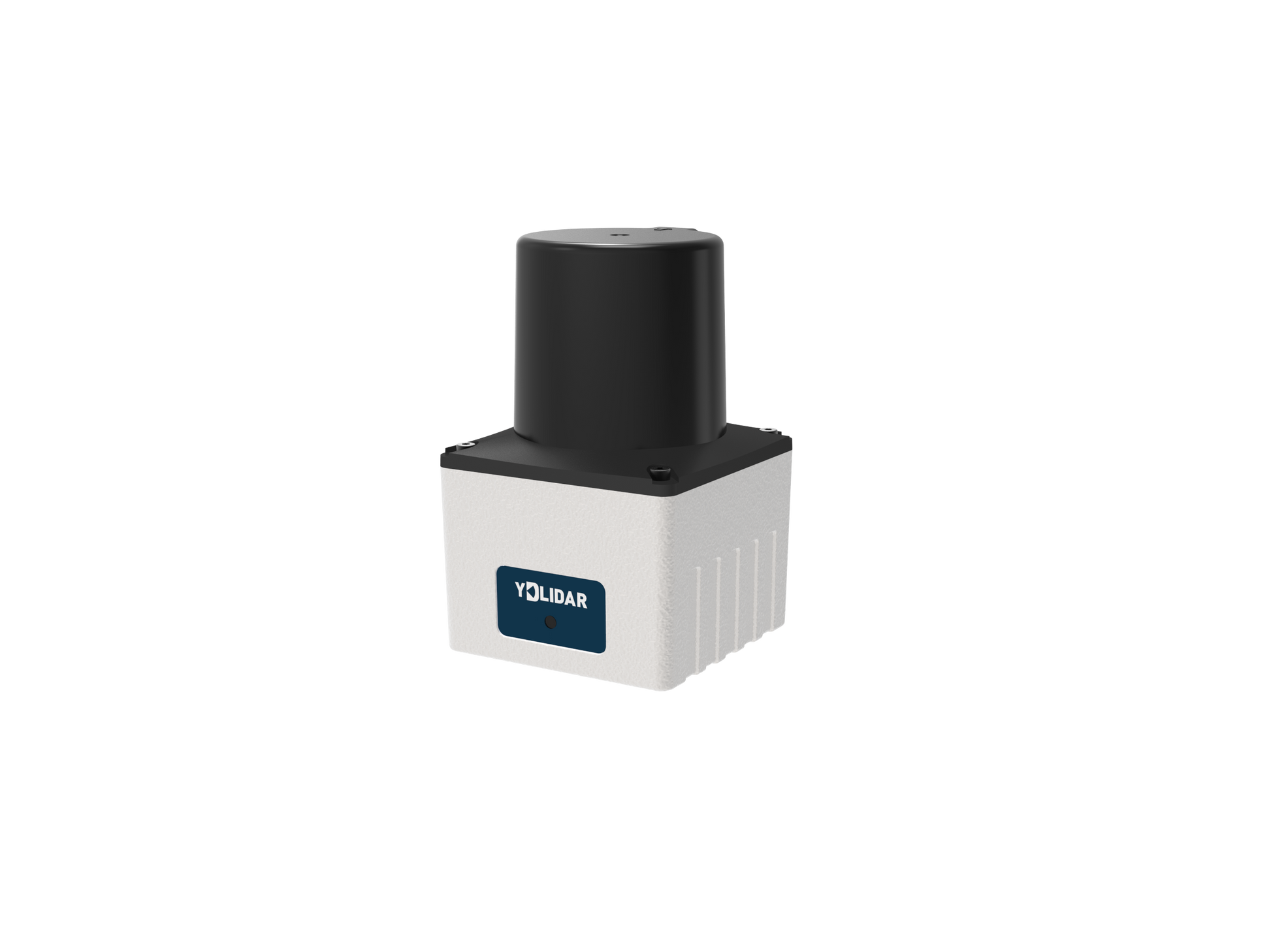

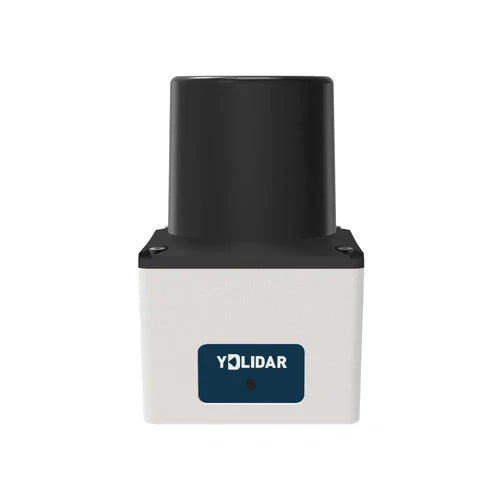

YDLIDAR TEA is a series of 2D LiDAR (hereinafter referred to as TEA) developed by EAI team.
Based on ToF principle, TEA is based on the single-line scanning design and can output 30k point
cloud data per second. It adopts 905nm infrared excitation light, with the self-developed signal
processing algorithm, to meet the requirement of outdoor application scenarios. TEA also adopts
industrial interface design to transmit point cloud data through network protocol, and the dustproof
and waterproof of the whole device reaches IP65 level. TEA structure design is compact, easy to
integrate, and provides a complete integrated development interface, widely used in robot navigation
and obstacle avoidance, environmental scanning and mapping, industrial AGV, assisted driving and
other fields.

2. Product Features
➢ High speed range and frequency range of 30kHz
➢ Ranging repeat of high precision, good consistency
➢ 300 degrees horizontal view
➢ Maximum 30Hz scanning frequency can be configured
➢ Strong resistance to ambient light interference
➢ IP65 protection level of dustproof and waterproof

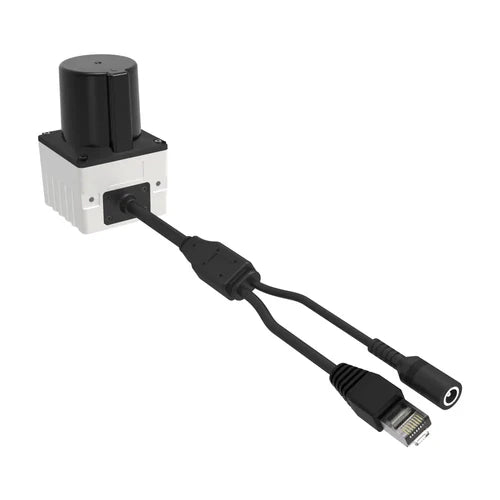

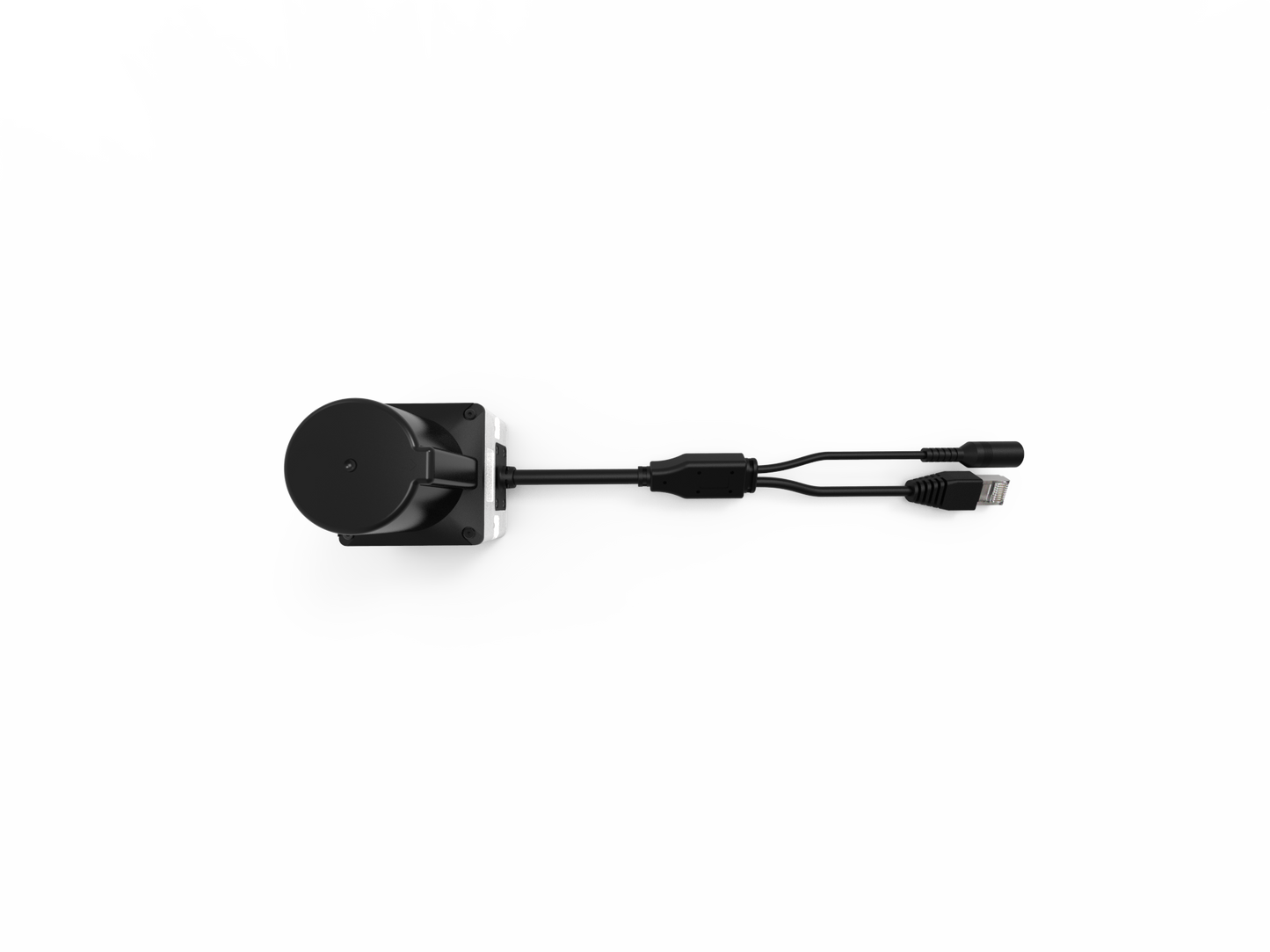

➢ 100M adaptive network interface for data transmission

3. Applications
➢ Robot navigation and obstacle avoidance
➢ Industrial automation
➢ Regional security
➢ Smart transportation
➢ Environmental scanning and 3D reconstruction
➢ Digital multimedia interaction
➢ Robot ROS teaching and research
