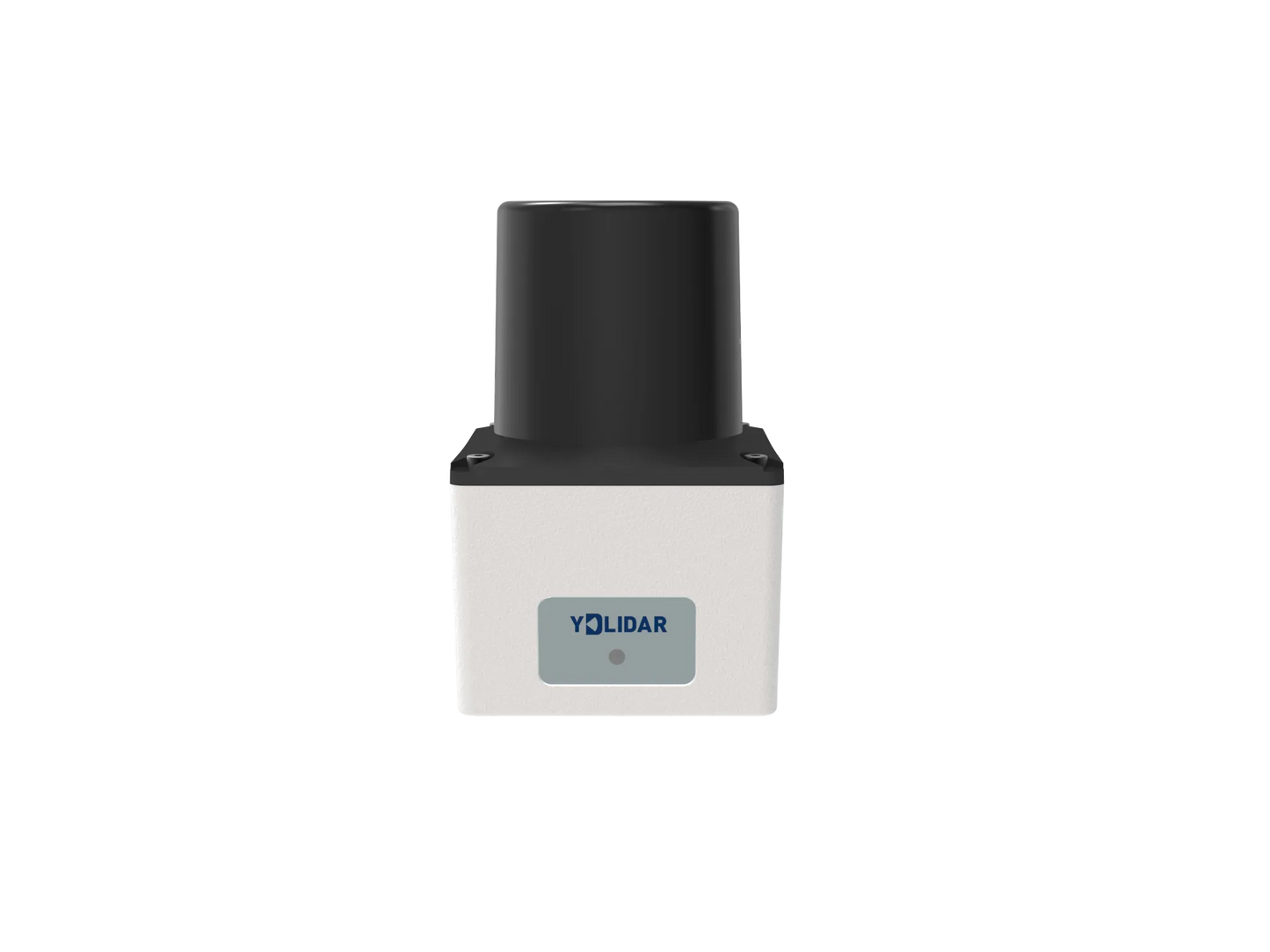

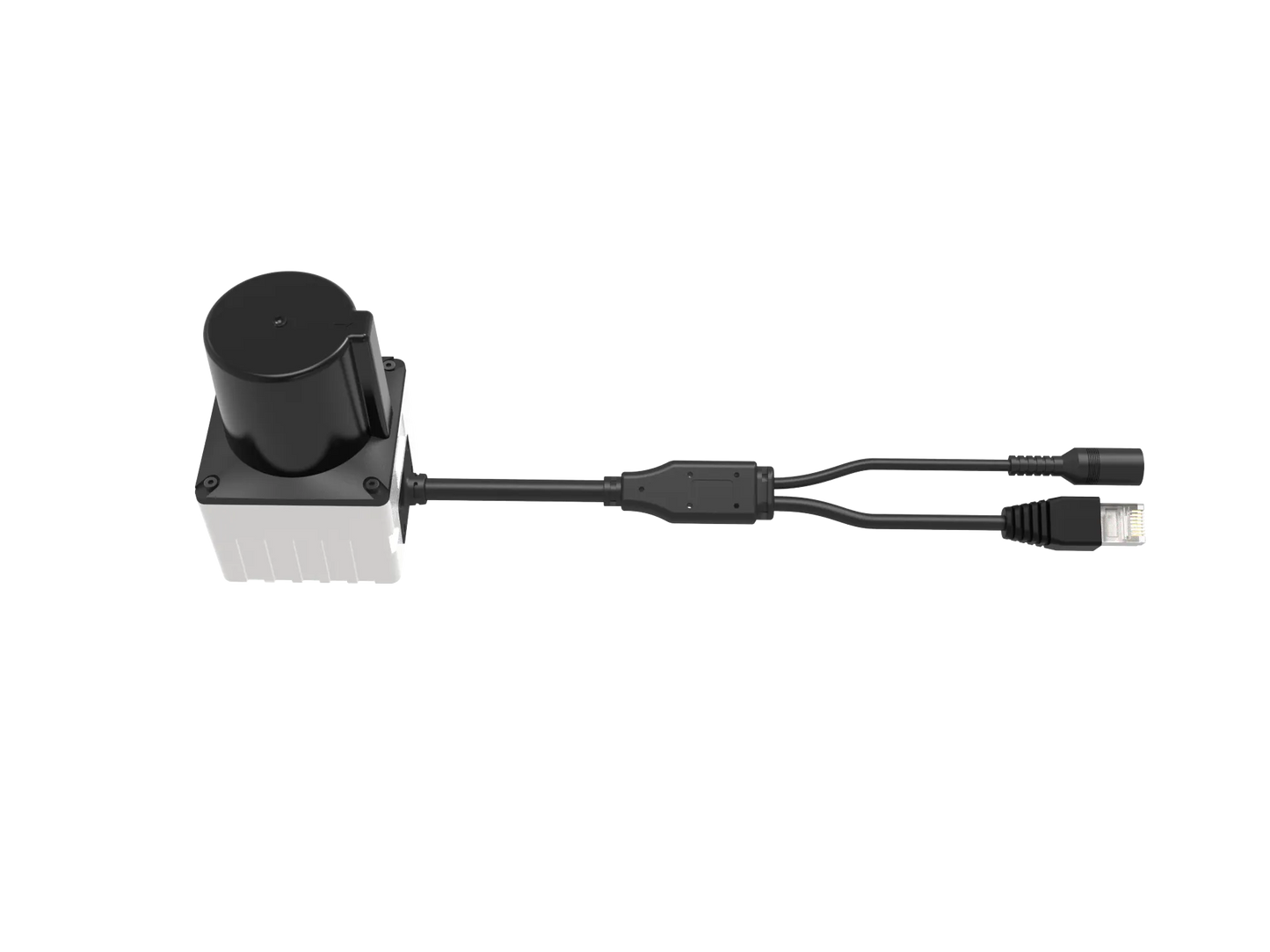

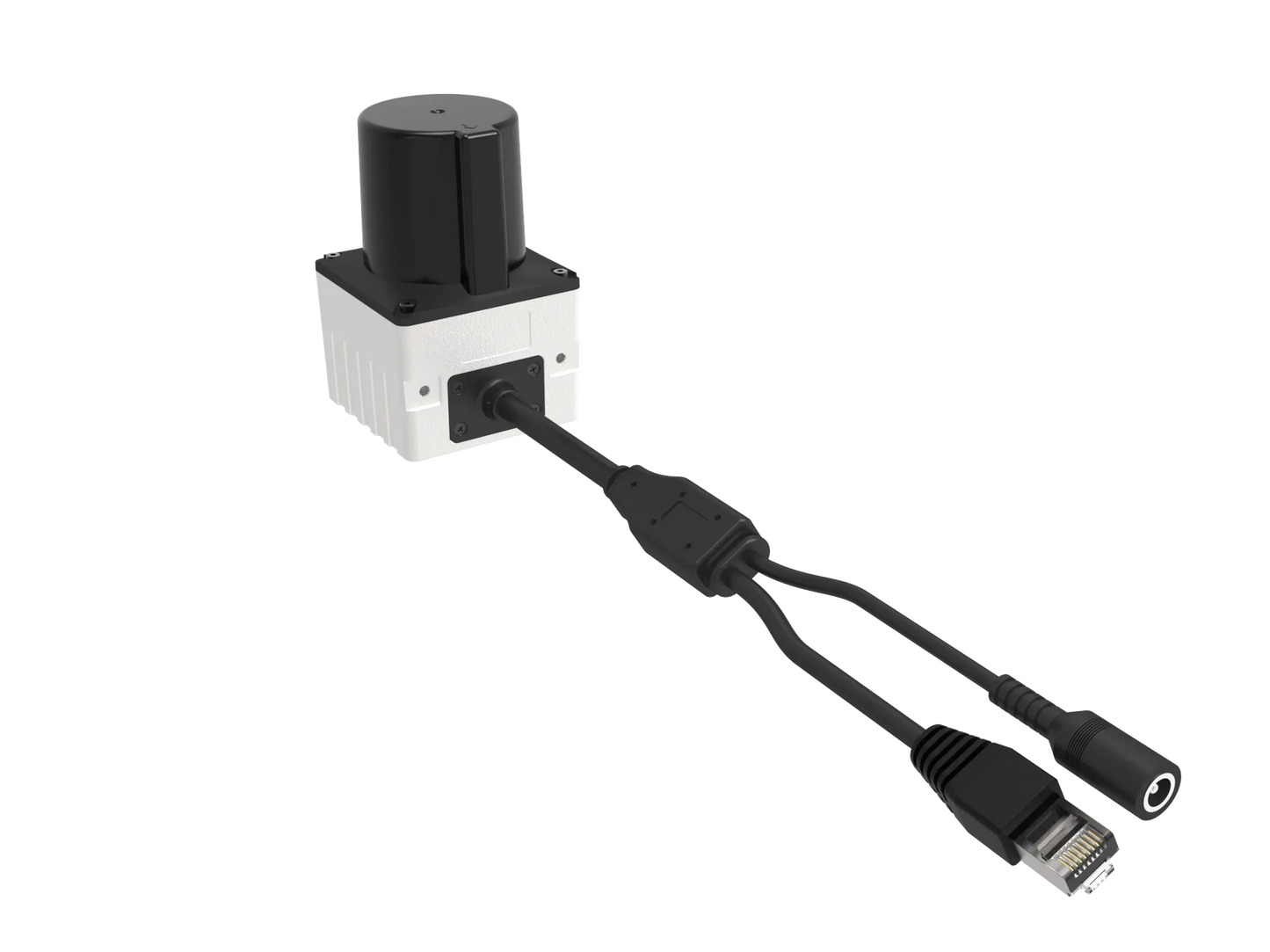

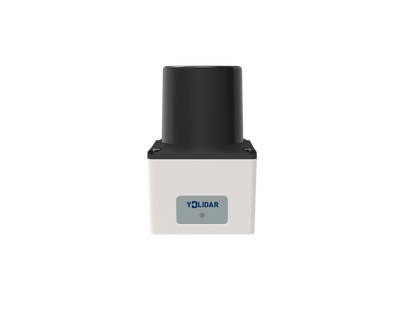

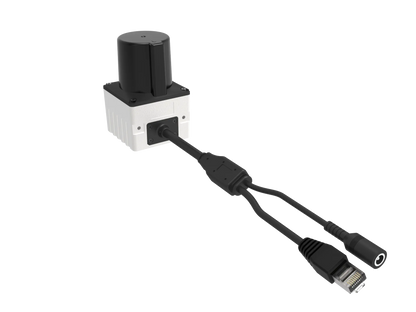

YDLIDAR TIA-H LiDAR for Robots & Automation – 300kHz, 200° FOV, IP65 Industrial Design

1.PRODUCTOVERVIEW

YDLIDAR TIA-H is a series of 2D LiDAR (hereinafter referred to as TIA-H) developed by EAI
team. Based on ToF principle, TIA-H is based on the single-line scanning design and can output 300K
high-rate point cloud data per second. It adopts 905nm infrared excitation light, with the self-developed
signal processing algorithm, to meet the requirement of outdoor application scenarios; With its own
software, it can be used in entertainment scenes such as large-screen interaction. TIA-H also adopts
industrial interface design to transmit point cloud data through network protocol, and the dustproof
and waterproof of the whole device reaches IP65 level. TIA-H structure design is compact, easy to
integrate, and provides a complete integrated development interface, widely used in robot navigation
and obstacle avoidance, environmental scanning and mapping, industrial AGV, assisted driving and
other fields.

2. Product Features
➢ High speed range and frequency range of 300KHz
➢ Ranging repeat of high precision, good consistency
➢ 200 degrees horizontal view
➢ Maximum 100/150 Hz scanning frequency can be configured
➢ Strong resistance to ambient light interference
➢ IP65 protection level of dustproof and waterproof
➢ 100M adaptive network interface for data transmission

3.Applications
➢ Large-screen interaction
➢ Robot navigation and obstacle avoidance
➢ Industrial automation
➢ Regional security
➢ Smart transportation
➢ Environmental scanning and 3D reconstruction
➢ Digital multimedia interaction
➢ Robot ROS teaching and research
